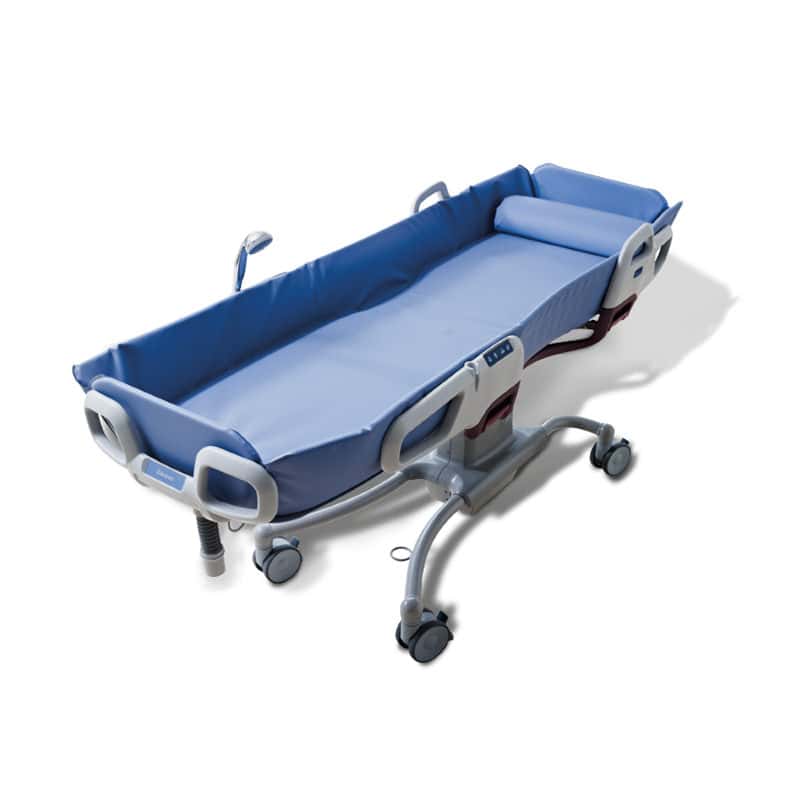

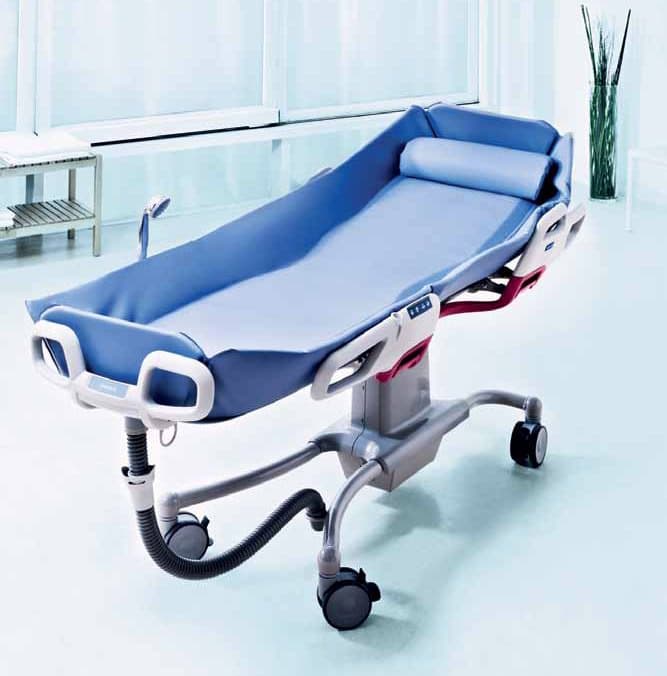

ArjoHuntleigh Carevo shower trolley

ArjoHuntleigh Carevo shower trolley is an innovative hygiene solution for immobile patients. Carevo has new design and intuitive interface which provides an easy-to-maneuver and easy-to-use hygiene solution for both caregivers and immobile patients.

Regular Price: $7,748.00

Special Price $7,593.00

Hygiene product - "no returns will be accepted, no exceptions"



ArjoHuntleigh Carevo shower trolley provides a comfortable and dignified hygiene experience for dependent residents/patients, and a safe and efficient working solution for caregivers. Carevo shower trolley has electrically operated height adjustment with built-in soft start function and also (optional) electrically operated back support adjustment with built-in soft start function.

Carevo shower trolley - unique features & benefits;

Pressure relieving Advanced Flexi Zone provides improved comfort for your patients and easier handling and access for your caregivers.

Simple, intuitive and efficient Integrated Control Panel is accessible to caregivers at all times

Comfort Handles provide support for patients and an enhanced sense of security while promoting participation and mobility.

The Innovative Ergo-Access Area allows caregivers to improve workflow while working closer to their patients and reducing static load.

Better working postures are observed with use of Carevo;

Carevo shower trolley incorporates a new design compared to the traditional height-adjustable shower trolleys, the Carevo has higher side supports, indented curves on the long sides, handles, arrow-shaped ends, and a mattress with a flexible mid-section. Working with the Carevo leads to less postural stress on the musculoskeletal system of the caregiver, compared to the traditional height adjustable shower trolleys.

The head end of Carevo can be lifted, enabling hair washing or other activities in this area to be performed in a more ergonomic posture. The soft part in the middle of the trolley mattress of Carevo (the comfort zone) is positioned where the patient is heaviest, which prevents sliding down the trolley, and rotating is made easier.

  • Soft head pillow
  • Low battery buzzer
  • Product weight 181 lbs.
  • Stretcher with gentle slope for water run off
  • Integrated comfort grip for residents/patients
  • Flexizone for improved resident/patient comfort
  • Split drainage hose that enables two drainage hose lengths
  • Folding safety side supports with width adjustment function
  • Soft mattress that is easy to remove, with recessed run off channels and side reinforcements
  • 5” castors
  • Drain plug
  • Emergency stop
  • Dual drainage holders
  • Brakes on all four castors
  • Three integrated control panels
  • Integrated shower handle holders
  • Double safety side support catches
  • Ergo-access area for good ergonomics


Additional Info

Model BAC1101-01
Brand ArjoHuntleigh Homecare
Technical Specifications
ArjoHuntleigh Carevo shower trolley
Max. total load (SWL) (patient + water weight) 440 lbs.
Max. patient weight 400 lbs.
Product weight 181 lbs.
Lifting stroke 13¾"
Min. lifting height (from floor to patient platform) 23¾"
Max. lifting height (from floor to patient platform) 37¾"
Width (stretcher) 23"
Total width (incl. side supports in inner position) 29¾"
Total width (incl. side supports in outer position) 35"
Inner length (inside the mattress at the bottom) 74¾"
Total length (incl. head & foot panel) 79"
Length of chassis 47¾"
Width of chassis 27½"
Height of chassis (over castors) 8"
Chassis clearance (from floor to bottom of chassis) 6"
Max. back support angle 15"
Stretcher inclination 1"
Drainage hose length 39.37"
Drainage hose diameter 1.57"
Battery type NiMH
Battery voltage 24 V DC
Battery capacity 2,5 Ah
Motor power actuator raise/lower 216 VA
Motor power actuator adjustable back support 72 VA
Lifting time stretcher - no load (full stroke) 23 ±2 s
Lifting time stretcher - Max. load (full stroke) 30 ±4 s
Lowering time stretcher - no load (full stroke) 20 ±2 s
Lowering time stretcher - Max. load (full stroke) 20 ±4 s
