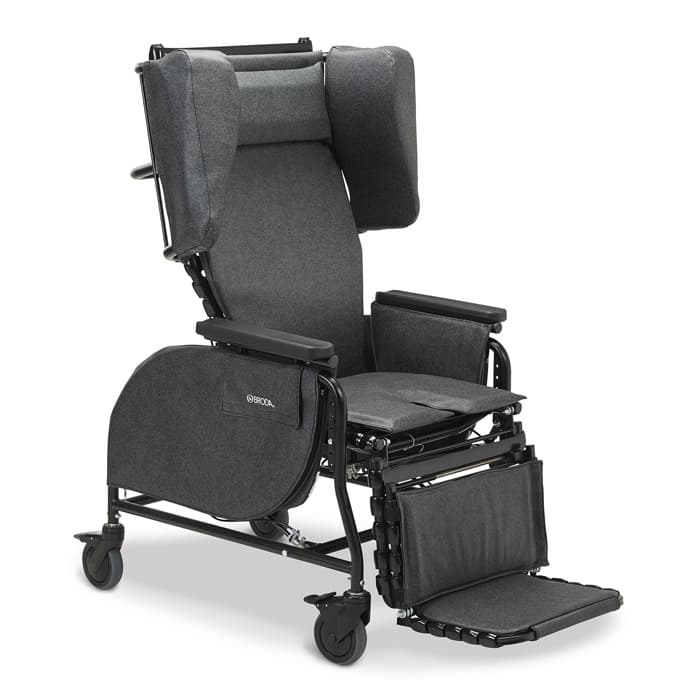

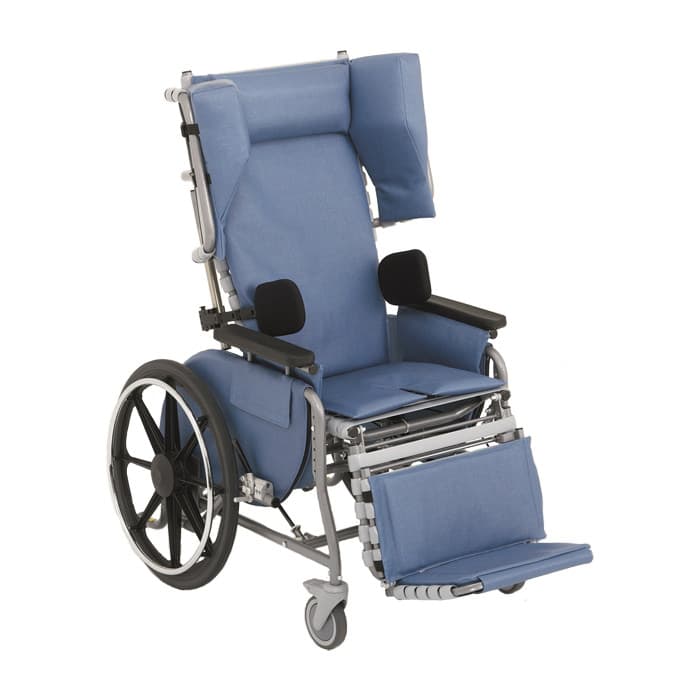

Broda Midline Positioning Wheelchair
Features
Broda Midline Positioning Wheelchair
Broda Midline positioning wheelchair is a full-positioning chair that offers great comfort and adjustment for people who need long-term assistance. The unique comfort tension seating system in the midline tilt recliner delivers pressure redistribution and air flow for greater sitting comfort and support.
With up to 38° of infinitely adjustable seat tilt and up to 90° of endlessly adjustable back recline, as well as trendelenburg positioning, the midline positioning wheelchair provides safe and comfortable placement without the necessity of restraints. The front pivot seat tilt of the Broda midline recliner helps to preserve the client's line of vision while tilted, allowing for socializing and improving quality of life. The adjustable seat height of the midline reclining mechanism allows it to fit a variety of needs.
Features:
- Unique Comfort Tension Seating® system provides pressure redistribution and airflow for increased comfort and support
- Tilt and recline offer safe positioning without the use of restraints, including Trendelenburg Position
- Height-adjustable arms provide a custom fit
- Adjustable, removable lateral shoulder supports provide exceptional positioning
- Flip-down foot supports with angle-adjustable footplates
- The 16-gauge, powder-coated, tubular steel frame is built to outlast any other wheelchair
Midline Positioning Wheelchair Comes Standard With:
Includes:
- Comfort Tension Seating®
- 2 x 20" Rear Mag Wheels
- Adjustable Seat Surface Height
- 2 x 5" Total Lock Caster Wheels
- Height Adjustable Arm Supports
- 350 lbs. Maximum Occupant Weight
- Tubular Steel, Powder Coated Frame
- Up to 38° Infinitely Adjustable Seat Tilt
- Angle Adjustable, Articulating Lower Leg Support
- Up to 90° Infinitely Adjustable Back Support Recline
Standard padding includes:
- Neckrest pad
- Shoulder bolsters
- Calf and sole pads
- Upper and lower side pads
- Seat and back pads with terry cloth or vinyl covers
Wheelchair User Benefits:
- Provides therapeutic pressure relief, aiding in the treatment of conditions such as pressure ulcers, pressure injuries, edema, and postural deviations
- Promotes pressure redistribution and airflow for increased comfort and support
- Provides exceptional positioning and support, decreasing postural deviations such as head drop, lateral lean, and slumping
- Decreases the likelihood of a user falling
Caregiver Benefits:
- Designed to help you lift and lower patients while reducing the physical strain on the caregiver
- Aids in treating multiple conditions for varying levels of care with adjustable back recline and height-adjustable arms
- Accommodates the complex seating needs of your patients with customization options
Additional positioning padding & slim posture padding available on request, Please call or email us for quote.
Sizing
Broda midline tilt recliner | |
Tilt Angle | Up to 38° |
Recline Angle | Up to 90° |
Weight Capacity | Up to 350 lbs. |
Frame | 16-gauge powder-coated tubular steel frame |
Seat Widths | 16", 18", 20", 22", 24", 26", 28" |
Seat Depths | 15.5", 17", 18.5", 20" |
Back Heights | 32", 33.5", 35" |
Seat Surface Heights | Adjustable: 17", Adjustable: 18", Adjustable: 19", Adjustable: 20", Adjustable: 21", Adjustable: 22" |
Arms | Height-adjustable arm supports |
Adjustability | Removable lateral shoulder supports, Adjustable angle footplates, Adjustable flip-down foot supports, Adjustable Split |
Wheels | Front mounted mag wheels: 20", 22", 24", Front Total Lock Casters: 5", Rear directional lock casters: 5", Rear Mounted Mag Wheels: 20", 22" |
Patient Mobility | Caregiver Propelled |
Documents
Warranty
Manufacturer warrants this product to be free of defects in materials and workmanship as per the schedule below:
- Ten years - On chair frame.
- One year - On all other components.
- A serial number or invoice number must be given for warranty coverage.
- In the event that manufacturer sends replacement parts to the customer, the customer will be invoiced for the replacement parts and shipping expense for the parts sent.
- Once the defective parts have been received by manufacturer, and determined to be defective due to faulty materials or workmanship, a credit will be issued to the customer for the invoice amount (less shipping).
Disclaimer and Limitations of Remedies:
The chair frames are guaranteed for Three years against structural defects or failure. All other parts (except seat pads and cloth or vinyl covers) including but not limited to strapping, cushions, gas springs and attachments, casters, wheels, brakes and armrests are guaranteed for one year against defects in materials and workmanship based on normal institutional use. This warranty does not cover damages that arise from improper handling, cleaning, or negligent use; inclusive of exposure to improper solutions or abrasives, exposure to heat sources, use of sharp objects, excessive agitation, pooling of fluids, or similar negligent acts. The warranty does not cover use of manufacturer chairs in a shower or pool, with the exception of the manufacturer commode/shower chair.
Voiding of warranty
- Modifications to manufacturer products or the use of non-manufacturer supplied parts voids the warranty.
- This warranty does not cover freight damage.
- It is the responsibility of the person receiving the goods to examine cartons and goods before accepting receipt.
- If damage is observed, note all damages on the bill of lading and file a claim if necessary.
- Notify the carrier of any concealed damaged within 48 hours of receipt. Any pictures of the damaged product and packaging are valuable in submitting a claim.
- Manufacturer insures all products for in transit damage, failure to notify the carrier of in transit damage voids both the insurance and the warranty.
- Warranty does not include on-site labor for the installation of warranty parts or warranty repairs.
- The owner may return to manufacturer products for warranty replacement or repair by shipping items prepaid and insured to the factory.
- Warranty completed at the factory includes both materials and labor.
- The decision to repair or replace parts is at the discretion of manufacturer.
- This warranty does not cover products or parts thereof that have been subjected to abuse, misuse, neglect, unauthorized alteration or repair, damage during installation or improper installation, or use in conflict with or contrary to the product operational guidance provided by the manufacturer's manual.
- In the event of a defect covered by this warranty the manufacturer will at its option, repair or replace the product.
- The warranty does not extend to non-durable components, such as rubber accessories, casters, and grips, which are subject to normal wear and need periodic replacement.
- Parts under warranty will be covered at no cost. Any labor cost for service under warranty is not covered as per our terms of sale.
- The product warranty is applicable as per the terms and conditions given by the product manufacturer.
Click here for detailed warranty…
Please call us for specific details.
Returns
- If any part is found defective manufacturer will refurbish or replace the same at its sole discretion.
- All returns are subject to a 25% restocking fee
- All returns must have an RGA number (Returned Goods Authorization Number), unauthorized returns will not be accepted.
- All returns must be shipped prepaid with RGA number clearly marked on the box.
- All returns are subject to inspection upon arrival for estimation of total refund.
- The products must be new, unused condition, not tampered with, in original packaging and returned at the customer's expense in the original packaging.
- If your return is not due to any manufacturing defect then the original shipping cost and credit card/paypal processing fee will be deducted from the total refund
- No returns accepted for Hygiene & Bath products due to health concerns
- Custom orders are non-refundable and non-returnable
- Standard Manufacturer Terms & Conditions Apply for Return Policy of this Product
Please call us for specific details
FAQ's
Are Broda’s chairs and wheelchairs considered geriatric (Geri) chairs or furniture?
- According to the FDA’s Department of Health and Human Services Broda’s chairs and wheelchairs fall under the Medical Device category and are classified as Class I Mechanical Wheelchairs.
- The Veteran’s Health Association’s Prosthetic Clinical Management Program (PCMP) validates the clinical use of Broda products as Manual Wheelchairs with Tilt and Recline Combination Seat Functions.
No! Broda’s products are classified as Durable Medical Equipment.
How much does it cost to buy one of Broda’s wheelchairs?
- Pricing varies by product type based on specific chair need and configuration as well as the purchase options offered. Our support team and partners will help configure the specific accessories, padding packages, colors and features for your perfect fit.
Are additional cushions required or recommended when using a Broda Wheelchair?
- Not necessarily, but it depends on each user’s specific seating needs. An OT, PT, ATP, or seating specialist should be consulted for a seating evaluation. Broda offers numerous custom solutions for most seating needs.
Are Broda’s Tilt-in-Space chairs or wheelchairs considered restraints?
- No! Broda’s products are not restraints rather they are Supportive Positioning Devices. When Broda’s Tilt-in-Space Seating Systems are used properly following the obtainment of a physician’s order and in accordance with the patient care plan they are not considered a restraint.
How much tilt or recline is needed to be clinically effective?
- The greater angles of tilt and recline generally provide better pressure relief. The greatest reductions in pressure are seen when tilt and recline are used together, either at tilt of 35° with recline 100° or tilt of 15-25° with recline of 120°. Tilt, when used alone, must be greater than about 25° to achieve pressure relief and/or tissue perfusion at the ischial tuberosities. Recline, when used alone, can increase shear but may provide reduction in pressure at the ischial tuberosities at angles greater than 90-100°.
How do you clean and disinfect Broda's products?
- Clean with 1:4 bleach / water, peroxide, & quaternary ammonium at the recommended dilution. Rinse thoroughly with clean water and pat dry.
- Clean with Water based Cleaner, 1:4 Mix of bleach & water. Rinse thoroughly with clean water and pat dry.
The Broda’s products are easy to clean, use the following solutions to disinfect on a regular basis:
