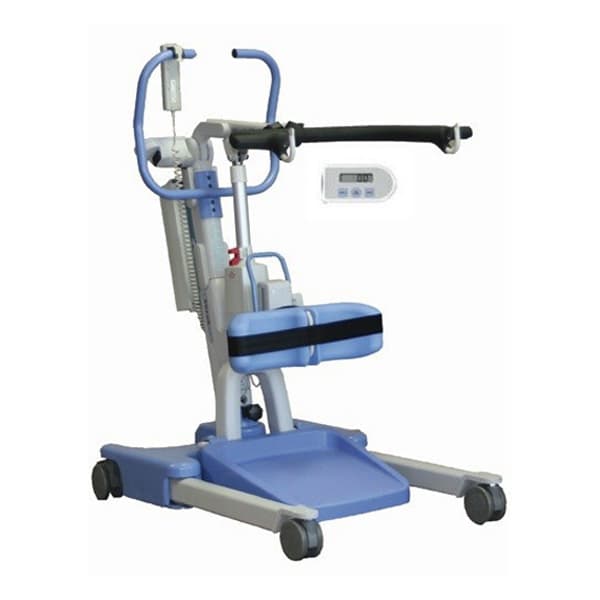

Hoyer professional elevate power stand-up lift
Features
Hoyer professional elevate power stand-up lift is is an active lift designed to improve the lifting experience for both the caregiver and the patient. It is compact and sturdy with a safe working load of 440 lbs. Included is Smart Monitor technology that displays actual lifts as well as reminds you to recommended service. This helps drive user compliance and keeps your Elevate in top shape! The Elevate incorporates key intuitive features for caregiver safety. These include a spring-loaded lever to adjust kneepad height as well as a rubber push pad designed to initiate lift movement eliminating initial push forces. The Elevate has been designed to be configured either with or without a weigh scale. The weigh scale is seamlessly integrated with a digital display and user friendly controls.
Key features:
- Smart Monitor technology drives user compliance and lift longevity
- Intuitive push pad assists with initiating movement
- One hand adjustable kneepad with infinate settings
- Angled, removable foot tray
- Optional scale
Features:
- Removable foot rest: The foot rest transforms the lift into a valuable restorative care aid, allowing the patient to fully stand and walk under close supervision.
- Powered leg adjustment: Powered leg adjustment allows the caregiver to open and close the legs without bending or twisting or use of force.
- Adjustable knee pad: Contoured, height adjustable knee pad offers high-level comfort and accommodates a range of patient sizes.
- Optional class III digital scale: Simple and intuitive controls allow precision weight monitoring during transfer, saving valuable time for caregivers.
Electrical specifications
- Battery capacity - 3.2A ampere hours
- Charger rated output 29.5 VDC, max. 19 W
- Charger rated input - 100-240v AC 24 VDC 50/60Hz
- Battery - 24vDC rechargeable sealed lead acid type
Electric shock protection
- Charger - Class II
- Lift - Internal power source
Degree of shock protection
- Lift - Type B
- Charger - Type B
- Intended operating environment: >+5°C <+40°C
- Outside this environment functionality and safety may be compromised
Sling use Disclaimer: Please note that we recommend only to use the recommended brand slings with your Patient lifts, we do not guarantee compatibility of other sling brands with your lift model.
Sizing
| Hoyer professional elevate power stand-up lift | ||
| Safe working load | 440 lbs. | |
| Maximum overall length | 43.3" | |
| Minimum overall length | 41.0" | |
| Maximum overall height | 65.5" | |
| Minimum overall height | 48.4" | |
| Maximum height to attachment point | 64.7" | |
| Minimum height to attachment point | 39.2" | |
| Turning radius | 48.2" | |
| Legs open - external width | 39.1" | |
| Legs open - internal width | 34.3" | |
| Legs closed - external width | 24.8" | |
| Legs closed - internal width | 20" | |
| Widest point (between support handles) | 29.0" | |
| Overall height of legs | 4.7" | |
| Ground clearance | 1.4" | |
| Front twin casters | 4" | |
| Rear braked casters | 4" | |
| Weights | ||
| Mast, base & boom assembly | 130.1 lbs. (with scale) | |
| 129 lbs. (without scale) | ||
| Power pack | 6.6 lbs. | |
| Total weight | 136.7 lbs. (with scale) | |
| 135.6 lbs. (without scale) | ||
| Base assembly (not including battery) | 40.8 lbs. | |
| Mast & boom (not including battery) | 66.1 lbs. (with scale) | |
| 65 lbs. (without scale) | ||
| Foot tray | 23.1 lbs. | |
| Note:Manufacturing tolerances apply to all dimensions. | ||
| Sling weight recommendation chart (GUIDE) | Weight capacity | Range |
| Small | 75 - 150 lbs. | 75 lbs. |
| Medium | 125 - 200 lbs. | 75 lbs. |
| Large | 175 - 300 lbs. | 125 lbs. |
| Note: Please note the following sling guides are recommendations only. A full risk assessment must be conducted before any sling is selected. This will ensure safety for the resident and the caregiver. | ||
Documents
Warranty
The manufacturer warrants the lifts against defects in material and workmanship under normal use and service from the date of delivery as below:
- Two Year Warranty: On all mechanical and electrical components
- Five Year Warranty: On aluminum structural components and mechanical components on lifts
- 90 Days Warranty: On DC batteries and casters
- The warranty does not include damage caused by use in unsuitable environmental conditions or failure to maintain the product in accordance with user and service instructions.
- Any alteration, modification, or repair unless performed by or authorized in writing by the manufacturer will void the warranty.
- Parts under warranty will be covered at no cost.
- Any labor cost for service under warranty is not covered as per our terms of sale
- Standard manufacturer terms & conditions apply for warranty of this product.
Returns
We want our customers to be fully satisfied, but in any case you are not and wish to return the purchased product. Please refer to the following guidelines for returning the purchased item:
- The unused product must be in its original packaging
- The return must be requested within 30 days of the original purchase
- The return will be subjected to a 30% restocking fee
- The purchaser has to pay the return shipping
- If your return is not due to any manufacturing defect then the original shipping cost and credit card/paypal processing fee will be deducted from the total refund
- No returns accepted for Hygiene & Bath products due to health concerns
- Custom orders are non-refundable and non-returnable
- Standard manufacturer terms & conditions apply for return policy of this product.
Please call us for specific details.
