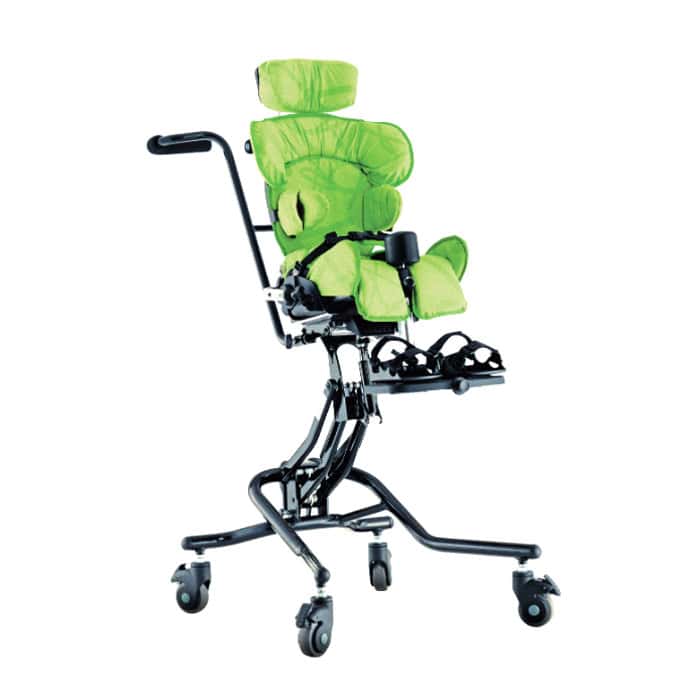

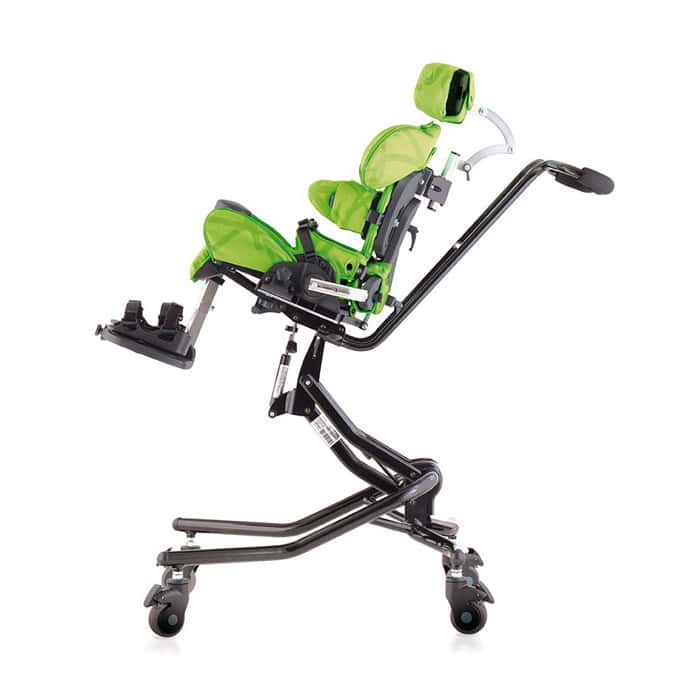

Leckey squiggles seating system

Buy now and get extra 12% discount

Leckey squiggles seating system is an advance seating system for children from 6 month to five years, supporting their cognitive and postural development as well as their daily activities.

Regular Price: $4,264.00

Special Price $3,624.00

Please call or email us to order the accessories separately.



Leckey squiggles seating system meets all the postural and comfort requirements of a seating system for young children (ages ½–5 years). Squiggles seat provides moderate to complex positioning for a child at home or at school. With its bright colors and clinical focus, the Squiggles seat fulfills the postural and emotional needs of young children and their families. Squiggles has a 4-point pelvic harness and ramped base cushion to give optimum support. Leckey squiggles is compatible with multiple bases and has been crash tested. Squiggles seating system is modular in design, easy to use, lightweight and simple to store. Squiggles' trunk and head support is enhanced with the addition of the shoulder support, providing increased shoulder protraction, and therefore midline positioning of the upper limbs.

Buy now and get extra 12% discount

Product comes Standard with:

  • Fixed seat back
  • Squiggles seat cover
  • Seat base hip guides/support
  • Seat back reclining mechanism
  • Seat base with depth adjustment
  • Allen key screws for secure adjustment
  • Available in one size, covering ages 1-5 years
  • Advanced comfort with thicker seat base cushion
  • Squiggles Hi Low chassis - foot pedal (without handle)
Services available:
  • resna certified assistive technology practitioner (ATP);
  • please call us for product customization as per your requirements
  • product trials; delivery; setup and fitting services available for clients in our local service area
  • client measurements recommended to be submitted along with your order


Additional Info

SKU LC414P89-41000
Model 414P89-41000
Brands Leckey
Technical Specifications
Leckey Squiggles Seating System
Age 1 - 5 years
Stature 29.5" - 43.3"
Maximum User Weight  48.8 lbs.
Seat Depth (Backrest to back of the knee) 7.5" - 11.4"
Seat Width 6.3" - 10.2"
Hip Width 6.3" - 8.7"
Backrest Height (Sitting shoulder height) 12.6" - 15"
Backrest Height (with shoulder support) 16.5" - 18.9"
Lower Leg Length 12 - 27 cm
Chest Width (Distance between laterals) 6.3"
Knee Width 3.5"
Distance between pommel & side of seat 7.5"
Seat to Floor (Top of seat to floor) 11.4" - 26.4"
Seat Height (Hi-Low Base) 10" - 25"
Back Angle -10° -  +25°
Footplate Angle Plantarflexion : 10°
  Dorsiflexion : 10°
Tray Size 18.1"/22"
Tray Height (Seat to top of tray) 4.5" - 6.7"
Hi Low Chassis 19.8 lbs.
Excluding Push Bar 25.2"
Minimum dimensions for storage W-21.3" x H-12.4"
Easy Chassis 9.9 lbs.
Excluding Push Bar 24.8"
Minimum dimensions for storage 20.7" - 10.4"
Seat Angle Hi-Low Base -10° -  +30°
Seat to Footplate 4.8"
Weight Seat Shell 13.2 lbs.
Weight hi-Low Base 19.8 lbs.
Seat Weight 13.2 lbs.
