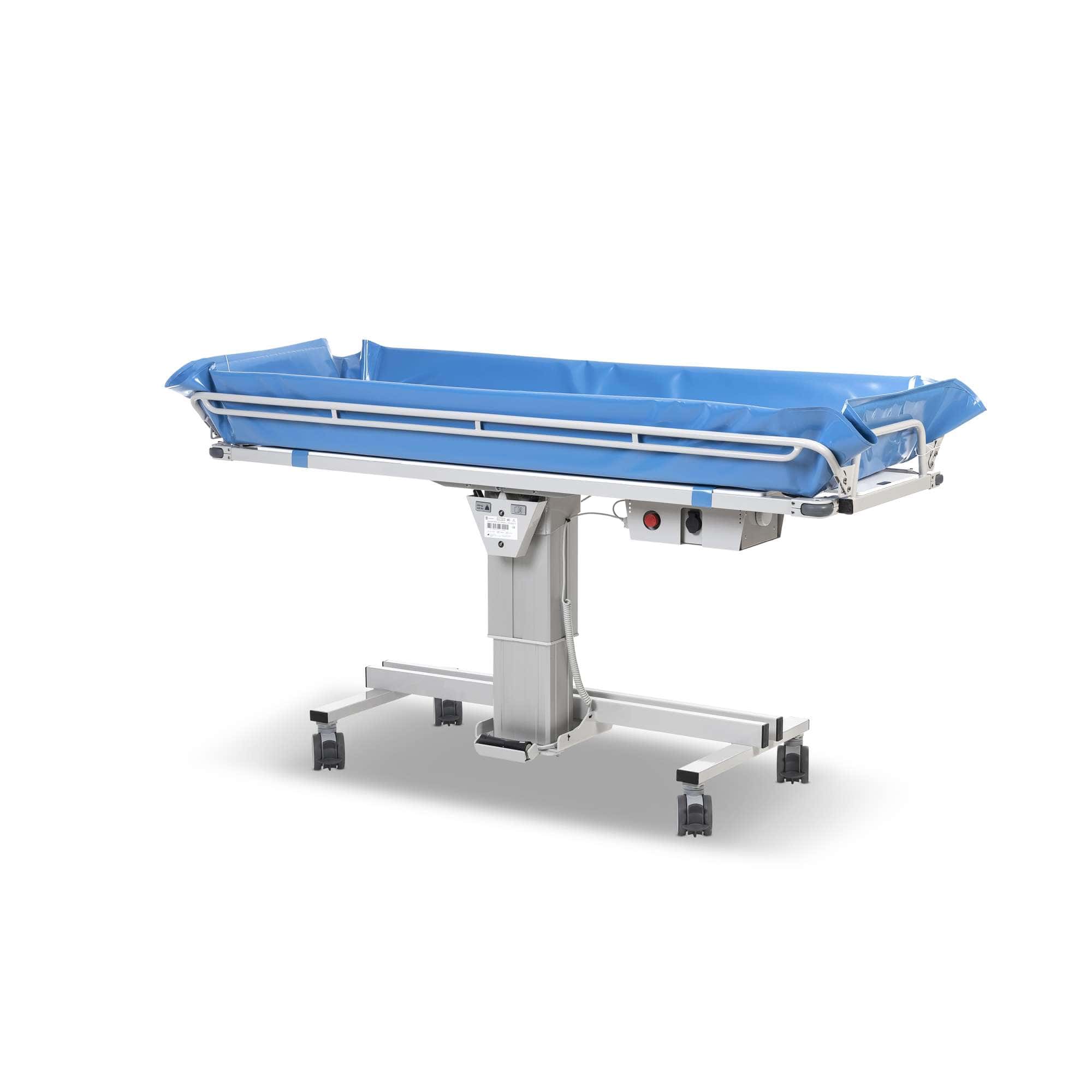

TR 3000 Battery Operated Height Adjustable Shower Trolley By TR Equipment
Features
TR 3000 Battery Operated Height Adjustable Shower Trolley is designed to enhance patient transfer and provide a safe and ergonomic working environment for caregivers. With its side-mounted column, this trolley offers an extended overlap with the bed, ensuring a secure and effortless patient transfer. Designed to prevent back injuries and minimize static load, the TR 3000 features quiet and smooth foot-operated height adjustment. The side-mounted column significantly improves patient transfers, and the foldable side rails enhance efficiency and safety during transfers and transport.
The TR 3000 also have additional functionalities including dual drainage for easy change of the designated head end and the ability to press the side rails together for smooth passage through narrow doorways. With a floor clearance of 6.3", the trolley allows for floor lift transfers, promoting convenience and accessibility. In situations where tilting the stretcher is necessary, it easily adjusts to the "Trendelenburg" position, providing relief for individuals in shock. The chassis and sub-frames are constructed from durable stainless steel, ensuring long-lasting durability. To protect walls and doorways, the stretcher is equipped with rubber bumper wheels on all four corners.
Features
- User-Friendly & Easy to Clean: Easy-to-clean design with removable mattress for better hygiene.
- Audible Low Battery Alert: Notifies caregivers when the battery is low, ensuring timely recharging.
- Height Adjustment: Provides foot operated height adjustment as standard and hand control as option.
- Extended Overlap & Side-Mounted Column: Secure and effortless patient transfers with side-mounted column.
The TR3000 Shower Bed includes:
- Magcode battery charger
- 3.9" twin castors with brakes.
- Blue removable mattress with head pillow
- 1 m flexible drainage hose with a hose holder
Sizing
TR 3000 Battery Operated Shower Trolley
Specifications | TR 3000 Standard | TR 3000 Short | TR 3000 Long |
Product Length | 74.8" | 63" | 82.67" |
Product Width | 25.2" | 25.2" | 25.2" |
Product Height | Min: 23.62", Max: 35.43" | Min: 23.62", Max: 35.43" | Min: 23.62", Max: 35.43" |
Max weight capacity | 440 lbs | 440 lbs | 440 lbs |
Floor clearance | 6.3" | 6.3" | 6.3" |
Castors | 4 Braked twin castors | 4 Braked twin castors | 4 Braked twin castors |
Control | Foot operated control | Foot operated control | Foot operated control |
Mattress, pillow Material | Flame retardant material | Flame retardant material | Flame retardant material |
Tilt | (+/-) 4° | (+/-) 4° | (+/-) 4° |
Battery | 24V 7 Ah Onboard | 24V 4 Ah Removable Batteries | 24V 7 Ah Onboard | 24V 4 Ah Removable Batteries | 24V 7 Ah Onboard | 24V 4 Ah Removable Batteries |
Protection Class Electronics | Complete unit IPX5 | Complete unit IPX5 | Complete unit IPX5 |
Documents
Warranty
Manufacturer warrants its products to be free from defects in materials and workmanship under normal use & service to the original purchaser for the following period:
- 3-Years: Metal frame/structure
- 2-Years: Seat pads
- 1-Year: Mattress/Pillows, Electronics/PCB, Actuators/motors, Pumps, Hoses/mixing valves
- 120 Days: Batteries, Hand controls, Battery chargers, fuses
- 90 Days: Castors, Plastic covers, Safety belts
- This warranty applies only to the original purchaser/user of the product and is non-transferable.
- Parts replaced under the initial Equipment warranty period will be warranted for the remainder of the original equipment warranty period.
- This limited warranty becomes void if equipment has been damaged or rendered defective as a result of:
- Acts of God, accident, misuse, vandalism, neglect or default of the Buyer or a third party.
- Transit, power surge or operating environment.
- Modification of the equipment without the written permission of the manufacturer.
- Service by anyone other than manufacturer's authorized agent.
- Use of parts not manufactured or sold by the manufacturer.
- Failure to operate in accordance with manufacturer’s guidelines or any other improper operation or maintenance or by improper storage of the Equipment.
- Failure to provide regular maintenance, service or inspections.
- Any other cause not directly and primarily caused by defective material, workmanship or design.
- Any damage to any equipment caused by the use of improper cleaning liquids.
- Nicks, dents, scrapes, scratches, or other cosmetic defects, however caused.
- All replacement parts, (except consumable parts) purchased after the initial warranty period will be warranted for 6 months from the date of invoice.
- The manufacturer will not be responsible for any expenses, inconvenience or incidental or consequential damages occasioned by the use, loss of use, or misuse of the products, or by the failure of the products to conform to the warranty set forth above.
- Parts under warranty will be covered at no cost.
- Any labor cost for service under warranty is not covered as per our terms of sale.
- Standard manufacturer Terms & Conditions are applicable for Warranty of this product.
Please Call us for Specific Details.
Returns
- Unfortunately hygiene items cannot be returned once opened, due to health concerns.
- Standard manufacturer terms & conditions are applicable for return policy of this product.
Please call us for specific details
