Joerns

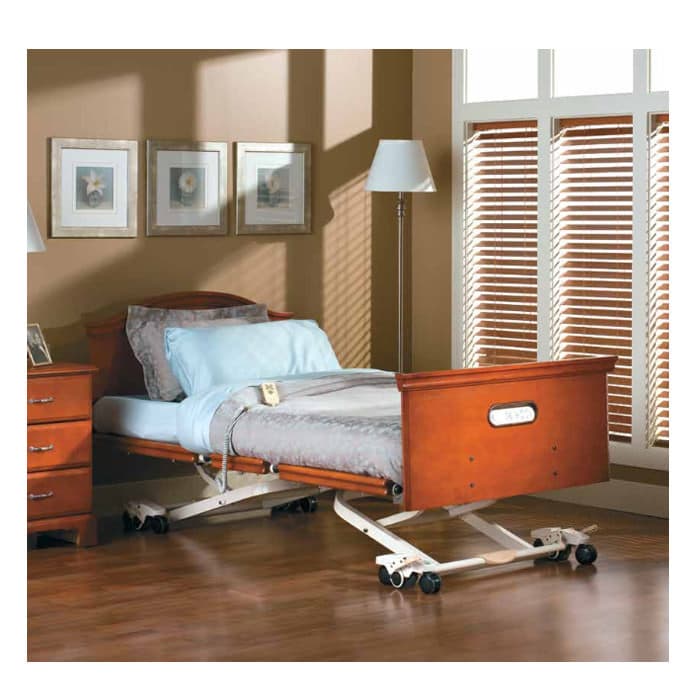

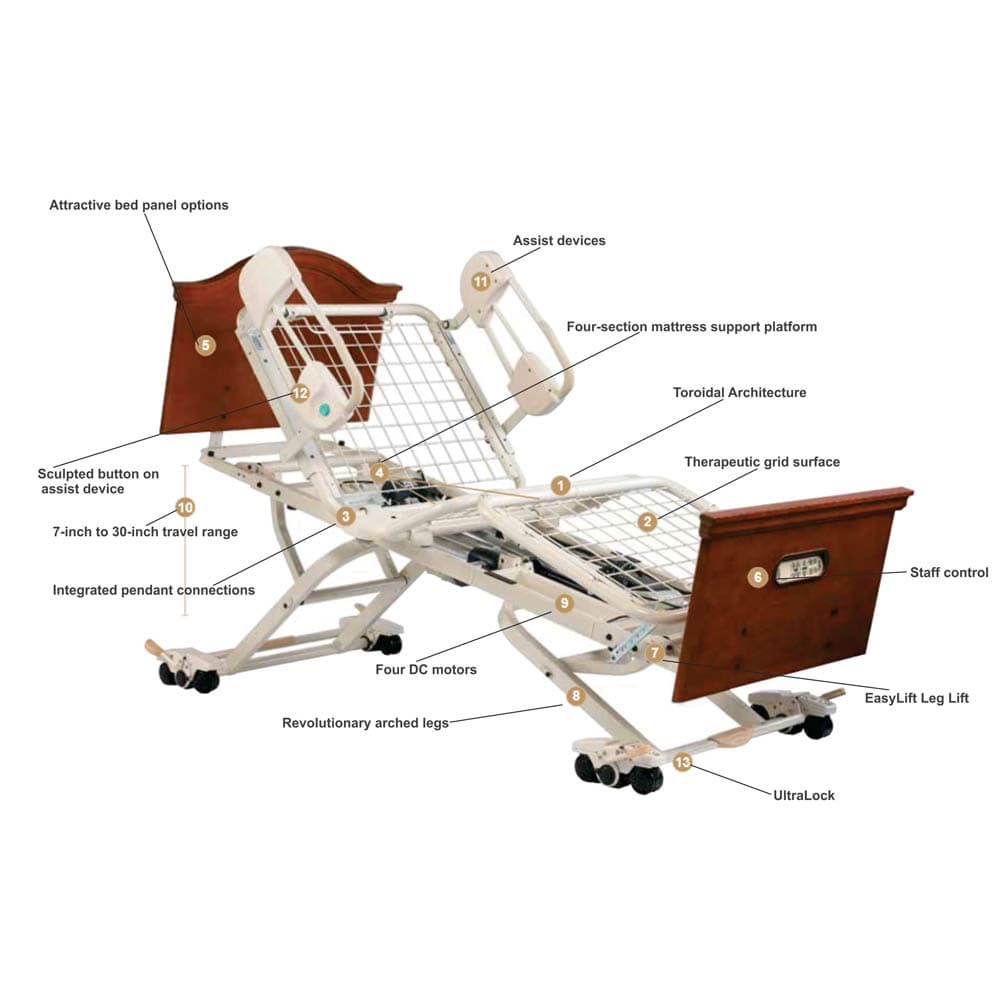

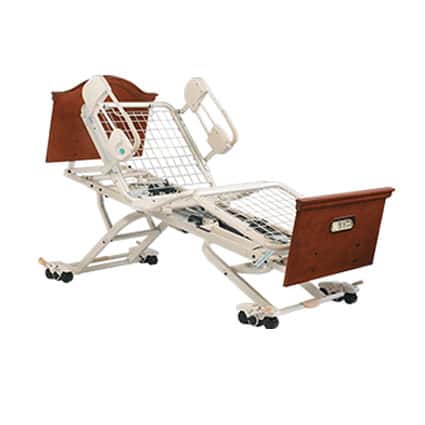

UltraCare XT healthcare bed |
Specifications |
Bed size - 80" |
Bed size - 76" |
Support surface |
35" x 80" |
35" x 76" |
Overall head panel length |
83½" |
80" |
Standard overall head and foot panel
length |
85½" |
82" |
AdvanceCare head and foot panel length |
93.75" |
88.75" |
Width |
35" |
35" |
Width with assist device brackets |
36¼" |
36¼" |
Width with assist device brackets |
41" |
41" |
Low height |
8¾" |
8¾" |
High height |
30" |
30" |
Under bed clearance* |
23¾" |
23¾" |
Maximum back angle |
65° |
65° |
Maximum knee angle |
35° |
35° |
Maximum height support surface
platform above floor |
30" |
30" |
Minimum height support surface
platform above floor |
7" |
7" |
Mattress support platform translation
- entire travel range |
1" |
1" |
Mobility height without UltraLock |
7" - 30" |
7" - 30" |
Mobility height with UltraLock |
7" - 30" |
7" - 30" |
Mains voltage |
120 VAC |
120 VAC |
Frequency |
60 Hz |
60 Hz |
Input current |
4.0 Amps |
4.0 Amps |
Control box output voltage |
24V DC |
24V DC |
Duty cycle |
10% (2 min. on/18 min. off) |
10% (2 min. on/18 min. off) |
Circuit protection |
Auto reset current sensor |
Auto reset current sensor |
Product weight |
220 lbs. |
220 lbs. |
Note: *Ample clearance between 14" and 30"
**Overall space required for AdvanceCare positioning
***Includes bedding, resident, support surface, and all accessories |
