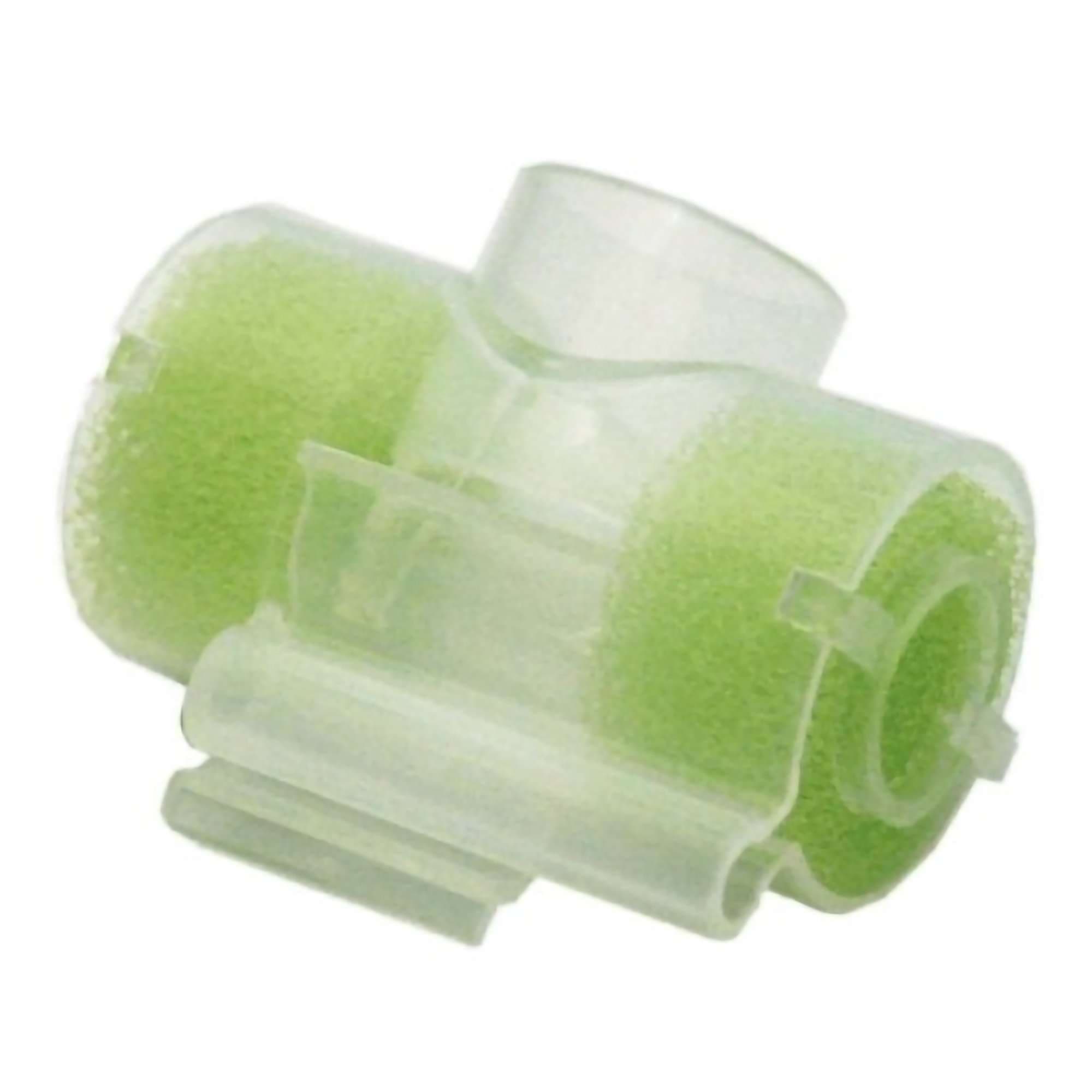

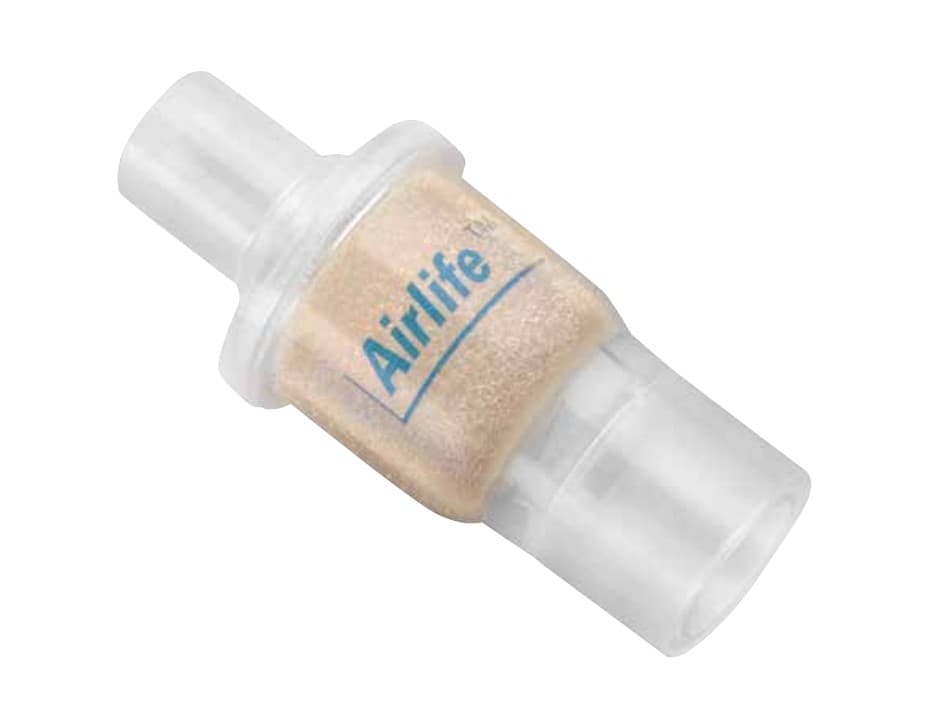

Carefusion AirLife Hygroscopic Condenser Humidifier capture the patient’s exhaled heat and moisture and return them in the inspired gas. Small and compact, they are lightweight, provide low resistance to flow and are specially treated to provide bacteriostatic and hygroscopic (HCH) benefits. The (003003) and (003014) are large volume humidifier and (003004) are small volume humidifiers. Select either the large volume or small volume models depending on tidal volume requirements.
Features
- Filters out bacteria.
- Lightweight and compact.
- Improves spontaneous breathing.
- Compatible with most breathing systems.
Specifications
| Item no. | Tidal volumes | Dead space | Weight | Humidification efficiency | Connection | Flow resistance |
| 003003 | 150–1,250 mL | 31 mL | 13 g | 500 mL/35 mg H2O/L | 15 mm male, 15/22 mm female/male | 0.5 L/s 1.0 cmH2O | 1.0 L/s 2.5 cmH2O |
| 003004 | 80–600 mL | 21 mL | 8 g | 500 mL/30.0 mg H2O/L | 15 mm male, 15/22 mm female/male | 0.5 L/s 0.8 cmH2O | 1.0 L/s 2.4 cmH2O |
| 003014 | 500-1000 mL | 16 mL | 6 g | 500 mL/25.5 mg H2O/L | 15 mm female for trach tube | 0.5 L/s 0.13 cmH2O | 1.0 L/s 0.29 cmH2O | 1.5 L/s 0.45 cmH2O |
