Activeaid 285 Tilt-in-Space Rehab Shower Commode Chair
Features

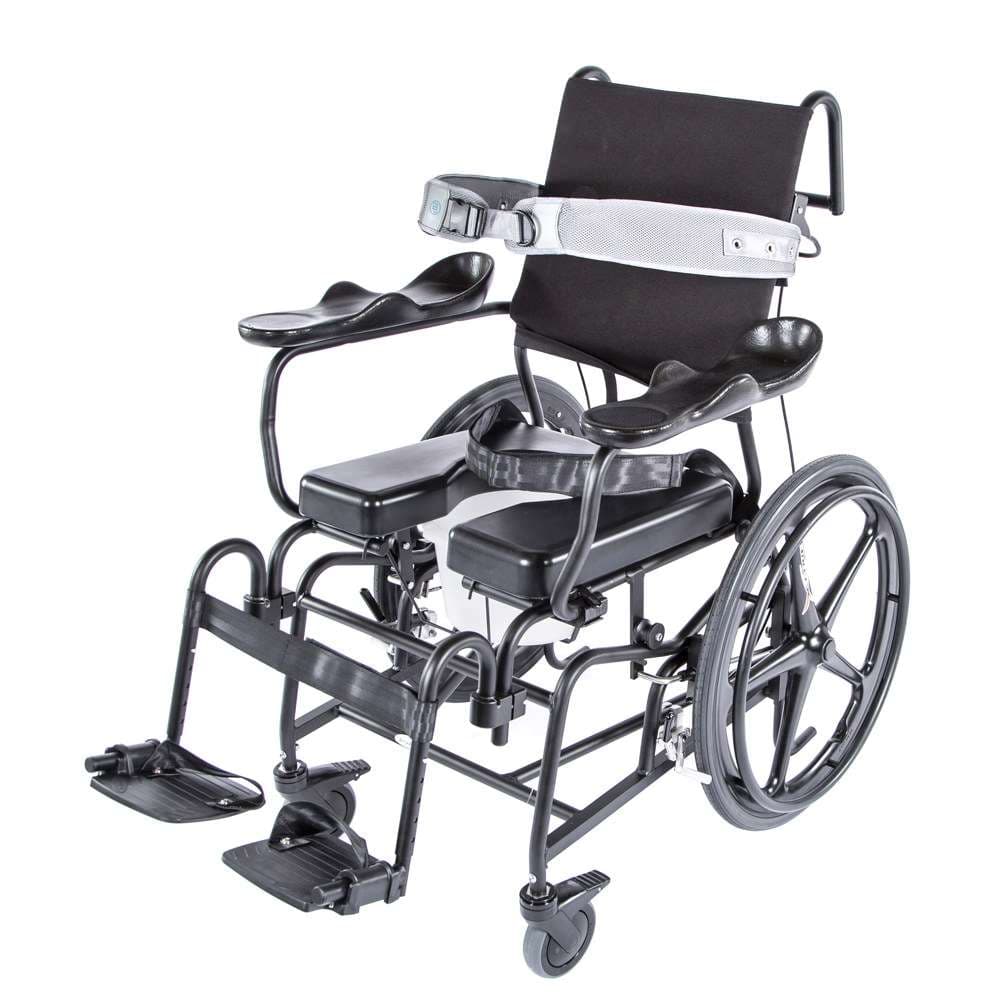

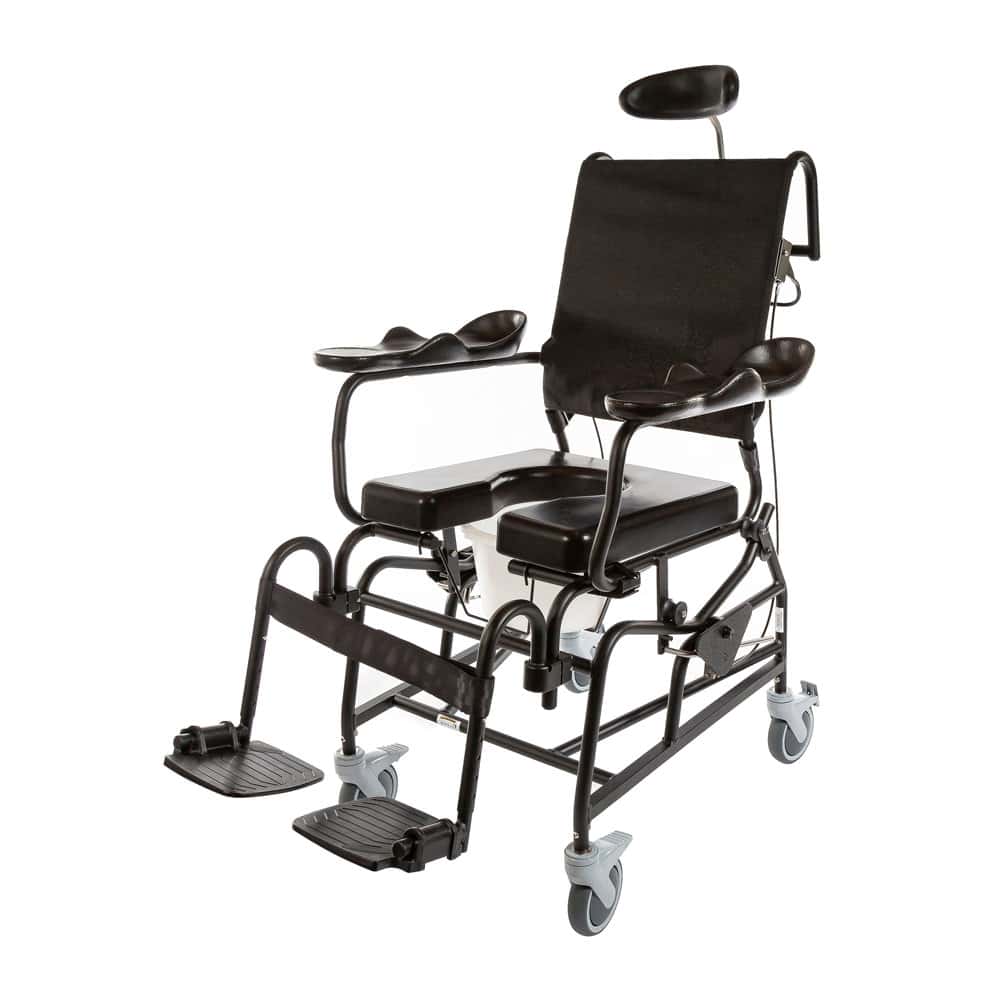

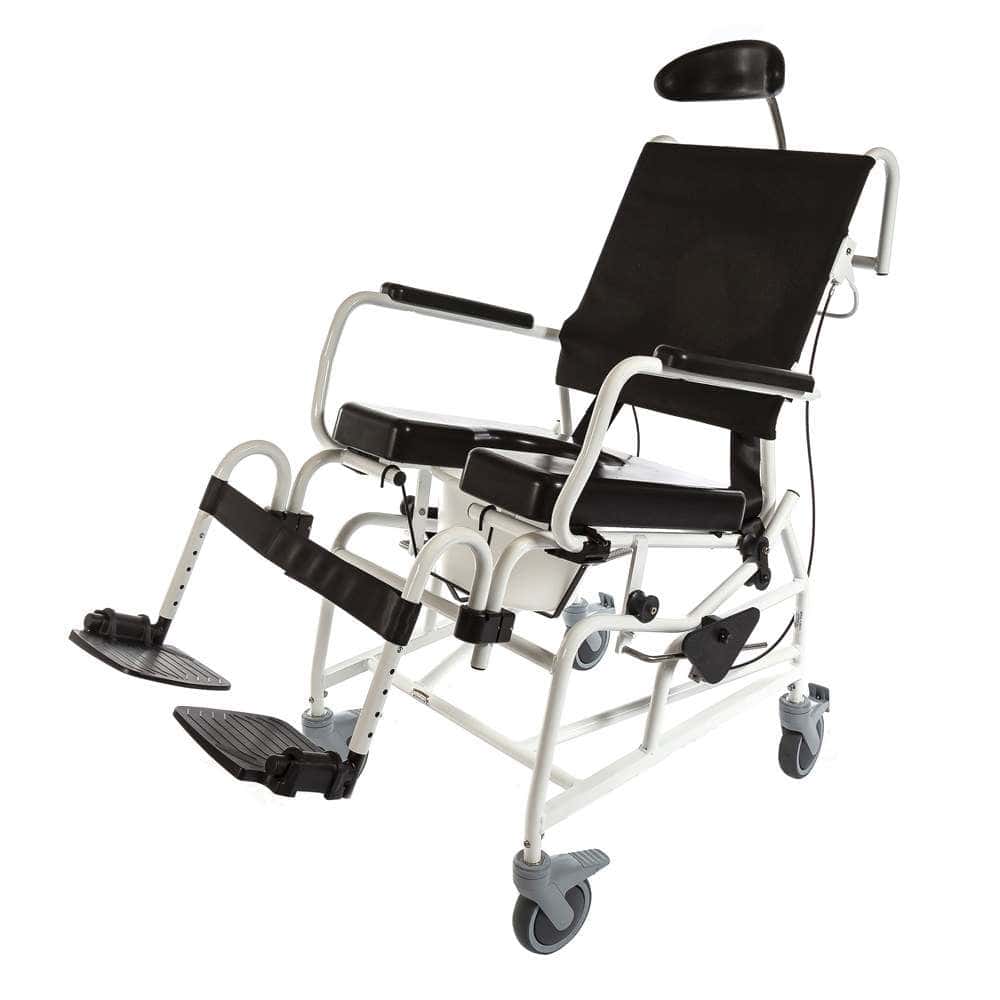

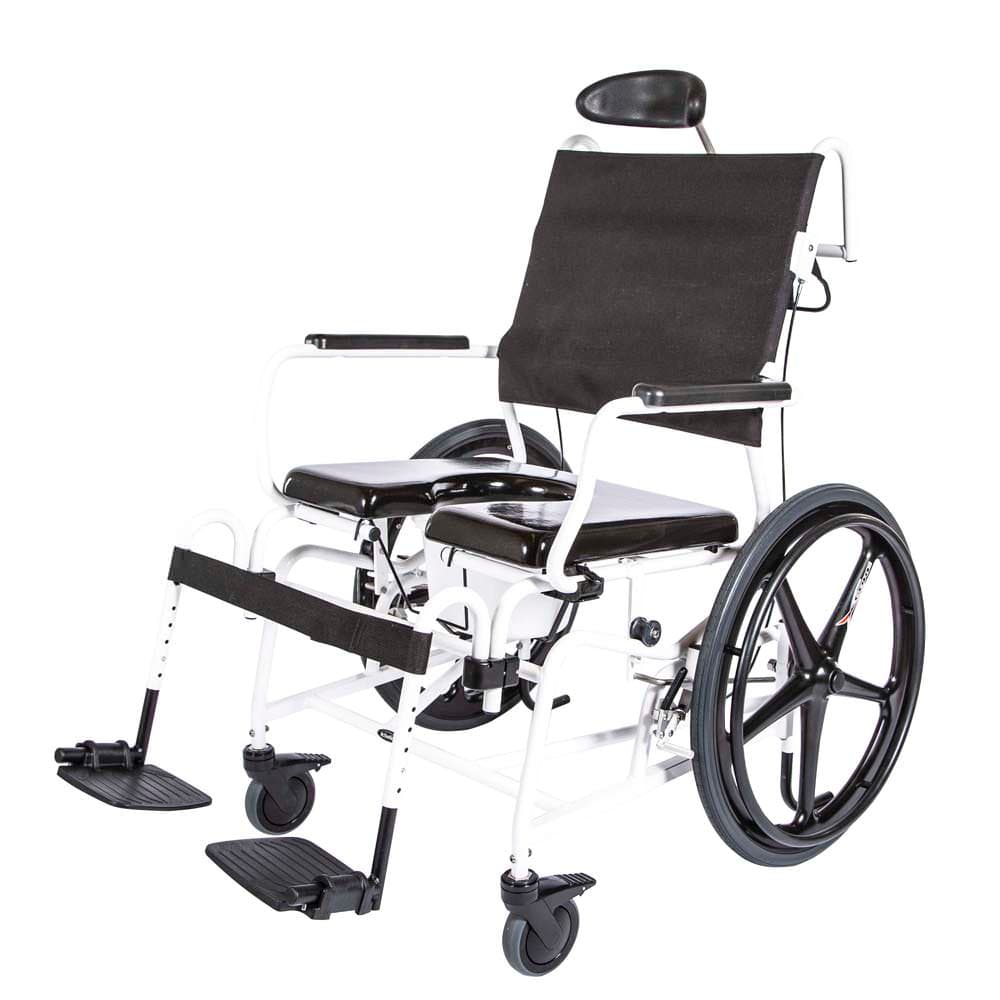

ActiveAid 285 Tilt Rehab Shower Commode Chair
ActiveAid 285 Rehab Shower/Commode Chair-Tilt is a gravity-assisted tilt-in-space shower/commode chair. With frame widths ranging from 16 to 22 inches and the option of 4 casters or 24 inch rear wheels, the ActiveAid 285 Tilt is a versatile chair for the home or rehab environment. ActiveAid 285 is made up of several components that work together to provide support, comfort, and pressure relief, as well as other tilt-in-space benefits. The rehab shower commode chair comes in seven-seat sizes and four frame sizes.
Features:
| Product comes standard with:
|
ActiveAid 285 Tilt Rehab Shower Commode Chair Video
Sizing
ActiveAid 285 Tilt Rehab Shower Commode Chair | ||||
Seat Width | 16" | 18" | 20" | 22" |
Weight Capacity | 350 lbs. | 350 lbs. | 350 lbs. | 350 lbs. |
Width between Arm Rests Flip-Up with Pad | 18.75" | 20.75" | 22.75" | 24.75" |
Width between Arm Rests -Arm Troughs | 16.75" | 18.75" | 20.75" | 22.75" |
Width between Arm Rests -Height Adjustable | 16.25" | 18.25" | 20.25" | 22.25" |
Seat Depth | 18" | 18" | 18" | 18" |
Seat Height from Floor to Top of Seat | Front to Back 24" Wheels - 24.25" - 22" | |||
5" Rear Casters - 24.25" - 22.75" | ||||
Usable Seat Depth w/Solid Back | 16" | 16" | 16" | 16" |
Leg Rest Range - Gooseneck | 16.5" - 20.5" | 16.5" - 20.5" | 16.5" - 20.5" | 16.5" - 20.5" |
Leg Rest Range - Gooseneck w/ Padded Footplate | 15.25" - 19.25" | 15.25" - 19.25" | 15.25" - 19.25" | 15.25" - 19.25" |
Leg Rest Range - Elevating - Up | 19" - 26" | 19" - 26" | 19" - 26" | 19" - 26" |
Leg Rest Range - Elevating - Up w/ Padded Footplate | 17.75" - 24.75" | 17.75" - 24.75" | 17.75" - 24.75" | 17.75" - 24.75" |
Leg Rest Range - Elevating - Down | 18.5" - 25.5" | 18.5" - 25.5" | 18.5" - 25.5" | 18.5" - 25.5" |
Leg Rest Range - Elevating - Down w/ Padded Footplate | 17.25" - 24.25" | 17.25" - 24.25" | 17.25" - 24.25" | 17.25" - 24.25" |
Leg Rest Range - Padded Footplate | Subtract 1.25" From Above Dimensions | |||
Arm Height from Top of Seat - Flip-Up with Pad | 8" | 8" | 8" | 8" |
Arm Height from Top of Seat - Arm Troughs | 8.25" | 8.25" | 8.25" | 8.25" |
Arm Height from Top of Seat - Height Adjustable | 7.5" - 15" | 7.5" - 15" | 7.5" - 15" | 7.5" - 15" |
Back Height from Top of Seat | 22" | 22" | 22" | 22" |
Gap Between Top of Seat and Bottom of Back | 4" | 4" | 4" | 4" |
Maximum Back Slack | 4" | 4" | 4" | 4" |
Seat to Back Angle | 14° | 14° | 14° | 14° |
Tilt Range | 5° - 29° | 5° - 29° | 5° - 29° | 5° - 29° |
Head Support Height Range - Top of Seat to Bottom of Cervical Support | 20.5 - 28.5 | 20.5 - 28.5 | 20.5 - 28.5 | 20.5 - 28.5 |
Under Seat Height Clearance | 19" | 19" | 19" | 19" |
Under Seat Width Clearance | 16.75" | 18.75" | 20.75" | 22.75" |
Overall Width with 24″ Wheels | 27" | 29" | 31" | 33" |
Overall Width with 5″ Rear Casters & Std. Arms | 23.5" | 25.5" | 27.5" | 29.5" |
Overall Width with 5″ Rear Casters & Height Adj. Arms | 23" | 25" | 27" | 29" |
Overall Width with 5″ Rear Casters & Arm Troughs | 27" | 29" | 31" | 33" |
Overall Length - Min with 5″ Rear Casters | 47.25" | 47.25" | 47.25" | 47.25" |
Overall Length - Min with 24″ Rear Wheels | 47.25" | 47.25" | 47.25" | 47.25" |
Overall Length - Max Tilted with Headrest & Legrest Ext. | 60" | 60" | 60" | 60" |
Back of Unit to Start of Commode Opening | 19" | 19" | 19" | 19" |
Turning Radius - Min with 5″ Rear Casters | 25" | 25" | 25" | 25" |
Seat Used to Generate Specifications | #60905 22″ x 18″ x 2″ Thick |
Videos
Documents
Warranty
This warranty is extended only to the original purchaser/customer (or supplier non consumer who does not buy or resell).
Manufacturer warrants this product against defects in materials and workmanship as listed below:
- 3 Years - Stainless steel frames
- 1 Year - Brake mechanisms, locking mechanisms, wheels and casters.
- 1 Year - Other metal and structural parts not of stainless steel.
- 6 Months - Upholstered components, plastic pads, rubber parts, painted surfaces, bearings and other parts not specifically identified above.
- Standard Manufacturer Terms & Conditions Apply for Warranty of this Product.
Returns
- Unfortunately hygiene items cannot be returned once opened, due to health concerns.
- Standard manufacturer terms & conditions are applicable for return policy of this product.
Please call us for specific details
