AEL Hip Belt | AEL 2 Point Hip Belt With Side-Release Buckle
Product Information
AEL Hip Belt: 2-Point with Side-Release Buckle Images
**The images on the website are for reference only and do not reflect the actual configuration of the product.** Learn more..
AEL Hip Belt: 2-Point With Side-Release Buckle
Product Features and Benefits
.png)
Free Shipping
Quantity
AEL Hip Belt: 2-Point with Side-Release Buckle Purchase Options
Product Features and Policies

Made in USA

Hygiene Product
Product Features and Policies

Made in USA

Hygiene Product

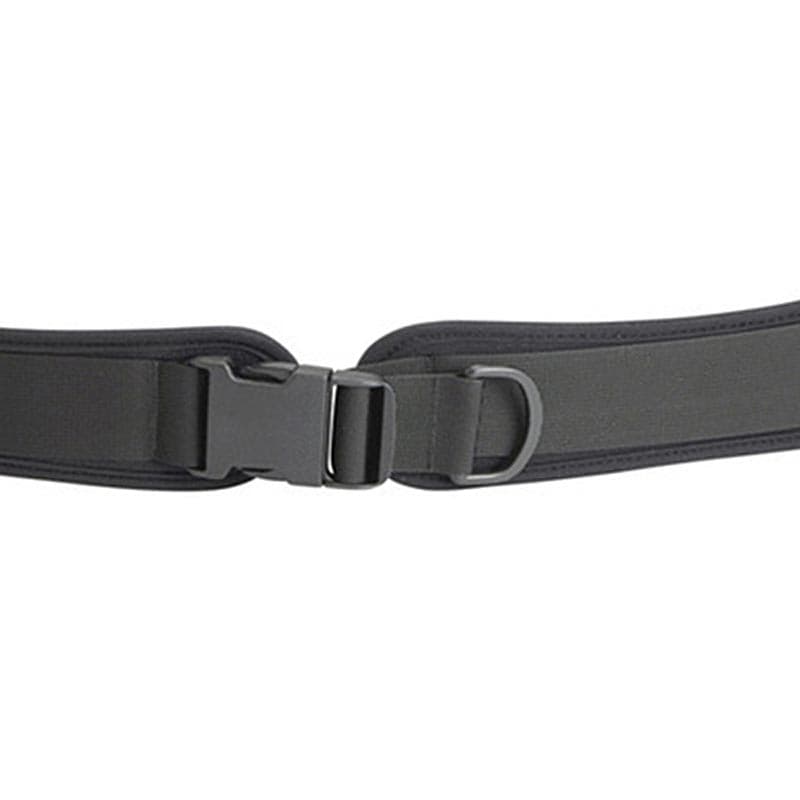

AEL 2-Point hip belt with side-release buckle features neoprene-padded material which are trimmed with a tapered design for exceptional comfort and streamlined appearance. Two-Point hip belt with side-release buckle is used to hold the pelvis in proper position within the seating system.
Two-point hip belt includes 2 straps with 2 points of attachment, commonly used on clients with posterior pelvic tilt, pelvic obliquity and/or low tone. Positioning of the hip belt to the seat varies between a 60 to 90 degree angle based on the desired outcome. Choose the angle that best positions the pelvis, in conjunction with preventing the client from sliding out from underneath the hip belt.
Side release buckle style features
- An economical option
- Require gently squeezing to release
Suggested for wheelchair conditions:
- Positions the pelvis in the chair
Suggested for physical conditions:
- Low tone
- Pelvic obliquity
- Posterior pelvic tilt
Center Pull | Dual Pull | Rear Pull |
Center-Pull Hip Belts include one D-Ring to pull for adjustment. Pull the D-Ring away from the buckle to tighten. A single D-ring pull is typically easier for the client to tighten the belt with a single movement. | Dual-Pull Hip Belts are similar to a Center-Pull but they include two D-rings to pull for adjustment. Pull both the left and right D-rings away from the buckle to tighten. Two D-ring pulls allow the caregiver to adjust each side of the pelvis independently. | Rear-Pull Hip Belts include two D-rings to pull for adjustment. Pull both the left and right D-rings towards the buckle to tighten. Two D-ring pulls allow the caregiver to adjust each side of the pelvis Independently. |
![]() | ![]() | ![]() |
Specifications
Specifications
AEL 2-Point hip belt with side-release buckle | ||||
Model | Size | Webbing Width | Width per pad (2 pads/belt) | Pull style |
14603 | Extra Small | 1" | 6" | Center-pull |
14604 | Small | 1" | 8" | Center-pull |
14613 | Small | 1½" | 8" | Center-pull |
14614 | Medium | 1½" | 10" | Center-pull |
14623 | Medium | 2" | 10" | Center-pull |
14624 | Large | 2" | 12" | Center-pull |
14605 | Extra Small | 1" | 6" | Rear-pull |
14615 | Small | 1½" | 8" | Rear-pull |
14616 | Medium | 1½" | 10" | Rear-pull |
14617 | Large | 2" | 12" | Rear-pull |
14625 | Extra Small | 1" | 6" | Dual-pull |
14626 | Small | 1½" | 8" | Dual-pull |
14627 | Medium | 1½" | 10" | Dual-pull |
14629 | Large | 2" | 12" | Dual-pull |
Warranty
Warranty
Any product found to be defective in material and workmanship during normal use will be repaired or replaced according to the schedule below:
- Hardware - Lifetime
- Soft Goods - 1 Year
- Parts under warranty will be covered at no cost. Any labor cost for service under warranty is not covered as per our terms of sale.
- Standard manufacturer terms & conditions apply for warranty of this product.
Return
Return
- Items must be returned in their unopened original packaging at the customer's expense.
- If your return is not due to any manufacturing defect then the original shipping cost and credit card/paypal processing fee will be deducted from the total refund
- All returns require a Returned Goods Authorization (RGA) number. You can request an RGA by contacting us. Unauthorized returns will not be accepted.
- Standard manufacturer terms & conditions apply to this product's return policy.
- Non-Configured Products: These are any products that were not customized to your order (e.g., unpainted parts, accessories, standard seating). You can return them within 30 days of delivery with no restocking fee, even if due to customer error. However, original shipping costs and credit card/PayPal processing fees may be deducted from your refund. No restocking fee
- Configured Products: These are products that are custom-built to your order. There is a 40% restocking fee on all returns of configured products.
- This is a hygiene item. It can only be returned if unopened and in its original packaging. Approved return requests will be accepted within 30 days of delivery.
- Custom fabricated products may not be returned.
AEL 2-Point hip belt with side-release buckle features neoprene-padded material which are trimmed with a tapered design for exceptional comfort and streamlined appearance. Two-Point hip belt with side-release buckle is used to hold the pelvis in proper position within the seating system.
Two-point hip belt includes 2 straps with 2 points of attachment, commonly used on clients with posterior pelvic tilt, pelvic obliquity and/or low tone. Positioning of the hip belt to the seat varies between a 60 to 90 degree angle based on the desired outcome. Choose the angle that best positions the pelvis, in conjunction with preventing the client from sliding out from underneath the hip belt.
Side release buckle style features
- An economical option
- Require gently squeezing to release
Suggested for wheelchair conditions:
- Positions the pelvis in the chair
Suggested for physical conditions:
- Low tone
- Pelvic obliquity
- Posterior pelvic tilt
Center Pull | Dual Pull | Rear Pull |
Center-Pull Hip Belts include one D-Ring to pull for adjustment. Pull the D-Ring away from the buckle to tighten. A single D-ring pull is typically easier for the client to tighten the belt with a single movement. | Dual-Pull Hip Belts are similar to a Center-Pull but they include two D-rings to pull for adjustment. Pull both the left and right D-rings away from the buckle to tighten. Two D-ring pulls allow the caregiver to adjust each side of the pelvis independently. | Rear-Pull Hip Belts include two D-rings to pull for adjustment. Pull both the left and right D-rings towards the buckle to tighten. Two D-ring pulls allow the caregiver to adjust each side of the pelvis Independently. |
![]() | ![]() | ![]() |
Details
AEL 2-Point hip belt with side-release buckle | ||||
Model | Size | Webbing Width | Width per pad (2 pads/belt) | Pull style |
14603 | Extra Small | 1" | 6" | Center-pull |
14604 | Small | 1" | 8" | Center-pull |
14613 | Small | 1½" | 8" | Center-pull |
14614 | Medium | 1½" | 10" | Center-pull |
14623 | Medium | 2" | 10" | Center-pull |
14624 | Large | 2" | 12" | Center-pull |
14605 | Extra Small | 1" | 6" | Rear-pull |
14615 | Small | 1½" | 8" | Rear-pull |
14616 | Medium | 1½" | 10" | Rear-pull |
14617 | Large | 2" | 12" | Rear-pull |
14625 | Extra Small | 1" | 6" | Dual-pull |
14626 | Small | 1½" | 8" | Dual-pull |
14627 | Medium | 1½" | 10" | Dual-pull |
14629 | Large | 2" | 12" | Dual-pull |
Details
Any product found to be defective in material and workmanship during normal use will be repaired or replaced according to the schedule below:
- Hardware - Lifetime
- Soft Goods - 1 Year
- Parts under warranty will be covered at no cost. Any labor cost for service under warranty is not covered as per our terms of sale.
- Standard manufacturer terms & conditions apply for warranty of this product.
Details
- Items must be returned in their unopened original packaging at the customer's expense.
- If your return is not due to any manufacturing defect then the original shipping cost and credit card/paypal processing fee will be deducted from the total refund
- All returns require a Returned Goods Authorization (RGA) number. You can request an RGA by contacting us. Unauthorized returns will not be accepted.
- Standard manufacturer terms & conditions apply to this product's return policy.
- Non-Configured Products: These are any products that were not customized to your order (e.g., unpainted parts, accessories, standard seating). You can return them within 30 days of delivery with no restocking fee, even if due to customer error. However, original shipping costs and credit card/PayPal processing fees may be deducted from your refund. No restocking fee
- Configured Products: These are products that are custom-built to your order. There is a 40% restocking fee on all returns of configured products.
- This is a hygiene item. It can only be returned if unopened and in its original packaging. Approved return requests will be accepted within 30 days of delivery.
- Custom fabricated products may not be returned.
