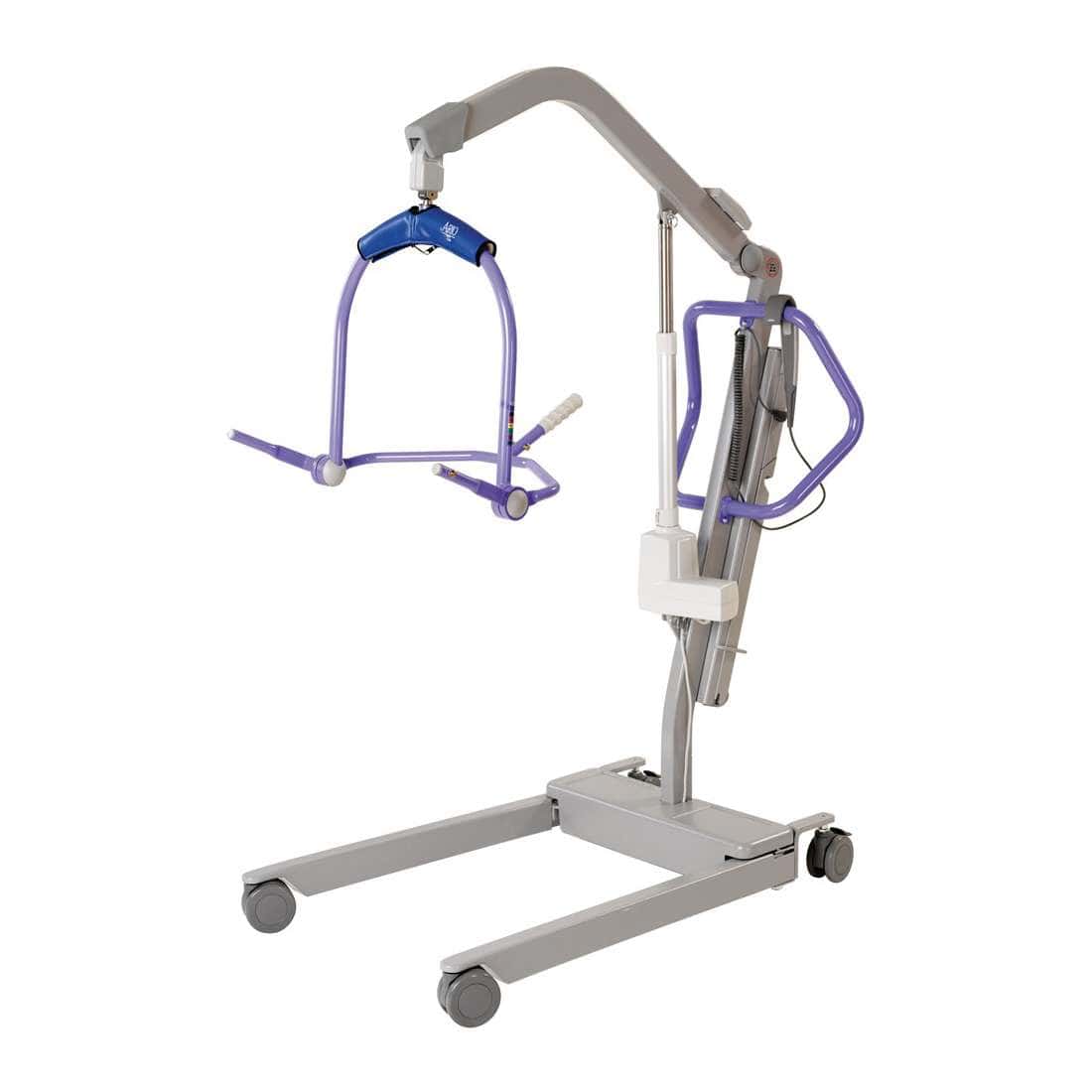

ArjoHuntleigh Maxi 500 power patient lift with manual DPS

Buy now and get free padded clip sling & extra 5% discount

ArjoHuntleigh Maxi 500 power patient lift with 4-point hanger bar and manual DPS (Dynamic Positioning System) and available with or without scale. Maxi 500 power patient lift is able to maintain proper body posture and avoid injury.


Please call or email us to order the accessories separately.

Special pricing available. Please call us for quote.

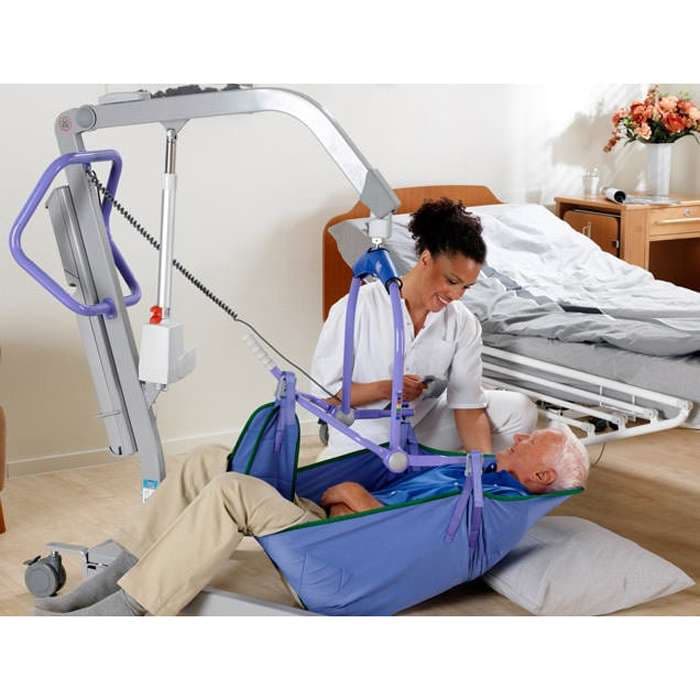

ArjoHuntleigh Maxi 500 power patient lift with manual DPS combines proven lifting technology with the latest standards in safety, security and comfort for both resident/client and caregiver alike. Maxi 500 is battery-operated which allows caregivers to give their undivided attention to the resident/client during client handling routines. Using Maxi 500, one caregiver can safely and comfortably perform a wide range of everyday client transfer tasks. And, the caregiver can also raise a person who has fallen to the floor without needing to sit the resident up first.

All power-assisted procedures can be closely controlled by the caregiver. With dual controls the caregiver can choose the most convenient solution for each task via either the handset or the mast control panel. The adjustable chassis, operated from the handset, can be easily adjusted to allow optimum access for resident/client transfers involving large chairs, wheelchairs or toilets.

Maxi 500 is available without or with a scale option, enabling the caregiver to quickly weigh the resident during a transfer. Efficiently integrating weighing into transfer procedures saves time, eliminates a transfer to a fixed scale and makes the routine easier for resident/client and caregiver.

Buy now and get free padded clip sling & extra 5% discount


  • Safe working load 500 lbs.
  • Handles are ergonomically placed
  • Emergency stop and emergency lowering
  • Low friction castors, the rear two with brakes
  • Ergonomic and durable handheld control unit
  • Power base, operated via the handheld control unit
  • Soft start/stop circuitry increases resident/client comfort and cooperation
  • Dual controls, allow caregiver to operate lift with or without handheld control unit
  • Powered lift, two detachable batteries and battery charger supplied with each Maxi 500

Weight Capacity of ArjoHuntleigh Lift Slings

Sling use Disclaimer: Please note that we recommend only to use the recommended brand slings with your Patient lifts, we do not guarantee compatibility of other sling brands with your lift model.

Services available:
  • resna certified assistive technology practitioner (ATP);
  • product trials; delivery; setup and fitting services available for clients in our local service area


Additional Info

SKU AHKM560081
Model KM560081
Brands ArjoHuntleigh
Technical Specifications
ArjoHuntleigh Maxi 500 power patient sling lift
Maximum safe working load 500 lbs.
Total weight 116.5 lbs.
Total lift height 52½"
Lifting height 25" - 72"
Height of chassis 4⅜"
External width legs closed 25"
Internal width legs open 35¾"
Battery 24V 4Ah
Protection class Handset - IP67
Lifter - IPX4
