Clinton Ultrasound Table – Adjustable Backrest & Power Lift
Product Information
Clinton general ultrasound table with three-section top Images
**The images on the website are for reference only and do not reflect the actual configuration of the product.** Learn more..

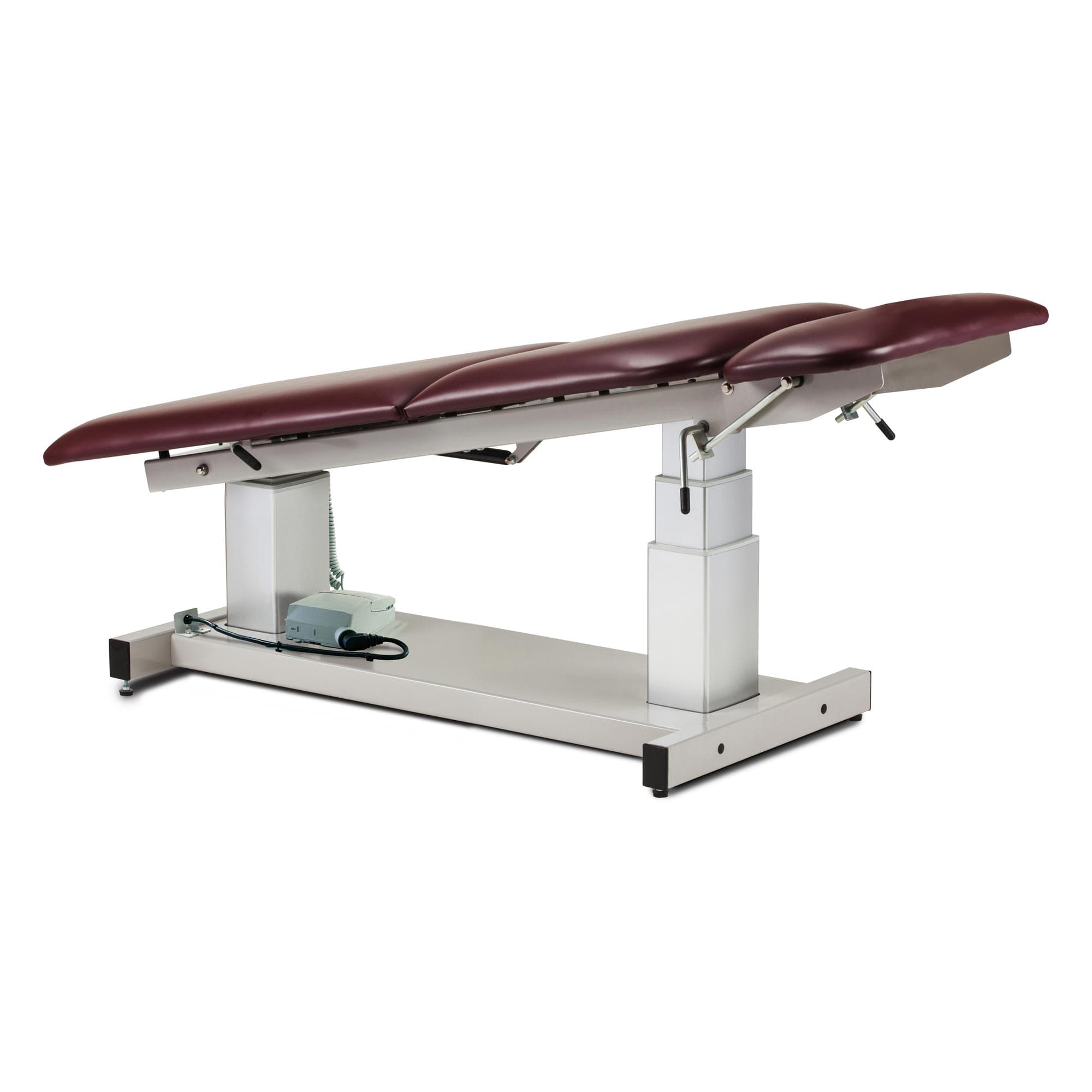

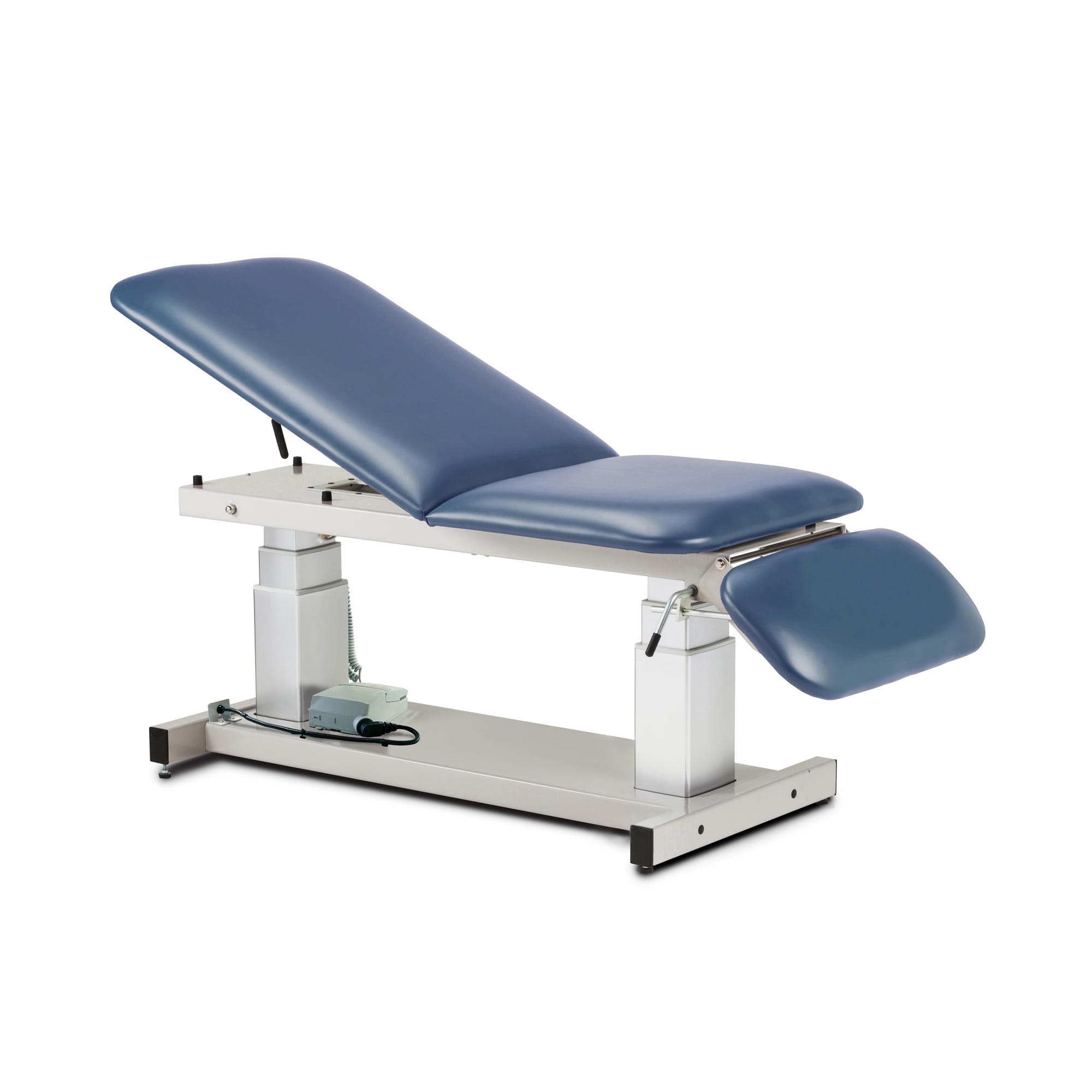

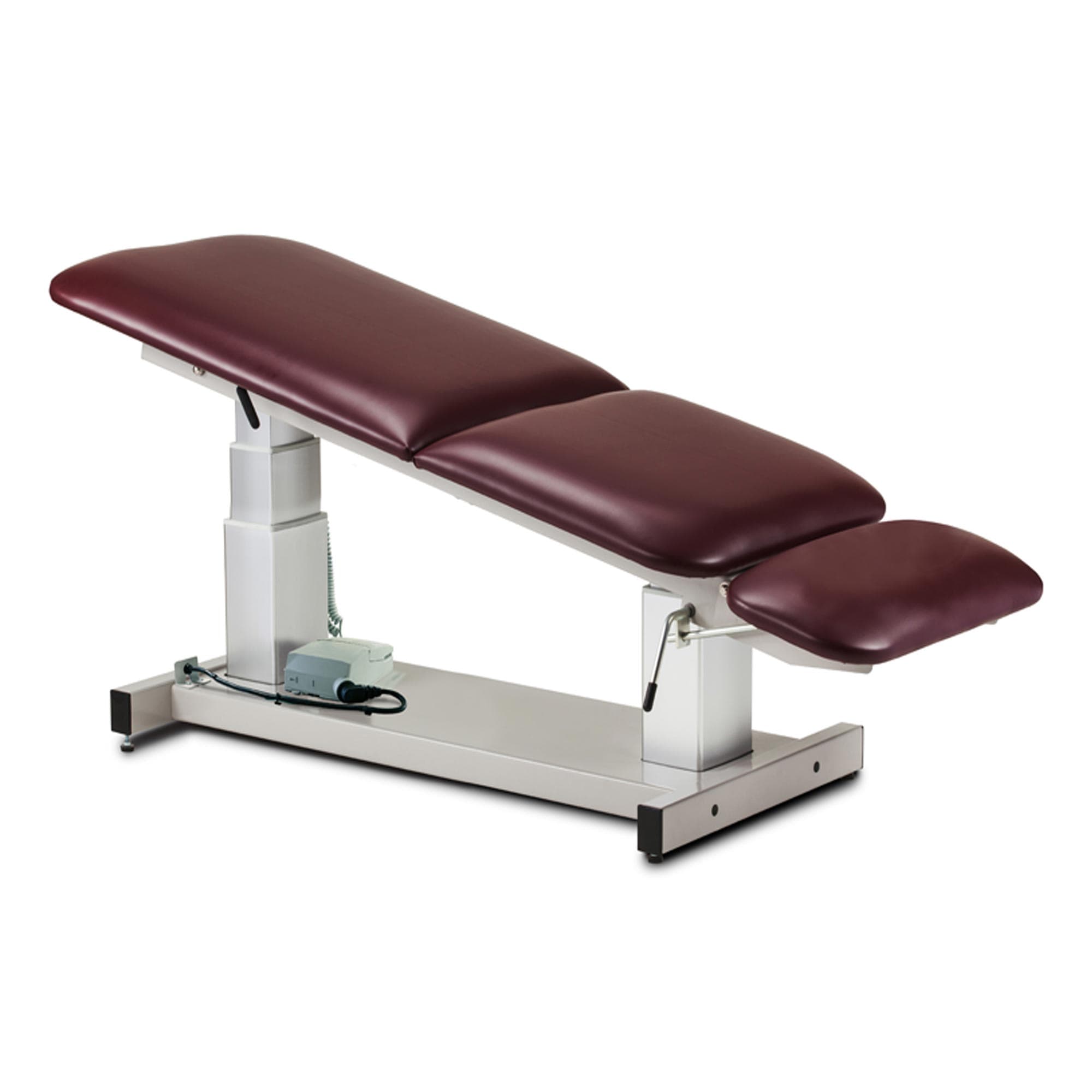

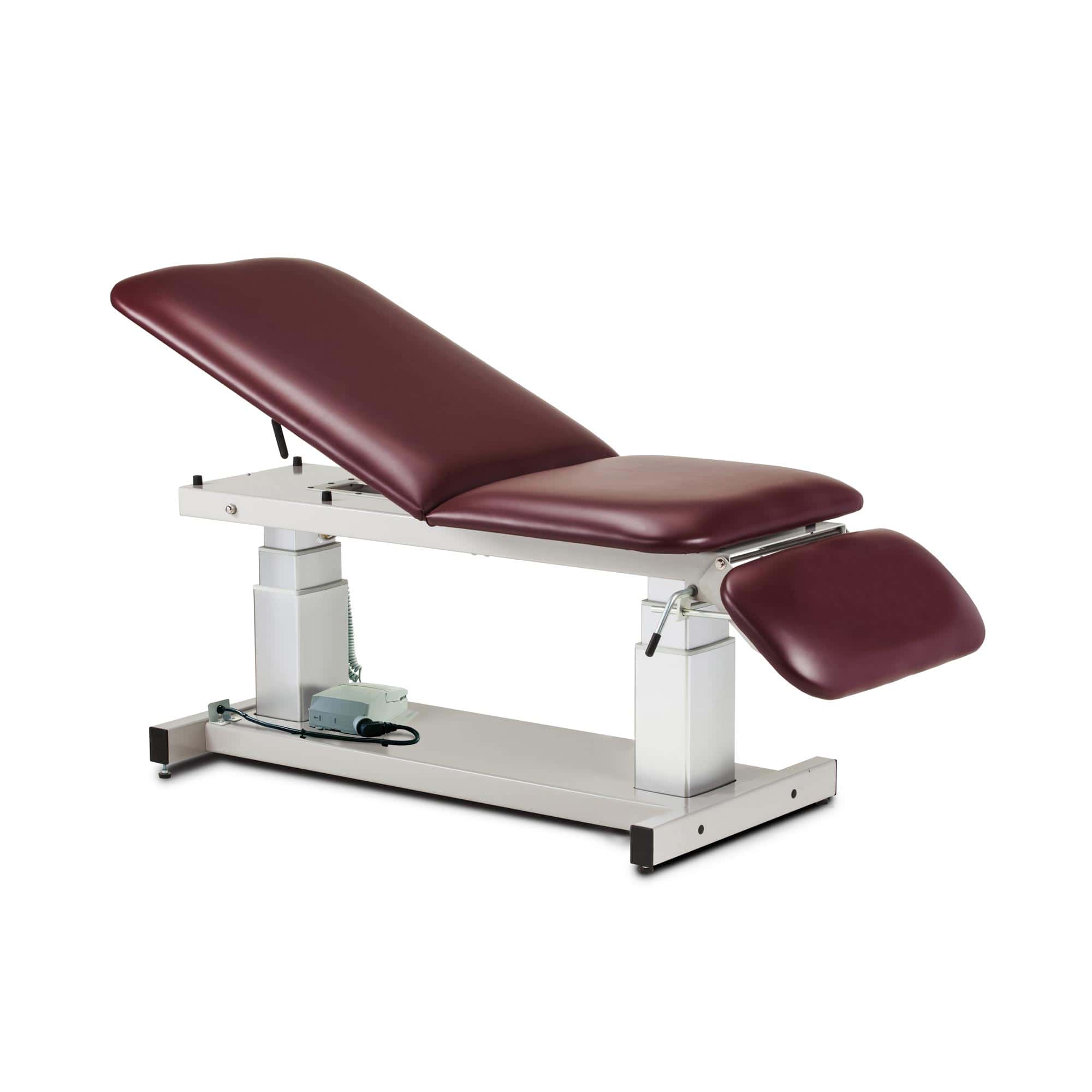

Clinton General Ultrasound Table With Three-section Top
Loyalty Points
You will earn up to 3560 points on this order

Loyalty Points
You will earn up to 3560 points on this order
PayPal Pay later
Pay low as $163.14/month with Pay Pal's pay later service
Paypal Pay later
Pay low as $163.14/month with Pay Pal's pay later service
Current Price: $3,559.64
Original Price: $5,291.98
Savings: $1,732.34 OFF
Quantity
Clinton general ultrasound table with three-section top Purchase Options
Ask a question
Product Features and Policies

Authorized Dealer

Made in USA

Oversized Item
Product Features and Policies

Authorized Dealer

Made in USA

Oversized Item
Clinton General Ultrasound Table with Three-Section Top is a high-performance imaging table engineered for precision, durability, and clinical versatility. Designed for ultrasound and general medical procedures, this table combines a robust all-welded frame with a three-section top, featuring a pneumatic adjustable backrest and manually adjustable footrest. With its dual-column lift system, unobstructed base, and Trendelenburg/Reverse Trendelenburg functionality, the table ensures both patient comfort and caregiver efficiency, supporting a wide range of medical applications while meeting strict safety and performance standards.
Features
- Easy-to-use hand control
- Paper dispenser included
- Unobstructed base design
- All-welded base and top frame
- Dual column lift system adds rigidity

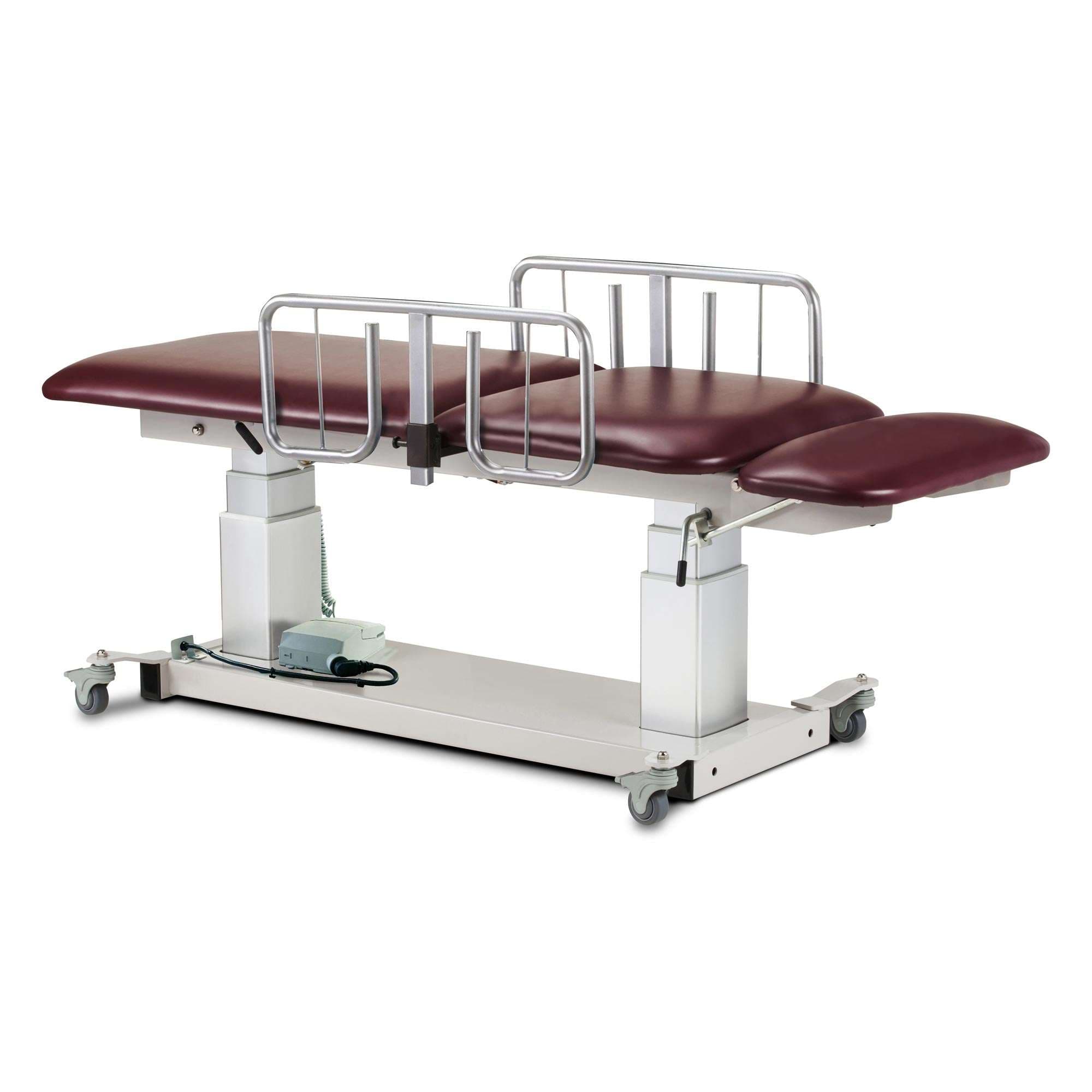

- Optional side rails & casters available
- Trendelenburg/Reverse Trendelenburg plus or minus 15º
- Model 80063: 500 lbs load capacity under normal use
- Model 80063-X: 600 lbs load capacity under normal use
- Three-piece top with pneumatic adjustable backrest and manual footrest
- Footrest is adjustable from either side and lowers up to 80º from flat position
- Power supplies and motors meet UL 60601-1 and CAN/CSA C22.2 601.1
Specifications
Specifications
Clinton general ultrasound table with three-section top | ||
Model | 80063 | 80063-X |
Length (overall) | 76" | 76" |
Width (overall) | 27" | 34" |
Footrest length | 13" | 13" |
Footrest width | 27" | 34" |
Backrest length | 38" | 38" |
Backrest width | 27" | 34" |
Height range | 21.5" – 37.5" | 21.5" – 37.5" |
Load capacity under normal use | 500 lbs. | 600 lbs. |
Warranty
Warranty
- 5-Year limited warranty applies to all products.
- Manufacturer warrants products to be free of defects in materials, workmanship or design under normal use and service conditions for five years on all mechanical products, all electric equipment and support items, from the date of purchase to the original purchaser only.
- If the product and/or equipment should become defective within the 5-year warranty period, manufacturer will send replacement parts or replace it (at its discretion) free of charge, including return transportation to you. All labor not included.
- Warranty does not include damage resulting from accident, abuse or misuse of the product and expressly excludes normal wearing of parts (including but not limited to vinyl) or defect caused by transportation, accident, fire, flood, improper assembly, alteration, or negligence.
- In addition, all representations and warranties made by any person or entity other than manufacturer main office is excluded from this warranty.
- Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to five years from purchase and all implied warranties are expressly excluded to the extent permitted by law and are otherwise limited to the terms of express warranties as set forth above.
- This is the exclusive remedy, and law for consequential or incidental damages under any and all warranties is excluded to the extent exclusion permits liability.
- This warranty does not cover or compensate for any loss of use damages that may occur as a result of failure of equipment cover under this warranty.
- Manufacturer reserves the right to alter or change equipment without prior notice, and to repair or replace warranted equipment with new parts or new products.
- Exceeding the recommended weight capacity of any Clinton product with stationary weight or a total combined weight consisting of stationary weight and applied force under normal intended or unintended use voids this and all implied or stated warranties.
- Any labor cost for service under warranty is not covered as per our terms of sale.
- The product warranty is applicable as per the terms and conditions given by the product manufacturer.
Please call us for specific details.
Return
Return
- Product must be returned within 30 days of written authorization or new RGA# must be requested as credit may be effected.
- Special order items are non-returnable, non-cancelable for any reason once production begins.
- Cancellation of orders in transit will be charged all shipping costs and a 20% restocking fee.
- We do not guarantee fulfillment of any desired purpose or product suitability to the user and this will not be considered as a valid reason for return.
- No merchandise may be returned for credit without prior written authorization.
- Returns authorized by Manufacturer must be shipped freight prepaid (No collect deliveries will be accepted).
- All products for return must be in original packaging, unused, unassembled and in resalable condition or no credit may be issued.
- Clinton error - 100% credit granted.
- Unused goods in original packing, returned within 90 days days original delivery date - 80% credit granted.
- Unused goods in original packing, returned 90-120 days from original delivery date - 60% credit granted.
- Goods not returned within 121 days from delivery date are non-returnable - no credit, no exceptions.
- Damaged goods:- appropriate credit less repair costs & restocking charges.
- Items deemed special order or damaged items due to improper packing when returned - no credit issued.
- If your return is not due to any manufacturing defect then the original shipping cost and credit card/paypal processing fee will be deducted from the total refund
- No returns accepted for Hygiene & Bath products due to health concerns.
- Custom orders are non-refundable and non-returnable.
- Standard manufacturer terms & conditions are applicable for return policy of this product.
Delivery Inspection Policy:
All shipments must be inspected immediately upon receipt. If the shipment is damaged, you have the right to refuse the delivery. Once the delivery has been accepted, Medicaleshop will not be held liable for any damages.
Please call us for specific details.
FAQs
FAQs
Q: What is the maximum weight capacity of the Clinton Three-Section Ultrasound Table?
A: Model 80063 supports up to 500 lbs, while Model 80063-X supports up to 600 lbs under normal use.
Q: Can the backrest and footrest be adjusted independently?
A: Yes, the pneumatic backrest and manual footrest can be adjusted independently to achieve optimal patient positioning.
Q: Is the table compatible with Trendelenburg positioning?
A: Yes, the table supports Trendelenburg and Reverse Trendelenburg tilt up to ±15°.
Q: Are casters and side rails included?
A: Casters and side rails are optional accessories that can be added for enhanced mobility and safety.
Q: How do I operate the height adjustment?
A: Height adjustment is powered via the easy-to-use hand control, allowing smooth and precise positioning.
Q: Is the table durable for frequent use in busy clinics?
A: Yes, the all-welded steel frame and dual-column lift system ensure long-lasting durability and stability for daily clinical use.
Description
Clinton General Ultrasound Table with Three-Section Top is a high-performance imaging table engineered for precision, durability, and clinical versatility. Designed for ultrasound and general medical procedures, this table combines a robust all-welded frame with a three-section top, featuring a pneumatic adjustable backrest and manually adjustable footrest. With its dual-column lift system, unobstructed base, and Trendelenburg/Reverse Trendelenburg functionality, the table ensures both patient comfort and caregiver efficiency, supporting a wide range of medical applications while meeting strict safety and performance standards.
Features
- Easy-to-use hand control
- Paper dispenser included
- Unobstructed base design
- All-welded base and top frame
- Dual column lift system adds rigidity
- Optional side rails & casters available
- Trendelenburg/Reverse Trendelenburg plus or minus 15º
- Model 80063: 500 lbs load capacity under normal use
- Model 80063-X: 600 lbs load capacity under normal use
- Three-piece top with pneumatic adjustable backrest and manual footrest
- Footrest is adjustable from either side and lowers up to 80º from flat position
- Power supplies and motors meet UL 60601-1 and CAN/CSA C22.2 601.1
Details
Sizing/specifications
Clinton general ultrasound table with three-section top | ||
Model | 80063 | 80063-X |
Length (overall) | 76" | 76" |
Width (overall) | 27" | 34" |
Footrest length | 13" | 13" |
Footrest width | 27" | 34" |
Backrest length | 38" | 38" |
Backrest width | 27" | 34" |
Height range | 21.5" – 37.5" | 21.5" – 37.5" |
Load capacity under normal use | 500 lbs. | 600 lbs. |
Details
Warranty
- 5-Year limited warranty applies to all products.
- Manufacturer warrants products to be free of defects in materials, workmanship or design under normal use and service conditions for five years on all mechanical products, all electric equipment and support items, from the date of purchase to the original purchaser only.
- If the product and/or equipment should become defective within the 5-year warranty period, manufacturer will send replacement parts or replace it (at its discretion) free of charge, including return transportation to you. All labor not included.
- Warranty does not include damage resulting from accident, abuse or misuse of the product and expressly excludes normal wearing of parts (including but not limited to vinyl) or defect caused by transportation, accident, fire, flood, improper assembly, alteration, or negligence.
- In addition, all representations and warranties made by any person or entity other than manufacturer main office is excluded from this warranty.
- Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to five years from purchase and all implied warranties are expressly excluded to the extent permitted by law and are otherwise limited to the terms of express warranties as set forth above.
- This is the exclusive remedy, and law for consequential or incidental damages under any and all warranties is excluded to the extent exclusion permits liability.
- This warranty does not cover or compensate for any loss of use damages that may occur as a result of failure of equipment cover under this warranty.
- Manufacturer reserves the right to alter or change equipment without prior notice, and to repair or replace warranted equipment with new parts or new products.
- Exceeding the recommended weight capacity of any Clinton product with stationary weight or a total combined weight consisting of stationary weight and applied force under normal intended or unintended use voids this and all implied or stated warranties.
- Any labor cost for service under warranty is not covered as per our terms of sale.
- The product warranty is applicable as per the terms and conditions given by the product manufacturer.
Please call us for specific details.
Details
Return policy
- Product must be returned within 30 days of written authorization or new RGA# must be requested as credit may be effected.
- Special order items are non-returnable, non-cancelable for any reason once production begins.
- Cancellation of orders in transit will be charged all shipping costs and a 20% restocking fee.
- We do not guarantee fulfillment of any desired purpose or product suitability to the user and this will not be considered as a valid reason for return.
- No merchandise may be returned for credit without prior written authorization.
- Returns authorized by Manufacturer must be shipped freight prepaid (No collect deliveries will be accepted).
- All products for return must be in original packaging, unused, unassembled and in resalable condition or no credit may be issued.
- Clinton error - 100% credit granted.
- Unused goods in original packing, returned within 90 days days original delivery date - 80% credit granted.
- Unused goods in original packing, returned 90-120 days from original delivery date - 60% credit granted.
- Goods not returned within 121 days from delivery date are non-returnable - no credit, no exceptions.
- Damaged goods:- appropriate credit less repair costs & restocking charges.
- Items deemed special order or damaged items due to improper packing when returned - no credit issued.
- If your return is not due to any manufacturing defect then the original shipping cost and credit card/paypal processing fee will be deducted from the total refund
- No returns accepted for Hygiene & Bath products due to health concerns.
- Custom orders are non-refundable and non-returnable.
- Standard manufacturer terms & conditions are applicable for return policy of this product.
Delivery Inspection Policy:
All shipments must be inspected immediately upon receipt. If the shipment is damaged, you have the right to refuse the delivery. Once the delivery has been accepted, Medicaleshop will not be held liable for any damages.
Please call us for specific details.
Details
Faqs
Q: What is the maximum weight capacity of the Clinton Three-Section Ultrasound Table?
A: Model 80063 supports up to 500 lbs, while Model 80063-X supports up to 600 lbs under normal use.
Q: Can the backrest and footrest be adjusted independently?
A: Yes, the pneumatic backrest and manual footrest can be adjusted independently to achieve optimal patient positioning.
Q: Is the table compatible with Trendelenburg positioning?
A: Yes, the table supports Trendelenburg and Reverse Trendelenburg tilt up to ±15°.
Q: Are casters and side rails included?
A: Casters and side rails are optional accessories that can be added for enhanced mobility and safety.
Q: How do I operate the height adjustment?
A: Height adjustment is powered via the easy-to-use hand control, allowing smooth and precise positioning.
Q: Is the table durable for frequent use in busy clinics?
A: Yes, the all-welded steel frame and dual-column lift system ensure long-lasting durability and stability for daily clinical use.
