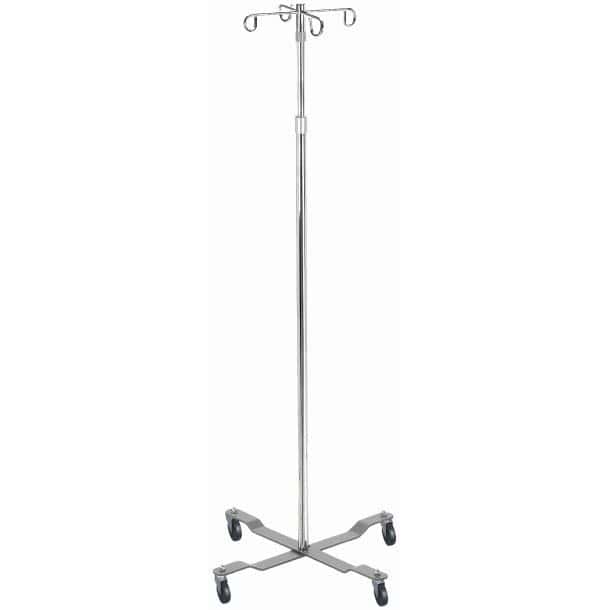

Drive Economy IV pole comes equipped with a 4 leg base and a removable top making it versatile for use in multiple setups. The frame is built out of chrome plated steel for easy maintenance, it is durable and comes with 4 inch rubber wheels which ensure easy transport and maneuverability. The IV stand can be altered into a 2 hook or 4 hook assembly with the help of a easy to release pushpin. The locking collar allows for easy height adjustment from 40" - 82".
Features:
- Removable hooks
- Height range of 40" - 82"
- Locking collar allows for easy height adjustments
- 4" rubber wheels provide for a smooth transport and maneuverability
- Chrome plated steel with weighted base provides strength, durability and reduced risk of tipping over

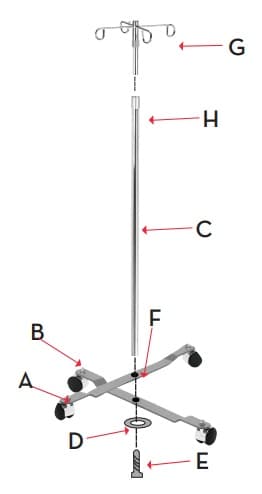

Assembly Instructions:
- STEP 1: Overlay top leg (A) with pre-assembled pin (F) over corresponding holes in the middle of the bottom leg (B) Hammer the pin (F) into bottom leg and making sure that it's flush with the top leg.
- STEP 2: Place lock washer (D) onto bolt (E) and install from the bottom side of the base into bottom of post (C).
- STEP 3: Snap the hook (G) over the top end of post (C) until the snap pins pop through the two holes in the tube portion of the hook.
Parts List:
- A: Top Leg (with insert) - Qty 1
- B: Bottom leg - Qty 1
- C: Post - Qty 1
- D: Lock washer - Qty 1
- E: Lock washer - Qty 1
