EasyStand Evolv Manual Stander, Medium | Easystand Evolv Stander

Features

Details

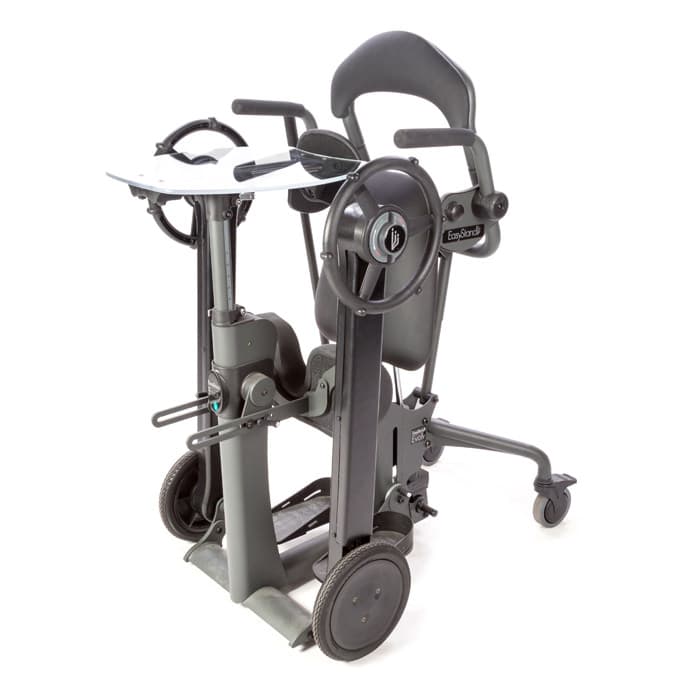

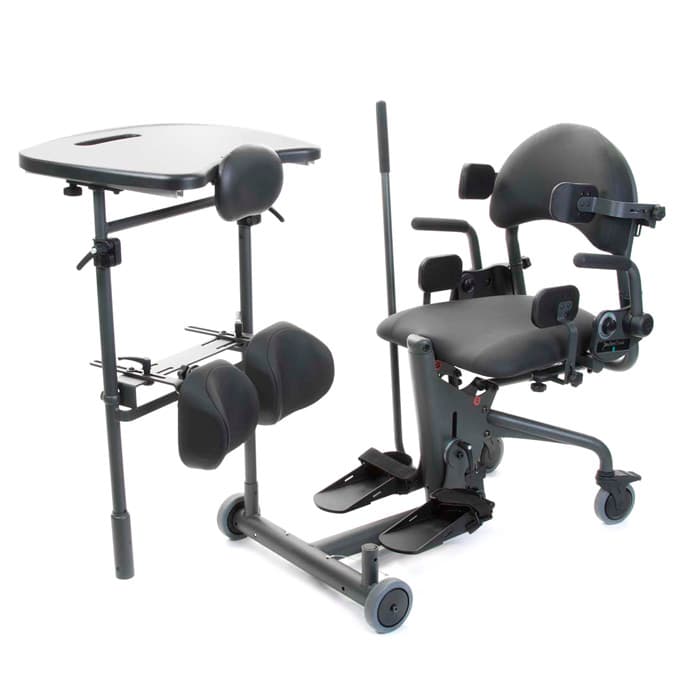

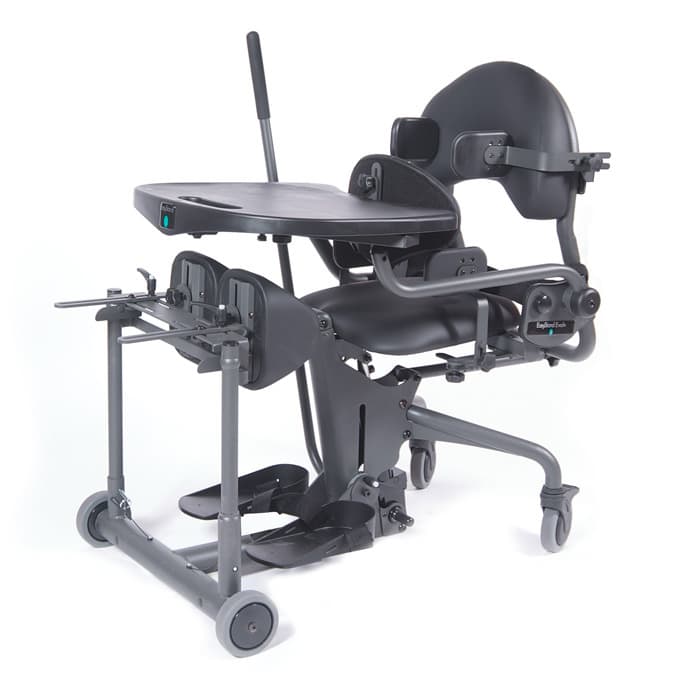

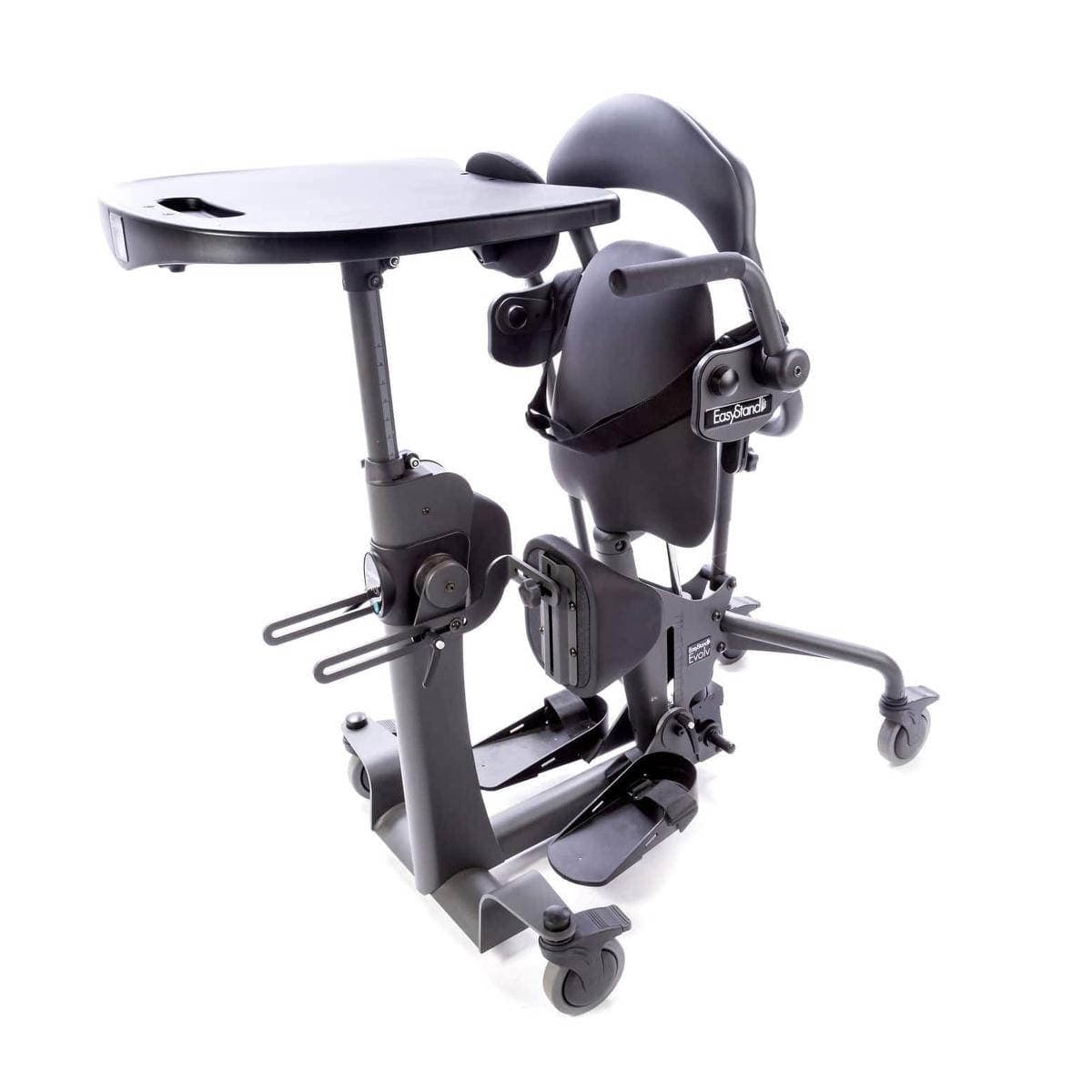

EasyStand evolv sit to stand stander, medium comes with shadow tray which makes standing possible for the most involved users, even the highest level quadriplegic. Providing constant anterior support, the shadow tray allows the user to stop anywhere between sitting and standing. EasyStand evolv medium stander features modular design which makes it most versatile standing frame available. The base unit is functional for many users, however when more support is needed a wide variety of positioning options can be added to accommodate the most involved users. Evolv is one of the most supportive and comfortable sit to stand stander which comes with over 60 options and configurations. These options, that would normally be custom modifications, allow a stander to be configured for specific needs.

Accessibility and independence:

Evolv sit to stand stander's open base makes independent transfers easier. A larger transfer seat or rotating seat can also be added to make transfers more manageable. To make standing pivot or lift assist transfers easier, an optional swing-away front or removable back can be added. The user can independently achieve the standing position with the manual hydraulic actuator or optional push-button power up lift.

Positioning:

The optimal standing position has been perfected in the evolv standing frame. By strategically placing the pivot points of the stander in line with the body’s natural pivot points, options like the hip supports, lateral supports, and head support remain in place from sitting to standing, minimizing shear. When positioned correctly, the contoured seat provides a maximum over-center stretch for various body types. Evolv also accommodates for hip and knee contractures through proper positioning of the footplates and optional independent knee pads.

Safety and convenience:

EasyStand evolv standing frame provides a safe and supportive transition to standing. It allows the user to stand in three easy steps - adjust, transfer, and pump up. Both caregivers and users are more comfortable with the evolv because of the safe and easy lateral transfer and supportive transition to standing.

Buy now & get free foot straps and seat angle locator

Product comes standard with

Planar seat
Transfer handles
Black upholstery
Flip-up knee pad
Two 5" front wheels
Two 5" rear locking casters
Multi-adjustable foot plates
Black molded tray with chest pad
Manual hydraulic actuator with handle

Services available:

resna certified assistive technology practitioner (ATP);

please call us for product customization as per your requirements

product trials; delivery; setup and fitting services available for clients in our local service area

client measurements recommended to be submitted along with your order

special discounts available...

Sizing

Additional Info

SKU

ESPNG50162

Model

PNG50162

HCPCS

E0637

Brands

EasyStand

Technical Specifications

Basic Configuration

EasyStand evolv sit to stand stander, medium (Basic)
Approximate height range	4'0" - 5'6"
Weight limit	200 lbs
Seat depth range (From seat pivot)	14" - 19"
Seat to footplate range (From seat pivot)	11" - 18"
Knee width (Center to center)	9"
Kneepad depth range (From seat pivot)	3.5" - 5.75"
Seat height	21.5"
Seat dimensions	16"W x 17.5"L
Standard tray size	21" x 24"
Tray/chest pad depth range (From seat pivot)	0" - 10.5"
Standard tray height range (From seat pivot)	15.5" - 30.5"
Footprint (At widest points)	26.5" x 33.5"
Weight of basic unit	101 lbs
Locking caster diameter	5"
Footplates - Plantar	10° in 3 increments
Footplates - Dorsi	10° in 3 increments
Footplates - Toe-out	15° in 3 increments

Shadow tray measurement

Mobile option

EasyStand options

EasyStand evolv sit to stand stander, medium (Options)
Front swivel casters	Add 5"W to footprint
Adjustable/removable actuator handle range	+/- 15° from neutral
T-style handle - Extends (Each direction)	6"
Foot straps - Fits foot height	4" - 6.5"
Secure foot straps- Fits foot height	4" - 6.5"
Seat - Size of roho insert	7" x 12"
Transfer seat dimensions	20"W x 17.5"L
Hip supports - Medium width	9" - 15"
Hip supports - Large width	11" - 17"
Hip supports pad size	4"W x 6"H
Independent kneepad height range (From seat pivot)	+5" to -5.25"
Independent kneepad depth range (From front of seat)	1" - 7.5"
Independent kneepad width range (Center to center)	9" - 13.5"
Independent kneepad size	7"W x 9"H
Independent kneepad roho insert size	5"W x 7.5"H
Clear acrylic tray size	21" x 24"
Oversized clear tray size	29" x 22"
Angle adjustable tray (Angle range)	0° - 35°
Large contoured chest pad (Approximate size)	9.5" x 15"
Low back (flat/contoured) height from seat	13"
High back (flat/contoured) height from seat	19"
Velcro positioning belt (Hip circumference)	26" - 55"
Positioning belt with airline buckle (Hip circumference)	26" - 55"
Small chest strap - Pad size	5"W x 19"L
Small chest strap-fits users chest measuring	30" - 46"
Large chest strap - Pad size	5"W x 24"L
Large chest strap-fits users chest measuring	34" - 54"
X-style chest vest - Medium	11"L x 9.5"W
X-style chest vest - Large	12.5"L x 10"W
Y-style chest vest - Medium	17.5"L x 11.5"W
Y-style chest vest - Large	20.5"L x 12.5"W
High mount chest vest bracket positions	18", 19", 20", 21" H (Above hip pivot)
Lateral supports - Medium width range	9" - 15"
Lateral supports - Large width range	12" - 18"
Lateral supports - Fore/aft pad adjustment	3"
Lateral supports - Height adjustment by swapping brackets left/right	2"
Lateral supports - Height adjustment via mounting bolts on the pads	2"
Lateral supports - Height range of lateral pad from hip pivot	4"
Lateral supports - Rotational setting of lateral pad via bolt mounting holes	90°, 180°, 270° or 360° position
Lateral support pad size	4"W x 6"H
Head support - Medium height range (From top of the seat to middle of headrest)	21" - 30.5"
Head support - Large height range (From top of the seat to middle of headrest)	24" - 33.5"
Head support - Depth range	3.75"
Head support - Fore/aft adjustment in relation to back pad	Flush with back aft to 3¾

Order Forms

EasyStand Evolv brochure

EasyStand Evolv Perfect Fit Guide

Standing Frame Measurement Guide

EasyStand Evolv Stander User Manual

Evolv Medium Stander Order Form

EasyStand Evolv Spinal Cord Injury Brochure

Videos

Easystand Evolv product demonstration

Adjusting the Seat Depth on the Shadow Tray

EasyStand Evolv Assembly

Warranty

The warranty on the EasyStand Evolv line of standers is as follows:

Ninety days on the control box, battery, and battery charger.
Five years on the steel frame and two years on the hydraulic pump.
The warranty on the optional Power Up Lift is two years on the actuator and hand pendant.
The warranty on all other parts on the Evolv stander is ninety days.
Parts under warranty will be covered at no cost.
Any labor cost for service under warranty is not covered as per our terms of sale.
Standard manufacturer terms & conditions apply for Warranty of this product.

Please call us for specific details.

Returns

Returns must be made within 30 days of receipt of the product, with an approved Return Authorization.
We will refund the invoiced amount less a 10% restocking fee and shipping charges, if the product is returned in like-new condition and shipping is prepaid.
All returns must have an RA# number (returned authorization number), unauthorized returns will not be accepted.
The products must be new, unused condition, not tampered with, in original packaging and returned at the customer's expense in the original packaging.
If your return is not due to any manufacturing defect then the original shipping cost will be deducted from the total refund
Custom orders are non-refundable and non-returnable.
Standard manufacturer terms & conditions apply for Return policy of this product.

Please call us for specific details
