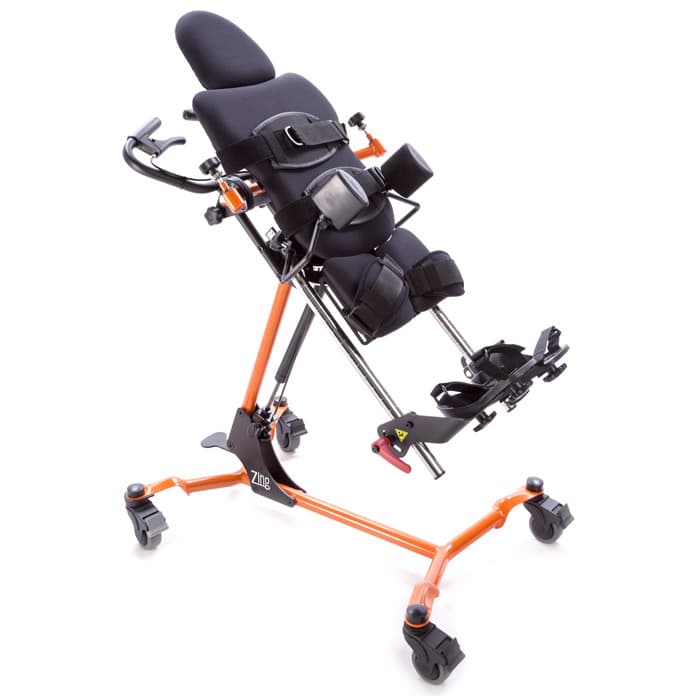

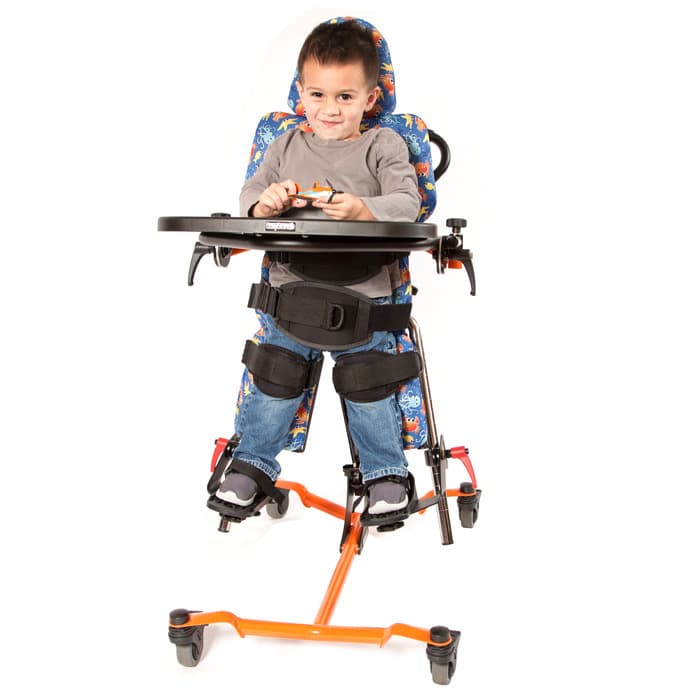

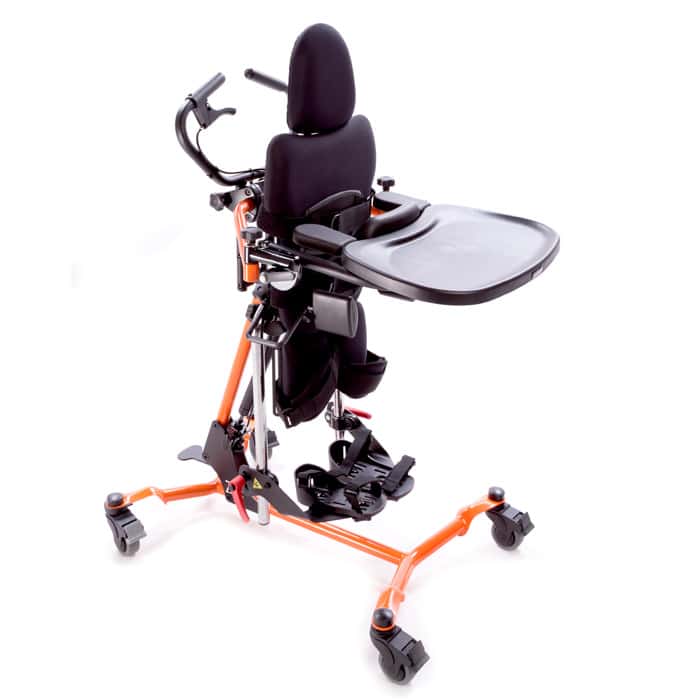

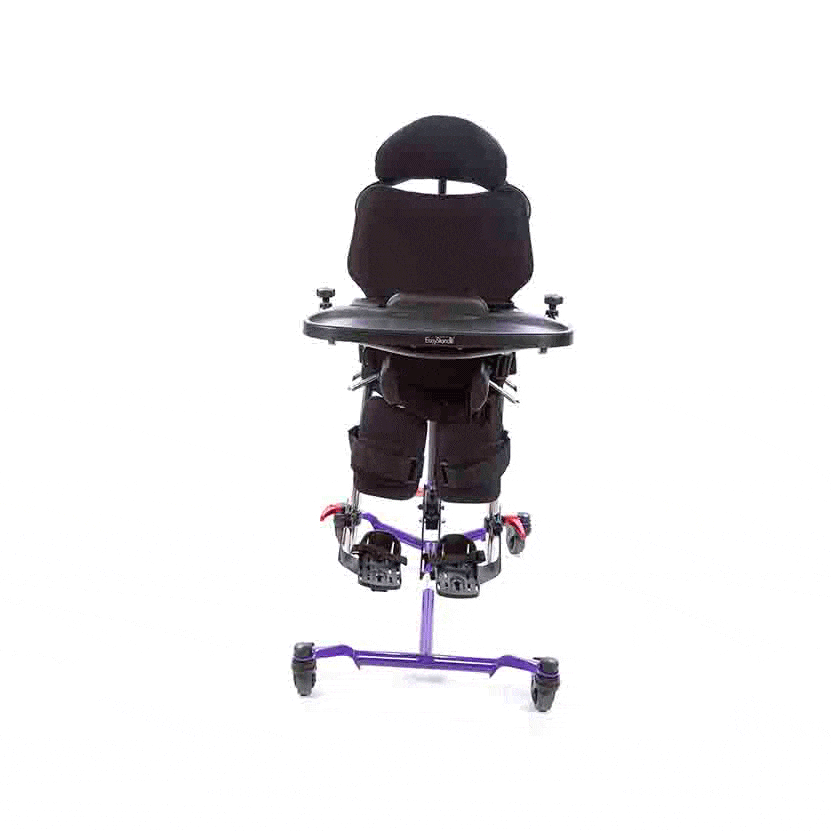

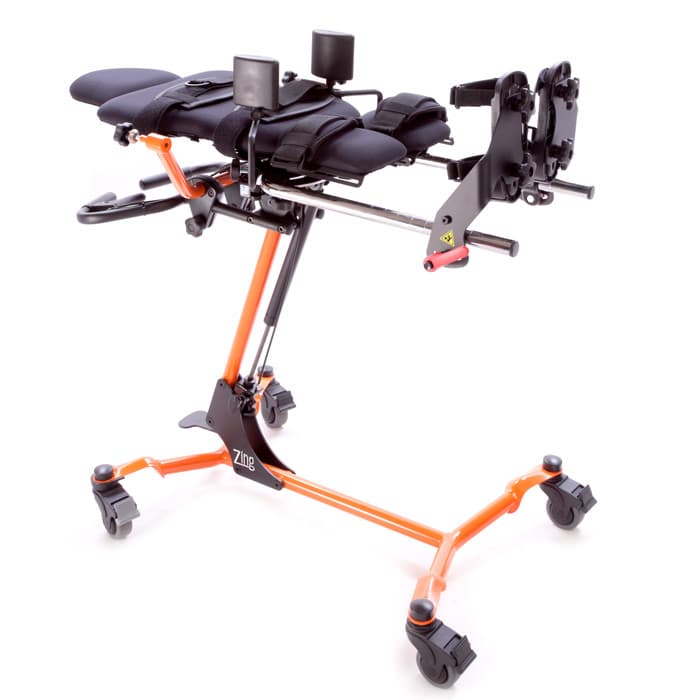

EasyStand zing multi-position tilt table stander |
User height range |
up to 44" |
Maximum weight limit |
70 lbs. |
Transfer height (Horizontal position) |
32" |
Pelvic support to foot plate range |
7" - 22" |
Upper body support height range |
4" |
Kneepad depth range |
5" |
Kneepad inside width |
2.5", 3.25", 4.25", 5" |
Kneepad dimensions |
2.5" |
3.5" x 4" |
3.25" |
4" x 4" |
4.25" |
4.5" x 5" |
5" |
5" x 6" |
Kneepad height range |
+/- 0.75" |
Multi-adjustable kneepads width range (Extra small) |
4" - 9" |
Multi-adjustable kneepads width range (Small) |
4.5" - 9" |
Multi-adjustable kneepads height range |
+/- 0.75" |
Weight of basic unit |
55 lbs. |
Frame footprint - Caster-to-caster |
20" x 28" |
Frame footprint - Maximum dimensions |
21.5" x 29.5" |
Casters and wheels diameter |
3" |
Supine positioning |
0° - 90° |
Prone positioning |
20° |
Leg abduction |
30° per side |
Foot straps, extra small - Fits foot height of |
1.5" - 3” |
Foot straps, small - Fits foot height of |
3" - 6" |
Secure foot straps - Fits foot height of |
3" - 6" |
Foot plate platform |
8" L x 12" W |
Multi-adjustable foot plates - Plantar / dorsi |
+/- 20° |
Multi-adjustable foot plates - Fore / aft |
+/- 0.75" |
Multi-adjustable foot plates rotation |
30° left / right |
Shadow tray size |
11" x 19" |
Shadow tray height range |
3" |
Shadow tray fore / aft range |
0" - 10" |
Swing-away tray size |
11" x 19" |
Swing-away tray height range |
3" |
Swing-away tray fore / aft range |
4" - 9" |
Swing-away tray angle adjust range |
40° inclines to -90° |
Hip support pad size |
3.5" H x 3.5" W |
Hip supports width range |
6" - 10" |
Lateral support pad size |
3.5" H x 3.5" W |
Lateral supports width range |
7" - 11" |
Lateral supports height range |
3.5" |
Lateral supports fore / aft range |
1" |
Planar pelvic support pad |
5" x 7" |
5" x 9" |
Form to fit pelvic support pad |
5" x 7" |
5" x 9" |
Planar upper body support pad |
5" x 7" |
5" x 9" |
Form to fit upper body support pad |
5" x 7" |
5" x 9" |
Chest pad |
3" H x 8" W |
Chest strap (Pad size) |
5" x 8" |
Chest strap - User circumference |
Up to approx 24" |
X-Style chest vest - Extra small |
9.5" L x 9" W |
X-Style chest vest - Small |
11" L x 9.5" W |
Head support - Height range |
8" |
Head support - Depth range |
-2.5" to +1.5" |
Head support cushion size - Extra small |
5" H x 8" W |
Head support cushion size - Small |
6" H x 10" W |
Flat headrest |
5" H x 7" W |
Positioning belt - Hip circumference |
Up to approx. 24" |
