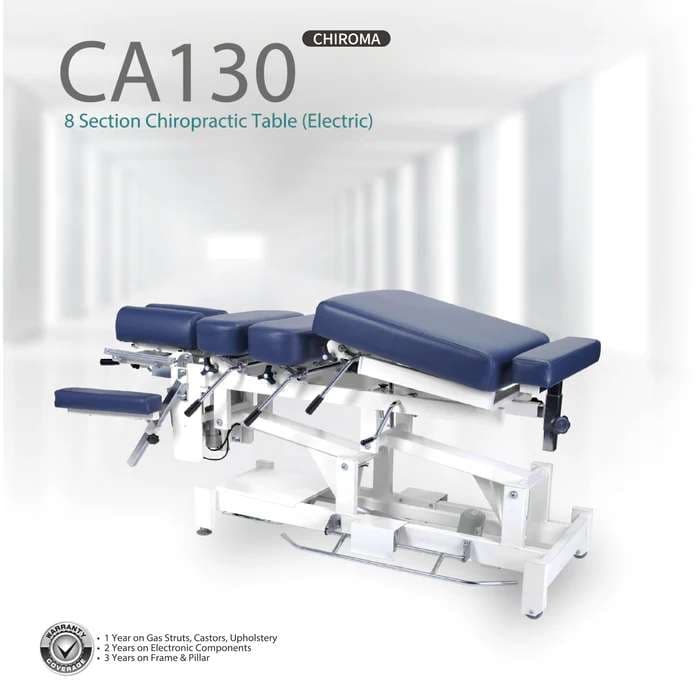

Everyway4all CA130 8-Section Chiropractic table provides professional chiropractor with the simplicity of use. The main emphasis of chiropractic is on manual and manipulative therapy for the treatment of joint dysfunctions, especially those of the spinal column, CHIROMA serves as a "Force Extension" as well as "Force Absorbent" platform for chiropractors to perform various tentative tasks without the risks of collateral damage to the patient.
This is an 8 Section Chiropractic Table (Electric) with 4 Sections of Adjustable Tension-Drop at the (1) Head (2) Thorax (3) Abdomen Sections.
New features:
2 x Motorized Actuators" are implemented in the Head Section for Height & Tilting Adjustment.
A Joystick" is also implemented at the Head Section for Height & Tilting Adjustment.
CA130 Chiroma features:
1 * Motor for Height Adjustment
4 * Sections are equipped with Adjustable Tension-Drop
2 * Fixed Arm Rest for absolute comfort & reliability
2 * Motor for Height Adjustment & Tilting Adjustment of the Head Section
1 * Foot Control
8 * Sections Blue Upholstered Table Top
The adjustable tension drop can be initiated at all sections of our body:
Cervical Drop
Thoracic Drop
Lumbar Drop
Pelvic Drop
Main features:
Plug type: US
100-240VAC (Universal Voltage)
Equipped with 1 Motorized Actuator for Hi/Lo Adjustment
Equipped with 1 Motorized Actuator for Hi/Lo Adjustment (Head Section)
Equipped with 1 Motorized Actuator for Tilting Adjustment (Head Section)
Equipped with 1 Joystick for Hi/Lo & Tilting Adjustment
Adjustable Tension Drop - Cervical, Dorsal (Thoracic), Lumbar, Pelvic
Twin "Oversized" Pillars for added stability
2 * Individual Leveling Foot at Head Section
2 * Hauling Wheels at the Rear Section
Designed to be lifted and moved around by lifting just the arm rest
Sizing
Everyway4all CA130 8-Section Chiropractic table
Minimum height
21.26"
Maximum height
38.58"
Table Top Width
23.62"
Head Section Length
12.20"
Arm Rest Length
16.14"
Thoracic Section Length
7.48"
Abdominal Section Length
8.66"
Lumbar & Leg Section Length
22.83"
Ankle Section Length
4.72"
Total Length
63"
Head Tilt Angles
-15° to +15°
Head Elevation
3.93"
Head-Drop Travel Range
8.66"
Thoracic-Drop Travel Range
9.84"
Abdominal-Drop Travel Range
9.84"
Lumbar & Leg- Drop Travel Range
6.69"
Lumbar & Leg Tilt / Lift Angle
0° to 15°
Ankle Section Extension Range
11.02"
Lift Mechanism
Electric
Breathing Hole/Plug
N/A
Hauler Wheel (Fixed at Leg End)
2
Weight Rating (Max. Load)
496. lbs.
Net Weight
93.5 kg
Gross Weight
103.5 kg
Electrical data
Control box input voltage & rating
100~240VAC, 50/60Hz, 2A
Control box output voltage
DC 32V, 80VA
Actuator input voltage
DC 24V
Duty cycle
Max. 10% 2min. ON / 18min. OFF
Max. load
Push 8000N
Max. current:
6A
CERTIFIED TO AAMI / CSA / IEC / EN STD
AAMI ES 60601-1, CSA-C22.2 NO. 60601-1
IEC 60601-1, EN 60601-1
The electrical components used are approved by IEC 60601-1
Warranty
The manufacturer provides a limited warranty against defect in workmanship and materials according to the schedule below:
Twelve (12) Months Limited Warranty: on upholstery, head/foot/switch controls, castors leveling foot, and gas struts
Twenty-Four (24) Months Limited Warranty: on motorized actuator, control box, and metal side bars
Thirty-Six (36) Months Limited Warranty: on table frame and table pillars
During the warranty period, manufacturer will, at Manufacturer’s discretion, either repair or replace any product that does not comply with this warranty.
All product warranties are void if the product has been misused or abused, if there have been unauthorized repairs, or if the law tag has been removed or tampered with.
Parts under warranty will be covered at no cost. Any labor cost for service under warranty is not covered as per our terms of sale.
Standard manufacturer terms & conditions apply for warranty of this product.
Please call us for Specific Details.
Return
Returns are accepted within 30 days from the date of shipment.
A 25% restocking fee will apply to all returns.
All returns must include an RGA (Returned Goods Authorization) number. Unauthorized returns will not be accepted.
Returned products must be in new, unused condition, not tampered with, and in their original packaging. The return must be made at the customer's expense.
If the return is not due to a manufacturing defect, the original shipping cost and any credit card/PayPal processing fees will be deducted from the refund amount.
Hygiene and Bath products cannot be returned due to health concerns.
Custom orders are non-refundable and non-returnable.
Standard manufacturer terms and conditions apply to the return policy for this product.
