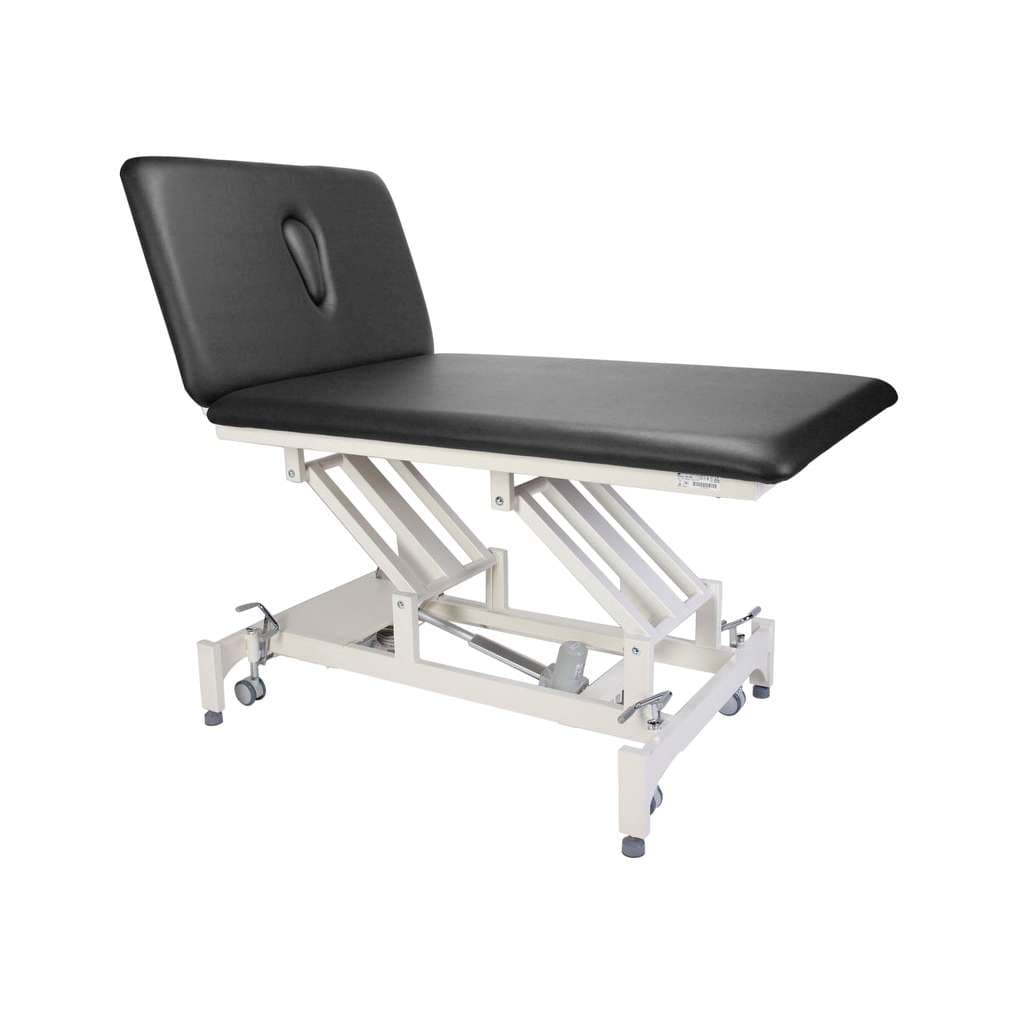

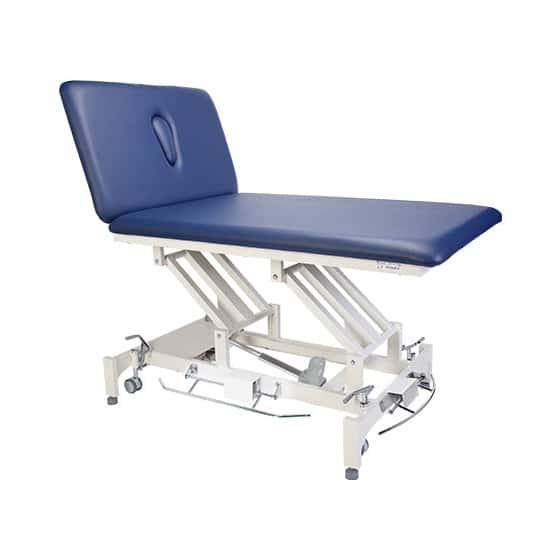

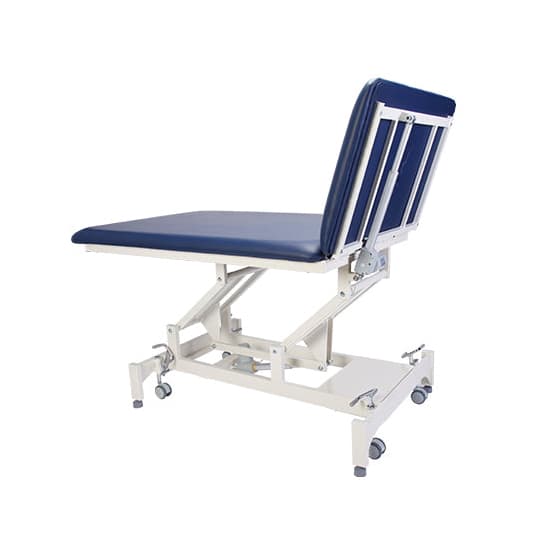

Everyway4all CA160 2-Section Bobath Table

loyalty pointsLoyalty Points

You will earn up to 1844  points on this order

Paypal Pay later
Pay low as $84.5/month with Pay Pal's pay later service
Need Help Or Advice ?Our Product Experts are here for youContact Us
$1,843.74
$2,580.00
$736.26 OFF
Quantity
Detailed description

Everyway4all CA160 2-Section Bobath Table - is a heavy-duty, motorized treatment table designed specifically for neurological therapy, particularly in the Bobath concept. This highly versatile table is built to offer superior support, comfort, and stability, makes it an essential tool for physiotherapists and clinicians working with patients requiring specialized care.

Key Features:

Two-Section Design: The CA160 Bobath Table features a two-section surface, offers flexibility in positioning for various therapeutic interventions. The table is ideal for treating patients with neurological conditions, as it allows for effective positioning and patient management during therapy sessions.

Choice of Width: The table offers two different width options, 39.37” (1 meter) or 47.24” (1.2 meters), allows healthcare providers to choose the most appropriate size based on patient needs and available space.

Reinforced Twin Pillars: The CA160 is equipped with twin oversized pillars that are reinforced for added strength and durability. These pillars ensure maximum support for the table structure, makes it capable of withstanding the demands of both therapy and patient handling.

Dual-Side Support Beams: To enhance stability further, the table features dual-side support beams that provide additional reinforcement. This design ensures that the table can hold a significant load while maintaining a high level of stability during patient treatment.

Low Height Adjustment: The table can be lowered to a minimum height of 18", provide easier access for patients to get on or off the table. This is particularly beneficial for individuals who may be using a wheelchair or need assistance due to mobility challenges.

Motorized Adjustments: The CA160 Bobath Table is equipped with two motorized actuators:

  • 1. The first actuator controls the height of the table, allows smooth and easy adjustments to suit various therapeutic positions.
  • 2. The second actuator adjusts the backrest, enables the table to support different patient positions for maximum comfort during treatment.

Maximum Load Capacity: The table is designed to handle patients weighing up to 551 lbs., ensures it can support a wide range of patient sizes and weights without compromising on safety or stability.

Leveling Feet: The CA160 Bobath Table is equipped with individual leveling feet on all four corners, ensures that the table remains perfectly stable and level, regardless of the floor surface.

Retractable Castors: For added mobility, the table features retractable castors at both ends, allows it to be easily moved when required. When not in use, the castors retract to maintain stability during treatments.

Universal Voltage and US Plug Type: The table operates on a 100~240V AC input, makes it suitable for use in a variety of settings around the world. It is equipped with a US plug type for compatibility with standard outlets in North America.

Durability and Support:

The Everyway4all CA160 2-Section Bobath Table is built to provide maximum support for patients and therapists alike. With its reinforced structure, dual-side beams, and powerful motorized actuators, it offers exceptional reliability and performance. Whether used for neurological therapy, rehabilitation, or general physical therapy, this table is designed to deliver the stability and comfort needed for effective patient treatment.

CA160 has 2 Motorized Actuators:

  • 1st Motorized Actuator controls the Height of Table
  • 2nd Motorized Actuator controls the Back Rest

Features:

  • Plug Type: US
  • 100~240VAC (Universal Voltage)
  • Maximum Load Capacity: 551 lbs.
  • Retractable Castors at Both Ends
  • Individual "Leveling Foot" on All 4 Corners
  • Twin Oversized Pillars with Dual-Side Support for Greater Stability & Support

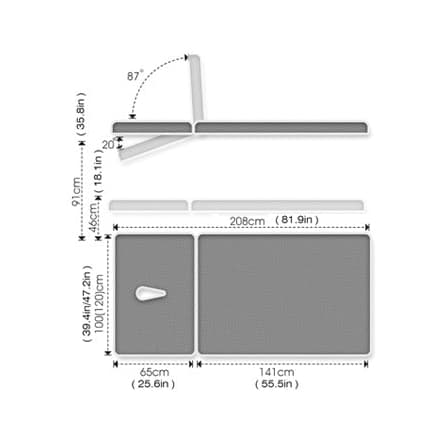

Sizing/specifications
Everyway4all CA160 2-Section Bobath table
Minimum height 18.11"
Maximum height 35.83"
Table top width 39.37" (1 meter)
47.24" (1.2 meter)
Head section length 25.59"
Body & Leg section length 55.51"
Total length 81.89"
Head tilt angles -20º to +87º
Lift mechanism Electric
Breathing hole/plug 1
Retractable castors 4
Weight rating (Max. load) 551 lbs.
Gross weight 277 lbs.
Electrical data
Control box input voltage & rating 100~240VAC, 50/60Hz, 2A
Control box output voltage DC 32V, 80VA
Actuator input voltage DC 24V
Duty cycle Max. 10% 2min. ON / 18min. OFF
Max. load Push 8000N
Max. current: 6A
CERTIFIED TO AAMI / CSA / IEC / EN STD
AAMI ES 60601-1, CSA-C22.2 NO. 60601-1
IEC 60601-1, EN 60601-1
The electrical components used are approved by IEC 60601-1
Warranty

The manufacturer provides a limited warranty against defect in workmanship and materials according to the schedule below:

  • Twelve (12) Months Limited Warranty: on upholstery, head/foot/switch controls, castors leveling foot, and gas struts
  • Twenty-Four (24) Months Limited Warranty: on motorized actuator, control box, and metal side bars
  • Thirty-Six (36) Months Limited Warranty: on table frame and table pillars
  • During the warranty period, manufacturer will, at Manufacturer’s discretion, either repair or replace any product that does not comply with this warranty.
  • All product warranties are void if the product has been misused or abused, if there have been unauthorized repairs, or if the law tag has been removed or tampered with.
  • Parts under warranty will be covered at no cost. Any labor cost for service under warranty is not covered as per our terms of sale.
  • Standard manufacturer terms & conditions apply for warranty of this product.

Please call us for Specific Details.
