Everyway4All CA190 Tiltima 1-section tilt table is the Ultima of Tilt Tables for diagnosis of syncope and/or dysautonomia. CA190 is the perfect tilt table in terms of its comfort rating, mechanical stability and operational movement. The two adjustable patient’s foot platform (Foot Paddle) can be tilted to a positive angle of 20°.
The CA190 Tiltima® is equipped with the following accessories in the package:

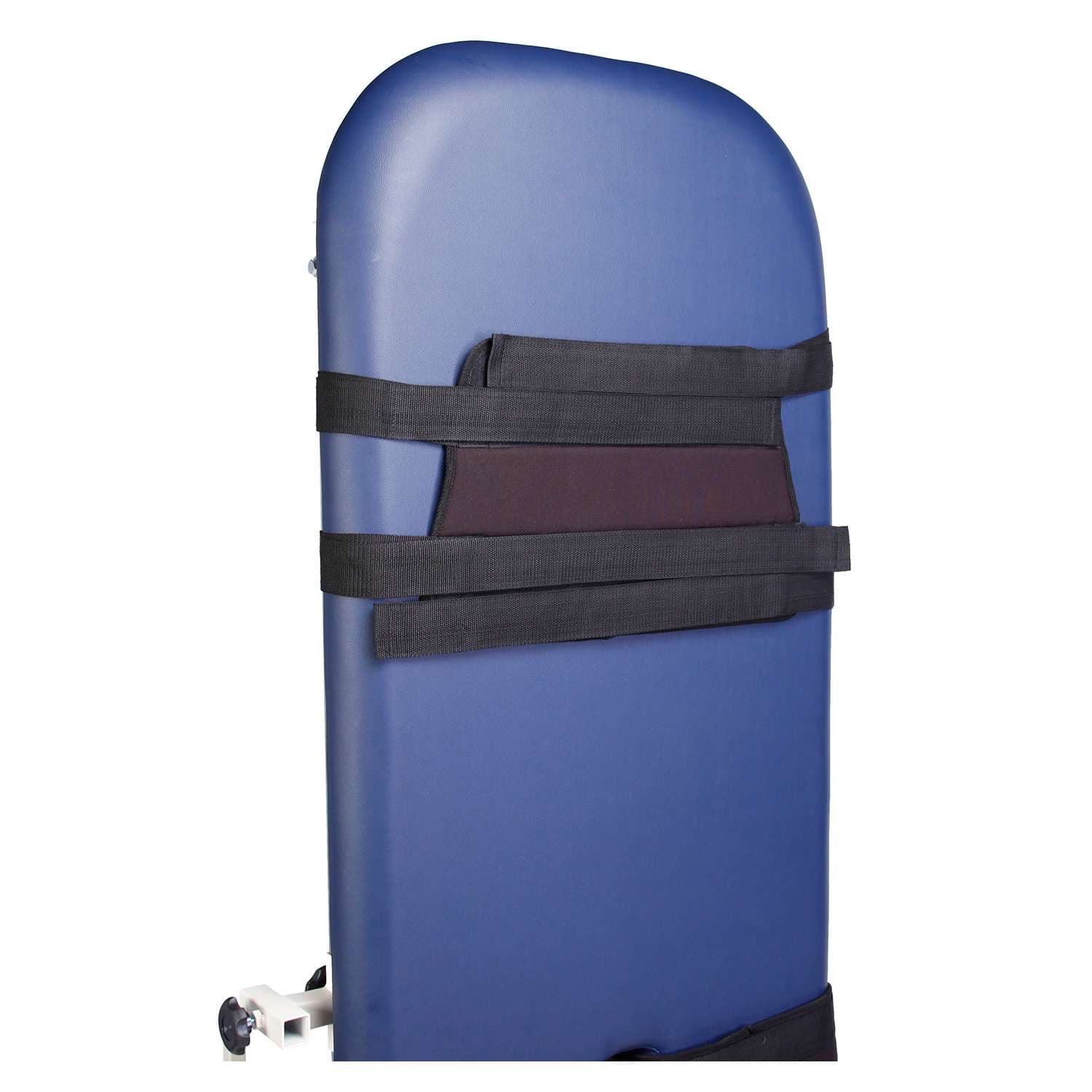

1 Chest Strap
2 Thigh Straps
2 Calf Straps
1 Working Table

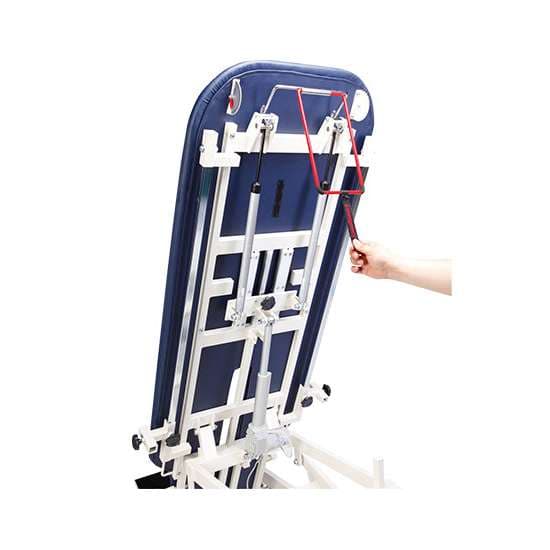

All 4 corners of the CA190 Tiltima® are supported by a 5" castor with Swivel Lock and Brake and the frame construction is made with steel tubes. For absolute safety requirements, the CA190 Tiltima® is equipped with a "1-pull emergency handle" at the back of the table. When in an emergency situation where no utility power is available, the emergency handle can be pulled to allow the table top to be moved back from vertical to a horizontal position and the patient can then be unstrapped and transferred to a normal patient’s bed. In any given case of loss of utility power, just pull on the RED EMERGENCY HANDLE at the back of table to disengage the Motorized Actuator (otherwise locked) to allow the patient to be unstrapped and lifted off the table.
CA190 Tiltima® is controlled by a (4 Buttons) Hand Control:
There is 1 set of UP/DOWN Buttons on the Hand Control to control both Elevation and Tilting.
Up Button: When the table elevates to the highest postion(90cm/35.4in),keep pressing the button and the tilt function will be activated.
Down Button: When the table tilts back to the horizontal position, keeppressing the button and the table will be lowering down

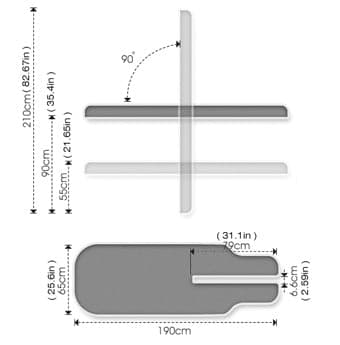

Sizing
Everyway4All CA190 Tiltima 1-section tilt table
Minimum height
21.65"
Maximum height
35.43"
Top Height at 90º
82.67"
Table Top Width
25.59"
Total Length
74.80"
Tilt Angle
0° to 90°
Lift Mechanism
Electric
Breathing Hole/Plug
N/A
Castors with Swivel Lock & Brake
4
Weight Rating (Max. Load)
496 lbs.
Net Weight
89.5 kg
Gross weight
104.8 kg
Electrical data
Control box input voltage & rating
100~240VAC, 50/60Hz, 2A
Control box output voltage
DC 32V, 80VA
Actuator input voltage
DC 24V
Duty cycle
Max. 10% 2min. ON / 18min. OFF
Max. load
Push 8000N
Max. current:
6A
CERTIFIED TO AAMI / CSA / IEC / EN STD
AAMI ES 60601-1, CSA-C22.2 NO. 60601-1
IEC 60601-1, EN 60601-1
The electrical components used are approved by IEC 60601-1
Warranty
The manufacturer provides a limited warranty against defect in workmanship and materials according to the schedule below:
Twelve (12) Months Limited Warranty: on upholstery, head/foot/switch controls, castors leveling foot, and gas struts
Twenty-Four (24) Months Limited Warranty: on motorized actuator, control box, and metal side bars
Thirty-Six (36) Months Limited Warranty: on table frame and table pillars
During the warranty period, manufacturer will, at Manufacturer’s discretion, either repair or replace any product that does not comply with this warranty.
All product warranties are void if the product has been misused or abused, if there have been unauthorized repairs, or if the law tag has been removed or tampered with.
Parts under warranty will be covered at no cost. Any labor cost for service under warranty is not covered as per our terms of sale.
Standard manufacturer terms & conditions apply for warranty of this product.
Please call us for Specific Details.
