Everyway4all CA20 DUO 2-section Therapeutic Table
Product Information

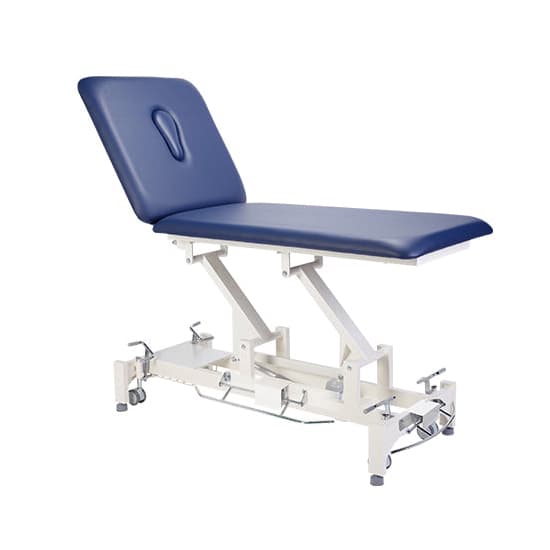

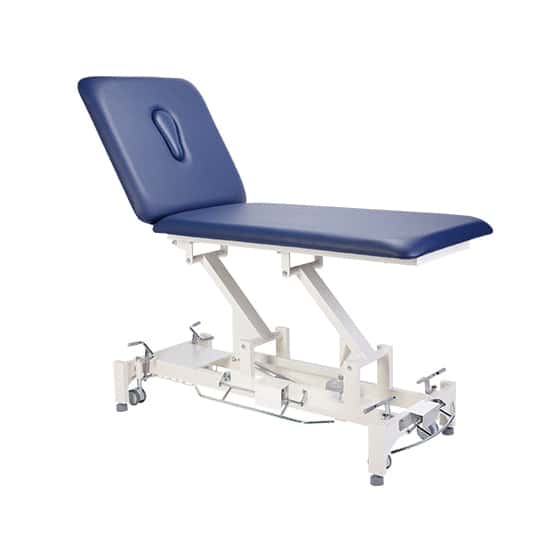

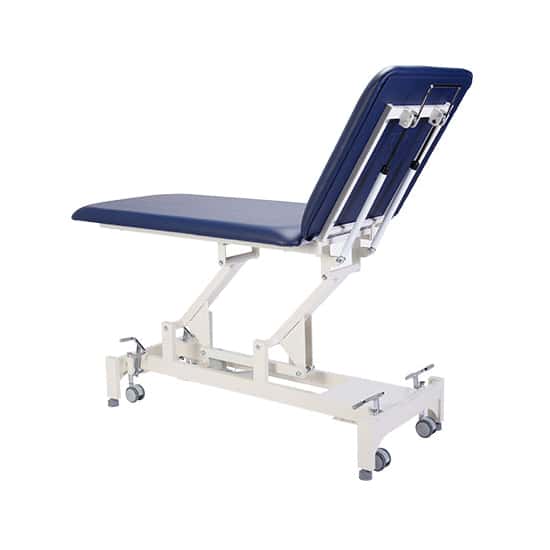

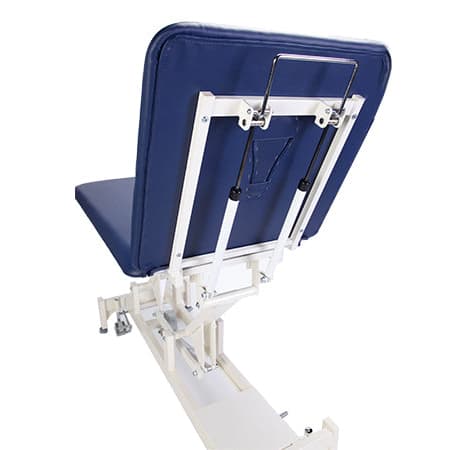

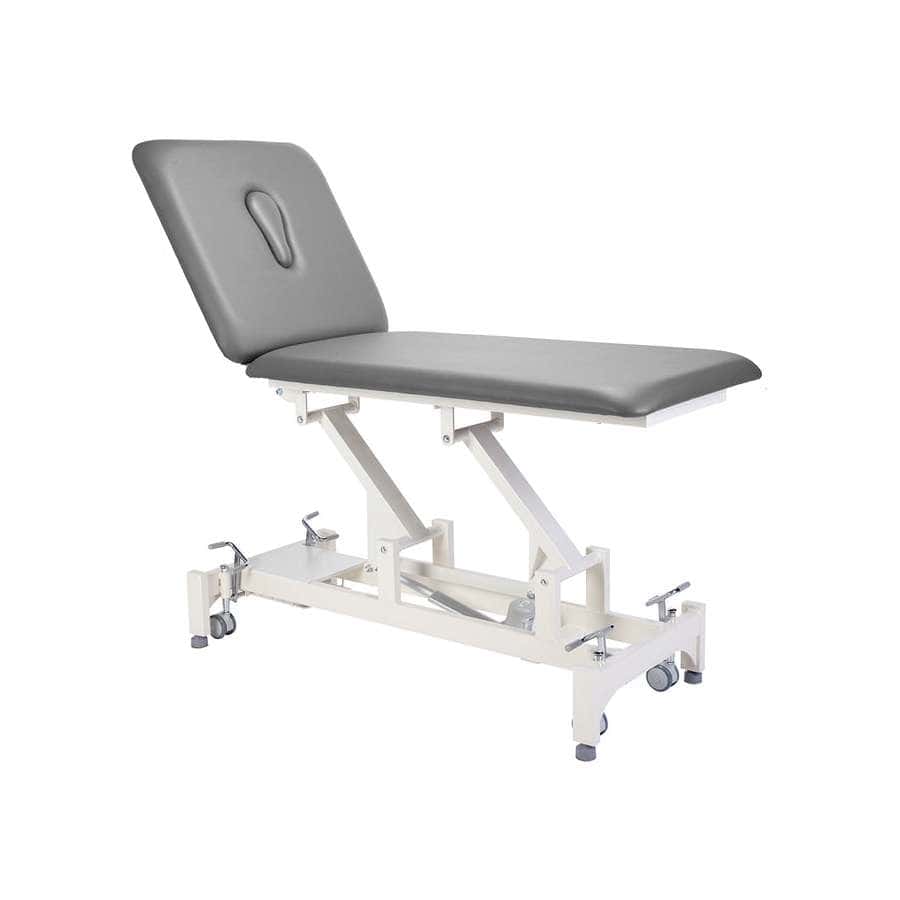

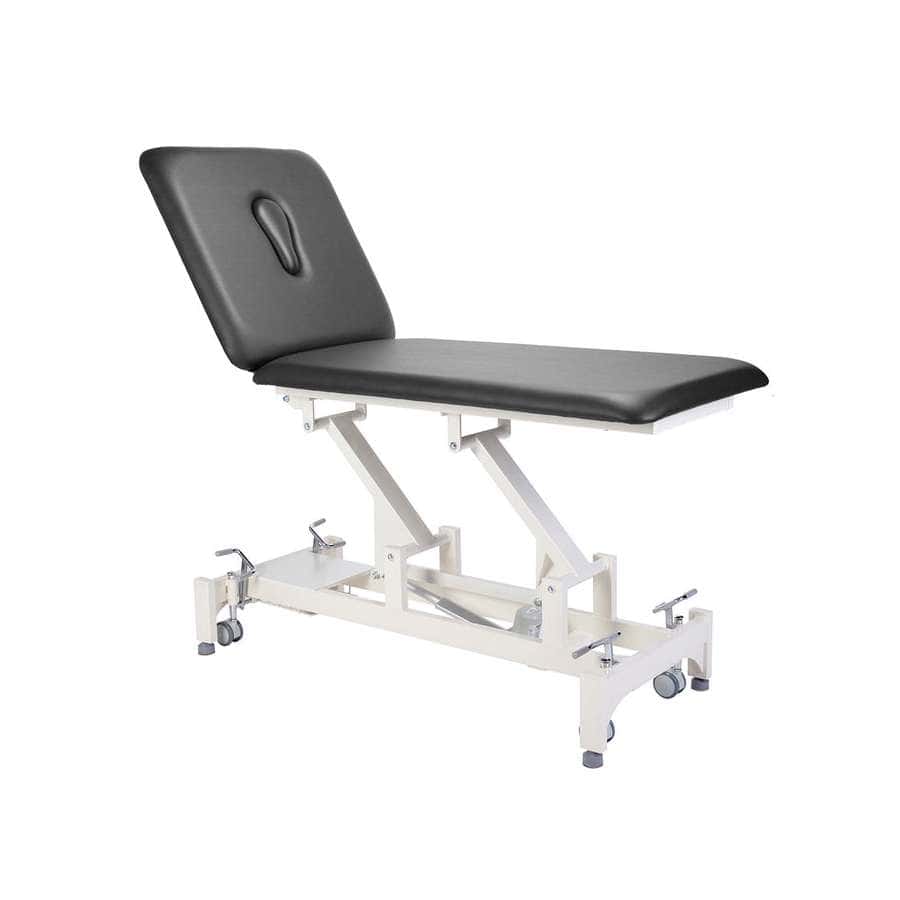

Everyway4all CA20 DUO 2-section therapeutic table Images
**The images on the website are for reference only and do not reflect the actual configuration of the product.** Learn more..
Everyway4all CA20 DUO 2-section Therapeutic Table
Loyalty Points
You will earn up to 1628 points on this order

Loyalty Points
You will earn up to 1628 points on this order
Description
Everyway4all CA20 DUO 2-section therapeutic table - is a highly functional and reliable electric hi-lo therapy table, ideal for physical therapy applications. This model is designed with an electric motorized actuator that allows for smooth and efficient height adjustments, ensures optimal ergonomics for both the therapist and the patient. Its two-section design features a combined body and leg section, provides sturdy and consistent support during use.
Key features include twin oversized pillars for enhanced stability and twin gas struts for solid head section support, ensures safety and comfort. The table is equipped with retractable castors at both ends for easy mobility and secure positioning when stationary. The innovative 4-side elevating foot bars allows for effortless height adjustments from any side of the table, increasing convenience during therapy sessions.
With a maximum user weight capacity of 496 lbs., this table is suitable for a wide range of patients. It operates on a universal voltage system (100~240VAC) and comes with a US plug, makes it adaptable to various clinic setups. The CA20 Duo offers a robust and practical solution for modern therapeutic environments, combining durability, functionality, and ease of use.
Features:
- Plug type: US plug
- 100-240VAC (Universal voltage)
- Retractable castors at both ends
- Maximum load capacity: 496 lbs.
- 1 motorized actuator for hi/lo adjust.
- Twin "Oversized" pillars for added stability
- Individual "Leveling Foot" on all 4 corners
- Twin gas struts for solid head section support

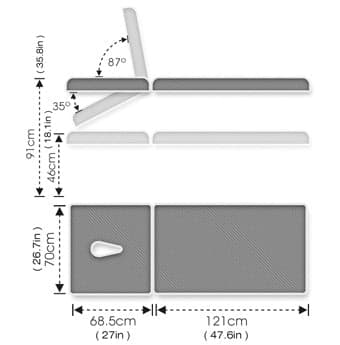

Sizing
Everyway4all CA20 DUO 2-section therapeutic table | |
Minimum height | 18.11" |
Maximum height | 35.83" |
Table top width | 27.56" |
Head section length | 26.97" |
Leg section length | 47.64" |
Total length | 75.98" |
Head tilt angles | -35º to +87º |
Lift mechanism | Electric |
Breathing hole/plug | 1 |
Retractable castors | 4 |
Weight capacity (Max. load) | 496 lbs. |
Net weight | 151 lbs. |
Gross weight | 180.99 lbs. |
Electrical data | |
Control box input voltage & rating | 100~240VAC, 50/60Hz, 2A |
Control box output voltage | DC 32V, 80VA |
Actuator input voltage | DC 24V |
Duty cycle | Max. 10% 2min. ON / 18min. OFF |
Max. load | Push 8000N |
Max. current: max. | 6A |
CERTIFIED TO AAMI / CSA / IEC / EN STD | |
AAMI ES 60601-1, CSA-C22.2 NO. 60601-1 | |
IEC 60601-1, EN 60601-1 | |
The electrical components used are approved by IEC 60601-1 |
Resources
Warranty
The manufacturer provides a limited warranty against defect in workmanship and materials according to the schedule below:
- Twelve (12) Months Limited Warranty: on upholstery, head/foot/switch controls, castors leveling foot, and gas struts
- Twenty-Four (24) Months Limited Warranty: on motorized actuator, control box, and metal side bars
- Thirty-Six (36) Months Limited Warranty: on table frame and table pillars
- During the warranty period, manufacturer will, at Manufacturer’s discretion, either repair or replace any product that does not comply with this warranty.
- All product warranties are void if the product has been misused or abused, if there have been unauthorized repairs, or if the law tag has been removed or tampered with.
- Parts under warranty will be covered at no cost. Any labor cost for service under warranty is not covered as per our terms of sale.
- Standard manufacturer terms & conditions apply for warranty of this product.
Please call us for Specific Details.
Return
- Returns are accepted within 30 days from the date of shipment.
- A 25% restocking fee will apply to all returns.
- All returns must include an RGA (Returned Goods Authorization) number. Unauthorized returns will not be accepted.
- Returned products must be in new, unused condition, not tampered with, and in their original packaging. The return must be made at the customer's expense.
- If the return is not due to a manufacturing defect, the original shipping cost and any credit card/PayPal processing fees will be deducted from the refund amount.
- Hygiene and Bath products cannot be returned due to health concerns.
- Custom orders are non-refundable and non-returnable.
- Standard manufacturer terms and conditions apply to the return policy for this product.
Delivery Inspection Policy:
We encourage you to inspect all shipments immediately upon receipt. If the shipment is damaged, you have the option to refuse the delivery. Once the delivery is accepted, we are unable to assume responsibility for any damages.
We are committed to your satisfaction. Please feel free to contact us for any specific details or assistance with your return.
