Moog Infinity Orange Small Volume Enteral Feeding Pump
Product Information
Moog Infinity Orange Enteral Feeding Pump Kit Images
**The images on the website are for reference only and do not reflect the actual configuration of the product.** Learn more..
Moog Infinity Orange Enteral Feeding Pump Kit
Loyalty Points
You will earn up to 1934 points on this order

Loyalty Points
You will earn up to 1934 points on this order
Product Features and Benefits
.png)
Free Shipping
Quantity
Description
The Infinity Orange Small Volume Enteral Feeding Pump by Moog is an enteral-only feeding system that is optimized for small volume feedings and increased safety. It is ideal for use in many environments where precise delivery of small volumes of milk or formula is required.
Enteral Feeding Pump Kit includes: Pump, Wall Charger, Pole Clamp, and Operator's Manual.
Optimized for small volume feedings
The Infinity Orange features an intuitive design and interface and is very simple to program, reducing the potential for programming errors. Two convenient delivery set options can be used with either milk or formula: a 100 mL Bag Set, or a Screw Cap Delivery Set.
Powerful and accurate enough to use in the ICU, yet lightweight and portable enough to be used at home after the patient is discharged
Now with an all new auto prime feature, the Infinity Orange is better and more convenient than ever.
Features
- Lithium Ion Battery.
- Dimensions: 5.65 X 1.95 X 4.05 inch.
- This low-flow device is specifically designed for infants.
- Integrated, automatic free-flow safeguards protect the patient.
- Infinity Orange Enteral Feeding Pump by Zevex is designed with a rotary peristaltic pump that provides pre-programmed nutritional flow.
- Safety: Features an intuitive design and interface that can be quickly and easily mastered, allowing the caregiver to focus on other areas of care.
- Accurate: Maintains ± 5% accuracy, even at low rate and dose settings. Leaves minimal fluid in the downstream tubing after feeding completion, resulting in less wasted milk or formula.
- Easy to Use: Performs consistently under a wide variety of conditions. It does not require any regularly scheduled maintenance or calibration and can be cleaned with warm soapy water.
- Rugged: It is Simple to program with a maximum programmable rate and dose lock features; requires rate, dose, and food type confirmation before running, reducing the potential for programming errors.
Indications for Use: The Infinity Orange enteral feeding pump is a rotary peristaltic pump designed to deliver programmed doses of enteral nutrition solutions at selectable rates.
Pump Components:

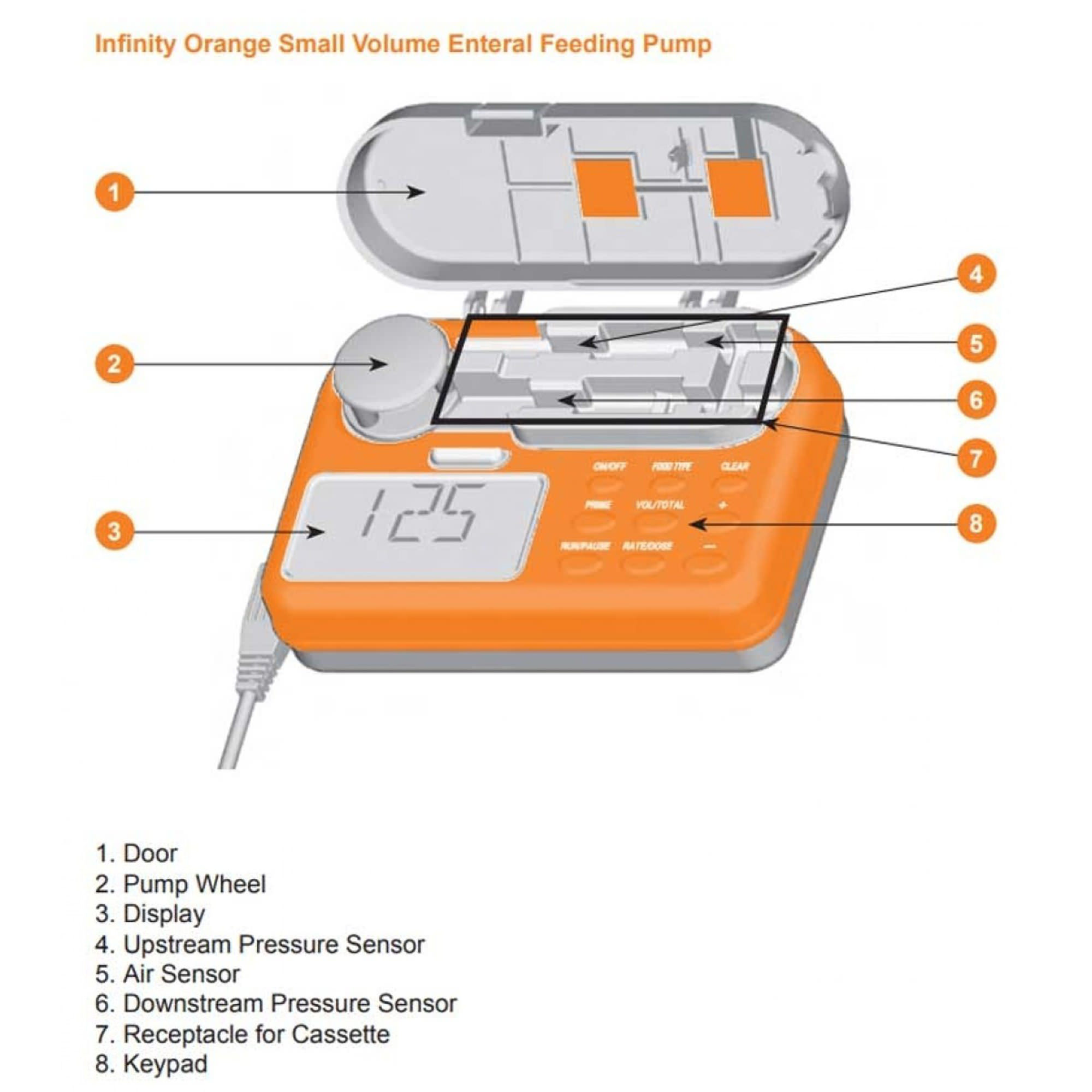

Pump Front

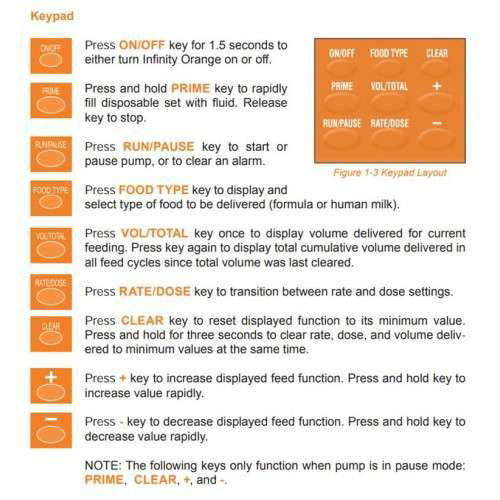

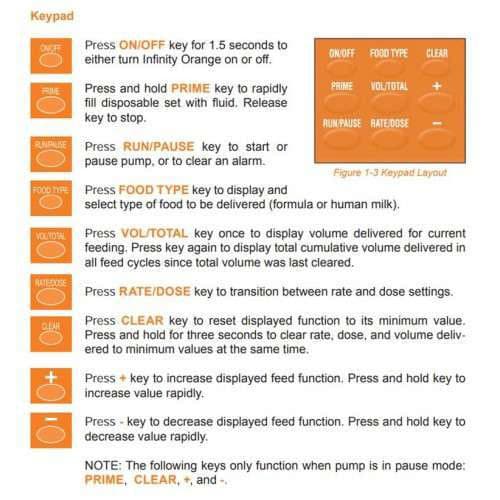

- Door, Pump Wheel, Display, Tab, Upstream Pressure Sensor, Air Sensor, Downstream Pressure Sensor, Receptacle for Cassette, Keypad.

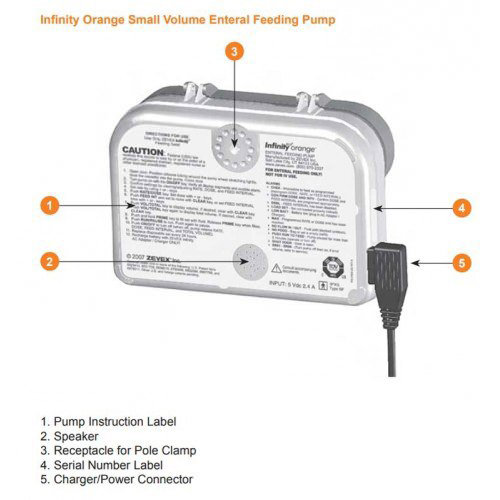

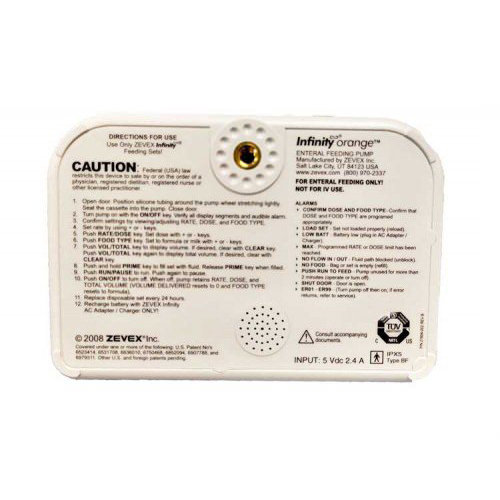

Pump Rear
- Serial Number Label, Charger/Power Connector, Receptacle for Pole Clamp, Speaker, Pump Instruction Label.
Pole Clamp: The pole clamp on this pump has an angled clamp, which means once the pump is placed on the pole, the angle can be adjusted.
Award-winning design: Recognized for its innovative technology, small size, and overall portability, the Infinity Enteral Feeding pump received the Medical Design Excellence Award and the Seal of Acceptance from the Children’s Health Coorporation of America.

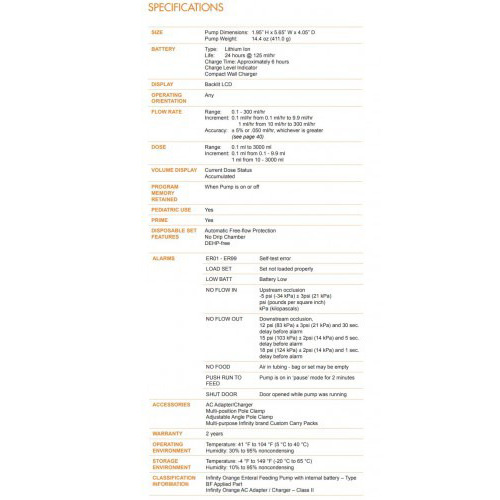

Sizing
Brand | Infinity Orange |
Manufacturer | Zevex |
Alternate Manufacturer Number | 1139903 |
Application | Enteral Feeding Pump |
Size: | 4.05” H x 5.65” W x 1.95” D (10.3 cm H x 14.4 cm W x 4.9 cm D) |
Weight: | 14.4 oz (408 g) |
Flow Rate Range: | 0.1 – 300 mL/hr |
Flow Rate Accuracy: | ± 5% |
Flow Rate Increment: | 0.1 mL/hr from 0.1 – 10 mL/hr; 1 mL/hr from 10 – 300 mL/hr |
Dose Range: | 0.1 mL – 3000 mL |
Dose Increment: | 0.1 mL from 0.1 10 mL; 1 mL from 10 – 3000 mL |
Priming Volume: | ~5.5 mL |
Residual Volume: | ~2.0 mL |
Battery: | Lithium ion; 24 hours at 125 mL/hr; 6 hour recharge time |
Operating Orientation: | Any |
Maintenance: | No annual maintenance or calibration required |
Cleaning: | Washable under running water (water resistant) |
Warranty: | 2 years |
UNSPSC Code | 42231501 |
Resources
Infinity Orange - Chapter 2 - Anatomy of the Pump
Infinity Orange - Chapter 1 - Pump Overview
Infinity Orange - Chapter 2 - Using Pole Clamp
Infinity Orange - Chapter 3 - Charging the Pump
Infinity Orange - Chapter 4 - Delivery Sets
Infinity Orange - Chapter 4 - Filling the Sets
Infinity Orange - Chapter 4 - Loading Sets
Infinity Orange - Chapter 4 - Priming with Pump Feature
Infinity Orange - Chapter 5 - Auto Prime
Infinity Orange - Chapter 6 - Programming Rate Dose
Infinity Orange - Chapter 6 - Volume Delivery
Infinity Orange - Chapter 7 - User Preferences
Infinity Orange - Chapter 8 - Cleaning
Infinity Orange - Chapter 9 - Alarm - Shut Door
Infinity Orange - Chapter 9 - Alarm - Max Rate and Dose
Infinity Orange - Chapter 9 - Alarm - Confirm Dose and Food Type
Infinity Orange - Chapter 9 - Alarm - No Flow
Infinity Orange - Chapter 9 - Alarm - No Food
Infinity Orange - Chapter 9 - Alarm - Pump Error
Infinity Orange - Chapter 9 - Alarm - Run to Feed
