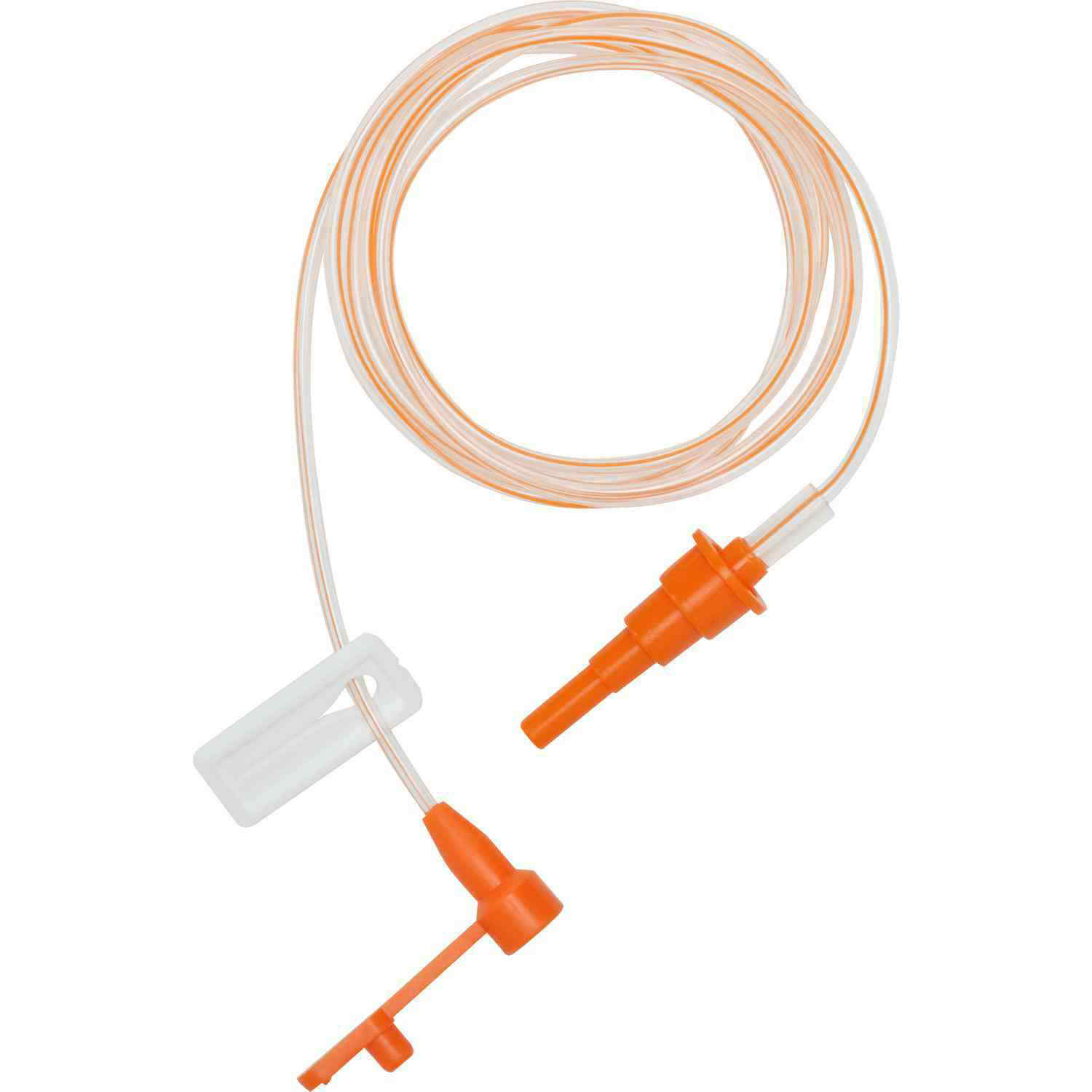

The NEOMED Enteral Only Extension Set is indicated for use in neonatal and pediatric patients in connection with nasogastric/orogastric enteral feeding tubes to provide nutrition via nasal or oral gastric placements.
Features
- Sterile.
- USP Class VI PVC tubing is not made with DEHP or BPA.
- Enteral only connectors prevent misconnections with luer fittings.
- Unique tethered plug closure on the female inlet connector provides better protection from ambient air.
- New design of the male adapter improves the strength of connection to enteral only feeding tubes mitigating "overstretching" of the feeding tube hubs.
Contraindications: This device is not intended for I.V. use.
Instructions
- Always follow physician’s instructions for use of contents.
- Wash hands thoroughly and use aseptic technique throughout process.
- Remove extension set from packaging.
- Verify feeding tube compatibility prior to use.
- Attach Enteral Only Connector (inlet) to outlet of administration set. Attach extension set outlet to enteral only feeding tube.
- Close slide clamp and plug all female hubs until ready to use or when not in use.
- Replace and maintain administration set in accordance to hospital protocol and not to exceed NANN (National Association of Neonatal Nurses) or AND (Academy of Nutrition and Dietetics) guidelines of beyond 4 hours, as applicable.
- Do not re-use extension sets. After use, dispose of device per hospital protocols and/or local or national regulations.
Cautions
- Do not wash and reuse extension set. It is intended for one time use only. Re-use of this device may increase risk of leakage or biological infection.
Model No |
Tube Length (in) |
Primary Product Color |
Bore Size |
Tubing Clamp |
NM-18ENENB |
18 |
Orange |
XL Bore |
Roller |
NM-40ENENB |
40 |
Orange |
XL Bore |
Roller |
PNM-18ENENB |
18 |
Purple |
XL Bore |
Roller |
PNM-40ENENB |
40 |
Purple |
XL Bore |
Roller |
NM-30ENEN |
30 |
Orange |
Standard Bore |
Slide |
PNM-48ENENB |
48 |
Purple |
Large Bore |
Slide |
NM-48ENENB |
48 |
Orange |
Large Bore |
Slide |
NM-60ENEN |
60 |
Orange |
Standard Bore |
Slide |
PNM-60ENEN |
60 |
Purple |
Standard Bore |
Slide |
