Prime Engineering Superstand HLT Pediatric Standing System

Features

Details

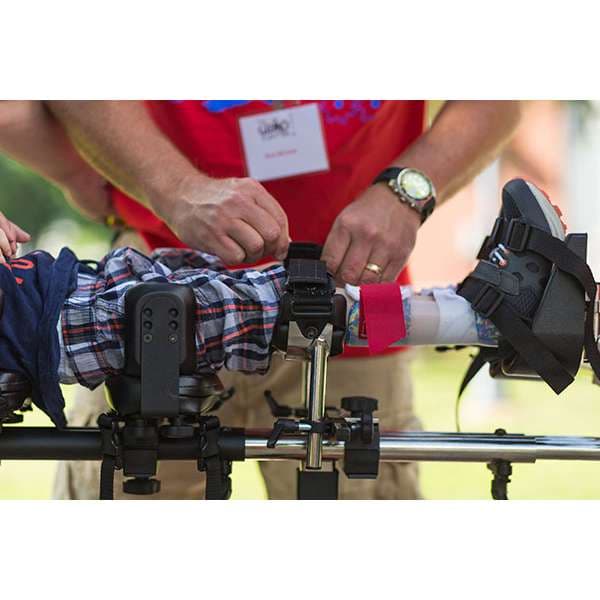

Prime Engineering Superstand HLT pediatric standing system is an amazingly versatile stander, handling the needs of clients without any additional parts and switch from supine to prone or upright standing in seconds without using any tools. Superstand HLT stander has foot plate system that independently adjusts on all planes; toe in, toe out, planter flexion/dorsi flexion and independent height and depth adjustment which can be achieved without tools and knee blocks adjust in and out, up and down and side to side.

Superstand HLT pediatric standing system offers hip and chest system which have width adjustable hip guides/lateral pads, with a choice of 90° brackets, 1" offset or 2" offset. Superstand HLT standing system has chest harness and pelvic pad which are made of soft denim and are machine washable. Prime stander has unique hydraulic actuator which works smoothly and safely allowing user to change the mast angle in a slow controlled manner.

Adjustability and comfort: Prime Engineering Superstand HLT stander has tool-free adjustments which allow easy changes to user body support pads, headrest, chinrest, footrest, knee supports, support straps, chest harness and standing angle. Superstand HLT stander provides multiple range of standing angle adjustment which allows for ease of client positioning, adjustment and weight loading. Soft padded positioning supports, cushioned straps and complete adjustability which helps in proper positioning of the user and increase the standing time and tolerance.

Growth:

Superstand HLT (Early intervention): Fits clients height from 20" - 38" Supine or 22" - 40" Prone and supports weight capacity up to 65 lbs.
Superstand HLT (Size 1): Fits clients height from 28" - 48" Supine or 30" - 50" prone and supports weight limit up to 125 lbs.
Superstand HLT (Size 2): Fits clients height from 40" - 60" Supine or 40" - 62" prone and supports weight limit up to 150 lbs.

Includes	Features
Gas cylinder Hip and chest pads Mast mounting hardware Quick release folding base Four plastic locking casters Horizontal high-loading surface Lock out block and 3" locking casters Hands free standing angle adjustments Height and depth adjustable knee system Prone, vertical, supine or multi-position configurable	Portability Easy Loadable Complete positioning Easy and comfortable Tool-free adjustments

Sizing

Additional Info

SKU

PESUPERSTANDHLT

Model

SUPERSTANDHLT

Brands

Prime Engineering

Technical Specifications

Prime Engineering Superstand HLT pediatric standing system
Model	Early Intervention			Size 1			Size 2
Base			19" wide x 28" long	21" wide x 37¾" long	25" wide x 45" long
Loading height		27"		28"		29"
Weight capacity		65 lbs.		125 lbs.		150 lbs.
User height
Supine		20" - 38"		28" - 48"		40" - 60"
Prone		22" - 40"		30" - 50"		40" - 62"
Lateral support width adjustment range
90°		6" - 10"		8" - 12"		10" - 14"
1" Offset		4" - 8"		6" - 10"		9" - 12"
2" Offset		3" - 6"		4" - 8"		6" - 11"

Order Forms

Stander measurement guide

Superstand HLT stander brochure

Superstand HLT stander order form

Superstand HLT stander owners manual

Warranty

Limited Warranty

Warranty coverage is extended to the original purchaser for as long as the original purchaser owns the Prime Engineering system. This warranty is in effect for the Superstand standing frames. Prime Engineering, Inc. (“the Company”) shall repair, or replace the Product that fails due to defect in material, or workmanship per the following schedule:

Frames: Lifetime.
Gas Shocks: One year.
Straps: One year.
Other Components: Upholstery, plastic parts, painted surfaces, rubber parts, bearings, casters and other parts not specifically identified above, all of which are warranted against defects in material and workmanship for three months from the original purchase date, subject to the following terms and conditions, and limitations.

Please call us for specific details.

Returns

All returns are subject to a restocking fee.
All returns must have an RGA number (Returned Goods Authorization Number) unauthorized returns will not be accepted.
The products must be new, unused condition, not tampered with, in original packaging and returned at the customer's expense in the original packaging.
If your return is not due to any manufacturing defect then the original shipping cost will be deducted from the total refund
Custom orders are non-refundable and non-returnable
Standard Manufacturer Terms & Conditions Apply for Return Policy of this Product

Please call us for specific details
