Protekt® 500 Electric Patient Lift, 500 lbs. Capacity
Product Information

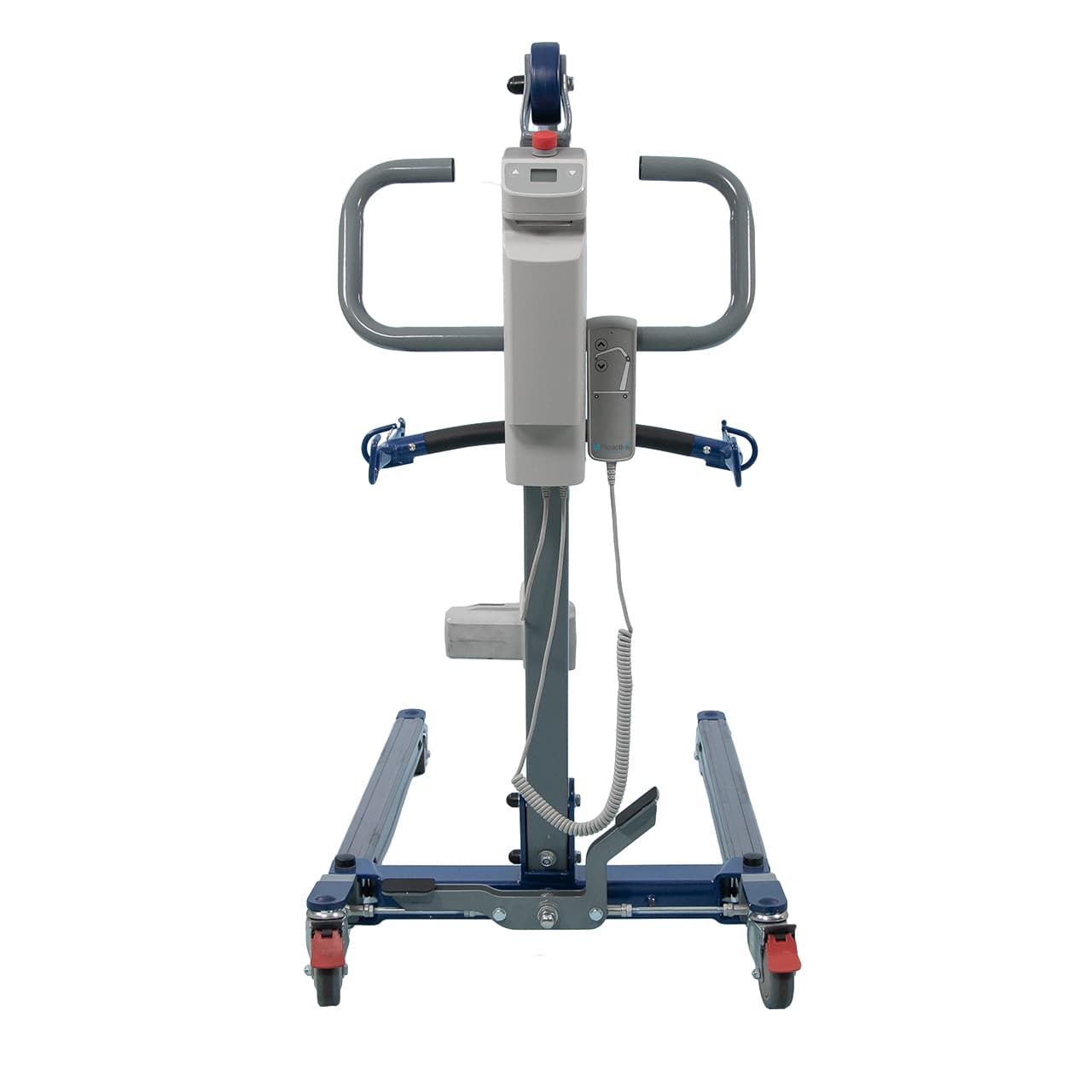

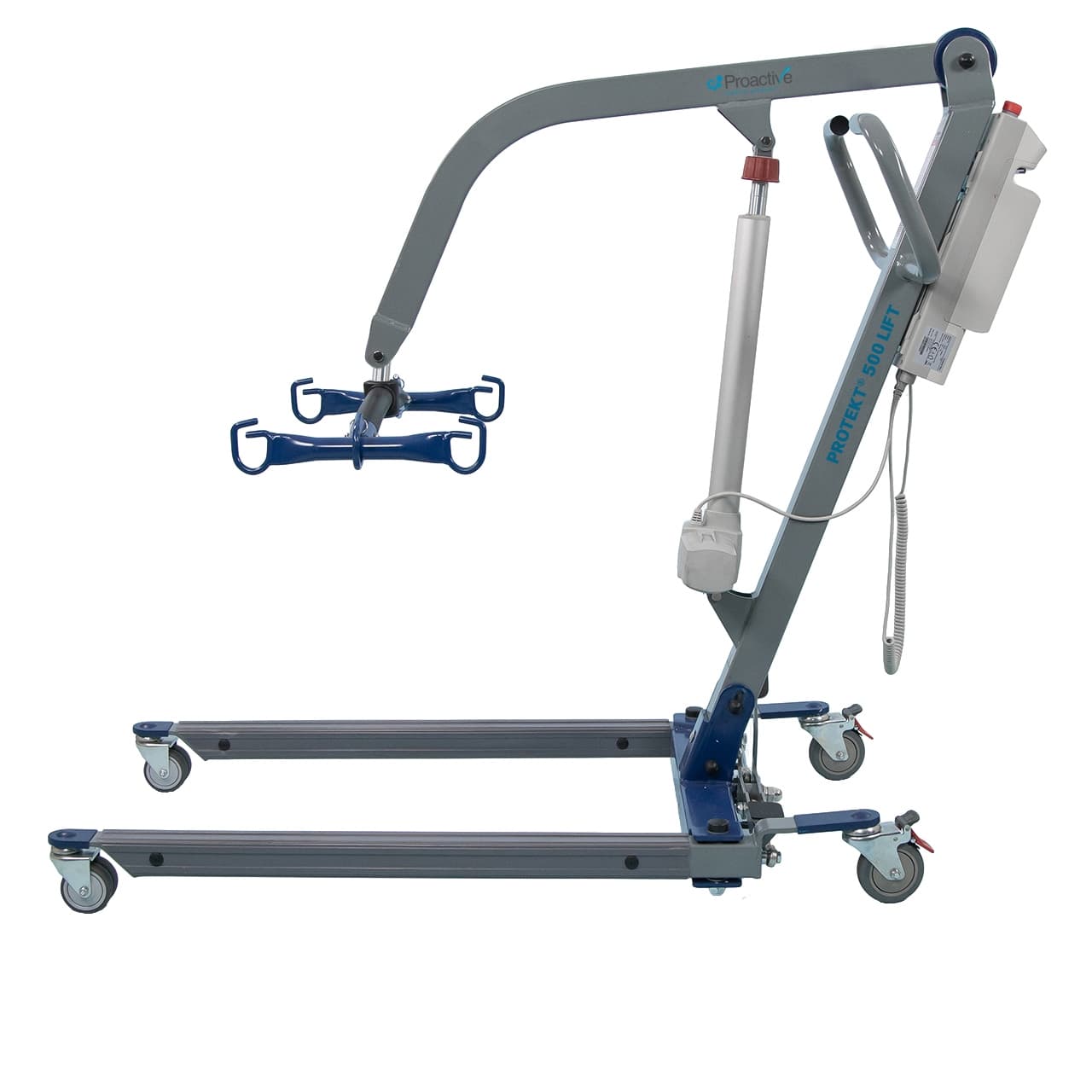

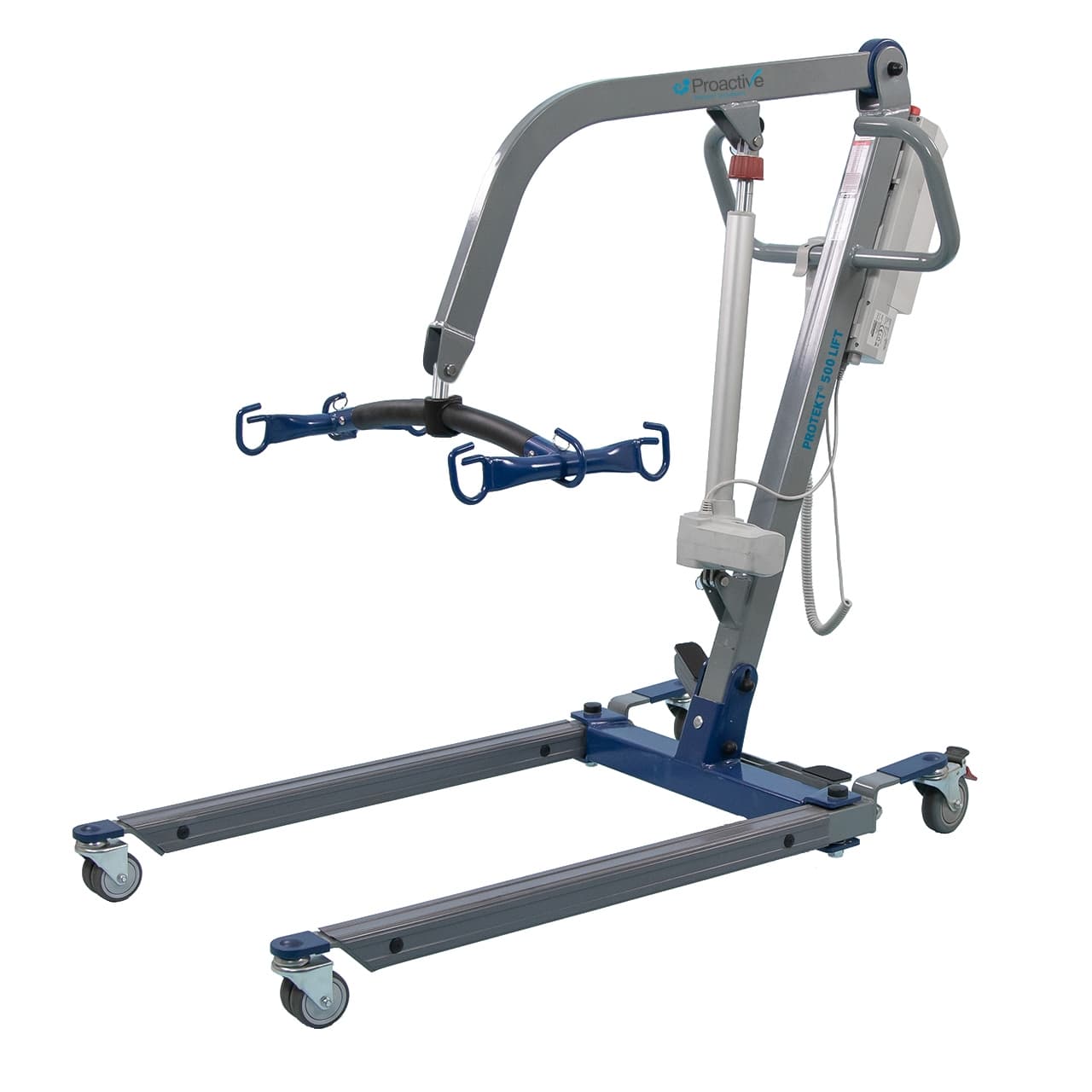

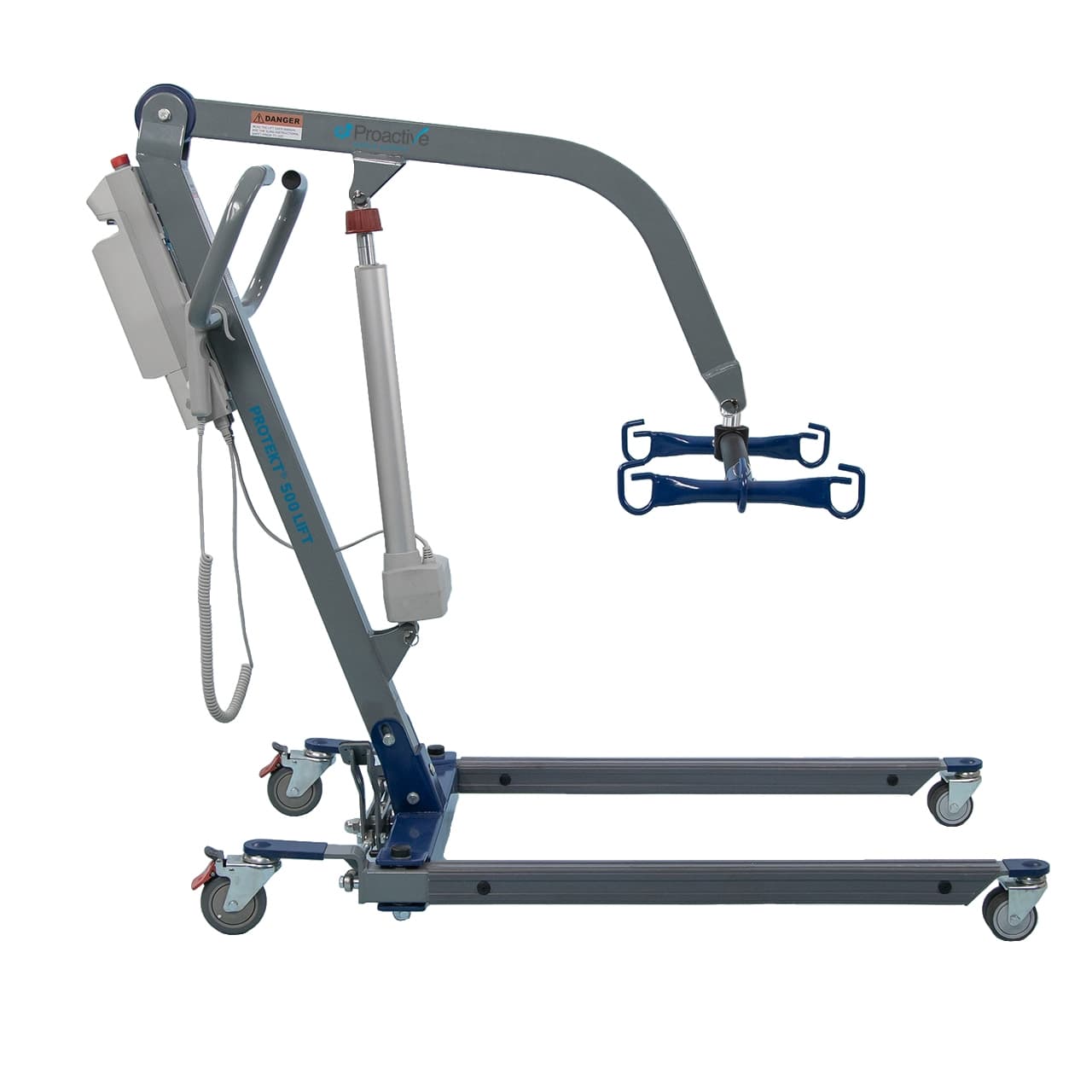

Protekt 500 Power Patient Lift Images
**The images on the website are for reference only and do not reflect the actual configuration of the product.** Learn more..
Protekt® 500 Power Patient Lift
Loyalty Points
You will earn up to 1299 points on this order

Loyalty Points
You will earn up to 1299 points on this order
Product Features and Benefits
.png)
Free Shipping
Quantity
Protekt 500 Power Patient Lift Purchase Options
Protekt® Full Body Power Patient Lift is a high-performance patient transfer device that combines design and function to allow for safe and effortless patient transfers, thereby preventing injuries for both patients and caregivers. This electric-powered patient lift is designed exclusively for facility use, allowing for floor lifts and easily fits beneath most beds in the lowest position, making it a good option for transferring patients to small rooms with low bed heights.
Protekt® 500 Power Patient Lift features an ergonomically designed foot pedal that enables for hands-free base opening, as well as easy adjustment and locking for added security.
Features of Protekt® 500 Electric Patient Lift by Proactive Medical:
- Weight Capacity - 500 lbs.
- Capable of lifting from the floor
- Dual rear locking casters
- 4" rear casters with brake and 3" dual front casters
- Advanced electronics with auxiliary up/down lift controls
- Clip-free sling hookups improve safety and reduce downtime
- Manual emergency lowering provides safe response to power loss
- 6-point spreader bar allows for multiple sling options and safer patient handling
Specifications
Specifications
Protekt Full Body Power Patient Lift
Weight capacity | 500 lbs. |
Base legs length | 47.3" |
Base closed external width | 26.4" |
Base open external width | 39.3" |
Mast height | 51.3" |
Front caster height | 4.9" |
Minimum lifting height | 28.3" |
Maximum lifting height | 72.0" |
Unit weight | 109 lbs. |
Base opened turning diameter | 62.8" |
Base closed turning diameter | 58.3" |
Protekt Sling Size Chart | ||||||||||
Model | 30112 | 30113 | 30117 | 30110 | 30111 | 30118 | 30114 | 30115 | 30116 | 30119 |
Size | Medium | Large | X-Large | Medium | Large | XX-Large | Medium | Large | X-Large | XX-Large |
Description | Solid Fabric Full Body | Solid Fabric Full Body | Solid Fabric Full Body | Mesh Full Body | Mesh Full Body | Mesh Full Body | Mesh Full Body w/Commode Opening | Mesh Full Body w/Commode Opening | Mesh Full Body w/Commode Opening | Mesh Full Body w/Commode Opening |
Fabric | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
Length | 51.5" | 56" | 60" | 51" | 54.5" | 52" | 50.5" | 56" | 59" | 52" |
Width | 39.5" | 41.5" | 43" | 39" | 43" | 44.5" | 39" | 43.5" | 42" | 43" |
Weight Capacity | 600 lbs. | 600 lbs. | 600 lbs. | 600 lbs. | 600 lbs. | 600 lbs. | 600 lbs. | 600 lbs. | 600 lbs. | 600 lbs. |
Warranty
Warranty
The manufacturer warrants this product to be free from defects in material and workmanship under normal use and service from the date of purchase to the original purchaser:
- Frame: 3 years
- Electronics: 2 years
- Battery: 1 year
- The warranty shall be voided upon transfer of ownership of this product.
- Manufacturer agrees to repair or replace this product, at its discretion and at no charge, within the warranty period provided and that manufacturer consents the unit is defective. The repaired or replacement unit shall be warranted for a period equal to the balance of the defective unit's warranty period.
- This warranty is not applicable to any product which has been repaired or altered in any way, nor to any product subject to abuse, misuse, negligence or accident, improper maintenance, improper installation, nor to any product used with other parts, components and/or accessories with quality and/or specifications not compatible with this product.
- The warranty does not cover products that have been impaired by occurrences considered Acts of God over which authorized dealer has no control.
- The warranty shall also be voided if any required periodic maintenance, if applicable, has not been properly performed on this product.
- The warranty and the aforementioned remedies presented are exclusive and in lieu of all other express or implied warranties. No other representations or claims shall be binding or obligate authorized dealer in any way.
- Any warranty applicable to this product is limited to the aforementioned period indicated.
- In no event shall authorized dealer be liable for any special, incidental, or consequential damages; loss of revenue; or cost of replacement goods; resulting from the use or malfunction of this product to the associated equipment on which and with which it is used.
- This warranty gives specific legal rights and you may be entitled to other rights that vary from state to state.
- Parts under warranty will be covered at no cost.
- Any labor cost for service under warranty is not covered as per our terms of sale.
- Standard manufacturer Terms & Conditions apply for warranty of this product.
Please call us for Specific Details
Return
Return
- Returns are accepted within 30 days from the shipment date.
- A restocking fee of 25% apply upon return of the product.
- All returns must have an RGA (Returned Goods Authorization) number; unauthorized returns cannot be processed.
- The products must be in new, unused condition, and in the original packaging. Customers are responsible for return shipping costs.
- If the return is not due to a manufacturing defect, the original shipping cost and any applicable credit card/PayPal processing fees will be deducted from your refund.
- Custom orders are non-refundable and non-returnable.
- Standard manufacturer terms and conditions apply to the return policy for this product.
If you have any questions or need further assistance, please feel free to contact us. We are happy to help!
FAQs
FAQs
Yes, it's specifically designed for clinical and long-term care settings, offering smooth transfers in compact rooms thanks to its low-clearance base and 500 lb. weight capacity.
Yes, the lift can safely raise patients from the floor, making it ideal for fall recovery scenarios in care facilities or at home.
The 6-point spreader bar supports a wide variety of sling styles, allowing flexible and safer positioning for different patient needs.
Yes, the low-profile base easily slides under most standard and low hospital beds, enhancing its usability in tight spaces.
It comes with 4" rear locking casters and 3" dual front casters for smooth mobility and added stability.
The built-in manual emergency lowering feature allows safe descent of the patient if there's a power failure.
It offers a lifting range from approximately 28.7" to 71.3", suitable for a wide range of transfer scenarios including bed, wheelchair, toilet, and floor-level lifts.
The lift's control box shows a battery status light and sounds an alert when the charge is low. A full battery can power up to 20 complete lift cycles under maximum load.

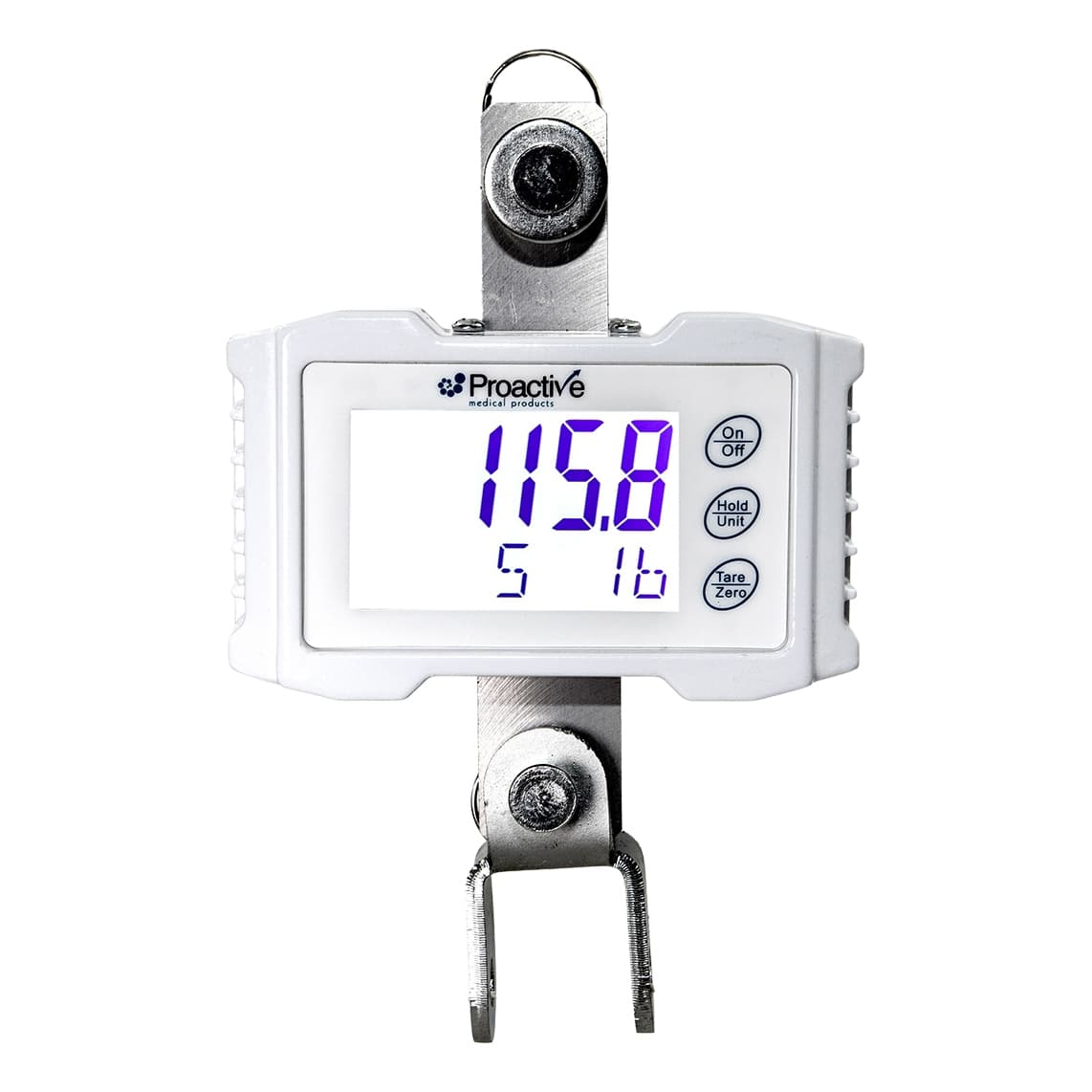

An optional Digital Scale attachment is available for real-time weight tracking and can be added from the "Accessories" when ordering.
Protekt® Full Body Power Patient Lift is a high-performance patient transfer device that combines design and function to allow for safe and effortless patient transfers, thereby preventing injuries for both patients and caregivers. This electric-powered patient lift is designed exclusively for facility use, allowing for floor lifts and easily fits beneath most beds in the lowest position, making it a good option for transferring patients to small rooms with low bed heights.
Protekt® 500 Power Patient Lift features an ergonomically designed foot pedal that enables for hands-free base opening, as well as easy adjustment and locking for added security.
Features of Protekt® 500 Electric Patient Lift by Proactive Medical:
- Weight Capacity - 500 lbs.
- Capable of lifting from the floor
- Dual rear locking casters
- 4" rear casters with brake and 3" dual front casters
- Advanced electronics with auxiliary up/down lift controls
- Clip-free sling hookups improve safety and reduce downtime
- Manual emergency lowering provides safe response to power loss
- 6-point spreader bar allows for multiple sling options and safer patient handling
Details
Protekt Full Body Power Patient Lift
Weight capacity | 500 lbs. |
Base legs length | 47.3" |
Base closed external width | 26.4" |
Base open external width | 39.3" |
Mast height | 51.3" |
Front caster height | 4.9" |
Minimum lifting height | 28.3" |
Maximum lifting height | 72.0" |
Unit weight | 109 lbs. |
Base opened turning diameter | 62.8" |
Base closed turning diameter | 58.3" |
Protekt Sling Size Chart | ||||||||||
Model | 30112 | 30113 | 30117 | 30110 | 30111 | 30118 | 30114 | 30115 | 30116 | 30119 |
Size | Medium | Large | X-Large | Medium | Large | XX-Large | Medium | Large | X-Large | XX-Large |
Description | Solid Fabric Full Body | Solid Fabric Full Body | Solid Fabric Full Body | Mesh Full Body | Mesh Full Body | Mesh Full Body | Mesh Full Body w/Commode Opening | Mesh Full Body w/Commode Opening | Mesh Full Body w/Commode Opening | Mesh Full Body w/Commode Opening |
Fabric | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
Length | 51.5" | 56" | 60" | 51" | 54.5" | 52" | 50.5" | 56" | 59" | 52" |
Width | 39.5" | 41.5" | 43" | 39" | 43" | 44.5" | 39" | 43.5" | 42" | 43" |
Weight Capacity | 600 lbs. | 600 lbs. | 600 lbs. | 600 lbs. | 600 lbs. | 600 lbs. | 600 lbs. | 600 lbs. | 600 lbs. | 600 lbs. |
Details
The manufacturer warrants this product to be free from defects in material and workmanship under normal use and service from the date of purchase to the original purchaser:
- Frame: 3 years
- Electronics: 2 years
- Battery: 1 year
- The warranty shall be voided upon transfer of ownership of this product.
- Manufacturer agrees to repair or replace this product, at its discretion and at no charge, within the warranty period provided and that manufacturer consents the unit is defective. The repaired or replacement unit shall be warranted for a period equal to the balance of the defective unit's warranty period.
- This warranty is not applicable to any product which has been repaired or altered in any way, nor to any product subject to abuse, misuse, negligence or accident, improper maintenance, improper installation, nor to any product used with other parts, components and/or accessories with quality and/or specifications not compatible with this product.
- The warranty does not cover products that have been impaired by occurrences considered Acts of God over which authorized dealer has no control.
- The warranty shall also be voided if any required periodic maintenance, if applicable, has not been properly performed on this product.
- The warranty and the aforementioned remedies presented are exclusive and in lieu of all other express or implied warranties. No other representations or claims shall be binding or obligate authorized dealer in any way.
- Any warranty applicable to this product is limited to the aforementioned period indicated.
- In no event shall authorized dealer be liable for any special, incidental, or consequential damages; loss of revenue; or cost of replacement goods; resulting from the use or malfunction of this product to the associated equipment on which and with which it is used.
- This warranty gives specific legal rights and you may be entitled to other rights that vary from state to state.
- Parts under warranty will be covered at no cost.
- Any labor cost for service under warranty is not covered as per our terms of sale.
- Standard manufacturer Terms & Conditions apply for warranty of this product.
Please call us for Specific Details
Details
- Returns are accepted within 30 days from the shipment date.
- A restocking fee of 25% apply upon return of the product.
- All returns must have an RGA (Returned Goods Authorization) number; unauthorized returns cannot be processed.
- The products must be in new, unused condition, and in the original packaging. Customers are responsible for return shipping costs.
- If the return is not due to a manufacturing defect, the original shipping cost and any applicable credit card/PayPal processing fees will be deducted from your refund.
- Custom orders are non-refundable and non-returnable.
- Standard manufacturer terms and conditions apply to the return policy for this product.
If you have any questions or need further assistance, please feel free to contact us. We are happy to help!
Details
Yes, it's specifically designed for clinical and long-term care settings, offering smooth transfers in compact rooms thanks to its low-clearance base and 500 lb. weight capacity.
Yes, the lift can safely raise patients from the floor, making it ideal for fall recovery scenarios in care facilities or at home.
The 6-point spreader bar supports a wide variety of sling styles, allowing flexible and safer positioning for different patient needs.
Yes, the low-profile base easily slides under most standard and low hospital beds, enhancing its usability in tight spaces.
It comes with 4" rear locking casters and 3" dual front casters for smooth mobility and added stability.
The built-in manual emergency lowering feature allows safe descent of the patient if there's a power failure.
It offers a lifting range from approximately 28.7" to 71.3", suitable for a wide range of transfer scenarios including bed, wheelchair, toilet, and floor-level lifts.
The lift's control box shows a battery status light and sounds an alert when the charge is low. A full battery can power up to 20 complete lift cycles under maximum load.
An optional Digital Scale attachment is available for real-time weight tracking and can be added from the "Accessories" when ordering.
