R82 Heron toilet bath chair sets new standards for users with special needs for positioning. The seat can be tilted and the back reclined without compromise for the user. The anatomical pivot point at the axis of the hips is maintained during recline, it provides the user more comfort when seated. Heron toilet bath chair can be used freestanding with a pan, directly over the toilet or as a bathing chair in the shower. The smooth height, tilt and recline functions ensure optimum working conditions for the carer. Heron is equipped with four lockable casters to maintain safety. Heron is design to use pressure mapping to minimize pressure and improve comfort for users even when the seat is used for extended periods of time.
Heron toilet bath chair has hydraulic height adjustment which allows them to adjust from 20” to 30.7” in height. Height adjustability eases transfer from/to the chair and provides optimum working conditions for the carer. Heron chair has easily accessible handles for the tilt-in-space and back recline functions which allows for optimum and stable positioning possibilities. The seat angles from -5° to 25° and the back from 0° to 30°. Heron toilet chair provide targeted postural support for the user whether minimal intervention or full support is required. Head support, multi adjustable hip supports, swing-away side supports, arm rests and tray are available in the comprehensive range of accessories.
Heron standard features:
Potty ring
Built-in tilt in space
Height adjustable frame
4 grey castors with locks
Built-in recline
Stainless steel frame
Integrated push handles
Active, height adjustable back
Heron is a state of the art toilet and bathing chair:
Hydraulic or power version:
The Heron is available as a hydraulic or power version. Both contain the same features of tilt-in-space and back recline, but for extra ease and comfort for the carer, we recommend using the power version.
Perfect working conditions:
One of the great features of the Heron is the hydraulic or powered height adjustment which allow you to adjust the chair into the correct position and reduce the time spent in a twisted or awkward position.
Optimum positioning:
The Heron is suitable for teenagers. Change the back height and add a couple of simple accessories to change seat width and seat depth – it is easy to make the Heron fit perfectly!
Comfortable seating:
Pressure mapping has been used in the design of Heron to minimize pressure and improve comfort for users even when the seat is used for extended periods of time.
Different possibilities:
The Heron can be used over a toilet, freestanding with a pan, as a bathing chair in the shower and reclined over the bath tub for e.g. during hair wash.

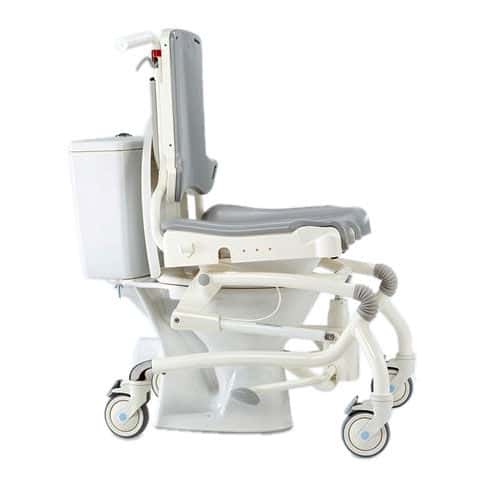

Over the toilet:
Reclined over the bath tub:
In the shower:
Back recline adjustment:
Use the easily accessible handle to recline the back.
Handle for back recline adjustment:
Seat angle adjustment:
Use the easily accessible handle or hand-set to perform the seat angle adjustment.
Handle for seat angle adjustment for hydraulic version:
Remote for seat angle adjustment for power version:
Height adjustment:
Use the foot pedal or remote to height adjust the chair.
Foot pedal for height adjustment for hydraulic version:
Remote for height adjustment for power version:
Sizing
R82 Heron toilet bath chair
Hydraulic
Power
Overall width
26½"
26½"
Length
28"
28"
Overall height
44½"-53¼"
44½"-53¼"
Effective seat width
21¾"
21¾"
Seat width between hip supports (accessories)
13¾" - 19¼"
13¾"-19¼"
Effective seat depth
17¾"
17¾"
Back width, top of backrest
11½"
11½"
Backrest height
21¾"-24½"
21¾"-24½"
Seat surface height at front edge
20"-30¾"
20"-30¾"
Seat plane angle
(-5°)-(25°)
(-5°)-(25°)
Backrest angle
(-10°)-(30°)
(-10°)-(30°)
Lower leg length
15¾"-22"
15¾"-22"
Minimum turning diameter
35½"
35½"
Mass device
61.8 lbs.
68.3 lbs.
Maximum user mass
220 lbs.
286.6 lbs.
Maximum rated load
286.6 lbs.
359.3 lbs.
Static stability sideways
5°
5°
Static stability uphill and downhill
10°
10°
Warranty
Etac (R82) provides a Two (2) years warranty on all products against defects in workmanship and materials as per the schedule below.
Five (5) years warranty: on metal frame work
One (1) year warranty: on, in case of product containing batteries
Manufacturer will not warrant parts damaged by improper installation and/or repair on the part of the individual owner, or normal wear and tear.
Manufacturer does not warrant parts damaged by neglect, accident or misuse, nor parts altered or serviced by an agency not authorized by R82 Inc.
The warranty does not extend to consumable items e.g. tires or upholstery, which are subject to normal wear and tear and need periodic replacement.
Standard Manufacturer Terms & Conditions Apply for Warranty of this Product.
Please call us for Specific Details.
Return
Unfortunately hygiene items cannot be returned once opened, due to health concerns.
Standard manufacturer terms & conditions are applicable for return policy of this product.
