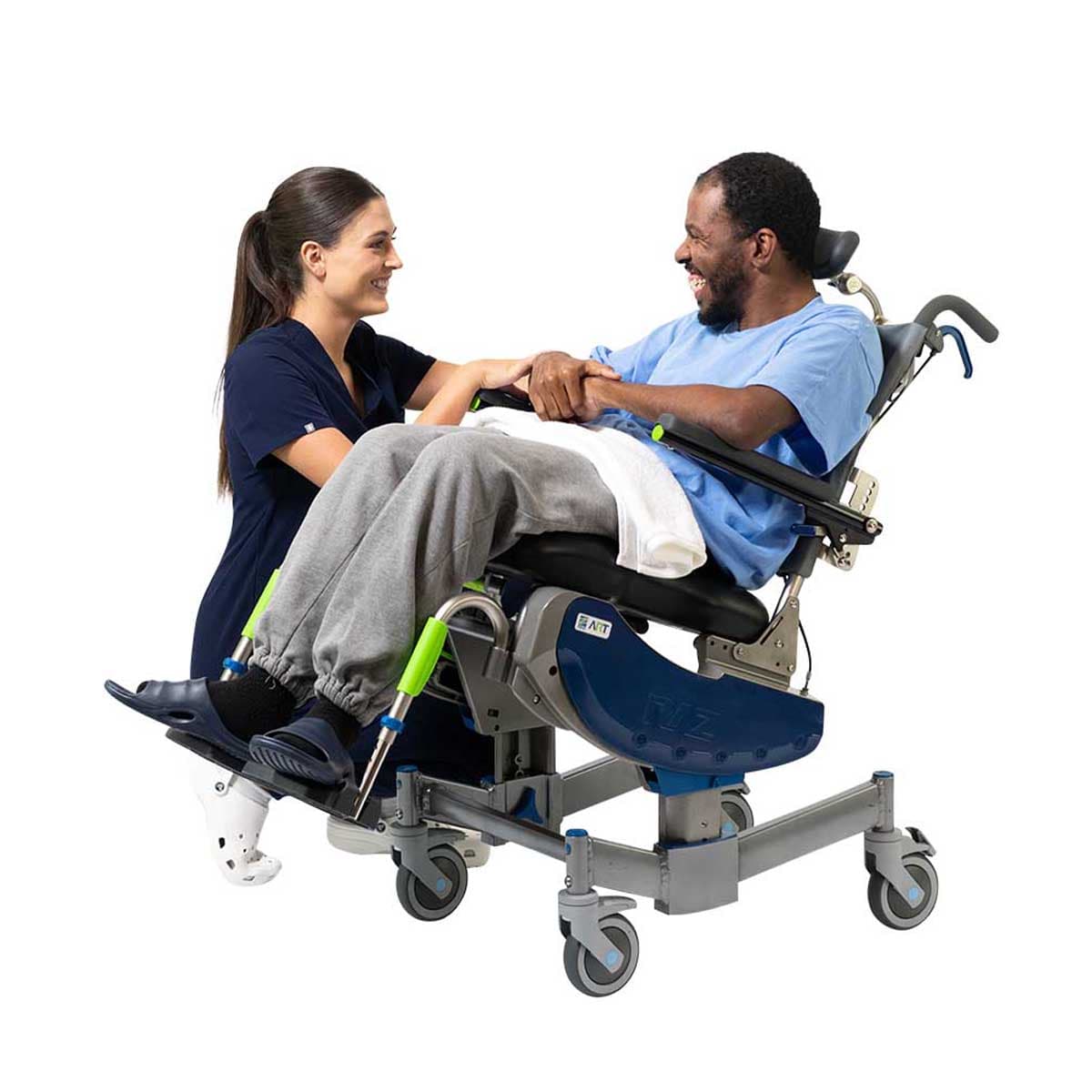

Raz Design ART (Attendant Rotational Tilt) shower commode chair has a one-of-a-kind frame design that incorporates a patented, dual-arc, orbital tilt system that provides the smallest footprint and the least amount of tilt effort of any chair on the market. Its one-of-a-kind aluminum frame design allows for two tool-free height adjustment ranges (20"-23" and 24"-27"). The Raz-patent-pending ART's tilt-locking technology eliminates cable "looping," which is common in other systems. The Raz tilt in space chair is intended to provide the user or attendant with convenient side and front access. The toilet seat is designed to fit over most toilets and has an easy-to-clean metal frame. The Attendant Rotational Tilt mobile shower commode chair can be tilted up to 40 degrees for added pressure relief and comfort.
Raz-ART Standard Features:
Fixed back
40° tilt range
Foot supports
Commode pan
Four dual-locking 5" casters
Flip-up padded arm supports
Patent-pending tilt locking system
Head support fixture with a small pad
Tool-less height-adjustable aluminum frame
Patented dual-arc tilt geometry for the lowest possible tilt effort
Tilt function:
The seat frame tilts for extra pressure reduction & comfort
Conveniently located tilt triggers provide smooth tilt control
Locking pneumatic springs provide infinite adjustment up to 40°
Pressurized springs also help lift the seat frame to an upright position
Moulded Seat:
Soft integral-skin foam for comfort and durability
Available with open or bridged front
Available sizes: 18"W x 17"D, 18"W x 20"D
Contoured for pressure reduction and pelvic stability
Ischial Pelvic Alignment System:
Removes easily for cleaning
Seat locks in place for transfers
Allows centering of the aperture (opening) around the users' ITs
Provides 2" of fore/aft adjustment so the seat can be aligned with the pelvis
Fixed Back:
Available in 18" back height
Includes flip-up, angle-adjustable arms
Locking armrest upgrade available [Z710]
Includes adjustable tension fabric back upholstery
Tension-Adjustable Back Support Fabric:
Available in 17", 20" & 24" back heights
Removable for machine washing
Vinyl-coated fabric for durability, comfort & better infection control
Provides individualized trunk support for optimal positioning & comfort
Adjustable Footrests:
Flip-up footplate
Swing in and out easily
Removable for transfers and cleaning
Adjust for leg length without tools
Available in regular length 16"-20½" and extended length 18"-22½"
Headrest (Small, standard):
Headrest size is approximately 10"W x 4" H
The headrest angle can be adjusted for comfort
Integral skin foam headrest is easy to clean
The headrest is shaped to cradle the head and can be adjusted to fit looser or tighter
Headrest support can be adjusted infinitely forward and backward within a 5½” range, and vertically within an 11½” range
Commode Pan:
Includes a lid for splash and odor control
An injection-molded pan is designed for function
Wide handle angled at 45° provide better ergonomics
Fits in a standard autoclave and Arjo Tornado Washer
Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
Receiver brackets under the seat are visible from the rear of the chair, making it easier to slide the pan into place
Note: For custom or additional charge options required on the shower commode chair, please call for a special pricing quote. Only standard shower commode chair options are shown online.
Sizing
Raz Design ART Shower Commode Chair
Weight Capacity
350 lbs.
Frame Width (seat and back frame)
18"
Overall Width
22.5"
Overall Length (with foot supports and headrest adjusted to middle positions)
