Raz design AT600 bariatric tilt rehab shower commode chair

(0) No Reviews yet
SKU: RDZ36022M

in stock

Services available:
resna certified assistive technology practitioner (ATP);
please call us for product customization as per your requirements
product trials; delivery; setup and fitting services available for clients in our local service area
client measurements recommended to be submitted along with your order
special discounts available...
this product requires assembly

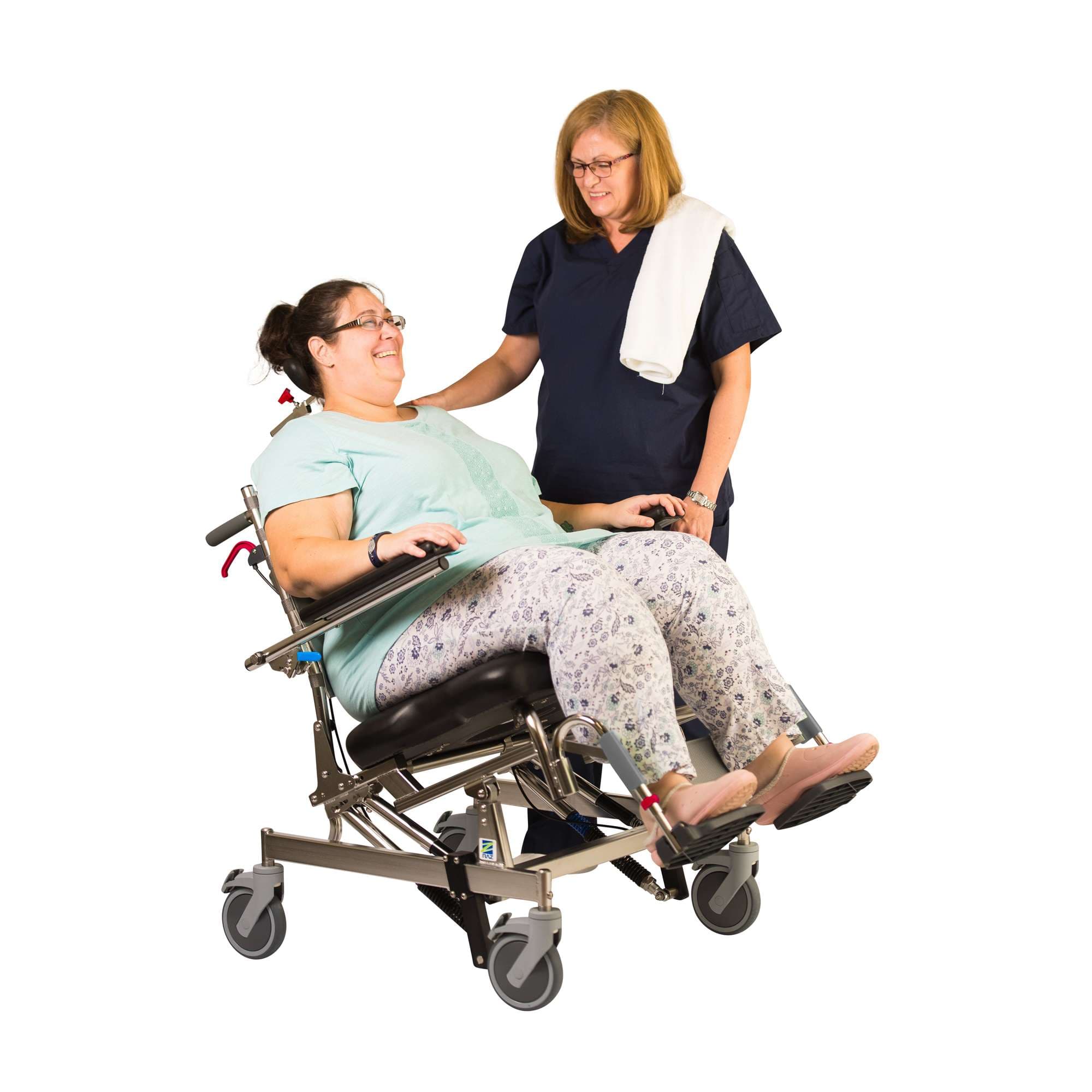

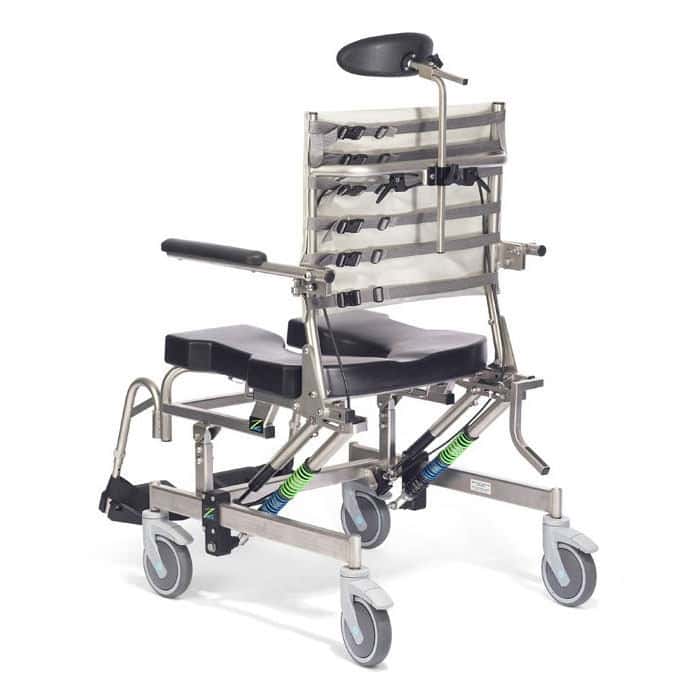

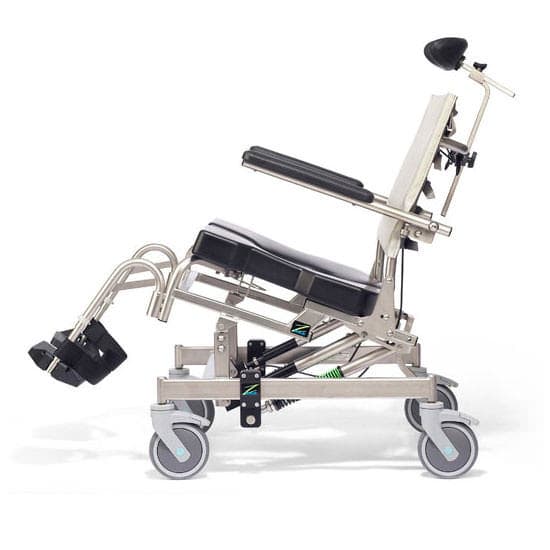

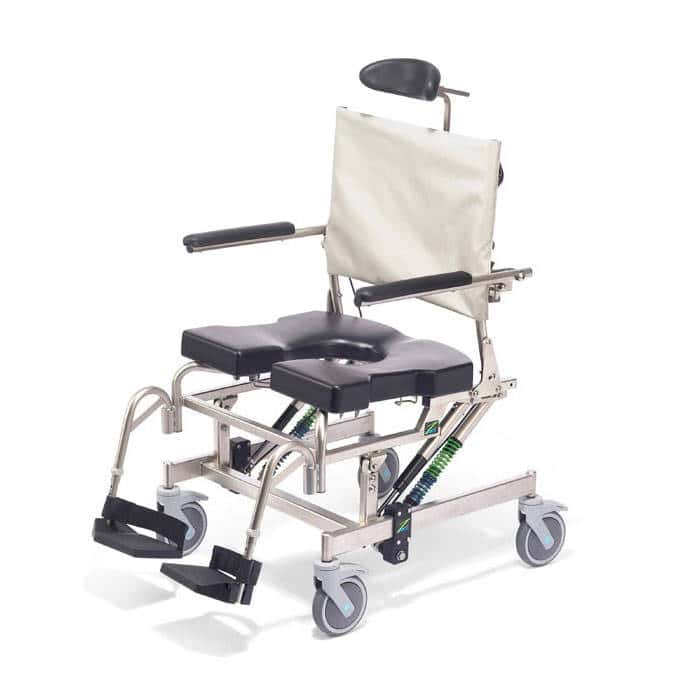

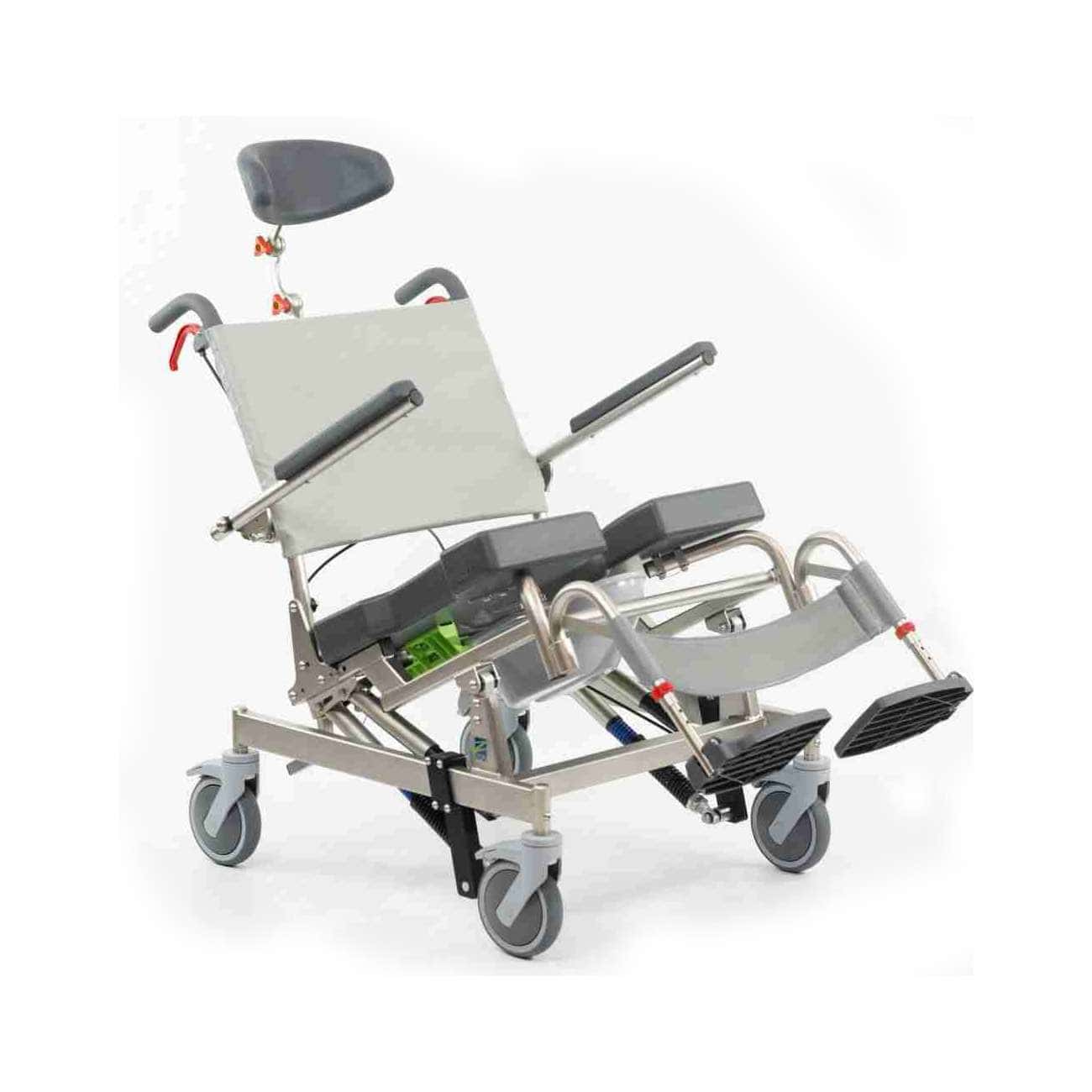

Raz design AT600 bariatric tilt-in-space rehab shower commode chair is an attendant propelled mobile hygiene system designed with Weight Assist Spring System (WASS) . Raz design AT600 has a stainless steel frame, constructed with a weighing capacity of upto 600 lbs. Raz design’s exclusive Weight Assist Spring System (WASS) can be configured to counter-balance the user’s weight for near effortless tilting to 25° by an attendant and eliminating the requirement for problematic battery systems. As with the rest of the RAZ range, the footplates are flip-up and length adjustable which are mounted on swing-away hangars. The castors are full swivel and locking at each corner. Raz design AT600 comes equipped with adjustable footrests, four locking 6” (150mm) casters and a commode bowl. Headrest angle can be adjusted for comfort. A headrest is shaped to cradle the head and can be adjusted to fit looser or tighter.

Height adjustable with moulded seat: Raz design AT600 tilt-in-space shower chair is also height-adjustable by means of an adjustable chassis which allows fine-tuning of the seat height between 22” – 24”. Raz design also provides moulded seat which is comfortable and designed for heavy loads but features the RAZ seat adjustment benefits

Centre-of-gravity & backrest adjustable: The backrest is strap-secured which allows tension adjustment of the vinyl support. The backrest frame is also adjustable in its position which allows for 4” fore-aft adjustment that help to control the users Centre-of-gravity.

Stainless tube arm-rests: Raz design provides arm-rests which are flip-up and adjustable for height as well as being constructed from stainless tube which has tremendous weight bearing capabilities.

FeaturesThe product comes standard with
  • Backrest adjustment
  • Seat depth adjustment
  • Height adjustable chassis
  • Stainless steel construction
  • Tension adjustable backrests vinyl
  • Heavy-duty frame for users up to 600 lbs.
  • Weight Assist Spring System (WASS) for tilt control





  • 25º tilt range
  • Adjustable HD Footrests (Z709N)
  • Four locking 6” (150mm) casters and commode pan
  • Shower Commode Chair with stainless steel frame and components
  • Weight Assist Spring System (WASS) available in two weight ranges and adjustable to accommodate the user’s weight and Center of Gravity (COG) for tilt operation with minimal effort by the attendant.

RAZ-AT600 Features

Tilt FunctionMolded Seat
  • Seat frame tilts for extra pressure reduction and comfort
  • Conveniently located tilt triggers provide smooth tilt control
  • Locking pneumatic springs provide infinite adjustment up to 40°
  • Pressurized springs also help lift seat frame to an upright position
  • 23” W x 18” D
  • Available with an open front for access
  • Soft integral-skin foam for comfort and durability
  • Contoured for pressure reduction and pelvic stability
Adjustable FootrestsCommode Pan
  • Flip-up footplate
  • Swing in and out easily
  • Adjust for leg length without tools
  • Removable for transfers and cleaning
  • Available in regular length 16″-20½” and extended length 18″-22½”
  • Includes a lid for splash and odor control
  • Injection-molded pan is designed for function
  • Fits in a standard autoclave and Arjo Tornado Washer
  • Wide handle angled at 45 degrees provides better ergonomics
  • Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
  • Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
Ischial Pelvic Alignment System
Adjustable Tension Fabric Back
  • Removes easily for cleaning
  • Seat locks in place for transfers
  • Allows centering of the aperture (opening) around the users’ ITs
  • Provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
  • 20” back heights
  • Removable for machine washing
  • Vinyl-coated fabric for durability, comfort and better infection control
  • Provides individualized trunk support for optimal positioning and comfort
Fixed Back
Adjustable Pivot Posts
  • Available in 17” and 20” back heights
  • Includes flip-up, angle-adjustable arms
  • Includes adjustable tension fabric back upholstery
  • Provide 3” of vertical seat adjustment
  • Provide 4” of seat height adjustment without frame / toilet bowl interference

Note: Custom sizes and modifications are available - call for quotation

RAZ design AT600 bariatric shower commode chair
Tilt functionPressurized locking gas spring with WASS up to 25° tilt range
Weight assist spring system weight capacity (Z36WR450)275 lbs. to 450 lbs.
Weight assist spring system weight capacity (Z36WR600)400 lbs. to 600 lbs.
Frame width (seat and back frame)22"
Seat width (commode seat)22"
Overall width26.5"
Seat depth (front of back post to front of seat)18"
Seat adjustment (fore/aft)Up to 2"
Seat adjustment (lateral)Up to ¾"
Back position (center of gravity) adjustmentFore/aft: 2"
Seat-to-floor height21¾" and 22¾"
Toilet bowl clearance height (with pan brackets)18" - 19"
Toilet bowl clearance height (without pan brackets)18¾" - 19¾"
Toilet bowl clearance width= Frame width less 5"
Back height21"
Adjustable back angle90° or 97°
Armrest height above seat9.5"
Width between armrest pads= Frame width plus 0.75"
 0" - 2¼" offset (= frame width less 0" - 4½" trunk width)
Lateral support adjustment range2½" vertical
 1" fore/aft
 ± 5° pad angle
Footrest adjustment (from seat to footplate) - standard (Z709)16" - 20½"
Footrest adjustment (from seat to footplate) (Z709 with Z7FREXT)18" - 22½"
Caster typeFour dual locking casters
Caster size6"
Overall length with footrests39"
Product weight84 lbs.
Frame and hardware materialStainless steel

The manufacturer provides with the following warranty on its products to the original purchaser:

  • Two year limited warranty on the frame against manufacturing defects.
  • One year on all other components excluding parts subject to normal wear and tear.
  • If any product is proven to be defective it will be repaired or replaced at the manufacturer's descretion
  • Parts under warranty will be covered at no cost.
  • Any labor cost for service under warranty is not covered as per our terms of sale
  • Standard Manufacturer terms and conditions apply to warranty of this product.

Please call us for specific details

  • Unfortunately hygiene items cannot be returned once opened, due to health concerns.
  • Standard manufacturer terms & conditions are applicable for return policy of this product.

Please call us for specific details
