RAZ-SP (Self Propelled) Stainless Steel Shower Commode Chairs

Features

Details

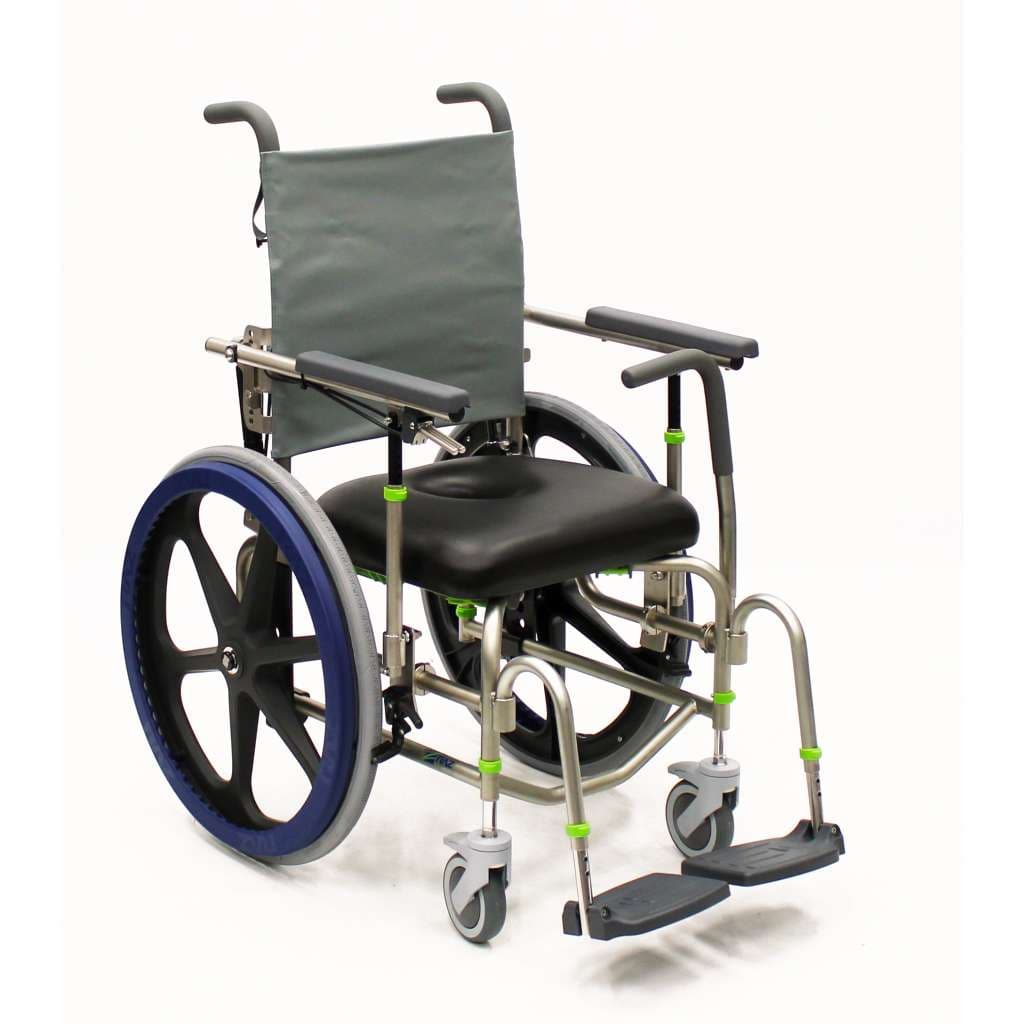

Raz design SP rehab shower commode chair offers the Ischial & Pelvic Alignment System (IPAS), which allows the commode seat aperture to be comfortably centered around the ischial tuberosities for clients with a posterior or anterior rotated pelvis. RAZ-SP rehab shower commode chair comes standard with 4" of height adjustment, an adjustable-tension fabric backrest, 22" rear wheels, 5" dual-locking casters, flip-up padded armrests, and an elongated commode pan. The easy-to-clean, polished stainless steel frame of RAZ SP shower commode chair is designed for easy side and front access by the user or attendant. RAZ-SP is a prescriber-friendly, rehab shower chair with many adjustments and options to ensure user's safety and comfort.

The product comes standard with

Fixed back
Molded seat
Commode pan
Two dual locking 5” casters
Adjustable Footrest 16" - 20½”(pair)
22" Diameter Wheels with Textured Handrim and Wheel locks

RAZ-SP Features

Molded Seat	Ischial Pelvic Alignment System
Available with open or bridged front Available sizes: 18″Wx16″D, 18″Wx19″D Soft integral-skin foam for comfort and durability Contoured for pressure reduction and pelvic stability Optional PRx seat upgrade for maximum comfort and pressure reduction	Removes easily for cleaning Seat locks in place for transfers Allows centering of the aperture (opening) around the users’ ITs Optional spacers for anterior or posterior seat angle adjustment [Z491] Provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
Commode Pan	Adjustable Footrests
Includes a lid for splash and odor control Injection-molded pan is designed for function Fits in a standard autoclave and Arjo Tornado Washer Wide handle angled at 45 degrees provides better ergonomics Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place	Flip-up footplate Swing in and out easily Adjust for leg length without tools Removable for transfers and cleaning Available in regular length 16″-20½” and extended length 18″-22½”
Adjustable Tension Fabric Back	Fixed Back
Removable for machine washing Available in 17″ and 20″ back heights Polyester fabric for durability and comfort against skin Provides individualized trunk support for optimal positioning and comfort	Available in 17″ and 20″ back heights Provides flip-up angle adjustable armrests Includes adjustable tension fabric back upholstery Optional Locking armrest upgrade available [Z710]
Multi-Position Axle Plates	Telescoping Caster Extensions
Allow use of 22″ or optional 24″ rear wheels Provide up to 4″ of vertical seat height and 1.5″ of horizontal adjustment for optimum user / toilet bowl access	Provide 4″ of seat height adjustment without the use of tools Dropped front frame tube improves access over standard toilet bowls

Note: Custom 14" - 22" frame, other modifications and custom seat construction (required for longer frame) are available - call for quotation

Services available:

resna certified assistive technology practitioner (ATP);

please call us for product customization as per your requirements

product trials; delivery; setup and fitting services available for clients in our local service area

client measurements recommended to be submitted along with your order

special discounts available...

Sizing

Additional Info

SKU

RDZ200

Model

Z200

Brands

RAZ Design

Technical Specifications

RAZ design SP rehab shower commode chair
Seat width	18"
Seat depth (front of back post to front of seat)	16" or 19"
Seat adjustment (for pelvic alignment)	Up to 2" (fore/aft)
Seat-to-floor height - 22" wheel	20" - 24" in 1" increments
Seat-to-floor height - 24" wheel	20" - 24" in 1" increments
Toilet clearance height (with pan brackets) - 22" wheel	16" - 20"
Toilet clearance height (with pan brackets) - 24" wheel	15¾" - 19¾"
Toilet clearance height (without pan brackets) - 22" wheel	15¼" - 19¼"
Toilet clearance height (without pan brackets) - 24" wheel	15" - 19"
Toilet clearance width (outside hand rims) - standard	26½"
Fixed back (fixed height, flip-up armrests) - standard	17"
Fixed back (fixed height, flip-up armrests) - optional	20"
Adjustable back (adjustable height/angle, flip-up locking armrests) - standard	17"
Adjustable back (adjustable height/angle, flip-up locking armrests) - optional	20"
Armrest height for 17" fixed back height (Z505)	8½"
Armrest height for 20" fixed back height (Z506)	9½"
Armrest height above seat (17" adjustable back) (Z510)	6½" - 9½" in ½" increments
Armrest height for 20" adjustable back height (Z515)	8" - 10½"
Width between armrest pads	18¾"
	1¼" - 2½" offset (15½" - 13" trunk width)
Lateral support adjustment range	2" vertical
	1" fore/aft
	± 5° pad angle
Footrest adjustment (from seat to footplate) - standard (Z705N)	16" - 20½"
Footrest adjustment (from seat to footplate) (Z705N with ZFREXP)	18" - 22½"
Caster type	Two dual locking casters
Caster size	5"
Rear wheels (treaded TPE tires) - standard	22"
Rear wheels (treaded TPE tires) - optional	24"
Overall width	26½"
Overall length with footrest - 22" wheel	39"
Overall length with footrest - 24" wheel	39"
Product weight	47 lbs.
Weight capacity	350 lbs.
Frame and hardware material	Stainless steel

Order Forms

Shower & commode chair measurement guide

RAZ designs shower/commode chair brochure

RAZ designs AP/SP shower/commode chair order form

RAZ designs AP/SP shower/commode chair user manual

Videos

Caster removal & installation guide

Raz SP - Introduction

Warranty

The manufacturer provides with the following warranty on its products to the original purchaser:

Two year limited warranty on the frame against manufacturing defects.
One year on all other components excluding parts subject to normal wear and tear.
If any product is proven to be defective it will be repaired or replaced at the manufacturer's descretion.
Parts under warranty will be covered at no cost.
Any labor cost for service under warranty is not covered as per our terms of sale.
Standard Manufacturer terms and conditions apply to warranty of this product.

Please call us for specific details

Returns

Unfortunately hygiene items cannot be returned once opened, due to health concerns.
Standard manufacturer terms & conditions are applicable for return policy of this product.

Please call us for specific details
