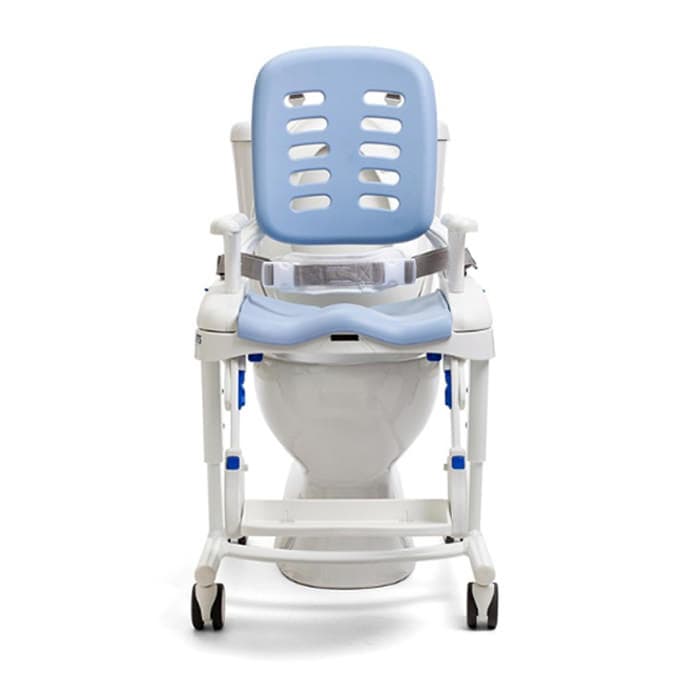

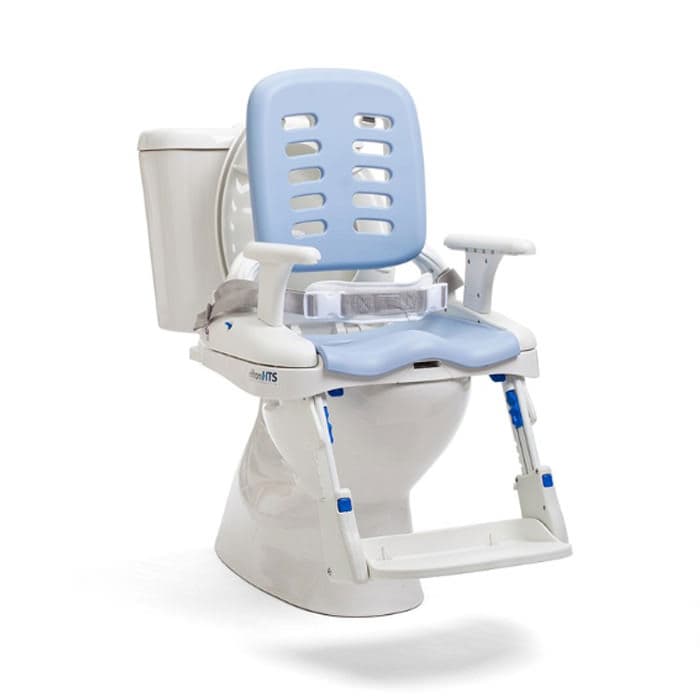

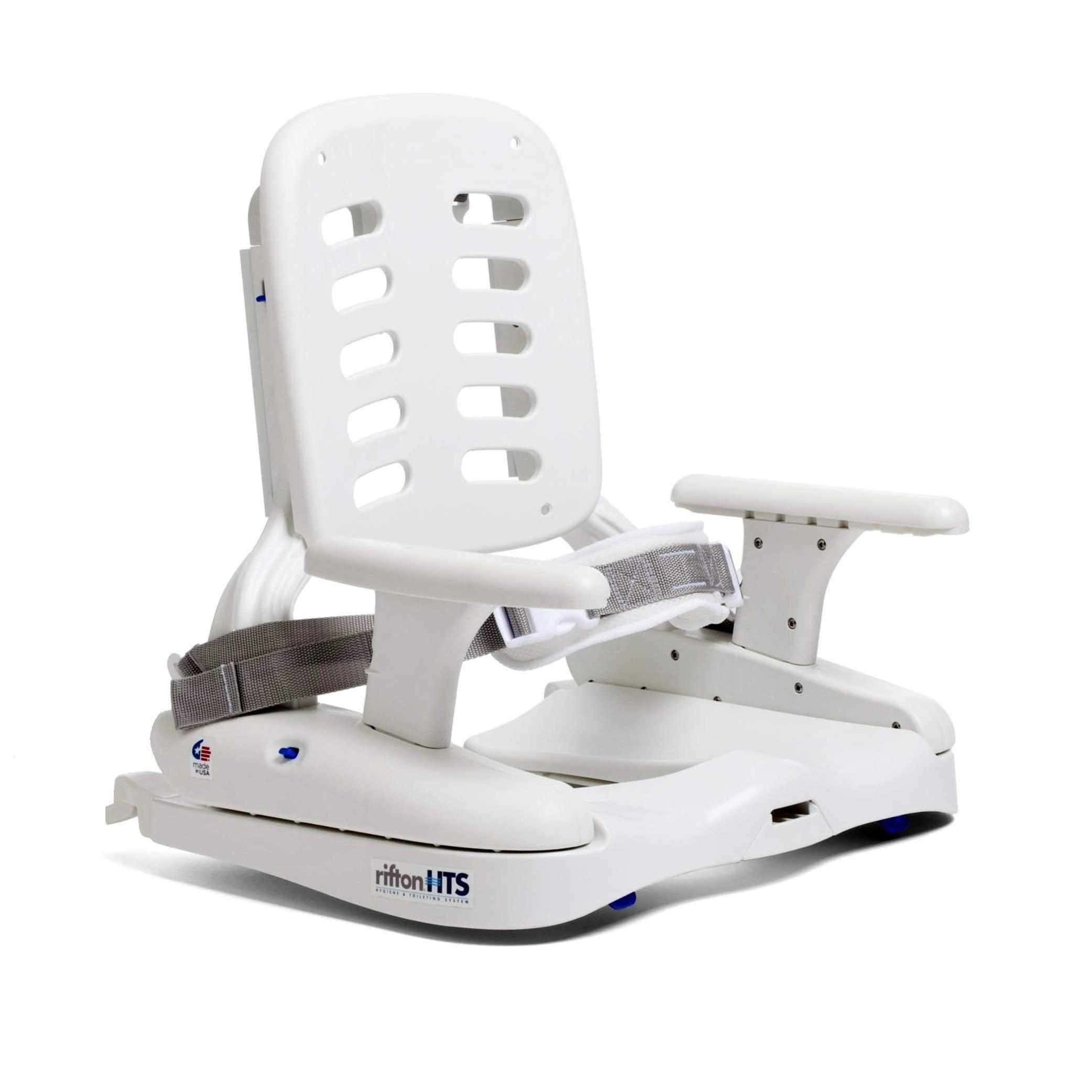

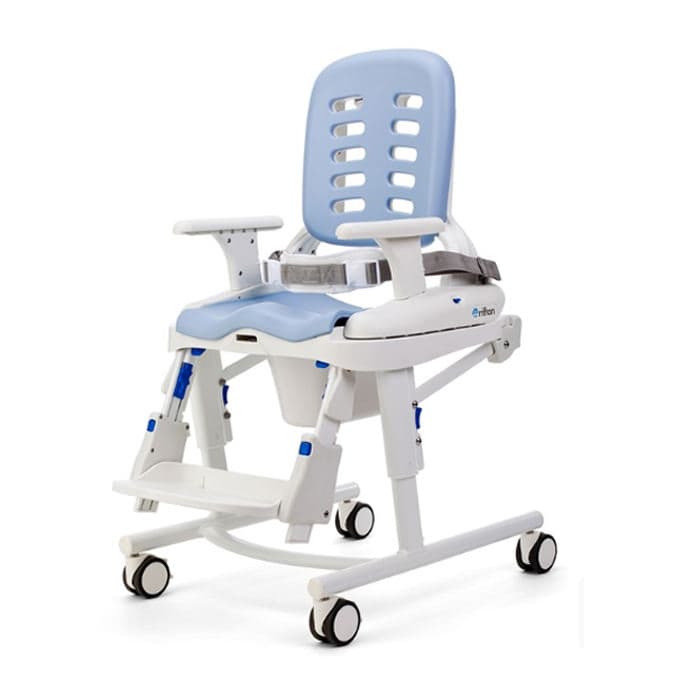

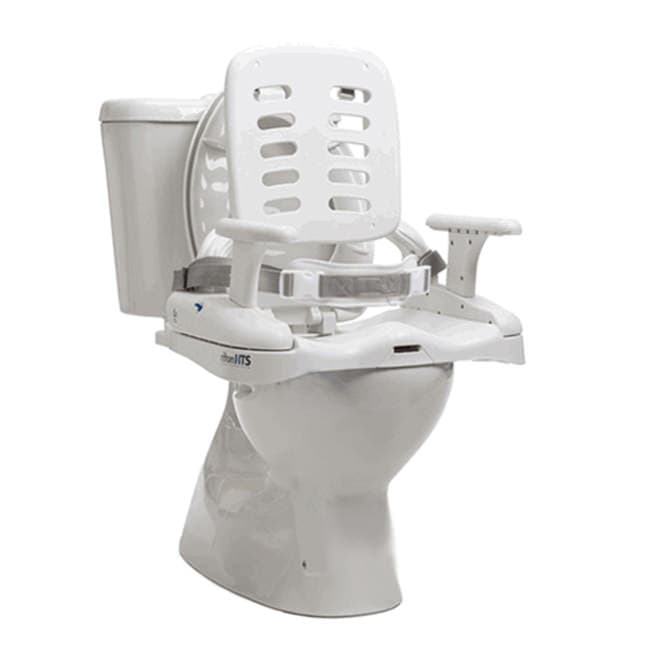

Item Dimensions (inches) |
Small HTS |
Medium HTS |
Large HTS |
Model |
Z110 |
Z120 |
Z130 |
Tilt-in-space mobile base footprint |
21 x 27 |
21 x 27 |
22½ x 33 |
Tilt-in-space base length at full recline |
43 |
49¼ |
57¼ |
Non-tilt base footprint |
20 x 25 |
20 x 25 |
21 x 29 |
Seat (front) to footboard height* |
8½ – 13½ |
10½ – 15½ |
13½ – 17½ |
Seat (front) to floor; mobile tilt frame |
15½ – 21½ |
15½ – 21½ |
17½ – 23 |
Seat (front) to floor; mobile non-tilt frame |
16 – 20 |
17 – 20½ |
18 – 22 |
Seat (front) to floor; stationary non-tilt frame |
13 – 17 |
14 – 17½ |
15 – 19 |
Seat depth (1" increments) |
8 / 9 / 10 / 11 |
11½ / 12½ / 13½ / 14½ |
14½ / 15½ / 16½ / 17½ |
Seat width |
12
with hip guides: 8 / 10 |
14
with hip guides: 10 / 12 |
17
with hip guides: 13 / 15 |
Hole size in seat pad |
open 4 x 9
closed 3 x 8 |
open 4½ x 12
closed 3½ x 10 |
open 6 x 14
closed 4½ x 12 |
Armrest height above seat |
5¼ |
6½ |
8 |
Backrest height above seat |
16½ |
19½ |
24½ |
Backrest width |
11½ |
13½ |
16 |
Distance between laterals |
5¾ – 11½ |
7¾ – 13½ |
11½ – 17¼ |
Tilt-in-space FORWARD ** |
5° |
5° |
5° |
Tilt-in-space BACK ** |
25° |
25° |
25° |
Backrest angle adjustment |
6° fwd, 6° and 18° back |
6° fwd, 6° and 18° back |
6° fwd, 6° and 18° back |
Maximum clearance height under seat (tilt frame) |
20½ |
20½ |
20¾ |
Maximum clearance height under seat (stationary non-tilt frame) |
15 |
15 |
16½ |
Maximum clearance height under seat (mobile non-tilt frame) |
18 |
18 |
19½ |
Portability base clearance (fits over ADA compliant toilets) |
18½ |
18½ |
N/A |
Portability kit carry bag dimensions |
19½ high x 21¼ wide x 10 deep |
19½ high x 21¼ wide x 10 deep |
N/A |
Bottom of frame to floor; tilt-in-space mobile base |
2 |
2 |
2 |
Tub base footprint |
23 x 16½ at feet / 19 at top |
23 x 16½ at feet / 19 at top |
N/A |
Tub base height |
11 at front x 9½ at back |
11 at front x 9½ at back |
N/A |
Maximum working load (lbs.) |
75 |
150 |
250*** |
*When the mobile base is in the lowest position and the footboard is fully extended, it may prevent the front casters from swiveling. In this case, either change the footboard angle or raise the seat height to give the casters room to swivel.
**To achieve 15˚ of forward tilt for ease of transfer, order the tilt angle converter, Z169 $47.00. (The range of adjustment will be 15˚ back and 15˚ forward. See reference charts above.)
***The maximum working load for the large HTS foot board is 150 lb.
|
