Rifton Wave Bath Chair (Small)
Features

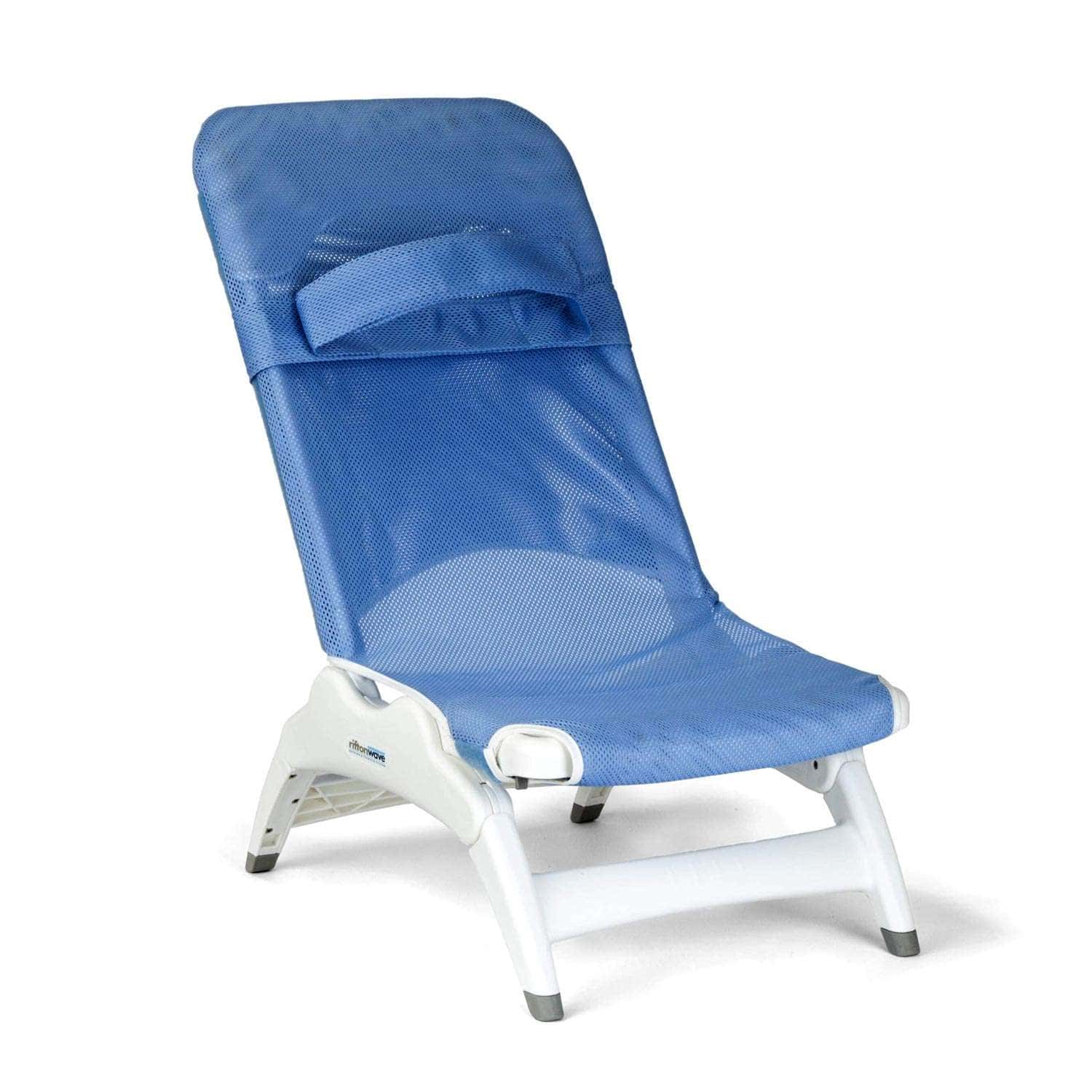

Rifton Wave Bath Chair

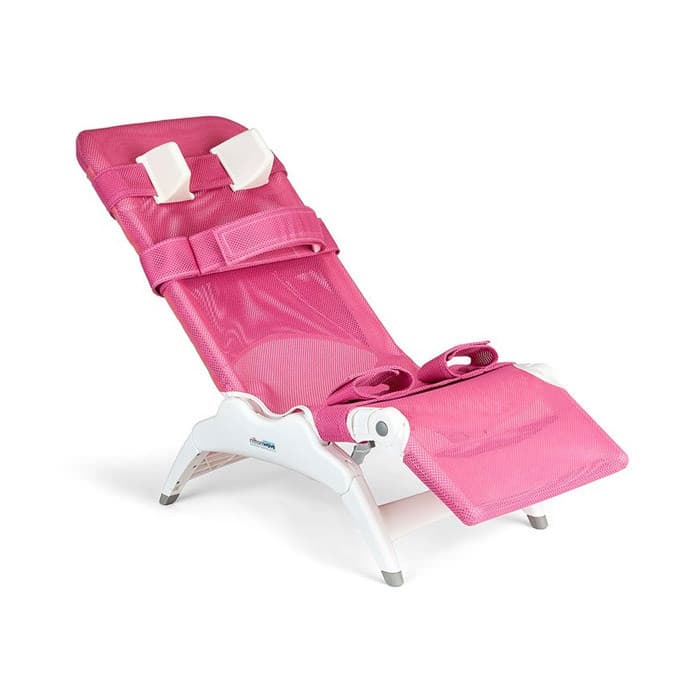

Rifton wave small bath chair is available with a wider chair and added padding to make it even more comfortable and gentler with sensitive skin. Rifton wave protects skin integrity added generous padding under the soft knit fabric. The backrest angle is easily adjustable with one hand which allows the caregiver to keep the other hand on the user for safety and reassurance. The backrest adjusts from flat to 75° in 6 increments of 15° each. The seat adjusts from flat to 75° in 7 increments. Rifton wave bath chair is available with Blue or Pink fabric color.
Rifton Wave features & benefits:
- Extra wide seat with open sides, 15" for the small
- Optional calf rest adjusts independently of seat angle
- Completely configurable- all sizes of the Rifton Wave can fit on any of the 3 base options
- Optional conversion kit allows user to economically move up from small to medium size by just purchasing a new back, seat and cover.
- Optional tub transfer base enables users, after being placed in the bath chair using a mechanical lift to be rolled back and then rotated over the tub for showering
Rifton Wave - highly adjustable:
Backrest angle, seat angle and calf rest angle adjust individually.
Backrest angle:
Seat angle:
Calf rest angle:
More seat heights
For an intermediate seat height, put the rear legs up and front legs down.
To get the chair low in the tub, put the front and back legs up. Fold the chair completely flat for storage.
Choice of chest strap:
Without lateral positioning:
The simple chest strap safely positions the user in the Wave bath chair. It attaches with hook and loop where needed along the full height of the back and buckles securely behind.

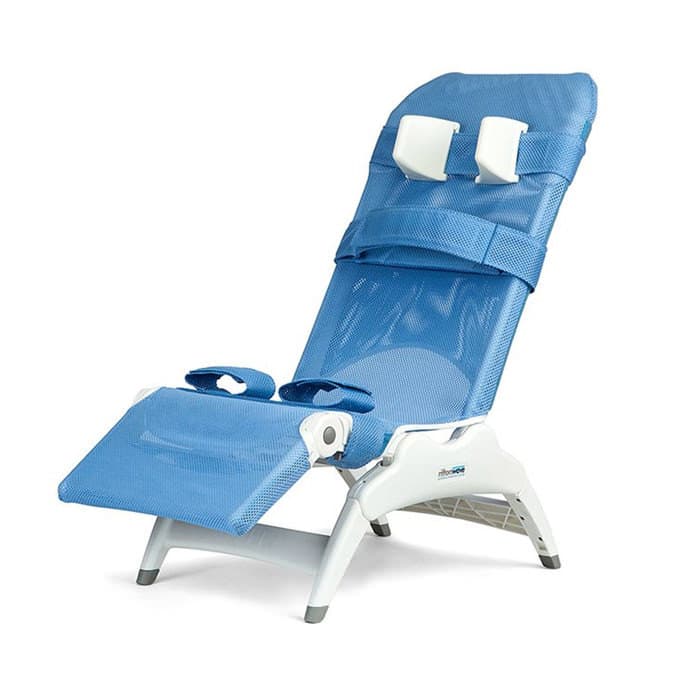

With lateral positioning:
Designed this chest strap with adjustable lateral straps to give additional lateral support, helps users to maintain better trunk alignment in the bath chair. The soft fabric laterals will not get in the way during transfers.
Rifton Wave - stand & transfer base (optional):
Wave with tub stand:
Wave with shower stand:
Wave with tub transfer base:
Click the dimensions (inches) chart to help you make the right choice:
Sizing
| Item Dimensions (inches) | Small Wave | Medium Wave | Large Wave |
| Model | Z210 | Click here for Z220 | Click here for Z230 |
| Seat height | 2 – 7 With tub stand: 12½ – 18½ With shower stand: 27½ With tub transfer base (with standard leg inserts): 21 – 26 With tub transfer base (with long leg inserts): 24½ – 29½ | 2 – 7 With tub stand: 12½ – 18½ With shower stand: 27½ With tub transfer base (with standard leg inserts): 21 – 26 With tub transfer base (with long leg inserts): 24½ – 29½ | 2 – 7 With tub stand: 12½ – 18½ With shower stand: 27½ With tub transfer base (with standard leg inserts): 21 – 26 With tub transfer base (with long leg inserts): 24½ – 29½ |
| Seat depth | 10½ | 13 | 17 |
| Seat width | 15 | 15 | 17½ |
| Back height | 23 | 26½ | 32 |
| Length of mesh area when flat | 35 (without calf rest) | 41 (without calf rest) | 50½ (without calf rest) |
| Length of mesh area when flat | 42½ (with calf rest) | 49 (with calf rest) | 61 (with calf rest) |
| Base width | 18 | 18 | 21 |
| Base length | legs down 24 / legs flat 29½ | legs down 24 / legs flat 29½ | legs down 24 / legs flat 29½ |
| Maximum working load (lbs) | 75 | 150 | 250 |
| Back and seat angle adjustments | 0˚, 15˚, 30˚, 45˚, 60˚, 75˚ | 0˚, 15˚, 30˚, 45˚, 60˚, 75˚ | 0˚, 15˚, 30˚, 45˚, 60˚, 75˚ |
| Chest strap circumference | 17 – 32 | 22 – 39 | 24 – 45 |
| Leg strap circumference | 8 – 15 | 10 – 20 | 13 – 26 |
| Tub Stand Dimensions | |||
| Height (legs flat) | 8 | ||
| Length (legs flat) | 39 | ||
| Length (legs down) | 29½ | ||
| Width | 17½ | ||
| Shower Stand Dimensions | |||
| Height | 22 | ||
| Length | 34 | ||
| Width | 27 | ||
| Tub Transfer Base Dimensions | |||
| Max. tub height for transfer base with standard leg inserts | 20 | ||
| Max. tub height for transfer base with long leg inserts | 24 | ||
| Length | 30 | ||
| Width | 28 | ||
