SmartDrive MX2+ Power Assist System
Features
SmartDrive MX2+ power assist system with SpeedControl Dial/SwitchControl button & PushTracker E3/Apple Watch that gives user an experience of freedom to do more. MX2+ power assist system by SmartDrive is so light in weight which moves with users who don't even know it's there & also users can spin in place, be in a wheelie, or hop off curbs. SmartDrive MX2+ is compatible with any active lifestyle. Between pushing thousands of times a day, frequent transferring, and need to reach overhead, manual chair users put a lot of strain on the muscles and joints in their arms. While we can't control everything - we can control how many pushes are done each day with SmartDrive. MX2+ by SmartDrive was created with manual wheelchair users in mind. The mounting location, the ergonomic handle, the weight, and the OmniWheel were all designed to create a seamless power assist experience.
SmartDrive MX2+ features | ||
Ergonomic Design: On-demand power assist made easy with an ergonomic handle | Maneuverability: SmartDrive's patented OmniWheel provides optimal traction and maneuverability | Lightweight: Lightest rear-mounted power assist available for seamless integration |
SmartDrive MX2+ Power Assist System offers: | |
SmartDrive MX2+: SmartDrive MX2+ can power up steep hills and through thick carpets. It's intuitive to use and will go for miles on a single charge. Turn on, get out there and rediscover your independence. | |
PushTracker E3: SmartDrive MX2+ PushTracker E3 rigorously tested and proven to be consistently reliable and durable. PushTracker E3 is designed to make the SmartDrive easy than ever and was developed with connectivity and durability. SmartDrive PushTracker E3 can be easy with gesture-activated controls and a simple tap of your hand - no pushing or reaching necessary. | |
SwitchControl: SwitchControl (formerly known as the thumb throttle) comes as a no-charge option and is included with every SmartDrive. SwitchControl is designed to use in combination with a PushTracker/E3 or by itself. SwitchControl now comes standard and gives users another customizable option for controlling their SmartDrive. With the push of a button, SmartDrive can be engaged for a momentary burst of power or activated in the latched mode for consistent power over extended distances. | |
SpeedControl Dial: SmartDrive now has next-generation control and intuitiveness. Now, users can start, stop, and change their speeds by simply rotating the speedcontrol dial in either the forward or backward direction. There is no need to charge two devices because it is wired and powered directly by the SmartDrive unit, and installation only takes less than 5 minutes. | |

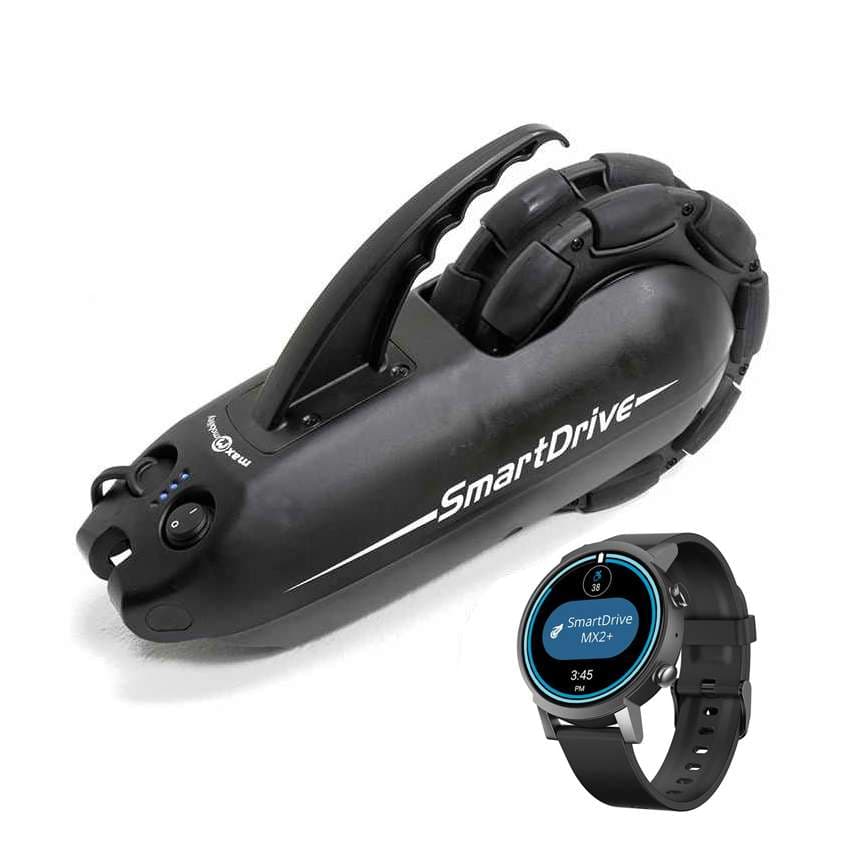

Apple Watch: Control the SmartDrive MX2+ by using an Apple Watch (series 5 or newer). It is fast and simple to set up, increases screen visibility, and improves battery performance. Download the free app from the app store. |
Smartphone App - With the PushTracker Smartphone App, wirelessly sync & send your daily data via Bluetooth from your PushTracker for an in-depth look. Within the Smartphone App you can easily:
| ||
Preview and download the PushTracker App for: | ||
** Requires iOS 12.0 or later. Compatible with iPhone, iPad, and iPod touch. * Requires Android 5.0 and up. May not work on older Android devices, as it requires Bluetooth peripheral mode (advertisement) support. Click here for a list of older Android devices that support this and may work. |
Features
- Lightweight only 13.5 lbs.
- Motor: 250 W Brushless DC
- Battery: Li-ion (LiFePO4)—36 V & 3.4 A-h
- Rigid, Folding, Tilt-in space, One-arm drive, and others
- Range (level / no resistance conditions): 12 miles (19 km)
- Changeable Options: Mode of Operation, Top Speed, Tap Sensitivity, and Acceleration (if applicable)
Note: If the wheelchair is a Colours Shockblade or Boing, please call us for specific details.
Many ways and many reasons, to choose SmartDrive to do more |
Many ways and many reasons, to choose SmartDrive to do more, Most of manual wheelchair users have a pain problems and then they report it at significantly higher levels than those who don't use manual wheelchairs. Pain, fatigue, and the planning associated with pushing a wheelchair make it tempting to say no to things that users love or want to do. But if manual wheelchair users could do more by pushing 80% less. Then, below is the link to learn how users decided on (and came to love) using a SmartDrive. Why do people choose to do more by using a SmartDrive, Click here to know more. |
Sizing
SmartDrive MX2+ Power Assist System | |
Dimensions (L x W x H) | 15.3" x 5.7" x 9.5" |
Product weight | 13.2 lbs. Drive Unit |
User weight | 30 to 331 lbs. |
Driving range* | Up to 12.3 miles |
Motor power | 250 W Brushless DC |
Maximum speed | 5.5 mph |
Operating temperature | -13°F to 122°F |
Chair type compatibility | Rigid, Folding, Tilt-In Space, One-Arm Drive and others Chair widths: 8" (no anti-tips) -22" |
Drive wheel diameter | 22", 24", 25", 26" |
Bluetooth LE | FCC ID: QOQBT113 IC ID: 5123A-BGTBLE113 |
Folding frame attachment distance | 8.25" to 21.0" |
Combined user / wheelchair weight | Maximum 351 lbs |
Omni-wheel diameter | 7.6" |
Omni-wheel width | 2.8" |
Contained battery type | Lithium-Ion (Lithium Iron Phosphate) |
Nominal operating voltage | 36 V |
Electric charge | 3.4 A-h |
Sound level | 60.7 dB |
Motor power | 250 W |
Maximum speed (level surface)^ | Adjustable (4 mph default / 5.5 mph optional) |
Maximum speed (6° incline)^ | Adjustable (4 mph default / 5.5 mph optional) |
*Performance measurements will vary based on user and chair characteristics, driving and battery conditions. The SmartDrive has been tested and conforms to all applicable requirements of ANSI/RESNA Standards for Wheelchairs - Volume 1 and Volume 2 and EN 12184. NOTE: A wheelchair’s specifications provided by its manufacturer may be slightly affected by the addition of the SmartDrive. Please refer to your owner’s manual for more detailed operation and care instructions.
^May be restricted in certain regions
Videos
Documents
SmartDrive PushTracker E3 Setup Guide
SmartDrive SwitchContol Brochure
SmartDrive SpeedContol Dial Instruction Guide
SmartDrive Accessories Brochure
SmartDrive axle clamp Instruction Manual
SmartDrive PushTracker Instruction Manual
SmartDrive MX2+ & PushTracker Manual
Warranty
- Manufacturer offers a 2 year warranty against manufacturing defects.
- Manufacturer’s obligation under this warranty shall be limited to repairing or providing replacement of part(s), which are found to be defective.
- Any part(s) of the system replaced by us at our discretion shall be with a functionally operative part.
- This warranty may be voided if:
- The product is not used according to instructions given in this instruction manual.
- Defects were caused by improper use as determined by the company personnel.
- Modification or alteration of any nature is made in the electrical circuitry or physical construction.
- Defects are due to cause beyond control like lightning, abnormal voltage or while in transit at the purchaser’s place of business.
- Manufacturer is not responsible for any damage to one’s wheelchair caused by the attachment or operation of the SmartDrive.
- Parts under warranty will be covered at no cost. Any labor cost for service under warranty is not covered as per our terms of sale.
- Standard manufacturer Terms & Conditions are applicable for warranty of this product.
Please call us for specific details.
Returns
- This is a special order item and cannot be returned.
- We do not guarantee fulfillment of any desired purpose or product suitability to the user and this will not be considered as a valid reason for return.
- Returns will be accepted only if a wrong product is delivered other than what originally ordered or product received with manufacturing defect.
- It is customer's responsibility to check the product upon delivery and note any such discrepancy at the earliest and report the dealer.
- Standard manufacturer terms & conditions apply for return policy of this product.
Please call us for specific details.
