Smirthwaite Asiento Electric Hi-Lo Posture Support Seating System
Product Information

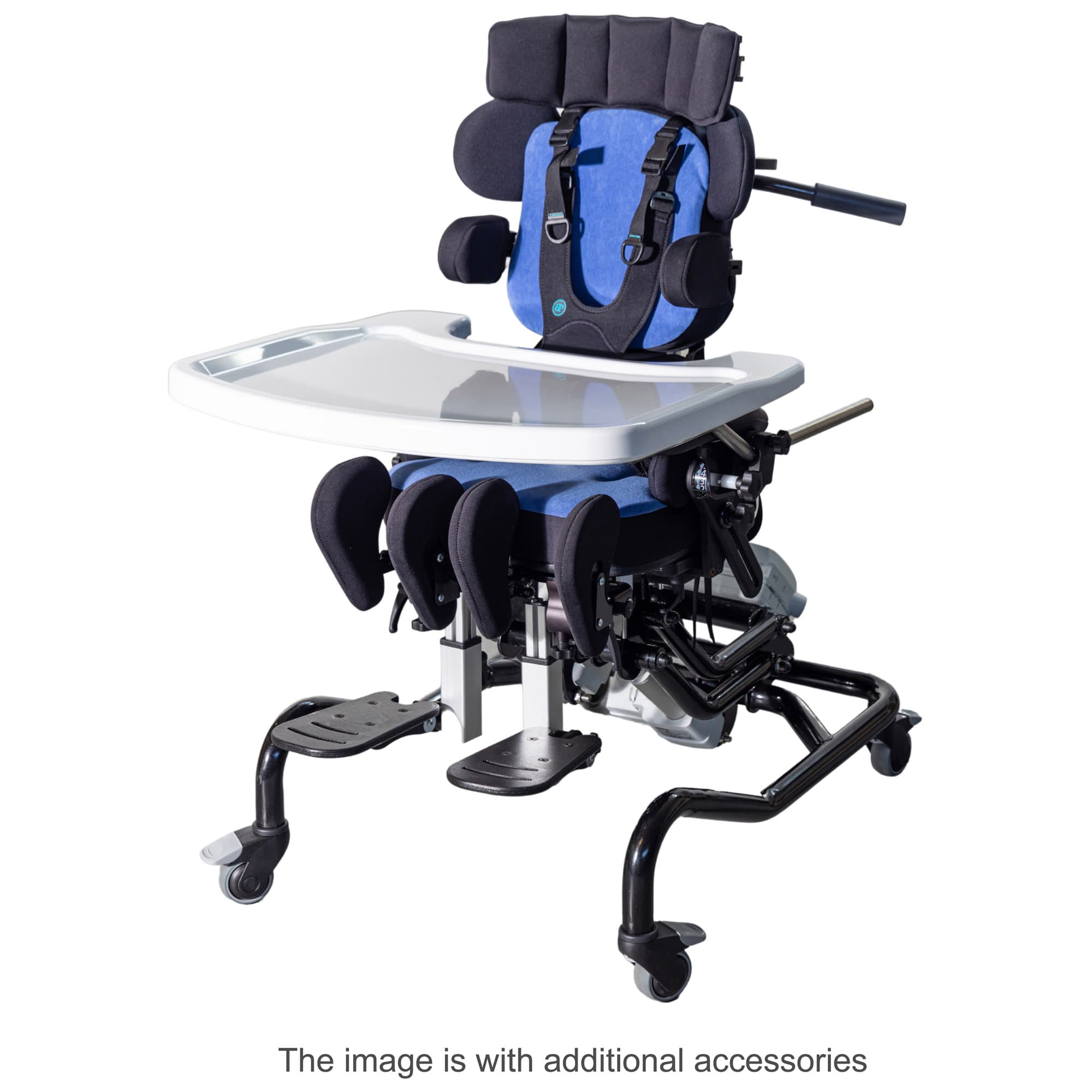

Smirthwaite Asiento Electric Hi-Lo Seating System with Standard Back Images
**The images on the website are for reference only and do not reflect the actual configuration of the product.** Learn more..
Smirthwaite Asiento Electric Hi-Lo Seating System With Standard Back
Product Features and Benefits
.png)
Free Shipping
Quantity
Smirthwaite Asiento Electric Hi-Lo Seating System with Standard Back Purchase Options
Product Features and Policies

Authorized Dealer
Product Features and Policies

Authorized Dealer
Smirthwaite Asiento Chair

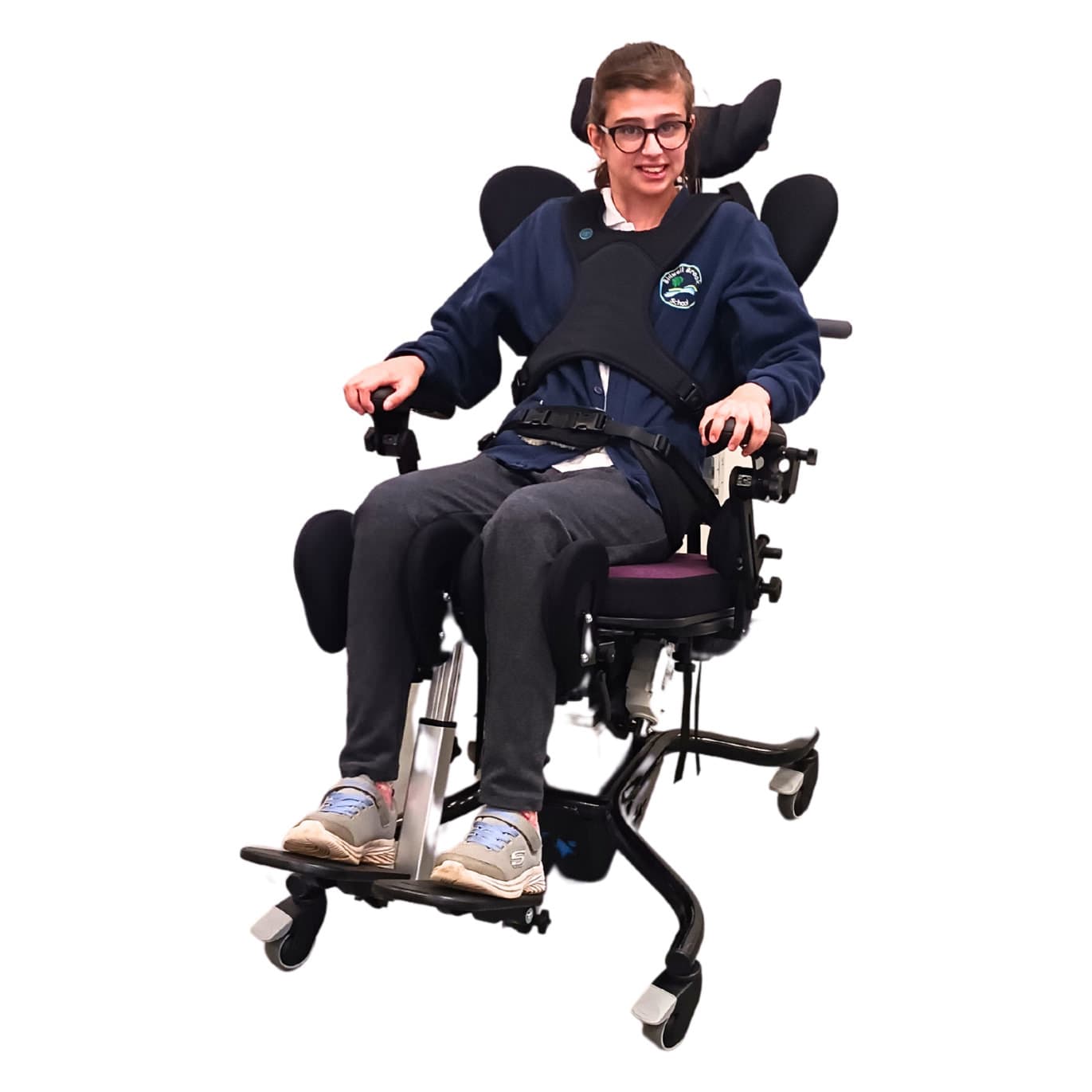

Smirthwaite Asiento Posture Support System is designed specifically for children, teenagers, and young adults with moderate complex needs. Asiento is made to provide postural support and symmetry while also providing numerous benefits to the user and those around them, including:
- Enhanced eye contact and communication
- Improved interaction, breathing and eating
- Greater participation in play and activities

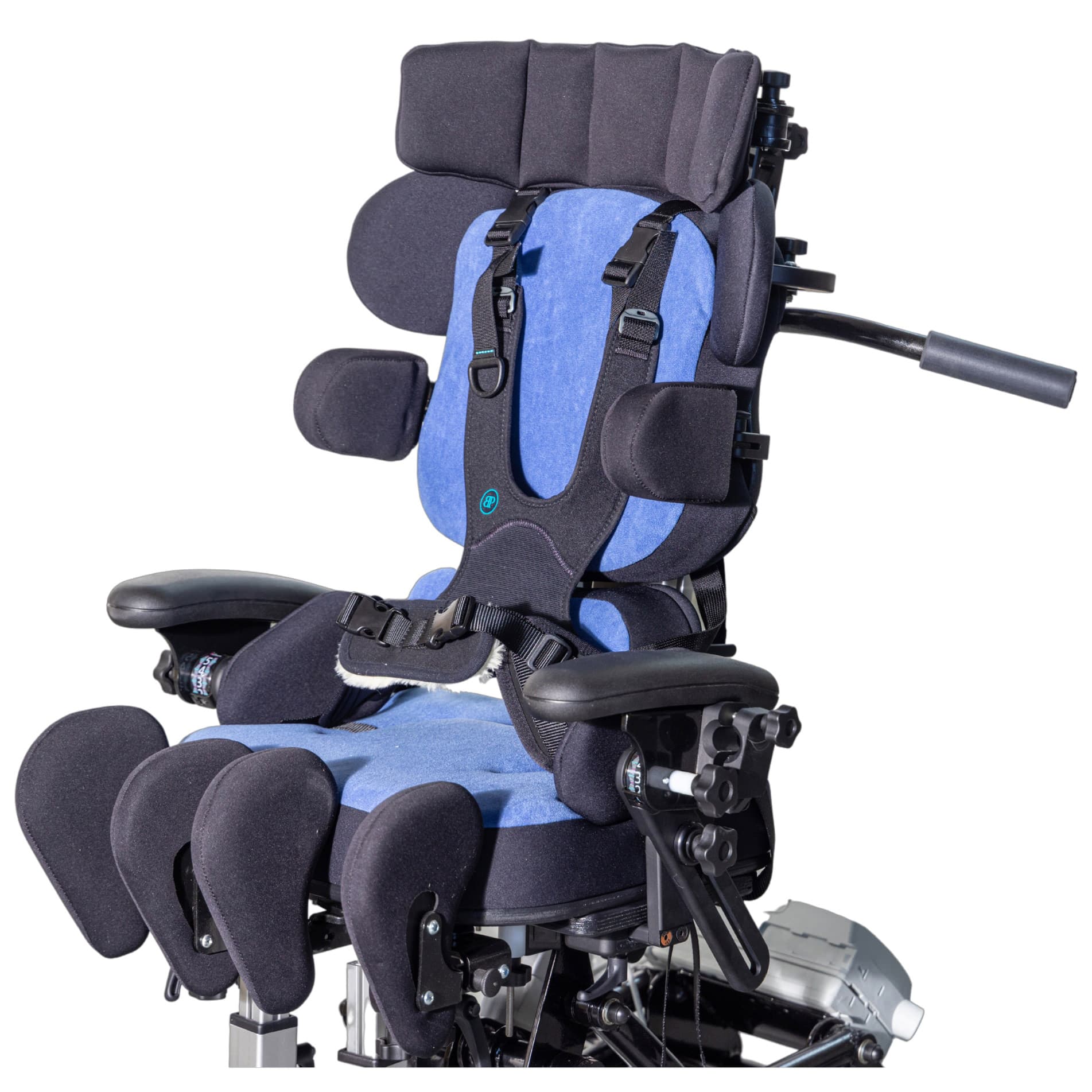

The Product Comes Standard With:
- Standard Back and flat seat (8)
- Four Point lap strap
- Multi adjustable sacral pad (6)
- Flip-up footrest with multi positional footrest plates (11)
The Package Includes:
- Standard back and flat seat (8)
- Four Point lap strap
- Bodypoint Stayflex harness (2)
- Multi adjustable sacral pad (6)
- Flip-up footrest with multi positional footrest plates (11)
- Multi-Adjustable Headrest (1)
- Swing Away laterals (3)
- Adjustable pelvic side supports (7)
- Knee guides (9)

Smirthwaite Asiento Hi Lo Seating System Features
Asiento Postural Support Chair is intended to help users reach their maximum potential while also enhancing their self-esteem and well-being. With high flexibility, the Asiento Chair provides excellent clinical benefits while being functional too. When accessories are attached to the seat's strong central column, makes the chair solid and durable.

Closer Contact - The open design of the chassis and pushbike handles allows caregivers to reach close to the backrest. This is specially useful for upper-limb therapy, crossing the midline, providing care, and relaxing the user after an epileptic fit or when they are anxious.

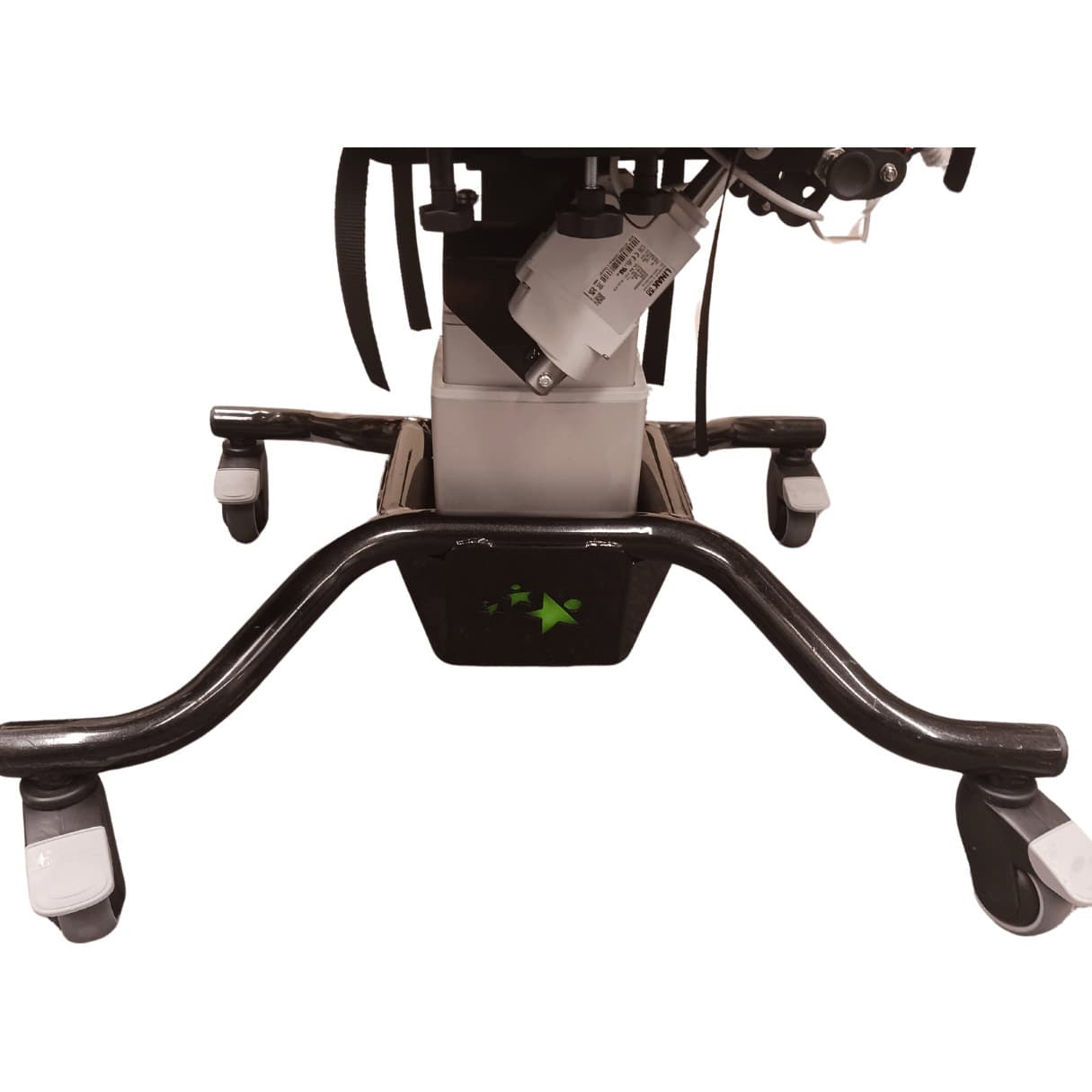

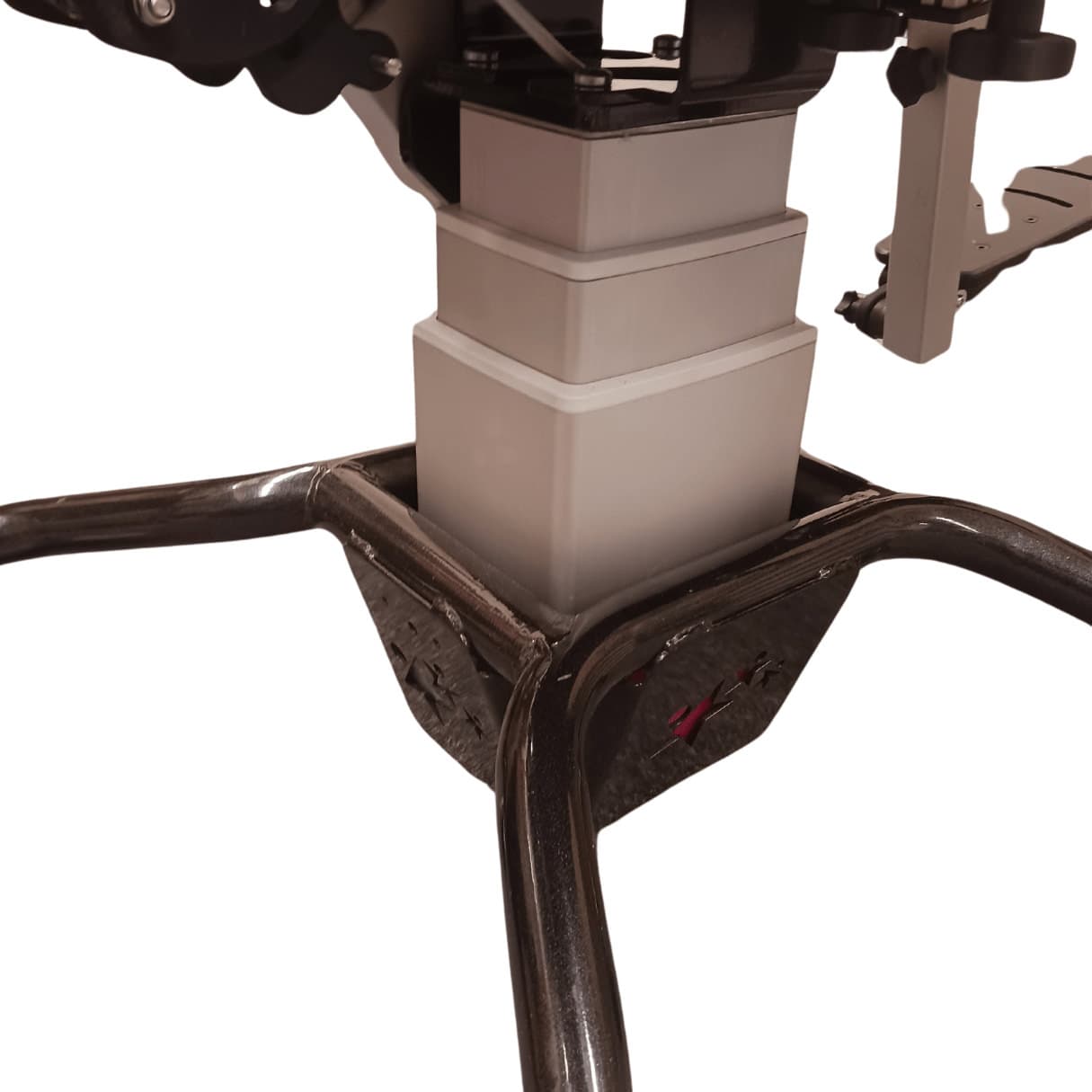

Quiet Electric Hi-Lo Base - The electric hi-lo base allows customers to smoothly raise and lower the chair to the selected height using a user-operated remote control. It is very silent, which is beneficial for those who are sensitive to sound.

Easy to Use Tray (Optional) - The universal tray attaches simply to the armrests. The tray adjusts with the armrests to accommodate different seat widths and depths, ensuring the optimal fit for all sized users.

Dyanmic Back (Optional) - The dynamic back is pressure adjustable, allowing for the desired dynamic movement. This is ideal for people who require both sensory and physical feedback when sitting.
Levitex Foam Fabric
In Smirthwaite Asiento, levitex foam fabric is used that is anti-microbial fabric which made it easy to wipe and maintain. It is a waterproof fabric.
- An innovation in PU foam, combining the comfort of latex with PU foam characteristics.
- Produced using a specially designed high molecular polyol material, the foam cell is fine and smooth, which offers softness to the touch while remaining resistant. The foam can achieve a comfort sag value of 3.0.
- It meets the requirements of Schedule 1, Part 1 of The Furniture and Furnishing Fire Safety Regulations.
Application
- The foam is recommended for use in seating, mattresses, pillows and footwear.
- It has excellent body pressure distribution and keeps soft while offering great support.
Properties:
Appearance | Soft, resistant |
Odor | Low |
Color | Nature white |

NOTE: Asiento is also available in dynamic back, please contact us for a quote.
Specifications
Specifications
Smirthwaite Asiento Chair Specifications
|
Size | 1 | 2 | 3 | |
Age range | 1-6 years | 6-12 years | 12-18 years | |
A. | Back rest height | 13.8 - 17 | 16.5 - 20.1 | 19.3 - 23.2 |
B. | Seat height from floor (min-max) | 11.4 - 22.2 | 11.4 - 22.2 | 19.3 - 22.4 |
C. | Armrest height (min-max from seat) | 4.3 - 12.8 | 4.3 - 12.8 | 4.3 - 12.8 |
D. | Lower leg length (seat to flootplate) | 8.3 - 12.6 | 8.3 - 12.6 | 12.2 - 22 |
E. | Lateral supports travel adjustment | 2 | 2.6 | 2.6 |
F. | Hip guide travel adjustment | 2.8 | 2.8 | 2.8 |
G. | Abduction pad travel adjustment | 1.9 | 1.9 | 1.9 |
H | Adduction pad travel adjustment | 1.9 | 1.9 | 1.9 |
I. | Chest width | 9.8 - 13.8 | 9.8 - 15.4 | 12.2 - 17.3 |
J. | Armrest angle (forwards/backwards) | 90°/90° | 90°/90° | 90°/90° |
K. | Back angle (forwards/backwards) | 10°/32° | 10°/32° | 10°/32° |
L. | Footrest angle | 90° / 20° | 90° / 20° | 90° / 20° |
M. | Footplate angle | 45°/20° | 45°/25° | 45°/25° |
N. | Seat depth (min-max) | 7.4 - 11.8 | 10.2 - 14.2 | 14.4 - 23.6 |
O. | Abduction angle | 23° | 23° | 23° |
P. | Adduction angle | 23° | 23° | 23° |
Q. | Seat width | 11.2 | 16.1 | 18.9 |
R. | Tilt in space (forwards/backwards) | 10°/20° | 10°/20° | 10°/20° |
S. | Tray size | 26 x 17.3 | 26 x 17.3 | 26 x 17.3 |
T. | Seat width between thighs | 9 - 14.6 | 10.2 - 14.6 | 13.1 - 17.5 |
Max user weight | 176 | 176 | 265 | |
Overall Width | 21.65 | 21.65 | 24.21 | |
Overall Width (with Quick Release Tray) | 22.24 | 22.24 | 22.24 | |
Ground Clearance | 4.53 | 4.53 | 4.53 | |
Front and Rear Castors Size | 2.95 | 2.95 | 2.95 | |
Full Product Weight | 122 | 126 | 125 |
Sizing is in inches & weight in lbs
Warranty
Warranty
Manufacturer Warrants the product according to the schedule as under:
- Two (2) Years warranty on the product against manufacturer's defects.
- In this time, any repairs (except those relating to misuse) are provided to you free of charge.
- Parts under warranty will be covered at no cost.
- Any labor cost for service under warranty is not covered as per our terms of sale.
- Standard manufacturer Terms & Conditions are applicable for Warranty of this product.
Please Call us for Specific Details.
Return
Return
- All returns are subject to a 20% restocking fee
- All returns must have an RGA number (Returned Goods Authorization Number) unauthorized returns will not be accepted
- The products must be in new, unused condition, not tampered with, in original packaging and returned at the customer's expense in the original packaging
- If your return is not due to any manufacturing defect then the original shipping cost and credit card/paypal processing fee will be deducted from the total refund
- No returns accepted for Hygiene & Bath products due to health concerns
- Custom orders are non-refundable and non-returnable
- Standard Manufacturer Terms & Conditions Apply for Return Policy of this Product
Please call us for specific details
FAQs
FAQs
Q. What age group is the Asiento Seating System designed for?
A. The Asiento supports children, teens, and young adults ages 1 to 18. It's
available in three sizes to accommodate growth and changing support needs.
Q. Why is Asiento a good choice for complex postural needs?
A. It offers advanced support features like a sacral pad, pelvic side
supports, swing-away laterals, and a headrest—ideal for users needing moderate
to complex positioning.
Q. Does the Asiento chair help with activities like eating, playing, or
learning?
A. Yes. The chair promotes eye contact, better breathing, and upper-body
stability—making eating, communication, and classroom tasks easier and more
comfortable.
Q. How does the electric hi-lo base work?
A. The Asiento's electric hi-lo base quietly up or down quietly via remote
control, helping caregivers reposition the user smoothly—great for children
sensitive to noise or sudden movement.
Q. Can caregivers easily access the user while they're seated in the Asiento?
A. Yes. The open frame and handlebars allow close contact from behind,
supporting therapy, comfort, or midline tasks like feeding and stretching.
Q. Is the seating system easy to clean and maintain?
A. Absolutely. It features waterproof, antimicrobial fabric over Levitex
foam for easy wipe-downs—perfect for clinical and home settings.
Q. What is Levitex foam, and why is it used in this chair?
A. Levitex combines softness and support for pressure relief and skin
protection. It's durable, resists sagging, and promotes long-term postural
comfort.
Q. Can the Asiento chair be adjusted as my child grows?
A. Yes. It includes multiple adjustments: seat depth, back height, back
angle, and chest width.
Q. Is the tray included, and what makes it user-friendly?
A. No. The tray is an optional accessory and must be selected separately. It
mounts to the armrests and automatically adjusts in width and depth to fit
changing seat dimensions.
Q. What is the benefit of the dynamic backrest?
A. The optional dynamic back allows gentle movement, giving sensory feedback
and flexibility, great for users with spasticity or sensory needs. it's
available upon request, please contact our customer service team at csteam@medicaleshop.com
or call us at (866) 563-6812. We'll be happy to assist you with a quote.
Q. What's included with the standard Asiento Chair?
A.
- Flat seat and standard backrest
- Four-point lap strap
- Multi-adjustable sacral pad
- Flip-up footrest with adjustable footplates
Q. What's in the full Asiento package?
A. The package include all items included in standard Asiento plus:
- Stayflex upper body harness
- Adjustable headrest
- Swing-away lateral supports
- Adjustable pelvic side supports
- Knee guides for leg alignment
The full package offers enhanced support for users needing more complex postural management.
Additional Information
- Client measurements recommended to be submitted along with your order
- Please call us for product customization as per your requirements
