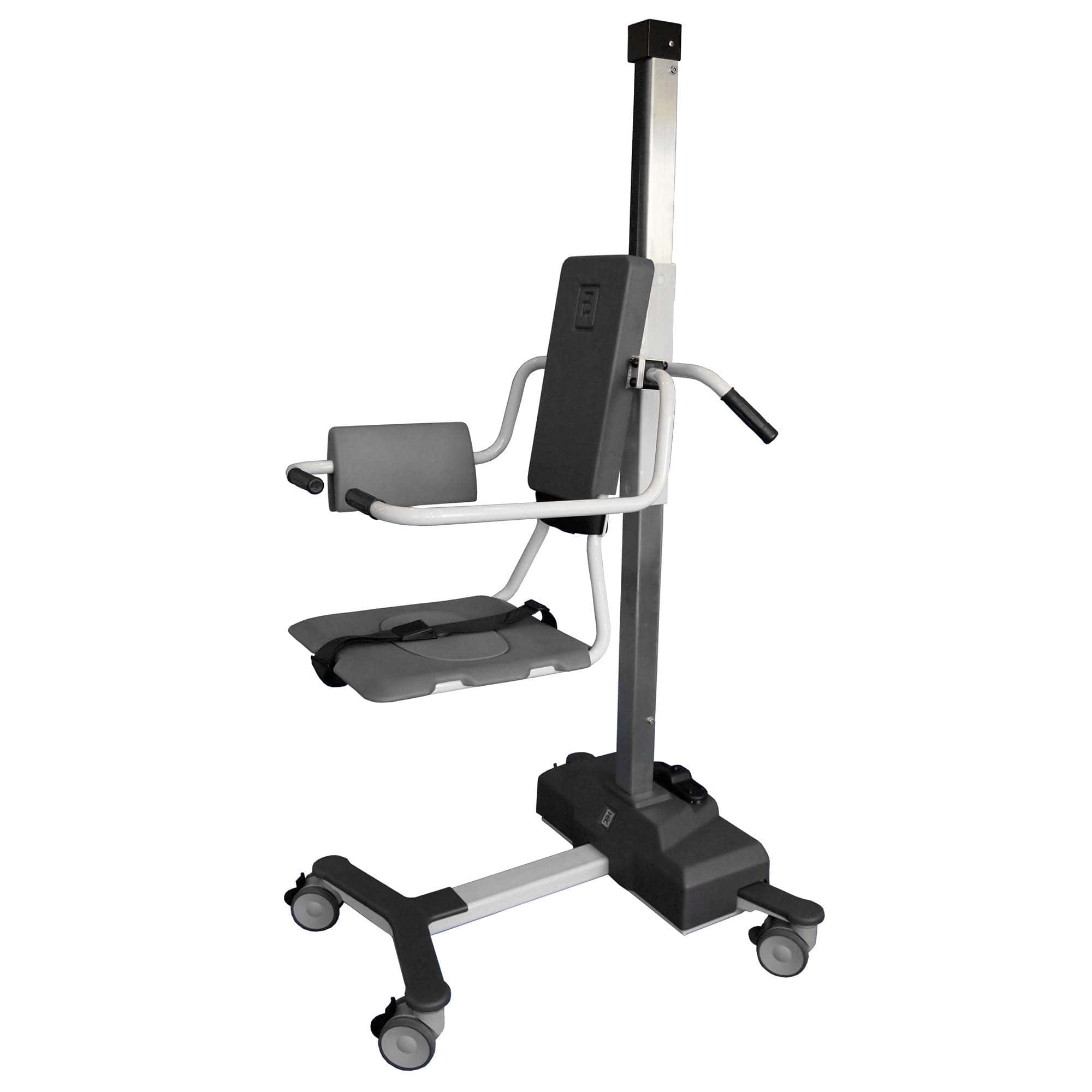

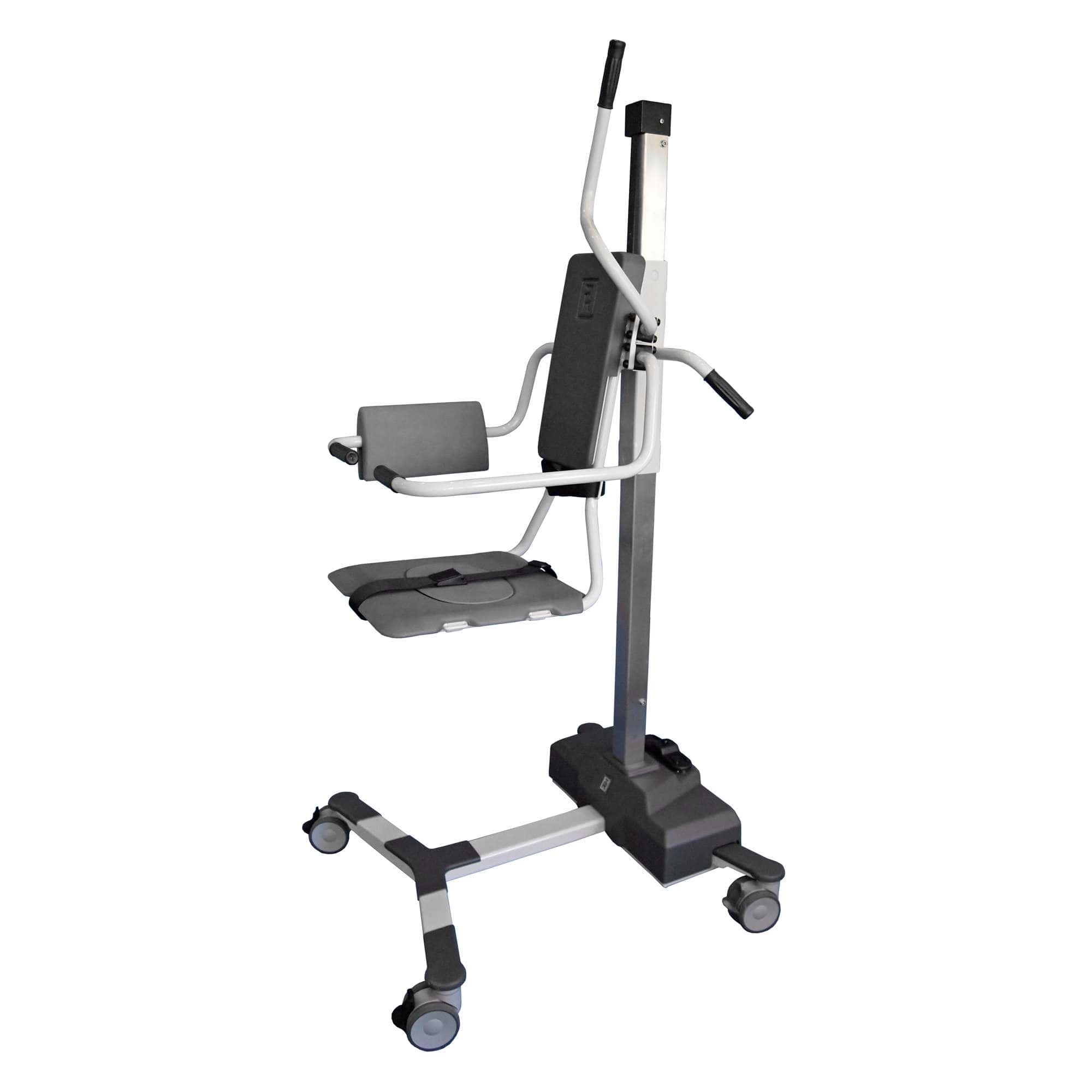

TR 9650 Mobile Bath Lift By TR Equipment
Features

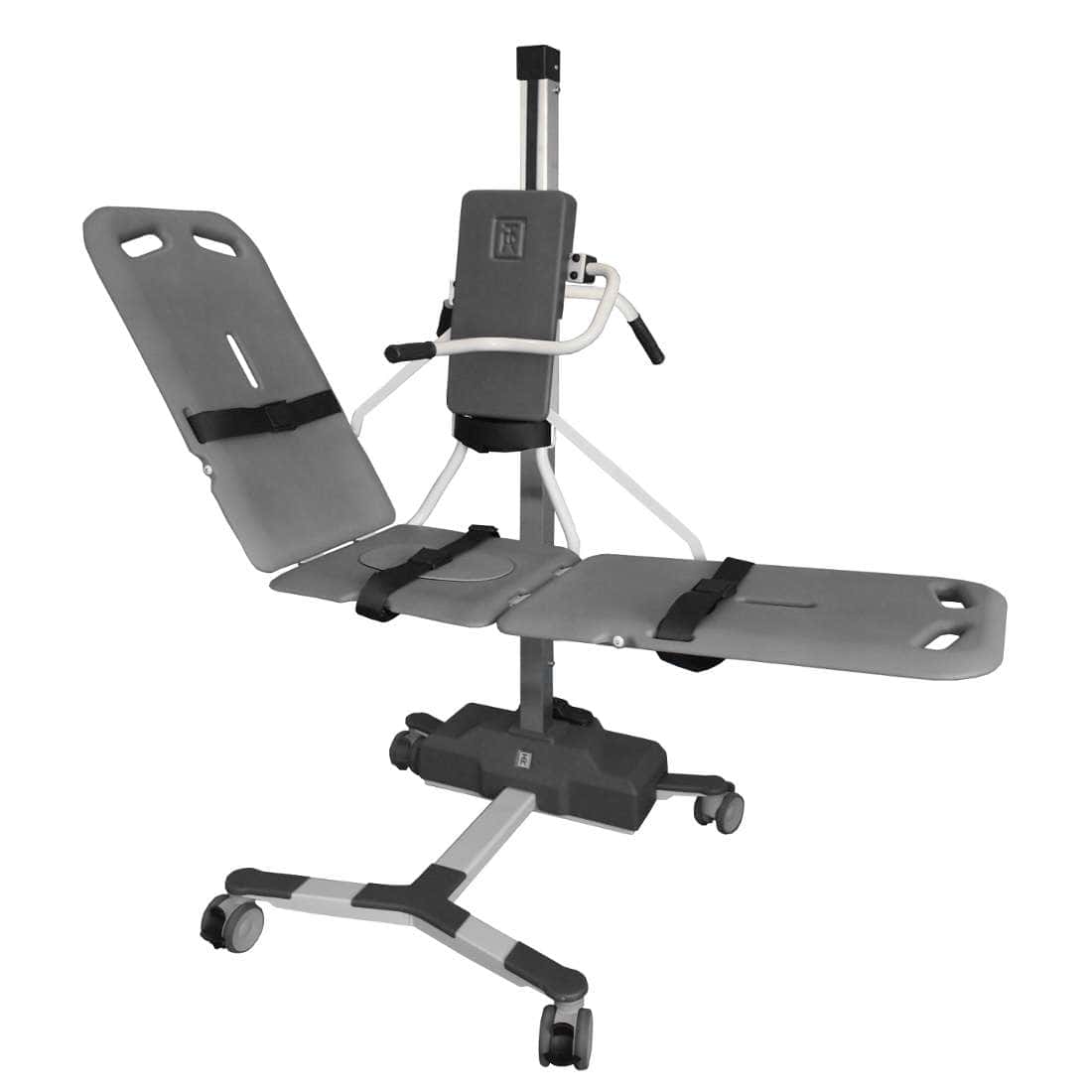

TR9650 Battery Operated Mobile Lift is a provide convenient height adjustment, offering a range of benefits for transfers, transportation, and bathing tasks. These lifts are designed for use in acute and long-term care settings, ensuring the comfort and safety of both patients and caregivers. The removable side parts allow for versatile configurations, transitioning effortlessly from a chair to a stretcher with adjustable angles (27°, 40°, or 54°).
The TR9650 Mobile Lifts feature foot-operated and height-adjustable mechanisms, enabling efficient and convenient working heights. The foldable safety arm supports in both chair and stretcher configurations provide easy access and positioning of the resident, while the user-friendly leg configuration allows for effortless approach onto the lift. They come with automatic safety stops that engage when lowered onto surfaces or obstacles. An integral autostop mechanism ensures that the seat and stretcher cannot drop in the event of a belt failure. It have an audible low battery tone which acts as a reminder for recharging.
The package come complete with battery chargers and safety belts. Their compatibility with a wide range of supine bath tubs and therapy, along with optional spacers for customization.
Features
Convertible Commode Chair:
Commode seat on chair can be converted to smooth seat with lid placement.
Easy-Clean Surfaces:
Equipped with padded seating and stretcher surfaces that are water absorbent and easy to clean
Safe Transfers:
Narrow chassis design, large castors with locking and straight steering enhance maneuverability.
Adjustable Backrest:
Comfortable back rest that can easily be moved to either arms for back support.
Easy Chair Conversion:

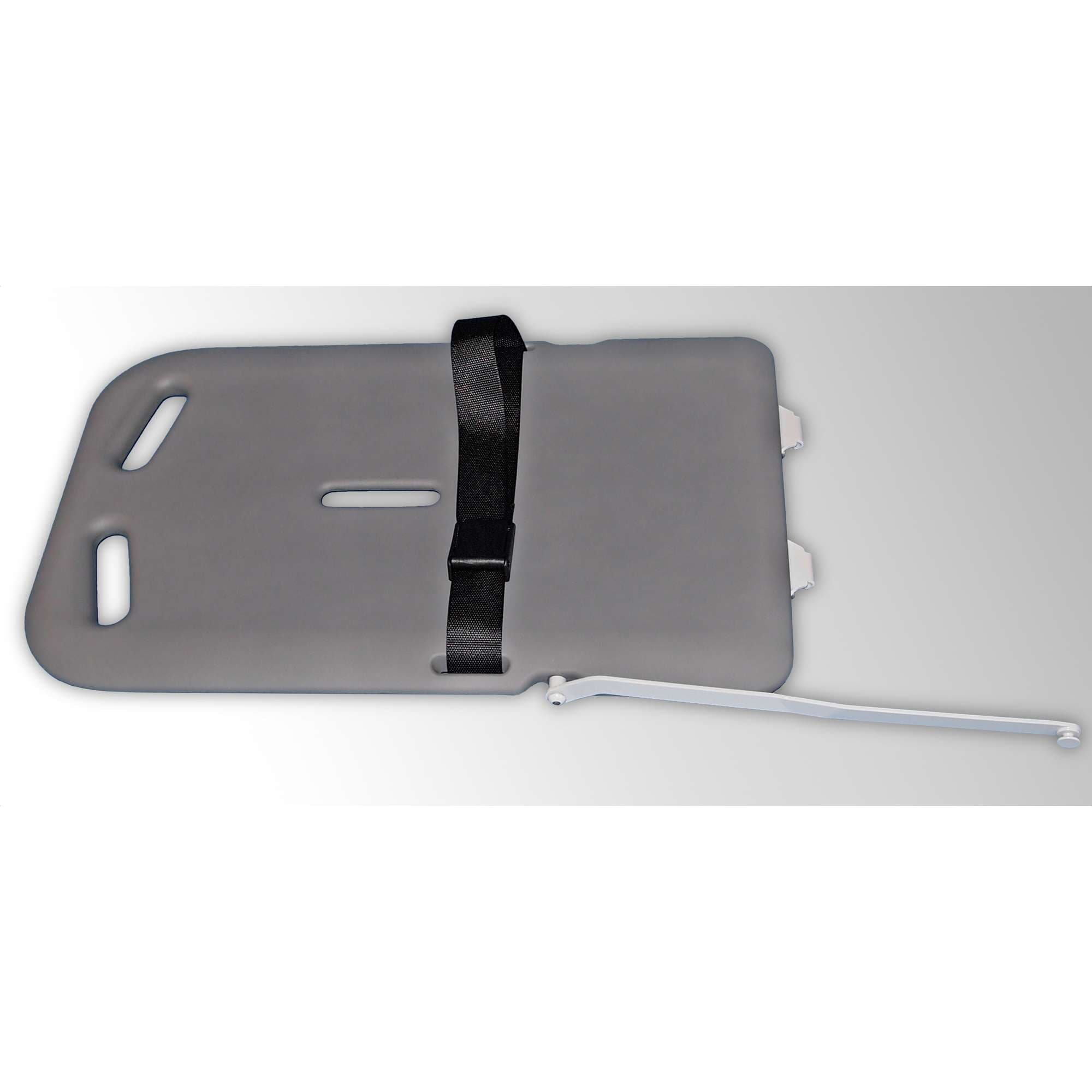

Attachable stretcher side parts for easy conversion from stretcher to chair. No tools required.
Safety Features:
Foot operated emergency stop button and magnetic battery charger connection for safety and ease of use.
Sizing
TR 9650 Mobile Bath Lifts
| Specifications | Mobile Chair Lift | Mobile Stretcher Lift | Mobile Combi Lift |
| Product Length | 31.5" | 31.5" | 31.5" |
| Product Width | 34 .5" | 76.4" | 34.5" |
| Product Height | 68" | 68" | 68" |
| Operating Height Range | 8" - 38" | 8" - 38" | 8" - 38" |
| Working Load Limit | 330 Lbs | 330 Lbs | 330 Lbs |
| Castors | Twin 4” castors | Twin 4” castors | Twin 4” castors |
| Control | Foot control for height adjustment | Foot control for height adjustment | Foot control for height adjustment |
| Stretcher, Pillow | Flame retardant material | Flame retardant material | Flame retardant material |
| Battery | Rechargeable, 2 x 24 V / 7 Ah | Rechargeable, 2 x 24 V / 7 Ah | Rechargeable, 2 x 24 V / 7 Ah |
Videos
Documents
Warranty
Manufacturer warrants its products to be free from defects in materials and workmanship under normal use & service to the original purchaser for the following period:
- 3-Years: Metal frame/structure
- 2-Years: Seat pads
- 1-Year: Mattress/Pillows, Electronics/PCB, Actuators/motors, Pumps, Hoses/mixing valves
- 120 Days: Batteries, Hand controls, Battery chargers, fuses
- 90 Days: Castors, Plastic covers, Safety belts
- This warranty applies only to the original purchaser/user of the product and is non-transferable.
- Parts replaced under the initial Equipment warranty period will be warranted for the remainder of the original equipment warranty period.
- This limited warranty becomes void if equipment has been damaged or rendered defective as a result of:
- Acts of God, accident, misuse, vandalism, neglect or default of the Buyer or a third party.
- Transit, power surge or operating environment.
- Modification of the equipment without the written permission of the manufacturer.
- Service by anyone other than manufacturer's authorized agent.
- Use of parts not manufactured or sold by the manufacturer.
- Failure to operate in accordance with manufacturer’s guidelines or any other improper operation or maintenance or by improper storage of the Equipment.
- Failure to provide regular maintenance, service or inspections.
- Any other cause not directly and primarily caused by defective material, workmanship or design.
- Any damage to any equipment caused by the use of improper cleaning liquids.
- Nicks, dents, scrapes, scratches, or other cosmetic defects, however caused.
- All replacement parts, (except consumable parts) purchased after the initial warranty period will be warranted for 6 months from the date of invoice.
- The manufacturer will not be responsible for any expenses, inconvenience or incidental or consequential damages occasioned by the use, loss of use, or misuse of the products, or by the failure of the products to conform to the warranty set forth above.
- Parts under warranty will be covered at no cost.
- Any labor cost for service under warranty is not covered as per our terms of sale.
- Standard manufacturer Terms & Conditions are applicable for Warranty of this product.
Please Call us for Specific Details.
Returns
- Unfortunately hygiene items cannot be returned once opened, due to health concerns.
- Standard manufacturer terms & conditions are applicable for return policy of this product.
Please call us for specific details
