Ultima 5 Digital Dual Channel TENS Unit | Paint Management

Digital Ultima Five Nerve Stimulator TENS Unit is a dual-channel, five-mode device with two wave form adjustments and a large LCD screen. This gadget stands out for its functionality and blend of traditional and modern digital design. The Ultima Five is a premium option at a fair cost. It is a safe, drug-free way to help control pain for people who find it difficult to take pain medication.

Features

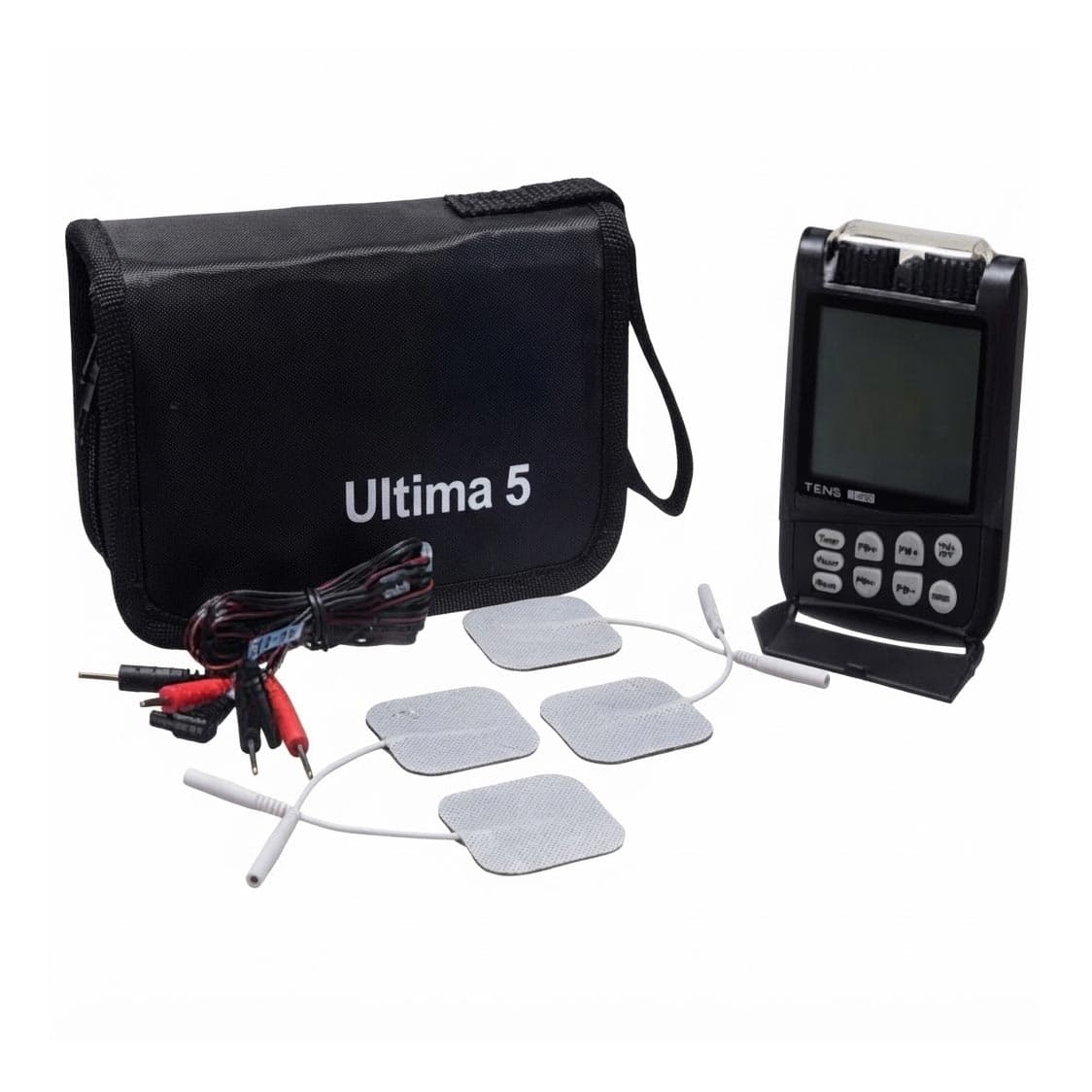

• Digital Ultima Five Nerve Stimulator TENS Unit Includes:
  - a device, 2 AA batteries, lead wires, 1 pack of 4 electrodes (each disposable electrode lasts 10-15 treatments), carrying case and users manual
  - Dual Channels
  - Isolated between channel Output Maximum 130 mA (peak value) across 500 Ohm load Pulse
  - Adjustable width from 50 µS to 250 µS
  - Adjustable Pulse Rate from 2 Hz to 150 Hz
  - Wave Form- Symmetrical bi-phasic rectangular Monophasic rectangular
  - Display of 52.5 mm X 35.8 mm LCD
• Can help lessen acute (short-term) pain, like after surgery or an accident
• Chronic pain (long-term), like arthritis, back or muscle pain, or cancer pain may also be lessened
• Patented pain-relief technology for treating sore muscles and joints
• Relieves recent bruising and muscle pain where injury is relatively superficial such as sports related muscle strains
• 5 functioning Modes and treatment timer:
  - Mode A- Constant
  - Mode B- Burst I
  - Mode C- Burst II
  - Mode D- Pulse width modulation
  - Mode E- Pulse rate and Pulse width Modulation
  - Selectable Treatment Timer- Continuous, 15min, 30min, 45min, 60min
• Functioning way of device:
  - When mode changes, the intensity will automatically go down to zero
  - When the unit is turned on, it will automatically enter the mode that the unit had worked in before the unit was turned off
  - When the pulse rate, pulse width or intensity is being adjusted, the auto-repeat function is available, when the key is held down over 1 second, it will automatically increased/decreased 1 step per 1/4 second
  - When the batteries are low, the symbol of battery is flashing in 2 Hz indicating that the batteries should be replaced
  - Automatic shut off- When the unit intensity levels are 0 on both channels, and it has not been in use for 5 minutes, the unit will be shut off automatically
• Relieves from following types of pains:
  - Rheumatoid and Osteo-arthritis- Back pain, Menstrual Pain, Labor Pain, Peripheral Nerve Injuries, Shingles, Migraine, Cancer Pain, Trigeminal Neuralgia, Phantom Limb Pain, Sports Injuries, Sciatica, Aching Joints, Post Operative Pain, Muscular Pain
  - Systemic Pain- Bursitis, Causalgia, Multiple Sclerosis, Raynaud;s Syndrome, Synovitis, Diabetic Peripheral Neuropathy
  - Neck Pain- Cluster s, Dental Disorders, Migraine, Spondylosis, Sprains/Strains Suboccipital TMJ Syndrome, Torticollis
  - Abdominal Pain- Diverticulosis, Dysmenorrhea Labor, Postoperative Pain
  - Back Pain- Facet Syndrome, Intercoastal Neuralgia, IVD Syndrome, Lumbago,Lumbosacral Pain Radiculitis, Sprains/Strains, Thoracodynia, Whole Back Pain
  - Lower Extremity Pain- Ankle Pain, Foot Pain, Fractures, Ischialgia, Knee Pain Passive Stretch Pain, Sciatica, Sprains/Strains, Tendonitis, Thrombophlebitis
  - Upper Extremity Pain- Epicondylitis, Frozen Shoulder, Hand Pain, Peripheral Nerve Injury Sprains/Strains, Subdeltoid Bursitis, Wrist Pain
  - Swelling, Stiffness, Muscle pain, Muscle spasms, Poor blood circulation, Strained Back, Lower back pain, and Back sprain

Digital Ultima Five Nerve Stimulator TENS Unit Precautions

• Pregnant women and patients who have heart disease or epilepsy should seek medical advice before using the device
• NEVER use TENS and any other method of pain relief to mask undiagnosed pain as this could require urgent treatment
• Must not be used by patients using a demand-type pacemaker
• Electrodes should NOT be placed at the front or side of the neck
• Units should NOT be used when driving or operating machinery
