Ultima bath transfer chair with compact transfer base

$3,140.92 $4,995.00
Special Price Available, Click Here to request a Quote*
(* Manufacturer/Brand Pricing restrictions may apply)

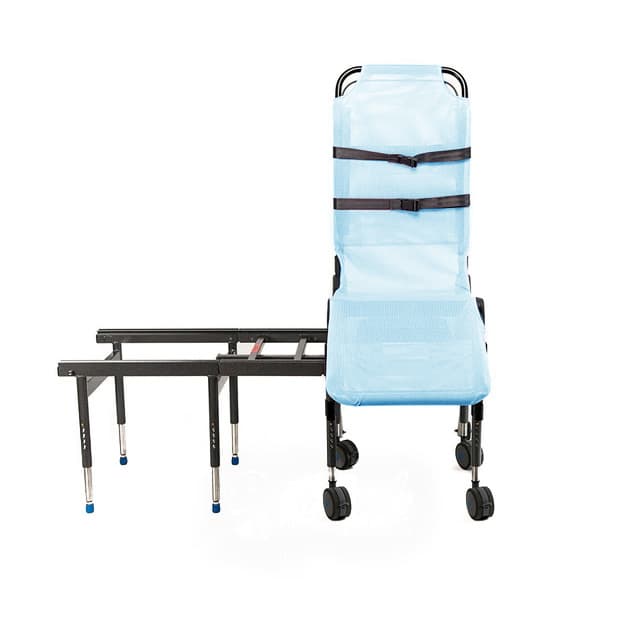

Ultima bath transfer chair with compact transfer base is designed to significantly reduce the effort required by the parent or caregiver to transfer a child or adult into a tub for bathing. Ultima transfer system has three components: a mesh seating system for comfort, a rolling base that is used for the initial portion of the transfer and a tub base that when connected to the rolling base engages the shuttle function for transfer. The Compact Tub base, places all four legs inside the tub, but does not have a folding feature. The Ultima transfer system is available in S/M size only and comes standard with a mesh seat, a tub base, a rolling base, two positioning belts and anti-tippers.

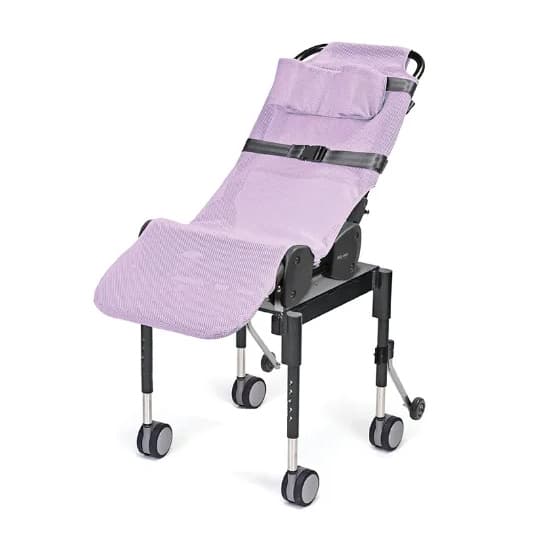

The Ultima bath transfer seating system combines a mesh seating area with a aluminum frame, and multiple adjustment angles which team to create a comfortable environment for the user along with the necessary functionality and durability the parent or caregiver desires.

Tub base is constructed with high-grade aluminum which provides exceptional strength and durability. The Slider safe auto-stop safety system ensures that the chair will not come off the base.

Ease of use:

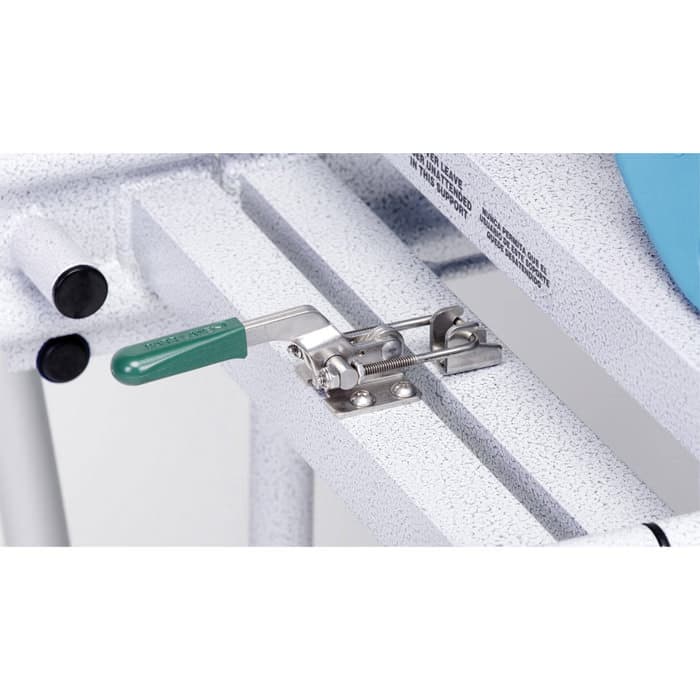

Connecting the rolling base to the tub base is simple and easy. All it requires it to line up the interlocking tubes and to secure a latch. No tools are required.

Optional accessoriesFeatures
  • Head support: Custom designed and made of foam, provides additional positioning support for the head.
  • Lateral support: Foam cushion that is added to the chair’s base, provides enhanced torso positioning.
  • Pelvic positioning belts: Available in two options a standard version and an upgraded rapid dry version which offers two sizes (4" and 5"), both belts aid with improving posture and safety.
  • Detachable armrests: Easy to attach and remove, the armrests provide four different height adjustments and enhanced comfort/stability.
  • Seat angle bracket: Provides three options for seat height adjustment (2½”, 3" or 3½”) which also enhances pelvic stability and postural support.
  • Padded abductor: Attaches easily to the chair’s base, to improve hip alignment and stabilize seating posture.
  • Fixed bridge: For use with the Compact base option only.
  • Footrest: Available in two options: with 22° footplates or 90° footplates. Both are easily removable and flip-out of the way.
  • Standard removable 13" bridge
  • Locking system for added safety
  • Optional fixed bridge in 9" or 11" lengths
  • Compact, 18" x 18", tub base transfer frame that fits inside bathtub
  • Optional adjustable bridges from 13½" to 17¾" or 17½" to 21¾" lengths
Ultima bath transfer chair with compact transfer base
Weight capacity160 lbs.
Back angle adjustable0˚, 30˚, 60˚, 90˚
Calf angle adjustable0˚, -30˚, -60˚
Seat depth13"
Inside seat width15"
Back height27"
Calf length13"
Seat angle (with Model #5126)Up to 10˚
Seat height range23.5", 24.25", 25", 25.75", 26.5"
Rolling base dimension20"W x 17"D
Rolling base - Inside width17"
Rolling base - Height clearance15.5", 16.25", 17", 17.75", 18.5"
Tub base width at top20"
Tub base footprint width18"
Tub base footprint depth17"
Tub base clearance height range14", 14.75", 15.5", 16.25", 17"
Overall length (Transfer system)53"
