Ultima bath transfer chair with foldable transfer base

$3,233.74 $4,995.00
Special Price Available, Click Here to request a Quote*
(* Manufacturer/Brand Pricing restrictions may apply)
Buy now and get extra 5% discount

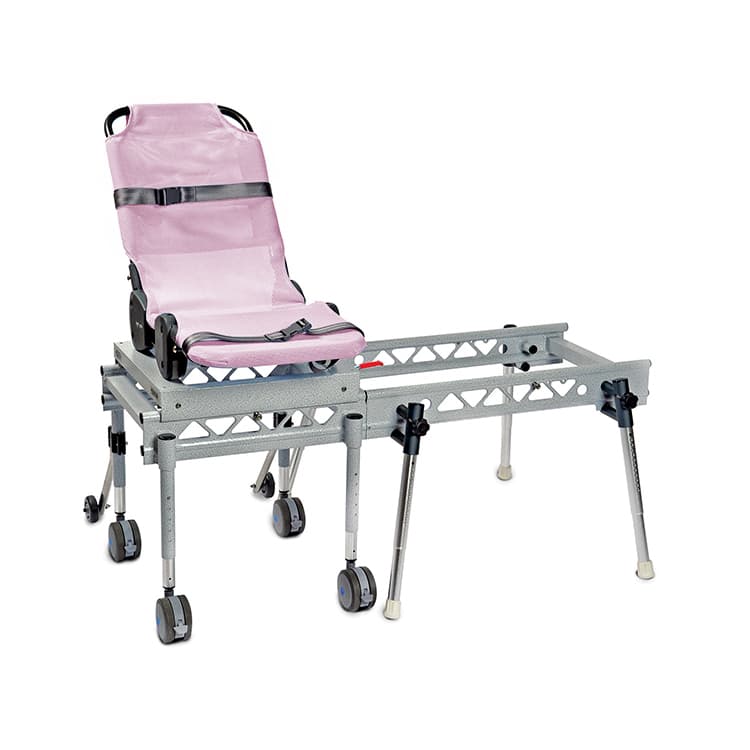

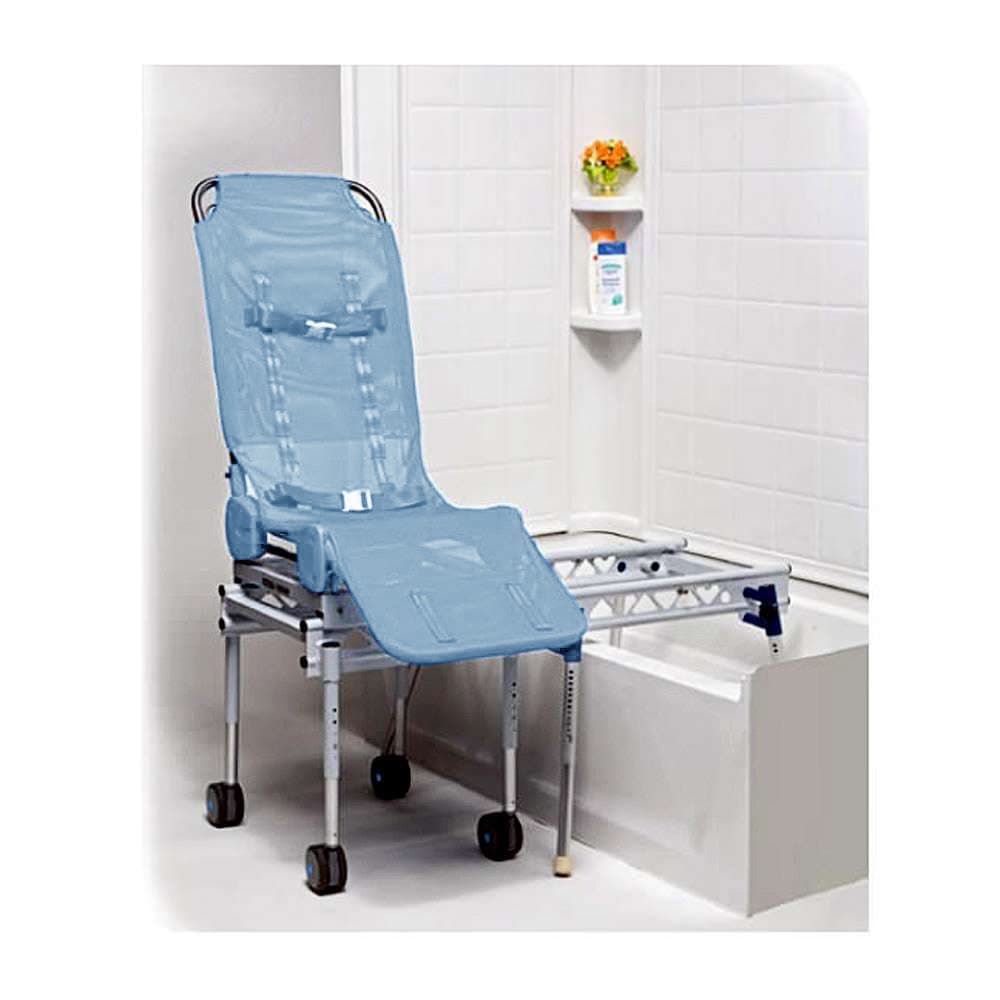

Ultima bath transfer chair with foldable transfer base is designed to significantly reduce the effort required by the parent or caregiver to transfer a child or adult into a tub for bathing. Ultima transfer system has three components: a mesh seating system for comfort, a rolling base that is used for the initial portion of the transfer and a tub base (2 options) that when connected to the rolling base engages the shuttle function for transfer. The Folding Tub base features two legs in the tub and two outside of the tub and folds for storage purposes. The Ultima transfer system is available in two sizes S/M or L/XL and comes standard with a mesh seat, a tub base, a rolling base, two positioning belts and anti-tippers.

The Ultima bath transfer seating system combines a mesh seating area with a aluminum frame, and multiple adjustment angles which team to create a comfortable environment for the user along with the necessary functionality and durability the parent or caregiver desires.

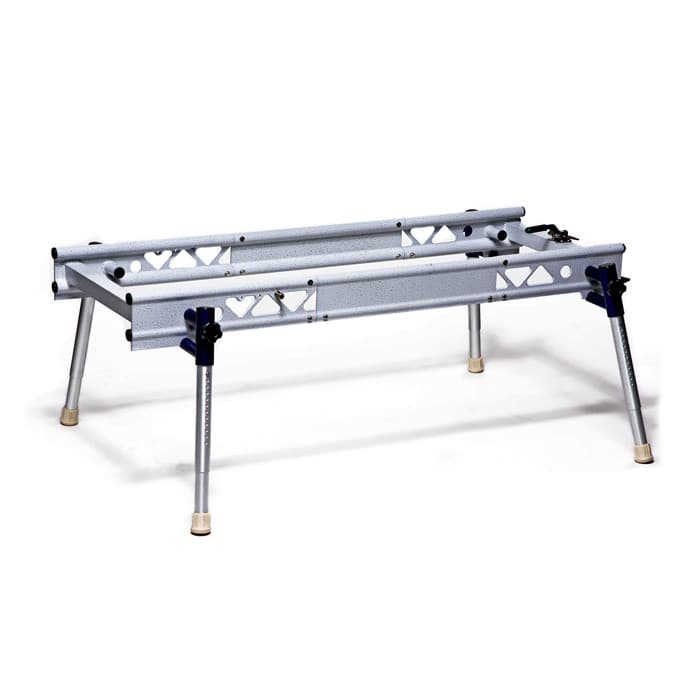

Foldable Tub base is constructed with high-grade aluminum which provides exceptional strength and durability. The Slider safe auto-stop safety system ensures that the chair will not come off the base.

Ease of use:

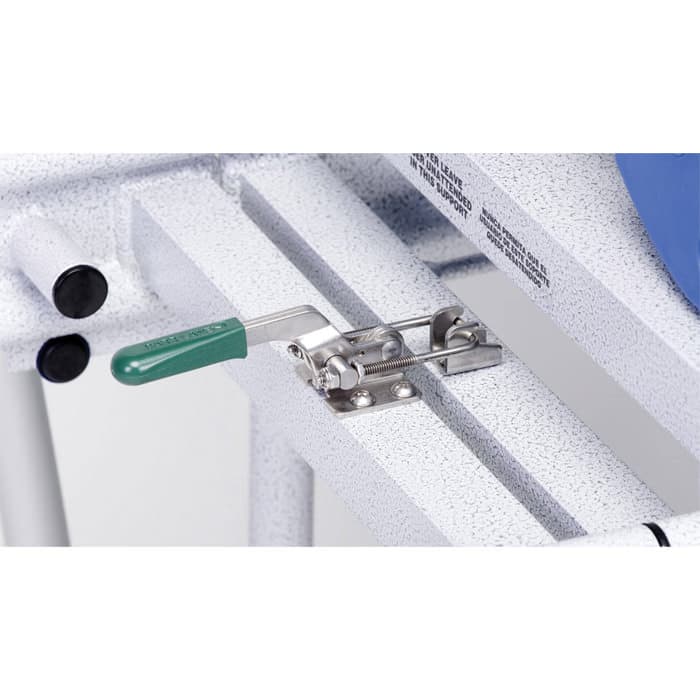

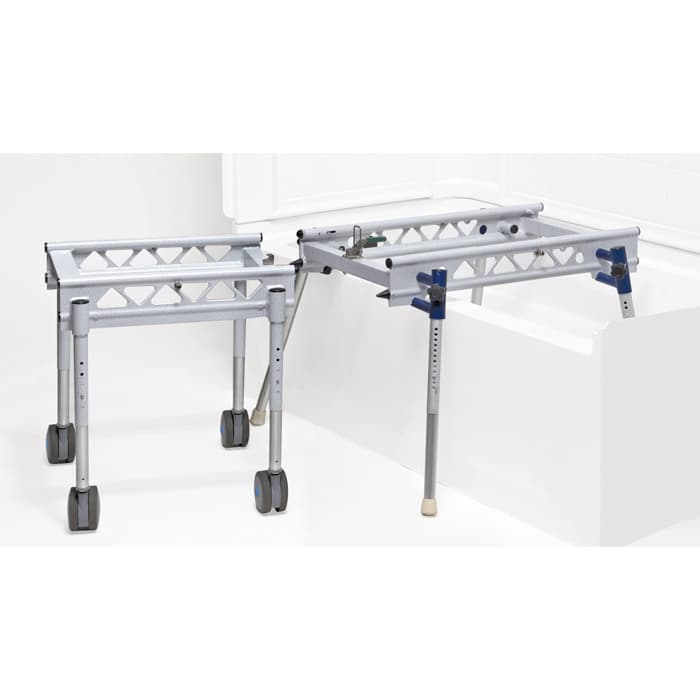

Connecting the rolling base to the tub base is simple and easy. All it requires it to line up the interlocking tubes and to secure a latch. No tools are required.

Optional accessoriesFeatures
  • Head support: Custom designed and made of foam, provides additional positioning support for the head.
  • Lateral support: Foam cushion that is added to the chair’s base, provides enhanced torso positioning.
  • Pelvic positioning belts: Available in two options a standard version and an upgraded rapid dry version which offers two sizes (4? and 5?), both belts aid with improving posture and safety.
  • Detachable armrests: Easy to attach and remove, the armrests provide four different height adjustments and enhanced comfort/stability.
  • Seat angle bracket: Provides three options for seat height adjustment (2½”, 3? or 3½”) which also enhances pelvic stability and postural support.
  • Padded abductor: Attaches easily to the chair’s base, to improve hip alignment and stabilize seating posture.
  • Footplate: Available in two options: with 22° footplates or 90° footplates. Both are easily removable and flip-out of the way.
  • Chair locks into position once transfer is complete

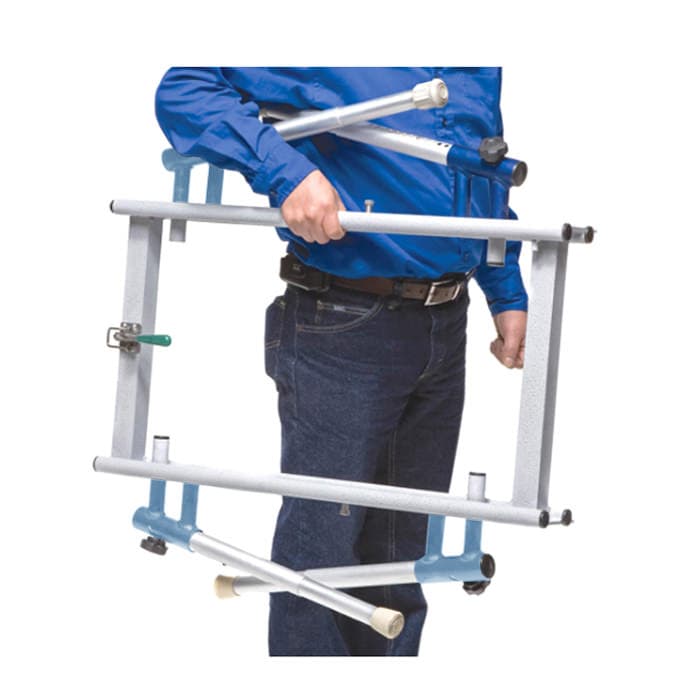

  • Foldable tub base transfer frame makes storage easy
  • SLIDER SAFE Auto-Stop Safety System keeps chair from coming off base
  • Multi-functional transfer system for use in home or facility without any bathroom modifications
Ultima bath transfer chair with foldable transfer base
Weight capacity180 lbs.
Back angle adjustable0˚, 30˚, 60˚, 90˚
Calf angle adjustable0˚, -30˚, -60˚
Seat depth15"
Inside seat width17"
Back height31"
Calf length15"
Seat angle (with Model #5126)Up to 10˚
Seat height range23.5", 24.25", 25", 25.75", 26.5"
Rolling base dimension20"W x 17"D
Rolling base - Inside width17"
Rolling base - Height clearance15.5", 16.25", 17", 17.75", 18.5"
Tub base width at top20"
