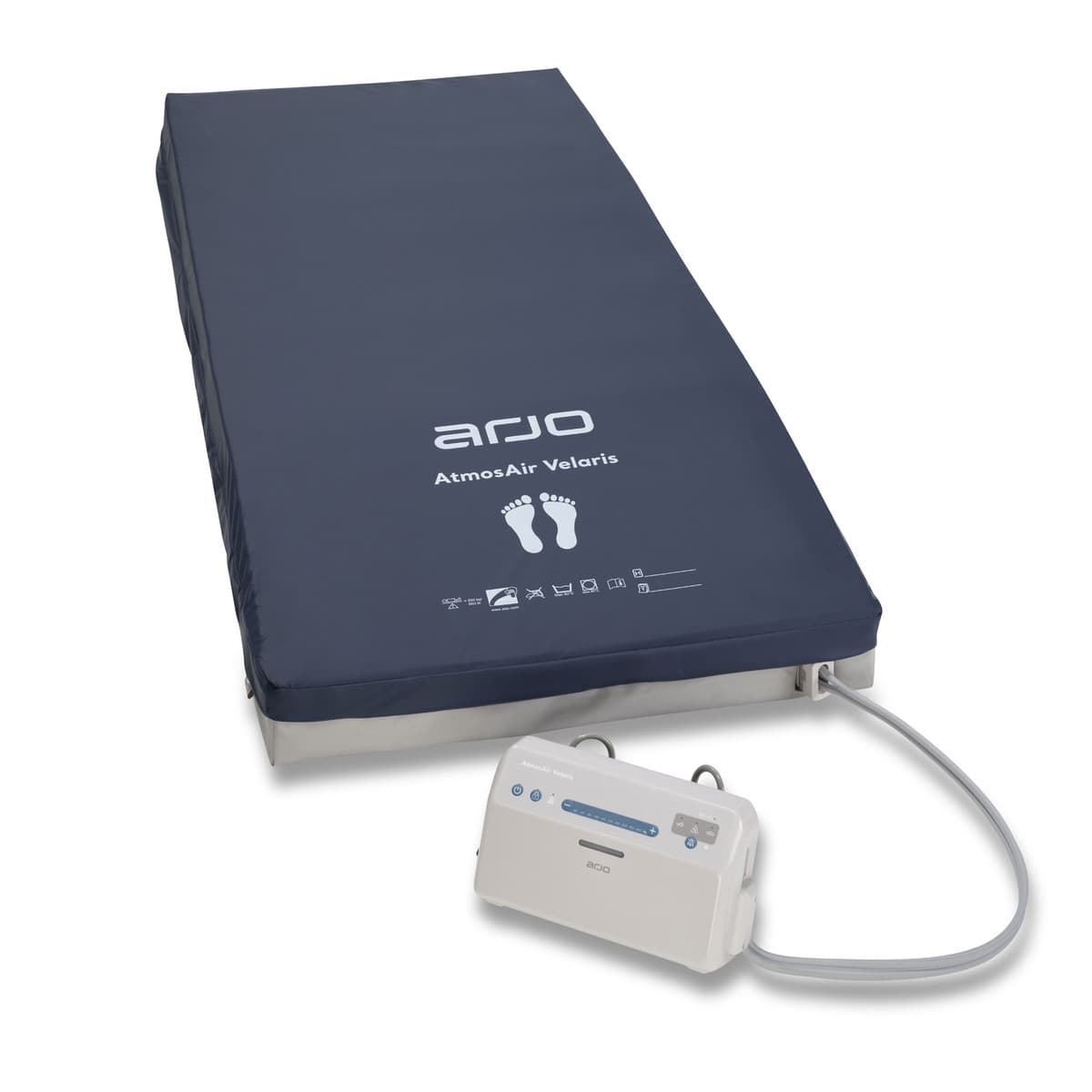

Arjo AtmosAir Velaris alternating hybrid mattress only
Features
Arjo AtmosAir Velaris alternating hybrid mattress is a flexible and alternating hybrid mattress system. Without the pump attached, it provides pressure redistribution through the AtmosAir Velaris Air Redistribution Module™ (ARM) to maintain comfort and pressure levels in each air cell. AtmosAir Velaris can be used across a wide range of patient risk categories and care settings. AtmosAir Velaris when connected to the (optional) pump, transforms to an alternating therapy surface that can achieve full pressure offloading¹ with AltoVac® technology while maintaining high comfort levels.
Alternating pressure pump with AltoVac - a unique vacuum technology
Offloading capabilities with maintained comfort
Using AltoVac technology to effectively deflate the foam filled air cells compresses them to a level where there is pressure offloading capabilities underneath the patient for periods of time. This also allows for a reduced peak pressure in the inflated cells to improve comfort and immersion while maintaining the offloading capabilities of the surface.
Instant step-up therapy
- AtmosAir Velaris performs as a dedicated alternating pressure surface in active therapy mode, but also provides non-powered pressure redistribution when the patient pressure risk level does not require alternating therapy.
- This makes it possible to use one surface for all patients except for those at very high risk of pressure injury. AtmosAir Velaris is approved for use in acute care, long term care and home care facilities.
Step up therapy system benefits | |
Patient | Caregiver |
Very low noise levels (19 dBA) | Instant step up of care - simply introduce the pump as required |
Low peak interface pressure for better immersion | Less nursing time needed as no patient transfer is required to step up care |
Slow and controlled movements of the surface during alternating therapy, providing the benefit of an alternating surface combined with the comfort of a foam surface | Fewer surfaces required in a facility to manage means less training, space requirement, disinfection and administration |
Easy bed egress through firm foam perimeter | Microclimate management is easily integrated by plugging Skin IQ overlay into the pump |
Sizing
Arjo AtmosAir Velaris alternating hybrid mattress only | |
Atmosair velaris | |
Cover fabric | Dartex Premium (welded) |
PVC free | Free |
Material fire tests | BS7175 Source 5 |
Mattress fire tests*** | BS597-1, BS597-2, BS6807 Source 5 |
Welded seams & handles | Yes |
Atmosair velaris standard mattress | |
Cover fabric | Dartex Premium (welded) |
Standard sizes* inches | 35 x 80 x 7 35 x 79 x 7 34 x 78 x 7 35 x 84 x 7 |
Ability to connect to AtmosAir Velaris alternating pressure pump | Yes |
Weight of mattress | 34 lbs. to 39 lbs. |
Maximum patient weight limit | 550 lbs. |
Atmosair velaris plus mattress | |
Cover fabric | Dartex Premium (welded) |
Standard sizes* inches | 48 x 84 x 7 |
Ability to connect to AtmosAir Velaris alternating pressure pump | Yes |
Weight of mattress | 53 lbs. |
Maximum patient weight limit | 1,000 lbs. |

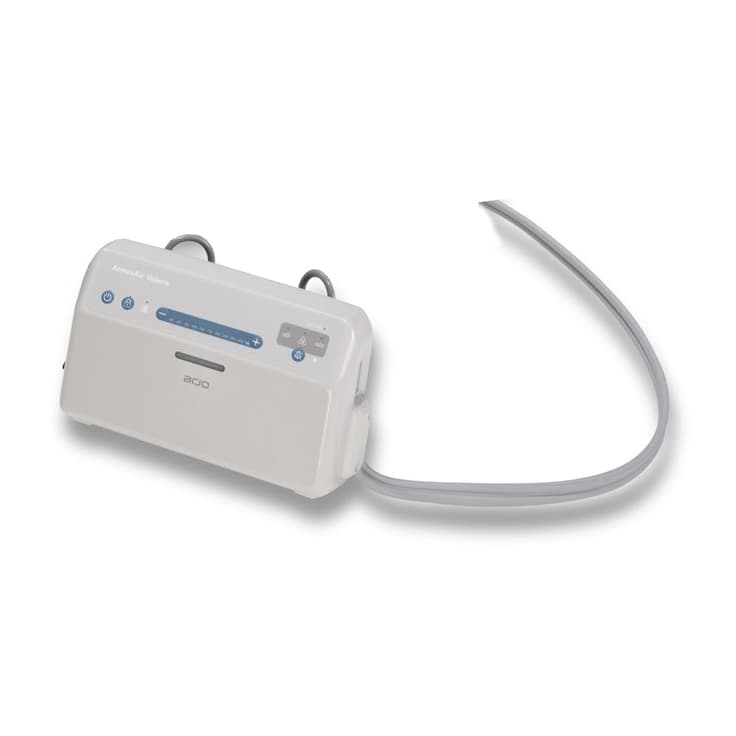

Atmosair velaris alternating pressure pump | |
Size | 13.3 x 4.2 x 7.9 |
Weight | 9 lbs. |
Alternating cycle time | 10 minutes |
10 minutes | 100-230 V |
Power input | 3-46 VA |
IP rating | IP22 |
Case material | PC ABS |
Sound output | 19 dBA |
Controls lock out feature | Yes |
Suppress audible alarm option | Yes |
Alarm pause | Yes (15 minutes) |
Skin® IQ adapter part number** | Power cable 636377 |
* Sizes outside of standard range may be available, please contact your Arjo representative to discuss requirements ** Does not come with AtmosAir Velaris Pump or Skin IQ coverlet; needs to be ordered separately *** Not available in Seat Cushion and AtmosAir Velaris Plus |
