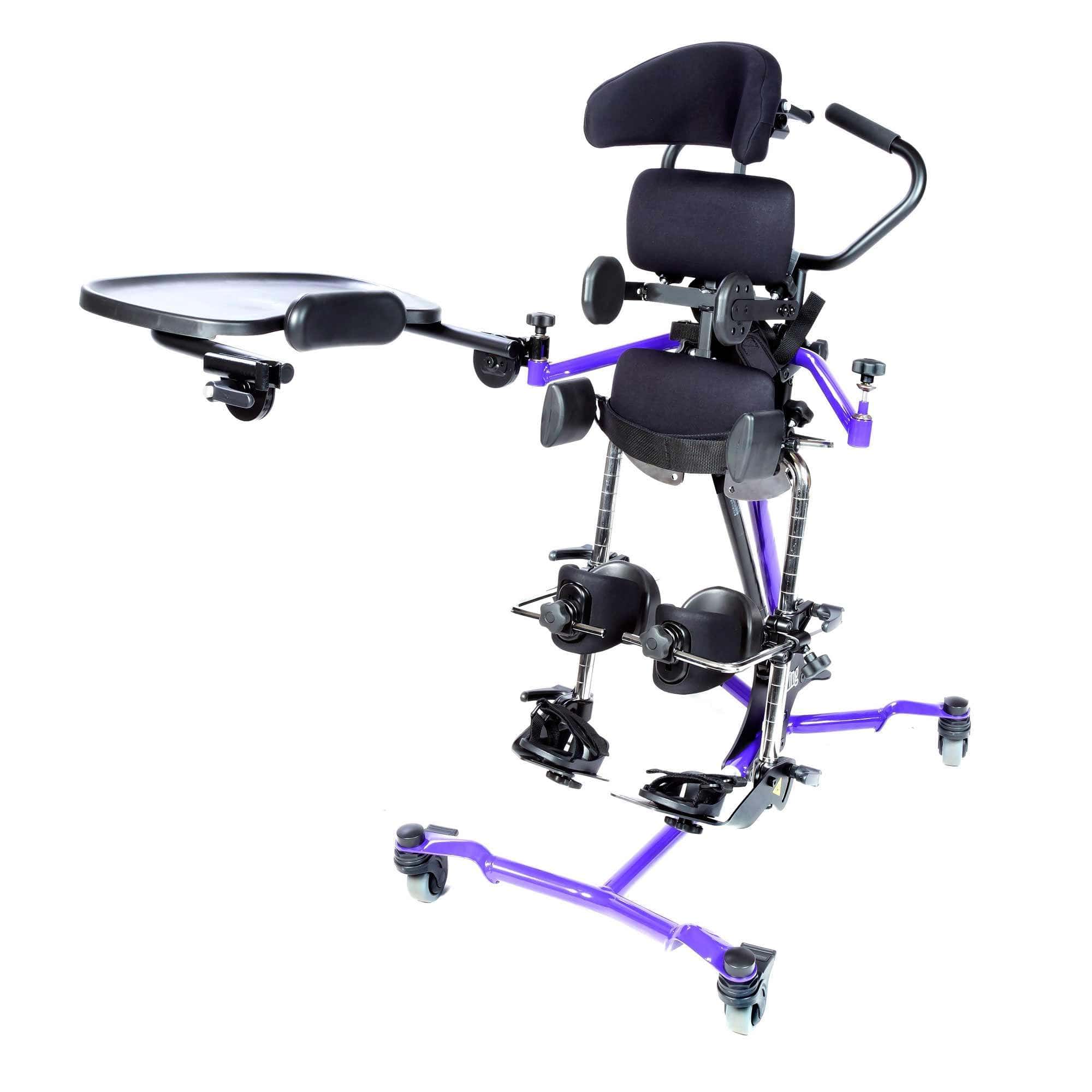

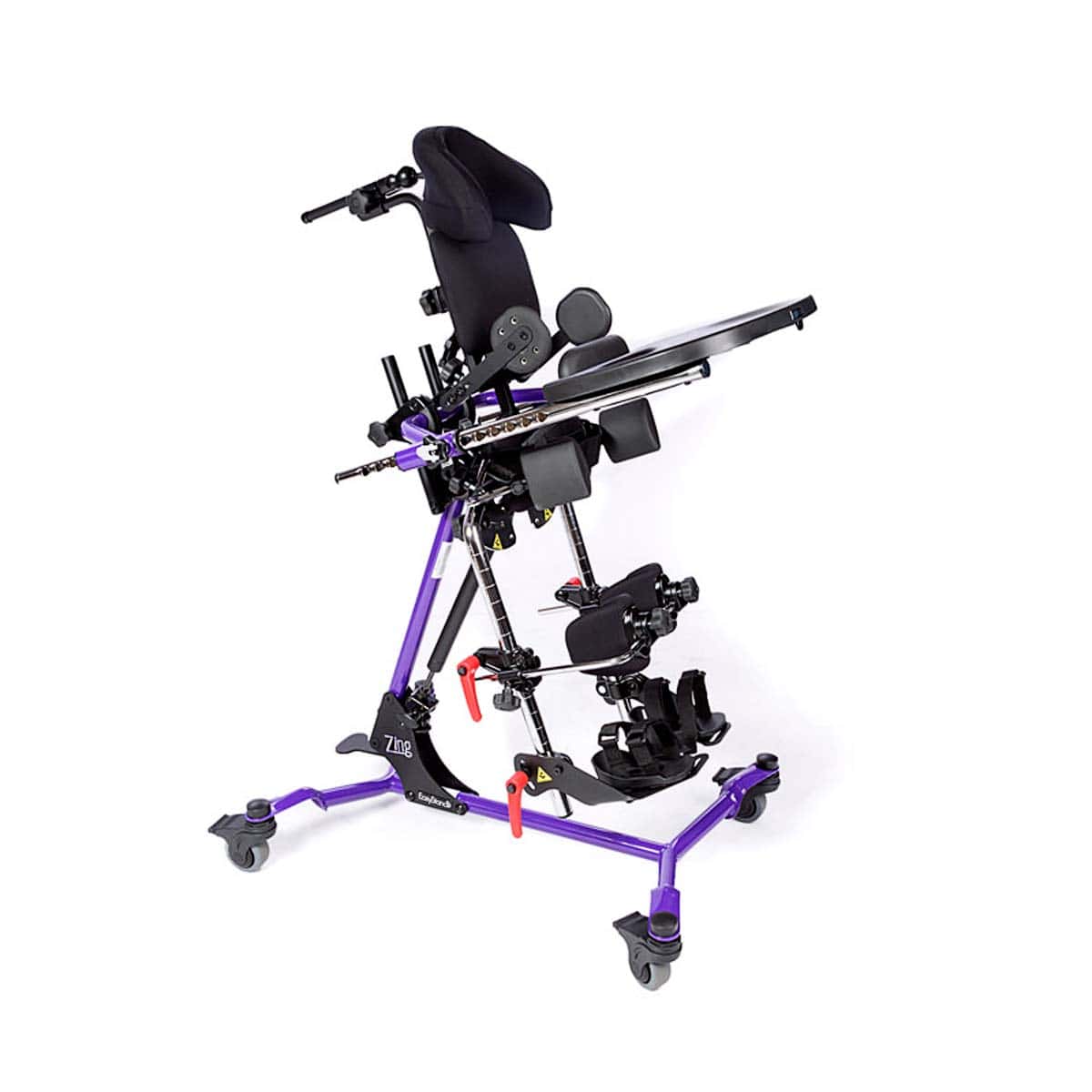

EasyStand zing multi-position stander |
User height range | 20"- 44" |
Maximum weight limit | 70 lbs. |
Transfer height (Horizontal position) | 32" |
Pelvic support to foot plate range | 7" - 22" |
Upper body support height range | 4" |
Kneepad depth range | 5" |
Kneepad inside width | 2.5", 3.25", 4.25", 5" |
Kneepad dimensions |
2.5" | 3.5" x 4" |
3.25" | 4" x 4" |
4.25" | 4.5" x 5" |
5" | 5" x 6" |
Kneepad height range | +/- 0.75" |
Multi-adjustable kneepads width range, center-to-center | |
2.5" | 4" - 9" |
3.25" | 4.5" - 9" |
4.25" | 5" - 9" |
5" | 6" - 7" |
Weight of basic unit | 55 lbs. |
Frame footprint - Caster-to-caster | 20" x 28" |
Frame footprint - Maximum dimensions | 21.5" x 29.5" |
Casters and wheels diameter | 3" |
Supine positioning | 0° - 90° |
Prone positioning | 90° - 0° |
Leg abduction | 30° per side |
Foot straps, extra small - Length over arch | 8" |
Foot straps, small - Length over arch | 10" |
Secure foot straps - Length over arch | 8", 10" |
Foot plate platform | 8" L x 12" W |
Multi-adjustable foot plates - Plantar / dorsi | +/- 20° |
Multi-adjustable foot plates - Fore / aft | +/- 0.75" |
Multi-adjustable foot plates rotation | 30° left / right |
Shadow tray size | 11" x 19" |
Shadow tray height range | 3" |
Shadow tray fore / aft range | 0" - 10" |
Swing-away tray size | 11" x 19" |
Swing-away tray height range | 3" |
Swing-away tray fore / aft range | 4" - 9" |
Swing-away tray angle adjust range | 40° inclines to -90° |
Hip support pad size | 3.5" H x 3.5" W |
Hip supports width range | 6" - 10" |
Lateral support pad size | 3.5" H x 3.5" W |
Lateral supports width range | 7" - 11" |
Lateral supports height range | 3.5" |
Lateral supports fore / aft range | 1" |
Planar pelvic support pad | 5" x 7" |
5" x 9" |
Form to fit pelvic support pad | 5" x 7" |
5" x 9" |
Planar upper body support pad | 5" x 7" |
5" x 9" |
Form to fit upper body support pad | 5" x 7" |
5" x 9" |
Chest pad | 3" H x 8" W |
Chest strap (Pad size) | 5" x 8" |
Chest strap - User circumference | Up to approx 24" |
X-Style chest vest - Extra small | 9.5" L x 9" W |
X-Style chest vest - Small | 11" L x 9.5" W |
Head support - Height range | 8" |
Head support - Depth range | -2.5" to +1.5" |
Head support cushion size - Extra small | 5" H x 8" W |
Head support cushion size - Small | 6" H x 10" W |
Flat headrest | 5" H x 7" W |
Positioning belt - Hip circumference | Up to approx. 24" |
