Leckey horizon stander

Note: Images may show upgrades

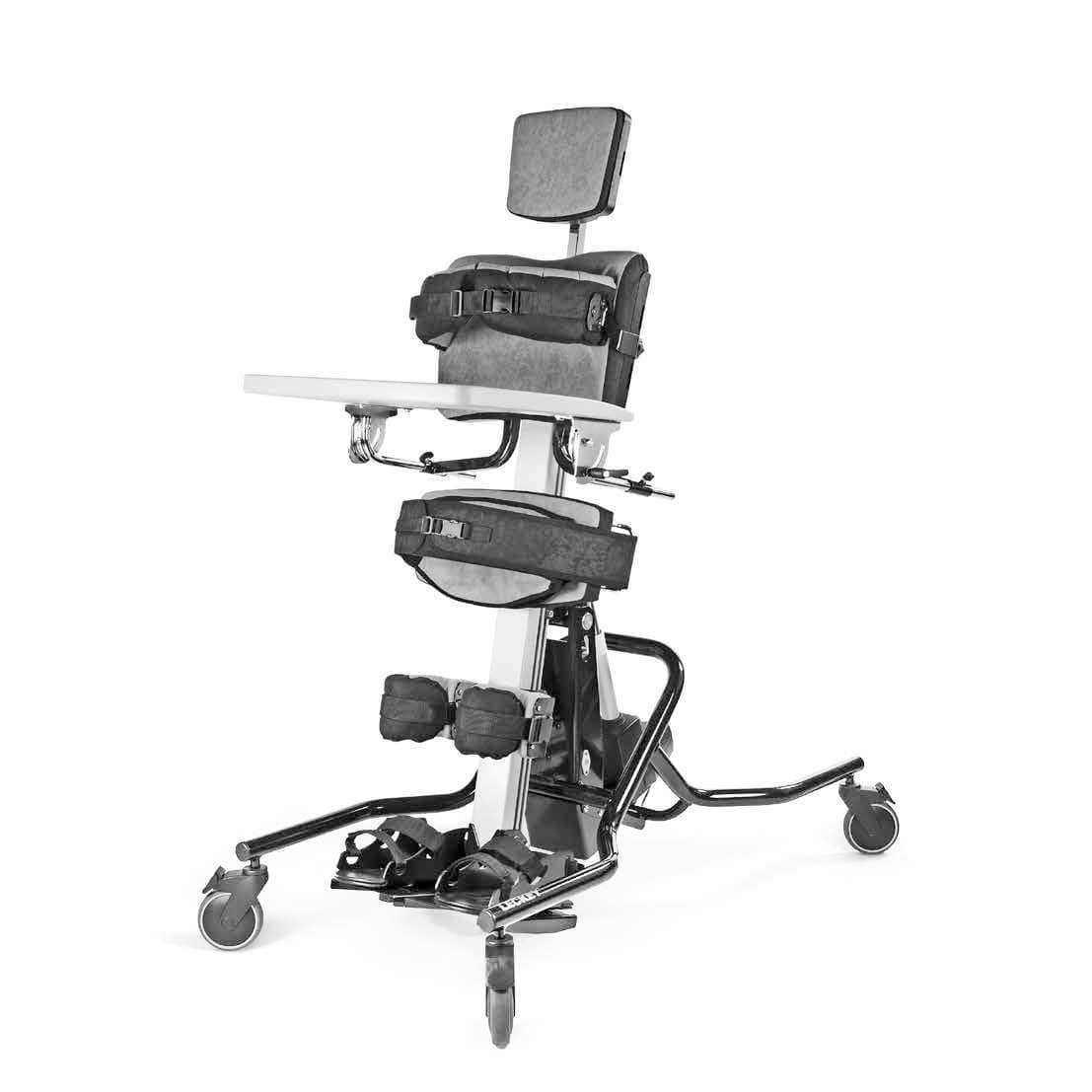

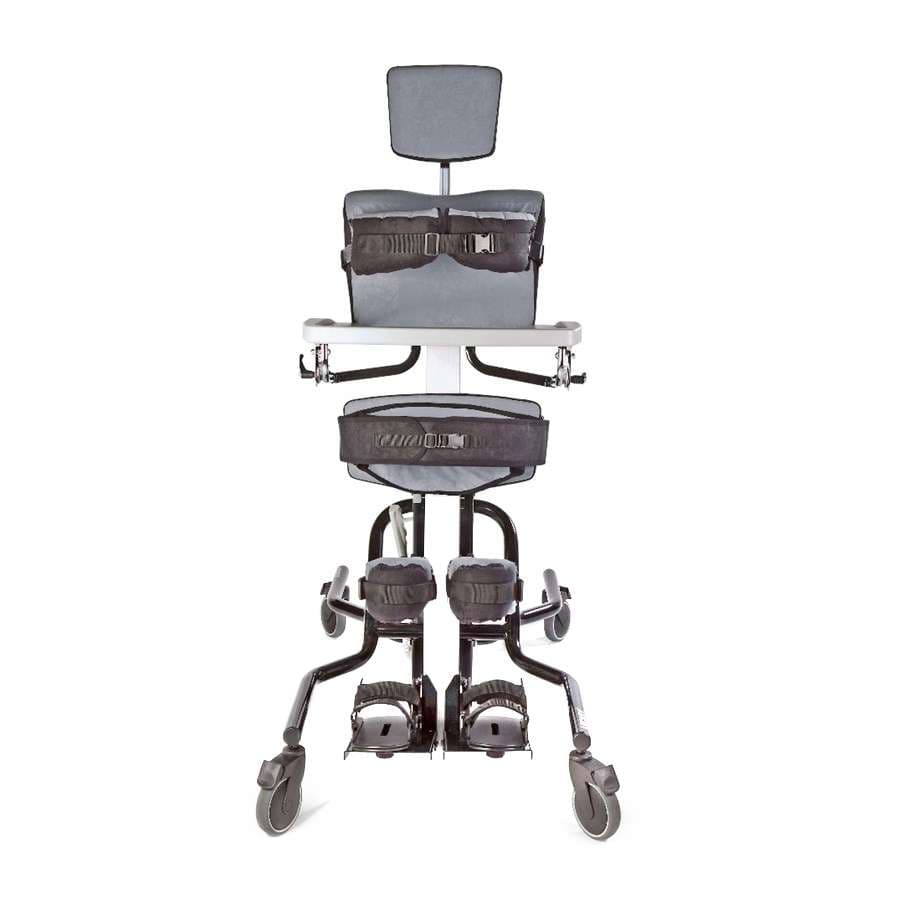

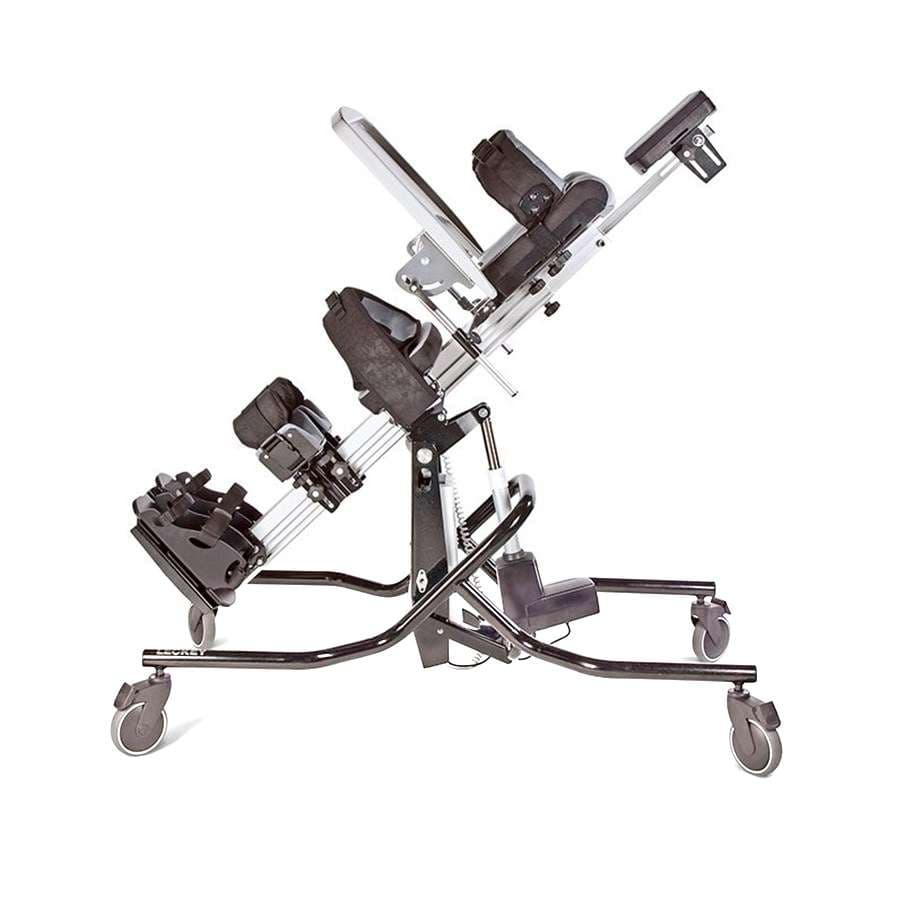

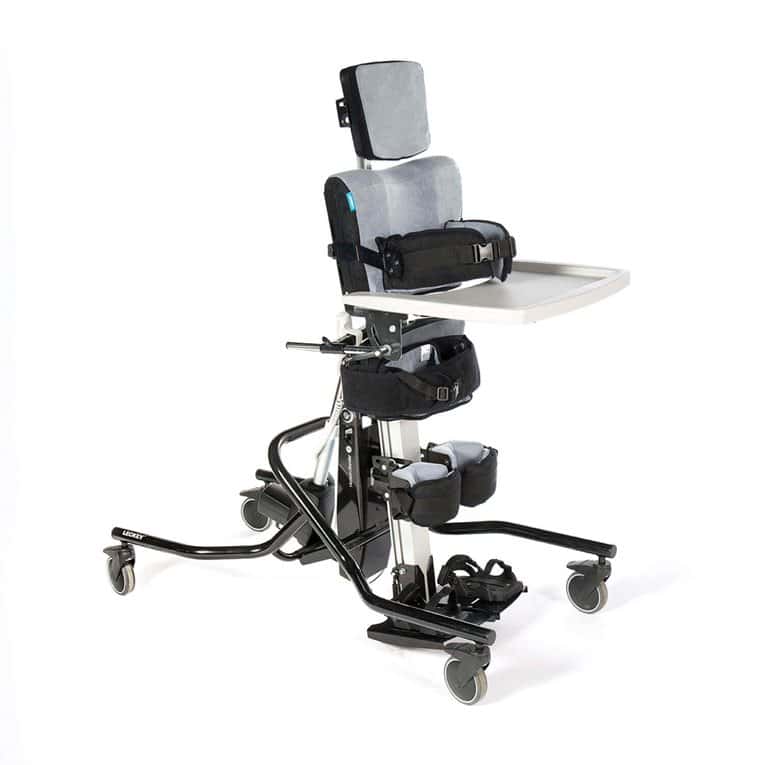

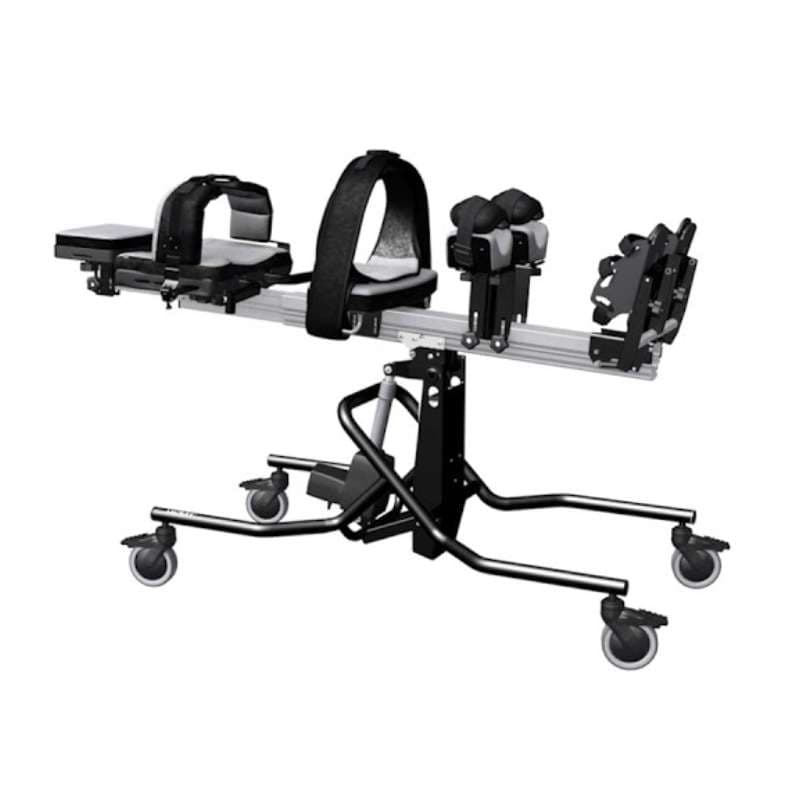

Leckey horizon stander

Leckey horizon stander is a highly versatile power operated stander that promotes gradual, weight bearing support in the prone and horizontal standing positions for children with mild to more severe levels of physical involvement.

Special price upon request

Model: LHZ-1-178-BB-EXP
Free shipping*

Please call or email us to order the accessories separately.

Features

Details

Leckey horizon stander is a robust, durable and adjustable supine, upright and prone stander. Horizon stander’s innovative design enables easy and safe transfers. Horizon is ideally suited for more complex users or for young adults who have not benefited from standing therapy for some time. Horizon stander features non-slip adjustment knobs that make it quick and easy to set-up and adjust for multiple users in classroom, therapy room or home environments.

Includes:

Hip pad
Chest pad
Basic footplate
Spine assembly
Standard knees
Flexible chest laterals

Services available:

resna certified assistive technology practitioner (ATP);

please call us for product customization as per your requirements

product trials; delivery; setup and fitting services available for clients in our local service area

client measurements recommended to be submitted along with your order

Sizing

Additional Info

SKU

LCLHZ-1-178-BB-EXP

Model

LHZ-1-178-BB-EXP

HCPCS

E1399

Brands

Leckey

Technical Specifications

Leckey easy seat	Size1	Size 2	Size 3
Age range	4 - 10	9 - 18	14 - Adult
Horizontal position L x W x H	44.7" x 22.8" x 30.7"	50.4" x 25.2" x 31.7"	50.4" x 25.2" x 31.7"
Weight of product	97 lbs.	110.6 lbs.	130 lbs.
Maximum user weight	110 lbs.	176 lbs.	220 lbs.
User standing height (Min / Max)	39.4" / 55.1"	55.1" x 70.9"	61" / 70.9"
Shoulder height - footplate to top of pad (Min / Max)	32.3" / 45.3"	39.4" / 57"	39.4" / 57"
Hip pad height - footplate to top of pad (Min / Max)	17.7" / 29.5"	29.5" / 37.4"	29.5" / 45.3"
Hip pad width (Min / Max)	6.9" / 10.6"	8.3" / 15.3"	12.2" / 18.5"
Knee height - footplate to middle of pad (Min / Max)	9.8" / 17.7"	15.7" / 21.6"	15.7" / 25.6"
Width between chest laterals (Min / Max)	7.9" / 11.8"	9.4" / 14.9"	13.4" / 18.1"
Footplate angle adjustable + / -	10º	10º	10º
Tray sizes	16.5" x 17.3"	20.5" x 23.2"	20.5" x 23.2"
Tray angle adjustment - prone version	0º to 40º	0º to 40º	0º to 40º
Tray angle adjustment - supine version	-20º to +30º	-20º to +30º	-20º to +30º
Frame clearance - bottom of Ski to ground	6.1"	7"	7"

Order Forms

Standing frame measurement guide

Leckey Horizon stander order form

Warranty

Warranty applies, subject to normal wear and tear, when the products are used as intended, without unapproved modifications, following all manufacturer instructions and requirements.
Duration of warranty is 24 Months effective from the date of delivery to the customer.
Manufacturer’s sole obligation under this Limited Warranty shall be to repair, replace, or re-fabricate at no charge, or to refund or credit the cost of the system or component there of to the original purchaser, at manufacturer’s sole discretion.
Limited Warranty does not cover labor, freight charges, or damage due to accidents, neglect, misuse or operation beyond capacity, parts damaged by improper installation, substitution of parts not approved by the manufacturer, any alteration or repair by others that, in manufacturer’s judgment, materially or adversely affects the product or part.
Parts Under Warranty will be covered at no cost.
Any labor cost for service under warranty is not covered as per our terms of sale
Standard manufacturer terms & conditions apply for warranty of this product.

Please call us for Specific Details.

Returns

No returns accepted after 30 days from date of shipment.
All returns are subject to a 30% restocking fee.
Manufacturer will charge restocking fees, if non-stock items cancelled after 3 weeks of placing the order.
All returns must have an RGA number (Returned Goods Authorization Number) unauthorized returns will not be accepted.
The products must be in new, unused condition, not tampered with, in original packaging and returned at the customer's expense in the original packaging.
If your return is not due to any manufacturing defect then the original shipping cost will be deducted from the total refund.
We are unable to accept returns or exchange of car seat products due to safety regulations and restrictions.
No returns accepted for Hygiene & Bath products due to health concerns.
Custom orders are non-refundable and non-returnable.
Standard Manufacturer Terms & Conditions Apply for Return Policy of this Product.

Please call us for specific details.

Configure size options/accessories available:

*Support frame
*Color
*Base/Chassis (Must match Frame size. Includes Worldwide Adapters)
Headrest
Chest Support
Hip Laterals (Require if Hip Belt is not selected)
Hip Belts (Require if Hip Laterals are not selected)
Knee Support
Sandals with Straps (pair)
Flip Up Footplate Assembly
Tray
Horizon Grab Rail
Horizon Grab Posts
