Nikomed Trace 1 20/30 Series ECG Stress Electrode, Foam Backing

Nikomed Trace1 20/30 Series Foam Monitoring Electrodes, Solid Gel are latex-free and hassle-free devices designed for the most accurate recordings. Made with Silver/Silver Chloride (Ag/AgCl), the Electrodes are made to permit exact placement, optimal adhesive coverage, and long-term monitoring. These electrodes require less raw material, save overall cost, and are environmentally friendly. They are super-tack adhesive and provide superior contact.

Features

• Tear-drop shape
• Solid gel technology.
• Reliable signal quality.
• Conductive solid-gel center
• White foam construction with snap.
• 35mm x 50mm, Stress, Holter, EMS & ECHO (2015)
• Latex-free and Hassle-free Device
• Made for the most accurate recordings
• Designed with foam, solid gel and Ag/AgCl
• Exact Placement, Optimal Adhesive Coverage, and Long-term Monitoring
• Comes in various sizes, electrode types and 300 per Box .

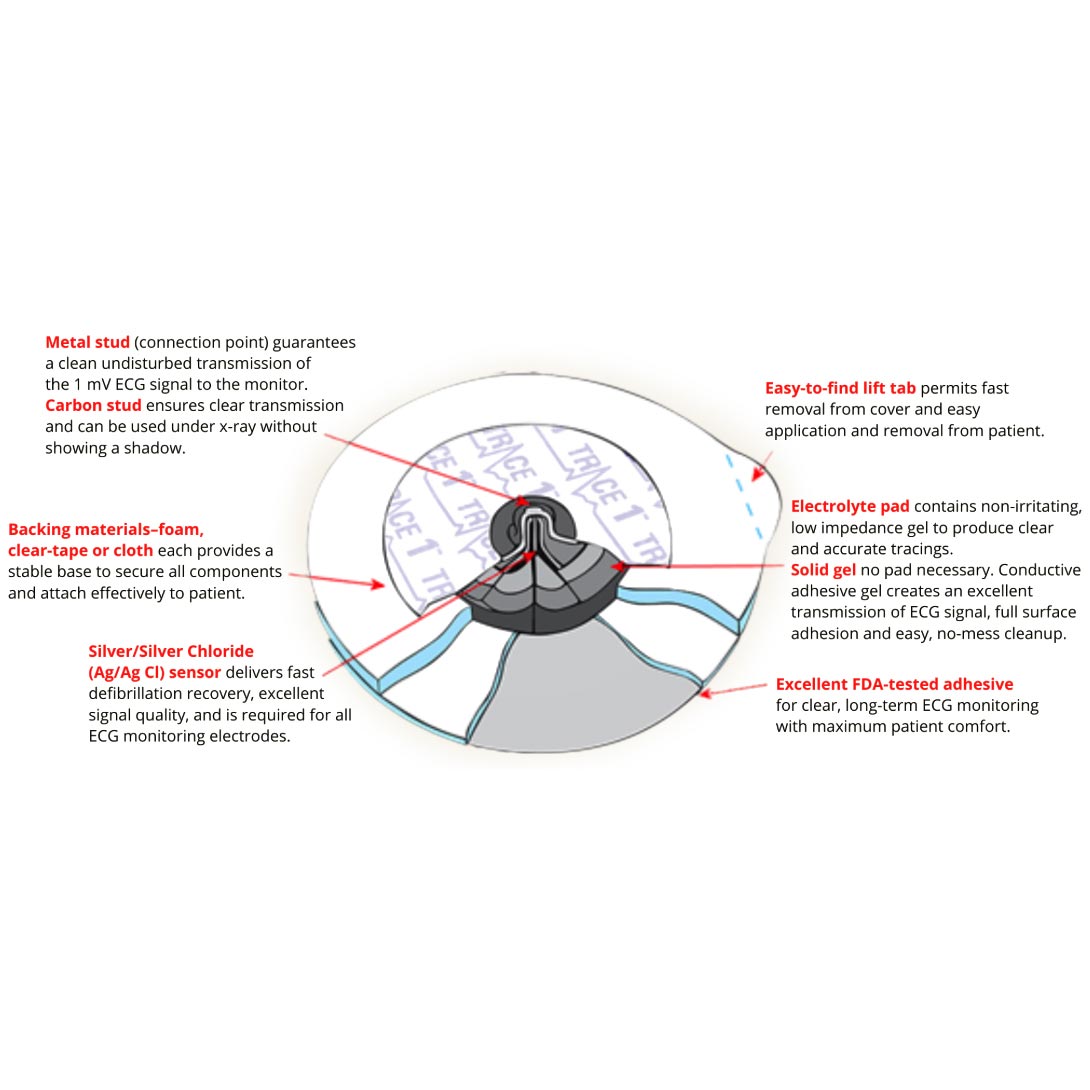

• Lift tab that assist is quick removal from cover to easy application and removal from patient
• Electrolyte pad contains non-irritating gel to produce a accurate tracings
• FDA Tested adhesive for clear long term ECG monitoring to assist with patient comfort
• Metal stud helps to insure a clean undisturbed transmission of ECG signal to the monitor
• Tapered design allows for quick, easy and accurate placement.
• Super-tack adhesive for outstanding contact

Product Specifications:

• Shape: Disposable, pregelled monitoring electrode
• Dimensions:
  • Max size (L/W): 4.5 cm x 3.4 cm
  • Total Area: 12.9 cm²
  • Gel Area: 2.0 cm²
  • Adhesive Area: 12.3 cm²
• Materials:
  • Stud: Stainless Steel
  • Label: PET-Foil
  • Backing: PE-Stress-Foam
  • Adhesive: Medical-Grade Acrylate
  • Sensor: Silver/Silverchloride (Ag/AgCl)
  • Gel: Solid Adhesive Gel
  • Release Liner: Siliconized PET-Foil (transparent)
• No latex, no PVC, non-sterile

Shelf Life:

• 24 months unopened

Storage Conditions:

• Minimum: +5°C
• Maximum: +30°C

Classifications:

• MDR Annex VIII: Class I
• CFR 21 870.2360: Class II

Packaging:

• Pieces per Card: 5
• Pieces per Pouch: 30
• Pieces per Box: 300
• Box dimensions: 22 cm x 18 cm x 15 cm
• Packaging Material: Polyethylene (PE), Aluminium (Al), Paper, Cardboard

Biocompatibility (ISO 10993-1):

• Cytotoxicity: Pass
• Skin Irritation: Pass
• Sensitization: Pass

Electrical Values:

• DC Offset: ≤ 0.5 mV (AAMI limit ≤ 100 mV)
• DC Offset (after capacitor discharge, 5 sec): ≤ 15 mV (AAMI limit ≤ 100 mV)
• Recovery Slope: ≤ -0.3 mV/sec (AAMI limit ± 1 mV/sec)
• AC Impedance at 10 Hz: ≤ 150 Ω (AAMI limit ≤ 2000 Ω)
• Internal Noise: ≤ 10 µV (AAMI limit ≤ 150 µV)
• Bias Tolerance (24 h): ≤ 10 mV (AAMI limit ≤ 100 mV over 8 hours)

Key Features:

• X-Ray Translucent
• Gel Area: Designed for efficient signal transmission
• Release Liner: Ensures smooth and easy removal of the electrode

This electrode is designed for use in monitoring applications with a focus on biocompatibility and electrical reliability.
